"RS" style door pull straps
The use of any Rennline product is the sole responsibility of the end user. Rennline Inc. accepts no responsibility for
warranty voids or damage resulting from the use of these products. Due to the varying location of wiring harnesses and
other components, carefully inspect any area prior to drilling. All Rennline products are intended for off road use only and
Check to make sure you have all parts listed prior to installation. If anything is missing contact us immediately.
(2) Handle brackets
(2) 00 Grommets MC86625K31
(2) 8-32 x 5/16" SS Button Head Screw MC92949A191
(2) Handle Straps 4.25"
(2) Handle cover plates
For an installation video of this product, go to www.rennline.com and search for P/N DH24, then click the video link.
2
Remove plug

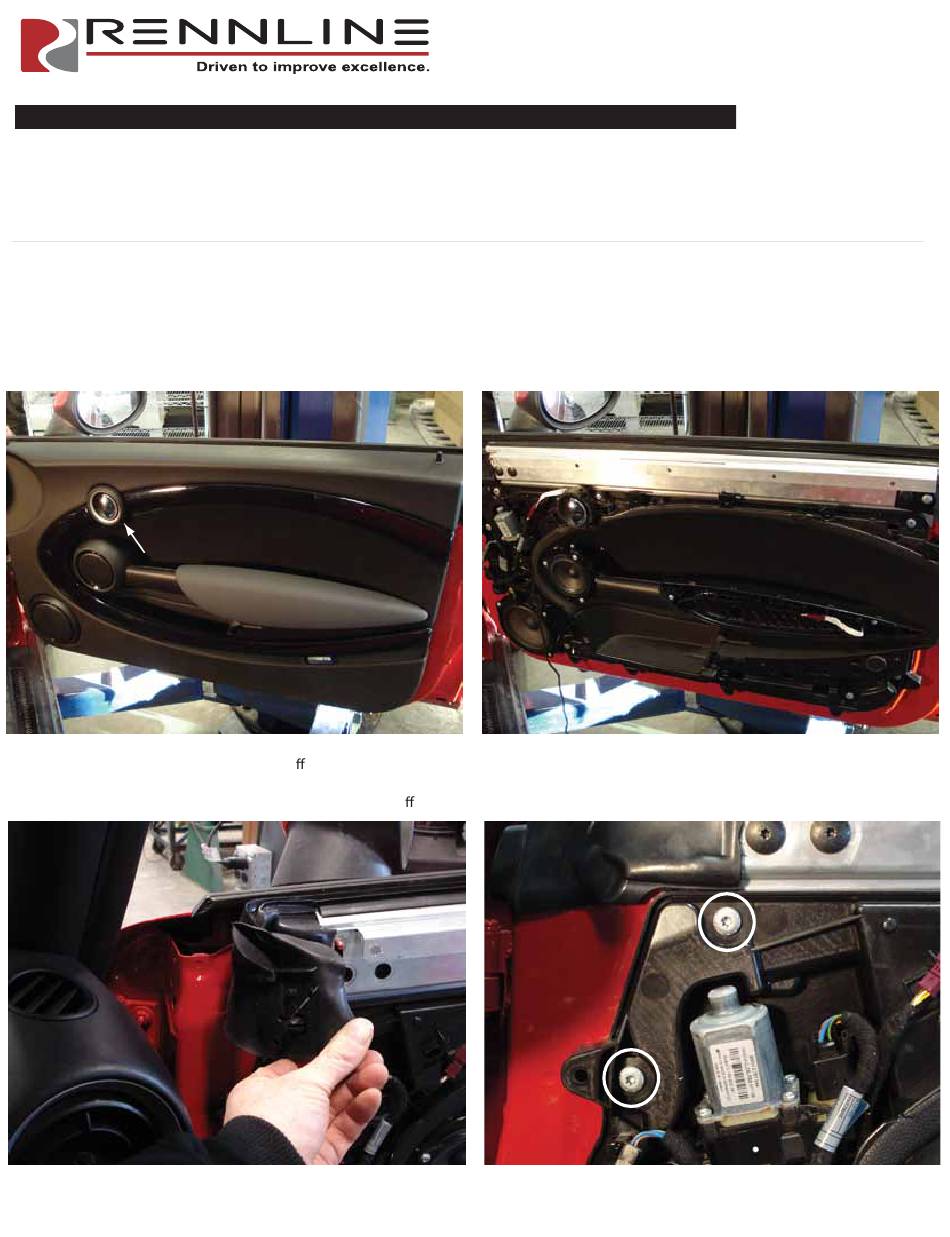

Step 1: Put window in the down position. Using a screw driver with
tape wrapped around the tip, carefully pry o , (1) armrest, (2) handle
surround (remove small plug at bottom) and the (3) main door card.
See photo for locations. Don't be afraid, they do all just pull o .
Step 3: Release the rubber boot on the front of door.
P/N DH24
READ BEFORE INSTALLATION
should be installed by a qualified automotive technician.
3
1
Order Online: WWW.RENNLINE.COM
Step 2: Your door should now look like this.
Step 4: Remove the (11) torx head screws located all the way around
the door component housing. We have circled 2 of these for you in
the photo above.
EM Sales@rennline.com
PH 802.893.7366
FX 802-893-7311
