Read all instructions before beginning the install to become familiar with the install procedure.
This kit is designed to be installed into the Rennline LED or HID Headlight Upgrade only. You
must purchase the Rennline LED or HID Headlight Upgrade kit separately.
Unpack the Parking Light LED kit. Check to be sure all parts are included and undamaged
before you begin the install.

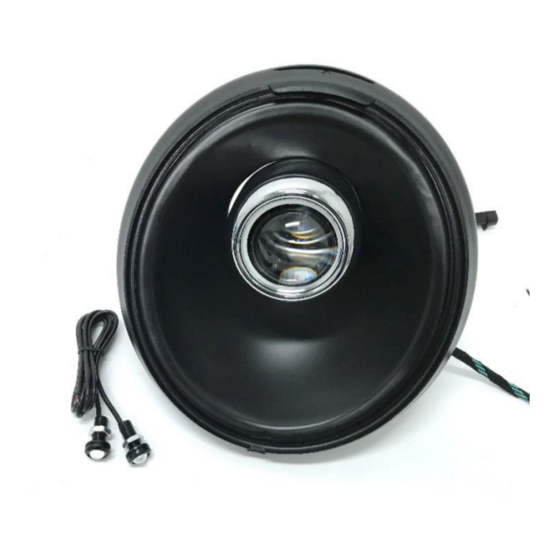

Included with Parking Light LED kit:
1. Two Parking LEDs
2. Four small diameter spade terminals
3. Four large diameter spade terminals
Page | 1
Rennline LED or HID Headlight
Parking Light LED Installation Guide
Rev A 10/19
Advertisement
Table of Contents
Related Manuals for Rennline EL13
Summary of Contents for Rennline EL13
- Page 1 Read all instructions before beginning the install to become familiar with the install procedure. This kit is designed to be installed into the Rennline LED or HID Headlight Upgrade only. You must purchase the Rennline LED or HID Headlight Upgrade kit separately.
- Page 2 1. Mark the location of the parking light on the back of the projector surround. Use the rounded edge of the cutout in the frame indicated below to mark the center location. 2. Remove the projector surround from the headlight frame. 3.
- Page 3 Connect the black wire from the Parking LED to the vehicle wiring harness ground wire. d) Connect the red wire from the Parking LED to the parking light wire in the vehicle wiring harness. 6. Refer to the Rennline LED Headlight Upgrade kit Installation Guide to complete the headlight installation. Page | 3...
