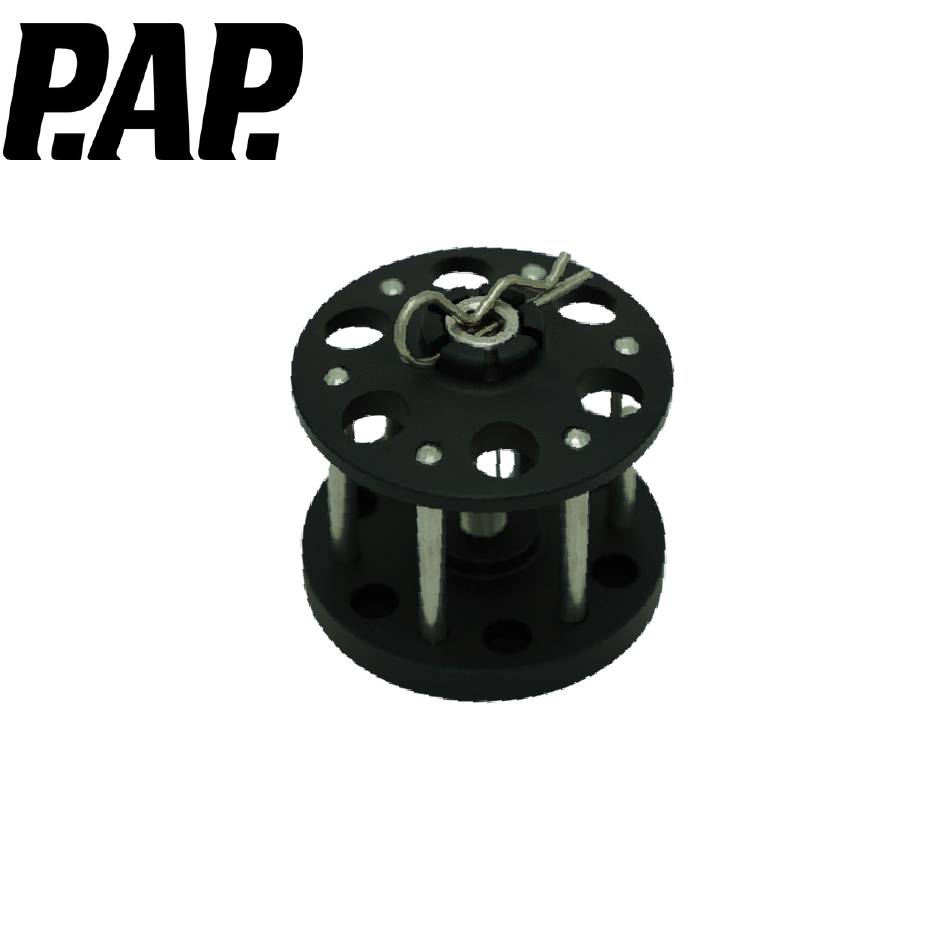

PROPELLER QUICK-RELEASE HUB
user manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROPELLER QUICK-RELEASE HUB and is the answer not in the manual?

Questions and answers

Related Manuals for P.AP. Team PROPELLER QUICK-RELEASE HUB

Summary of Contents for P.AP. Team PROPELLER QUICK-RELEASE HUB

  • Page 1 PROPELLER QUICK-RELEASE HUB user manual...
  • Page 2 ELEMENTS INCLUDED in the box...
  • Page 3 We drill the propeller with a 6.3mm drill bit We align the drill bit with the propeller holes We move the drill bit back and forth a couple of times...
  • Page 4 Installation of the quick release onthe pulley We align the support We insert the screws into plate with the pulley their threads We tighten the screws in a cross pattern to 10Nm...
  • Page 5 Installation of the front plate on the propeller We insert the front plate into the propeller Using our thumbs as Make sure it has entered assistance all the way to the end...
  • Page 6 Installation of the propeller on the paramotor We screw the central We tighten the central screw into the bracket screw to 17Nm We insert the safety...
  • Page 8 FOLLOW US ON: @papteamparamotors PAP Team Paramotors PAPTEAM Paramotors www.papteam.com Propu sion Auxi iar Parapente, S.L. Urb. Be -Air Water Garden Ca e a mora eja Loca 1 2968 - Estepona 952 88 48 11 - info@papteam.com...
