INSTALLATION GUIDE

AND USER MANUAL

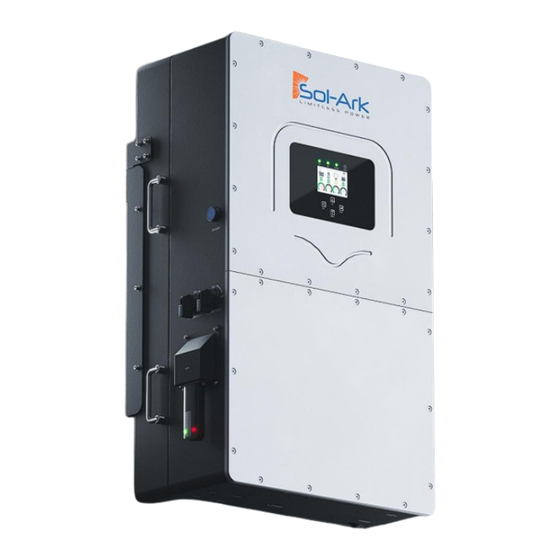

Sol-Ark 60K-3P-480V

COMMERCIAL & INDUSTRIAL

NORTH AMERICA

2024 Sol-Ark LLC | SK140-0019-002

Table of Contents

Troubleshooting

Need help?

Do you have a question about the 60K-3P-480V and is the answer not in the manual?

Questions and answers

Summary of Contents for sol-ark 60K-3P-480V

Page 3 By using the product, users acknowledge their understanding of these disclaimers and agree to use the product at their own risk. Sol-Ark reserves the right to update or modify product information, specifications, and guidelines without prior notice.
Page 4: Table Of Contents
Table of Contents IMPORTANT INSTRUCTIONS ............................................5 1. Sol-Ark: At a First Glance ..........................8 1.2 Specifications ................................................ 10 1.3 Connection Requirements ..........................................12 2. Installation ................................. 13 2.2 Integrating Batteries ............................................15 2.3 Battery Communications ............................................. 16 2.4 Connecting Solar PV to the Inverter ........................................17 2.5 Integrating a Generator ............................................
Page 5: Important Instructions
IMPORTANT INSTRUCTIONS This manual provides crucial information for the installation and operation of the 60K-3P-480V Hybrid Inverter System. Qualified and authorized personnel are required to conduct the installation and maintenance procedures adhering to all safety standards and system requirements outlined in this document.
Page 6 WARNING: Risk of physical injury or death. Use caution when using lifting equipment to move battery modules and components. WARNING: Risk of physical injury or death. Boxed battery modules Copyright 2024 Sol-Ark LLC | SK140-0019-003 ©...
Page 7 For more information on locating recycling resources in your area, please visit our website at sol-ark.com/recycling. Requirements for Installation Personnel Li-ion All work MUST comply with local code, regulations, and industry standards. The installation of the 60K-3P-480V can only be completed by qualified people with appropriate qualifications as determined by the local AHJ. Copyright 2024 Sol-Ark LLC | SK140-0019-002 ©...
Page 8: Sol-Ark: At A First Glance
The box should include all items shown in the component guide. If there is damage or missing parts, immediately call the phone number (USA) +1 (972) 575-8875 Ext. 2. COMPONENT GUIDE The Sol-Ark 60K-3P-480V system includes the following components: Component Description...
Page 9 CN1 - Terminal block for sensors and accessories 4x MPPT inputs terminals CN2 - Terminal block for sensors and accessories (200A) LOAD terminal Communication Ports NEUTRAL / GROUND Busbars 2x (50A) Battery port (200A) GRID terminal (200A) GEN terminal Copyright © 2024 Sol-Ark LLC | SK140-0015-003...
Page 10: Specifications
1.2 Specifications NOTE: Temperature Derating Starts at 75°C with inverter shutdown at 82°C SOL-ARK 60K-3P-480V FASTENER TORQUE TABLE Do not use impact drivers to tighten any fasteners on the inverter Terminal / Breaker Torque [ft-lb] Torque [Nm] “LOAD” 18.75 ft-lb 25.5 Nm...
Page 11 2. Active BMS communication is required for all lithium batteries. A list of compatible battery partners can be found on our website. Sol-Ark has a policy of continuous improvement and reserves the right to modify its specifications at any time and without prior notice. Please visit sol-ark.com for the latest information.
Page 12: Connection Requirements
5/8 in [20.3 mm] [25.4 mm] [16 mm] 1/4 in [6.35 mm] 4 AWG MAX 4/0 AWG MAX 10 AWG MAX 22 AWG MAX CT Sensors (Included) 1.85“ [47 mm] 10 ft [3 m] Copyright 2024 Sol-Ark LLC | SK140-0015-003 ©...
Page 13: Installation
FOR WHOLE-SITE BACKUP: Connect the utility grid feed to the “GRID” terminal. • An external service disconnect must be installed between the grid and the Sol-Ark. Size the disconnect according to code. • Connect the “LOAD” output to the Main Service Panel. Follow electric code to select proper wire gauge.
Page 14 National Electrical Code®, paragraph 110.26 and Canadian Electrical Code® CSA C22.1 are adhered to. C. The Sol-Ark 60K-3P-480V is a NEMA 3R - IP65 enclosure that is rated for outdoor installation but can also be installed indoors.
Page 15: Integrating Batteries
Figure 4: Battery Wiring Output Diagram The Sol-Ark inverter has two input battery terminals for single or dual battery connections. To wire a battery to the inverter, lift the actuation levers and insert the 6-4 AWG battery conductor fully into the terminal. DO NOT force open the battery actuation levers more than 90°.
Page 16: Battery Communications
The Sol-Ark 60K-3P-480V inverter can establish closed-loop battery communication through one or two separate RJ-45 ports labeled “BMS1” and “BMS2”. Communication with battery BMS will depend on the wiring of the battery bank and the wiring to the Sol-Ark inverter.
Page 17: Connecting Solar Pv To The Inverter
Configure and wire the HV batteries so that there are two battery banks, each with their separate communication source. Closed-loop communications are established by connecting each communication cable to a BMS port of the Sol-Ark (“BMS1” and “BMS2”). “☐ Parallel Bat1&Bat2” setting on the Batt setup menu SHOULD NOT be enabled, the dual battery bank wiring configuration shown earlier MUST be carried out.
Page 18 AC Coupling on the GRID Side Installing AC coupled inverters upstream of the GRID port of the 60K-3P-480V, such as with a load or supply side connection, is supported for grid connected systems but has some notable limitations when using the inverter for backup or grid-forming mode: Does NOT allow the usage of grid-tied inverter production during grid outages to charge batteries or power loads.
Page 19: Integrating A Generator
Installation of CT sensors on generator lines is only required if “Peak Shaving” is intended to be used. Improve the Generator & Sol-Ark Compatibility Navigate to Settings → Grid Setup → Grid Selection → Grid Mode and program the following values to improve the Sol-Ark and generator compatibility and operating range to avoid frequent disconnections.
Page 20 If connecting more than one HV battery in parallel to the Sol-Ark inverter, divide the Gen or Grid “A” value by the # of batteries to estimate the current (A) flowing to each HV battery.
Page 21: Integrating Sensors And Accessories
BMS2 RS485 Figure 9: Inverter Terminal Blocks Figure 8: Overview of Inverter Pinouts 1. Sensor Pin Out (Located in Sol-Ark user area) CN1: 1 2 3 4 5 6 7 8 9 10 11 12 Max. 5A Secondary CTs ONLY: •...
Page 22 CAN port data is in a proprietary format. Sol-Ark does not support 3 party usage currently. • The RS485/RTU port utilizes the MODBUS protocol, data is in a proprietary format. Please contact Sol-Ark to request the MODBUS register map if it is required for your application. RS485...
Page 23: Connecting Current Transformers (Cts)
The CT sensors (or limit sensors) enhance system capabilities by enabling the use of the system work modes known as “Limited Power to Home” (Meter Zero) and “Grid Peak-Shaving”. The CTs will measure and calculate total load demand which the Sol-Ark 60K-3P-480V will then use to accurately supply and offset all existing loads (Meter Zero).
Page 24 600A: 5A 12000:1 105.0mm x AccuEnergy AcuCT-4161R 800A:5A 16000:1 155.0mm (4.10” x Brochure 6.10”) 1200A:5A 24000:1 NOTE: These CTs are compatible with Sol-Ark HV inverters only. Do not use with Sol-Ark LV inverters. Copyright 2024 Sol-Ark LLC | SK140-0015-003 ©...
Page 25: Pv Rapid Shutdown
This function REQUIRES batteries to auto detect and auto correct CT orientation. AC coupled inverters need to be OFF during the detection test. If this test is done with connected AC-coupled systems, a factory reset of the Sol-Ark must be performed. Install the CT sensor as described previously.
Page 26 Turn ON battery modules and ensure appropriate voltage on each battery. Verify nominal voltage of battery bank according to the battery installation manual. C. Turn ON the external battery disconnect. Verify that the voltage at the Sol-Ark terminals is within 2% of the voltage measured at the battery bank output.
Page 27: Power Cycle Sequence
TURN OFF all AC breakers / disconnects (“GRID”, “GEN” and “LOAD”). Wait a moment (~1 min) to ensure the inverter is completely de-energized. Make sure that the Sol-Ark is properly connected to the batteries, solar panels, “GRID”, “GEN”, and “LOAD”. Reverse the steps to turn ON the Sol-Ark.
Page 28: User Interface
Normal Alarm Green Green Green → DC PV input connected and → Grid is connected → Sol-Ark is fully energized* → Alarm state. Check the alarms menu. providing voltage. and providing voltage. and operating. Home Screen→ → “System Alarms” OFF → Minimum MPPT voltage not OFF →...
Page 29 A. Tap the solar panel icon to display the PV power generation graph. Displays power production over time for the PV array. C. Use up/down arrows (↑, ↓) to navigate between days. D. Month view/year view/total production. Copyright © 2024 Sol-Ark LLC | SK140-0015-003...
Page 30: Basic Setup
Seasons: Setup and customize the seasons for TOU. NOTE: Must be programmed using the touchscreen, currently not supported in MySolArk. Advanced Solar Arc Fault ON: Enables Arc fault detection algorithm on the MPPTs. Copyright 2024 Sol-Ark LLC | SK140-0015-003 ©...
Page 31: Battery Setup
UPS Time: Backup transfer time to essential loads upon grid disconnection. Default value of 5ms. Factory Reset Restrictions: Changes to these settings must be previously authorized by Sol-Ark technical support agents. Parallel Parallel: Enables communications between parallel inverters. “Master” and “Slave” inverters must be programmed.
Page 32 To use the “GEN” terminal as an AC coupling input for micro inverters or string inverters, enable " ! For AC Coupled Input to Gen”. In off-grid systems, the Sol-Ark will use frequency shifting to control the AC coupled solution based on the battery SOC.
Page 33: Limiter
Limiter The Sol-Ark 60K-3P-480V inverter will simultaneously utilize different available power sources to satisfy load demand in the electrical service panels (essential loads panel / main service panel). The following work modes allow the user to determine how power is generated and utilized.
Page 34 “LOAD” terminal (essential loads panel) + excess power to the “GRID” terminal (main service panel AND grid). The Sol-Ark will monitor grid sell and load consumption simultaneously (with +/ - 3% error from CT sensors). The CT sensors MUST be installed.
Page 35 “Power(W)” down to a programmable “Batt (V / %SOC)”. You can configure six different time intervals over a 24-hour period to cover a wide range of battery discharge or charge behaviors. Description: Uses battery power to reduce the power consumption during user defined time intervals. Copyright © 2024 Sol-Ark LLC | SK140-0015-003...
Page 36 Default and recommended option. Sets the solar power priority of the system to charge batteries first. Do NOT change unless instructed by Sol-Ark technical support. Load First: Sets the solar power priority of the system to cover loads demand first and deliver remaining power to batteries.
Page 37: Grid Setup
IT system-neutral is not GND: Configures an inverter to operate in either a Wye or Delta configuration (See Fig: 29) 480V Delta Configuration (3W no neutral): Checked 277/480V Wye Configuration (3W with neutral): Un-Checked Copyright © 2024 Sol-Ark LLC | SK140-0015-003...
Page 38 V(Q): Enables the use of Volt-VAr. The Sol-Ark regulates reactive power output to the grid as a function of the voltage to support stabilization during over and under-voltage conditions. V, P & Q: Percentage of nominal grid voltage (V) to which the Sol-Ark will reduce its active power (P) or reactive power (Q). P(Q) / P(F) P(Q): Enables the use of Watt-VAr to regulate reactive power output according to programable active power parameters.
Page 39: Installation Tips
Constant Voltage (CV) Stage When the battery has reached the Constant Voltage setpoint, the Sol-Ark inverter will regulate charging current to maintain the batteries voltage at the CV setpoint, preventing overcharging. The battery is allowed to come to a full state of charge at the CV setpoint. Constant Voltage lasts until the BMS sets the Charge Current Limit to 0A.
Page 40: Grid Compliance Settings
CAUTION: Settings below are illustrative, exact values should be confirmed with your respective utility. HECO Grid Compliance Verification for Sol-Ark In cases where HECO compliance requirements are mandated, it is essential to program the following grid parameters in accordance with the HECO specifications.
Page 41: Parallel Inverters
Tech Support for assistance at support@sol-ark.com Parallel systems REQUIRE that each inverter has its own HV battery / battery bank. D. If you do not have batteries on all inverters only parallel the units which have a battery bank.
Page 42: Parallel Systems Programming
5.3 Troubleshooting Phase Sequence If the screen of the Sol-Ark inverter shows the error in Fig 35, ensure the phase sequence follows the “Phase Type” programmed under → Grid Setup → Grid Selection. The message “Grid Phase Wrong” is displayed when the inverter does not detect the correct phase sequence.
Page 43 Be sure to check both “GRID” and “LOAD” terminal connections; both must be correct. If the error persists you will need to check your AC connection beyond the inverter and you will need to verify that the phases are correctly labeled from your meter. 0/240/120 0/120/240 Copyright © 2024 Sol-Ark LLC | SK140-0015-003...
Page 44: Mysolark: Remote Monitoring
Insert the ethernet cable through the plastic enclosure and connect the cable to the RJ45 port. C. Reassemble the dongle housing and plug the dongle into the Sol-Ark, securing it with screws. You will see solid red and green lights after a couple of minutes.
Page 45 “My Plants” → “…” → “Share” → “Add Account”. The homeowner must create their own MySolArk account first Create plant Scan QR code or type manually Plant information Configure network EA########## ############ Copyright © 2024 Sol-Ark LLC | SK140-0015-003...
Page 46 NOTE: The Wi-Fi configuration tool can be accessed at any other time by tapping “Me” at the bottom right corner, then “Tools” and finally “Wi-Fi configuration”. STEP 3 shows an alternative method of connecting the Wi-Fi dongle to a local network through an IP address. Copyright 2024 Sol-Ark LLC | SK140-0015-003 ©...
Page 47 NOTE: DO NOT connect to the EAP-##### network as that is the Wi-Fi dongle itself. The device does not provide internet access. Example 1 Example 2 Example 3 Example 4 My local Wi-Fi network Example 5 Example 6 Example 7 Example 8 a) Internet browser IP address b) Wi-Fi network scan Copyright © 2024 Sol-Ark LLC | SK140-0015-003...
Page 48: Led Indicator And Troubleshooting
If the connection is a success, you will see the following LED indicators. SOLID Connected and powered by the Sol-Ark inverter. SOLID Connected to the router and to MySolArk. ETH + Wi-Fi S7ck P/N: EESE-D200-00 S/N: E4A0 #### #### KEY: #### #### #### ####...
Page 49: Wiring Diagrams
Consult relevant authorities and ensure full compliance before installation. Installers should exercise caution, seek professional advice when necessary, and adhere to established electrical standards and regulations during all installations. Copyright © 2024 Sol-Ark LLC | SK140-0015-002...
Page 57: Common Troubleshooting Steps
The system connects to grid and quickly disconnects Verify Neutral wire connection (0Vac referenced to GND) Check the programmed frequency, and verify the Sol-Ark measures 277V between L and N If the system is overloading: verify that proper phase sequence between “GRID” and “LOAD” terminals DC Overload Fault Check PV voltage.
Page 58 Perform a power cycle sequence in case the above suggestion does not work. See section 2.12 “Power Cycle Sequence” Grid Phase Wrong If the Sol-Ark screen shows a “Grid Phase Wrong” message, it means there is a phasing issue in the wiring. If left unchecked it may cause overload faults and DAMAGE. See section 5.3 “Troubleshooting Phase Sequence”...
Page 59: Sol-Ark Warning And Fault Codes
8.1 Sol-Ark Warning and Fault codes FAULT DESCRIPTION COMMON CAUSE / REMEDY Grid phasing sequence error. Verify order of the three phases of the GRID input are in the order ABC, or Grid_Phase_Warn change the phase setting value on the LCD.
Page 60 BAT2_VoltLow_Fault Sol-Ark is programmed to BMS Lithium Battery Mode but cannot communicate with a BMS. BMS_Communication Fault BMS_Err_Stop is enabled, but cannot communicate with a battery BMS Excessive load is drawing too much current from the battery BAT_OverCurr_Fault The battery voltage is too low for the inverter to operate Gen_Volt_or_Fre_Fault Generator Voltage or Frequency went outside the allowable range.
Page 61: Warranty Verification Checklist
13. For Off-Grid systems: The mode “General Standard” is programmed and the V & f ranges are increased 14. When “! Grid Sell” is enabled, the Sol-Ark sells power back to the grid (negative HM measurements for L1, L2, L3) 15.
Page 62 Any other event not foreseeable by Sol-Ark LLC Sol-Ark LLC liability for any defective Product, or any Product part, shall be limited to the repair or replacement of the Product, at Sol-Ark LLC discretion. Sol-Ark LLC does not warrant or guarantee workmanship performed by any person or firm installing its Products. This warranty does not cover the costs of installation, removal, shipping (except as described below), or reinstallation of Products or parts of Products.
Page 63: Inverter Ui Screens
10. Inverter UI Screens The user interface (UI) screens shown in the following pages represent the current version of the Sol-Ark inverter firmware as of the date of this manual's publication. Sol-Ark continually improves its products through firmware updates, which may alter the appearance, layout, or functionality of the UI screens.
