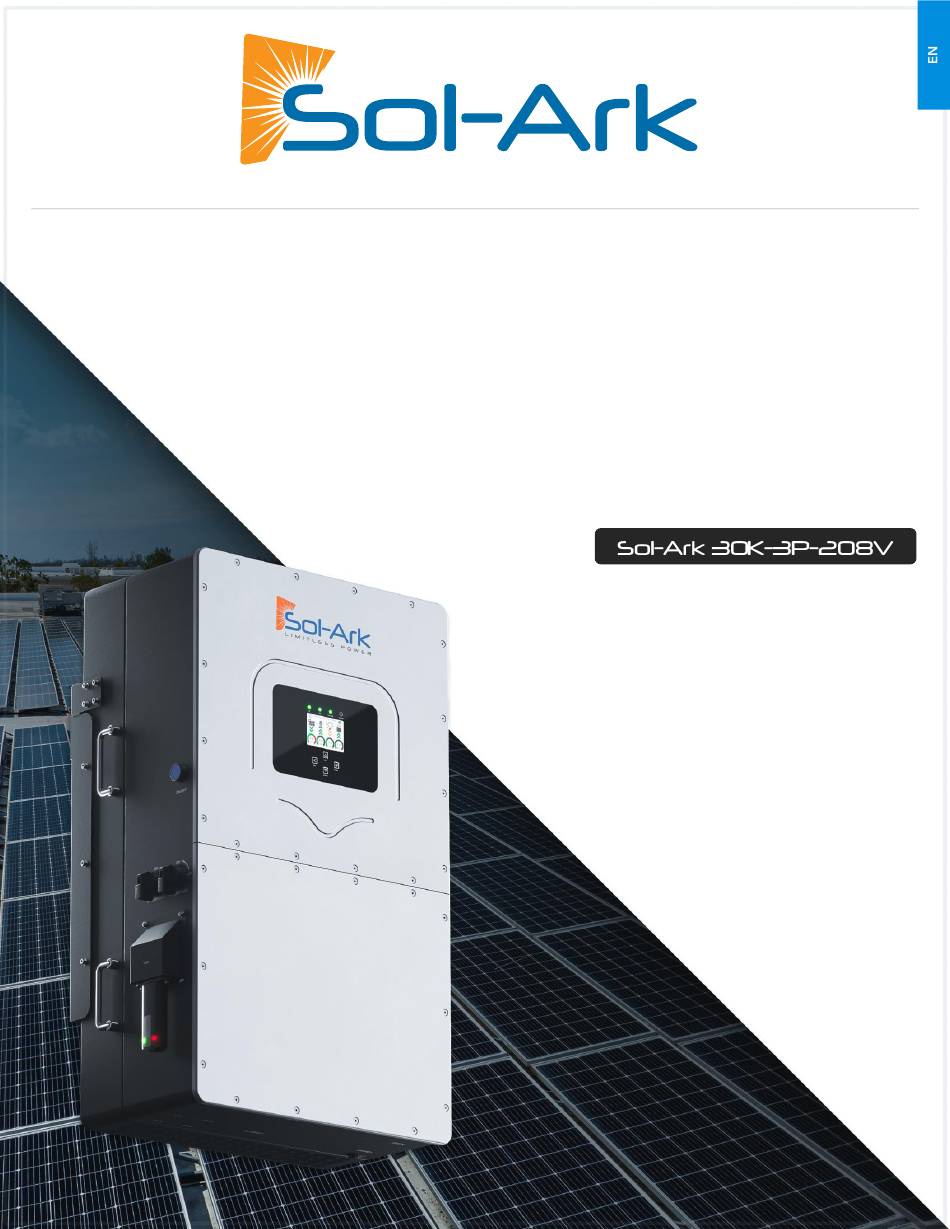

Page 1 INSTALLATION GUIDE AND USER MANUAL COMMERCIAL & INDUSTRIAL NORTH AMERICA...
Page 3 By using the product, users acknowledge their understanding of these disclaimers and agree to use the product at their own risk. Sol-Ark reserves the right to update or modify product information, specifications, and guidelines without prior notice.
Page 4: Table Of Contents
Table of Contents IMPORTANT SAFETY INSTRUCTIONS ........................................... 5 1. Sol-Ark: At a First Glance ..........................6 1.1 General Description ..............................................7 1.2 Specifications ................................................8 1.3 Connection Requirements ............................................10 2. Installation ................................ 11 2.1 Mounting the Sol-Ark ............................................... 11 2.2 Integrating Batteries ..............................................
Page 5: Important Safety Instructions
Read this entire document before installing or using the Sol-Ark 30K-3P-208V inverter. Failure to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, or death. Damage to the 30K-3P-208V inverter is also possible, potentially rendering it inoperable.
Page 6: Sol-Ark: At A First Glance
The box should include all items shown in the component guide. If there is damage or missing parts, immediately call the phone number (USA) +1 (972) 575-8875 Ext. 2. COMPONENT GUIDE The Sol-Ark 30K-3P-208V system includes the following components: Component Description...
Page 7: General Description
Pin board 1 for sensors and accessories 4x MPPT inputs Pin board 2 for sensors and accessories LOAD terminal Communication port board NEUTRAL / GROUND Busbars 2x (50A) Battery port GRID terminal GEN terminal Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 8: Specifications
Temperature Derating Range DC: 90°C – 100°C. Shutdown @ 100°C AC: 75°C – 82°C. Shutdown @82°C SOL-ARK 30K-3P-208V TORQUE VALUES APPLICATION NOTE Do not use impact drivers to tighten any fasteners on the Sol-Ark Terminal / Port Torque [in-lb] Torque [Nm] “LOAD”...
Page 9 2. Active BMS communication is required for all lithium batteries. A list of compatible batteries can be found on our website. 3. 5-year extension is available for purchase by registered Gold level installers only. 4. Pending listing. Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 10: Connection Requirements
[20.3 mm] 5/8 in [25.4 mm] [16 mm] 1/4 in [6.35 mm] 4 AWG MAX 4/0 AWG MAX 10 AWG MAX 23 AWG MAX CT Sensors (Included) 1.85“ [47 mm] 10 ft [3 m] Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 11: Installation
C. Verify that every load circuit power does not surpass the above limits. Single System Install A. FOR PARTIAL BACKUP: Use a Line Side Tap as point of interconnection to integrate the utility grid to the Sol-Ark inverter through the “GRID” terminal.
Page 12 National Electrical Code®, paragraph 110.26 and Canadian Electrical Code® CSA C22.1 are adhered to. C. The Sol-Ark 30K-3P-208V is a NEMA 3R - IP65 enclosure that is rated for outdoor installation but can also be installed indoors.
Page 13: Integrating Batteries
The 30K-3P-208V reaches a max battery charge/discharge of 50A per terminal for a total max of 100A if using both sets of battery terminals. If only one set of terminals is used, the battery charge/discharge will be limited to 50A.
Page 14: Battery Communications
2.3 Battery Communications The Sol-Ark inverter can establish closed-loop battery communication through the RJ-45 port labeled “BMS1”. Configure and wire the HV batteries so that there is one battery bank with a single communication source. Closed-loop communication is established by connecting the communication cable to the “BMS1”...
Page 15: Connecting Pv Modules
AC Coupling The Sol-Ark 30K-3P-208V is a system that supports the addition of AC coupled solar panels. The max solar input power can be expanded by coupling 3Φ micro or string inverters into the “GEN” terminals. A full AC coupled solar system is not recommended as power control and monitoring is limited.
Page 16: Integrating A Generator
“Peak Shaving” is intended to be used. Improve the Generator & Sol-Ark Compatibility Navigate through the menus and program the following settings to improve the Sol-Ark and generator compatibility and operating range to avoid frequent disconnections. Change the grid mode to General Standard: →...
Page 17: Integrating Sensors And Accessories
If connecting more than one HV battery in parallel to the Sol-Ark inverter, divide the Gen or Grid “A” value by the # of batteries to estimate the current (A) flowing to each HV battery.
Page 18 CAN port data is in a proprietary format. Sol-Ark does not support 3 party usage currently. • The RS485/RTU port utilizes the MODBUS protocol, data is in a proprietary format. Please contact Sol-Ark to request an NDA if the MODBUS mapping is required for your application. RS485...
Page 19: Limit Sensors (Ct Sensors)
The CT sensors (or limit sensors) enhance system capabilities by enabling the use of the system work modes known as “Limited Power to Home” (Meter Zero) and “Grid Peak-Shaving”. The CTs will measure and calculate total load demand which the Sol-Ark 30K-3P-208V will then use to accurately supply and offset all existing loads (Meter Zero).
Page 20 This function REQUIRES batteries to auto detect and auto correct CT orientation. AC coupled inverters need to be OFF during the detection test. If this test is done with connected AC-coupled systems, a factory reset of the Sol-Ark must be performed. Install the CT sensor as described previously.
Page 21: Emergency Stop And Rapid Shutdown
RSD will cut all power including the Sol-Ark’s internal power supply and stop all AC outputs. The internal 12Vdc (-3%) power supply of the Sol-Ark (CN2, pins 7 & 8) will disconnect any RSD transmitter that will then shut down all solar panels when the emergency stop button is pressed.
Page 22: Powering-Up And Testing The Sol-Ark
Do not ground PV+ or PV-. Verify polarity in each PV string. Backward polarity will measure 0Vdc by the Sol-Ark and will cause long term damage. PV alone turns LCD screen only. Inverter requires grid and/or batteries to operate, otherwise an “OFF” message will appear.
Page 23: User Interface
Normal Alarm Green Green Green → DC Solar Panels connected → Grid is connected → Sol-Ark is fully energized* → Alarm state. Check the alarms menu. and providing voltage. and providing voltage. and operating. Home Screen→ → “System Alarms” OFF → Minimum MPPT voltage not OFF →...
Page 24 A. Tap the solar panel icon to display the PV power generation graph. Displays power production over time for the PV array. C. Use up/down arrows (↑, ↓) to navigate between days. D. Month view/ year view/ total production. Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 25: Basic Setup
Beep: Enable / disable the alarm sound. Time Time Sync: Automatically syncs with the internet for daylight saving time changes (Enabling “Time sync” is recommended). Seasons: Setup and customize the seasons for TOU. Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 26: Battery Setup
DO NOT change or warranty will be voided. UPS Time: Backup transfer time to essential loads upon grid disconnection. Default value of 5ms. Factory reset Restrictions: Changes to these settings must be previously authorized by Sol-Ark technical support agents. Parallel Contact Sol-Ark technical support at support@sol-ark.com...
Page 27 Disable and press OK to disengage. The generator will not provide power during this test if grid power is available. The gen must be in automatic mode if applicable and must have a two-wire start (dry-contact, normally open) connected to the Sol-Ark.
Page 28: Limiter
Limiter The Sol-Ark 30K-3P-208V inverter will simultaneously utilize different available power sources to satisfy load demand in the electrical service panels (essential loads panel / main service panel). The following work modes allow the user to determine how power is generated and utilized.
Page 29 “LOAD” terminal (essential loads panel) + excess power to the “GRID” terminal (main service panel AND grid). The Sol-Ark will monitor grid sell and load consumption simultaneously (with +/ - 3% error from CT sensors). The CT sensors MUST be installed.
Page 30 “LOAD” demand and sell excess solar up to a programmable limit. “GRID” loads cannot be measured, only the total output through the “GRID” terminal. This mode is recommended for single inverter systems or for whole-site backup installations. Limited Power to Load + Grid Sell Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 31 Default and recommended option. Sets the solar power priority of the system to charge batteries first. Do NOT change unless instructed by Sol-Ark technical support. Load First: Sets the solar power priority of the system to cover loads demand first and deliver remaining power to batteries.
Page 32: Grid Setup
Parameters will be set automatically based on selected grid mode compliance, unless “General Standard” is selected. Reconnect Ramp Rate: Reconnection power ramp time in seconds. Normal Ramp Rate: Startup power ramp time in seconds. Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 33 V(Q): Enables the use of Volt-VAr. The Sol-Ark regulates reactive power output to the grid as a function of the voltage to support stabilization during over and under-voltage conditions. V, P & Q: Percentage of nominal grid voltage (V) to which the Sol-Ark will reduce its active power (P) or reactive power (Q). P(Q) / P(F) P(Q): Enables the use of Watt-VAr to regulate reactive power output according to programable active power parameters.
Page 34: Installation Tips
Absorption Stage When the battery has reached the absorption voltage setpoint, the Sol-Ark inverter uses constant-voltage regulation to maintain battery voltage at the absorption setpoint, preventing overheating and excessive battery gassing. The battery is allowed to come to a full state of charge at the absorption voltage setpoint.
Page 35: Grid Compliance Settings
4.2 Grid Compliance Settings HECO Grid Compliance Verification for Sol-Ark In cases where HECO compliance requirements are mandated, it is essential to program the following grid parameters in accordance with the HECO specifications. Follow the next GUI screens, program the settings, and verify alignment with HECO compliance.
Page 36: Parallel Systems
Tech Support for assistance: support@sol-ark.com Parallel systems REQUIRE that each inverter has its own HV battery / battery bank. If you do not have batteries, keep all Sol-Ark inverters OUT of parallel and set every System to “Grid Sell” Mode.
Page 37: Parallel Systems Programming Sequence
Parallel Systems Sol-Ark 30K-3P-208V @ 120/208V 3-Phase Cont. Grid Peak power 10 sec # of inverters in parallel Continuous output power (kW) Pass Through Current (A) (kVA) 1080 1260 1440 1620 1800 5.2 Parallel Systems Programming Sequence Program each inverter for parallel operation: →...
Page 38: Troubleshooting Phase Sequence
5.3 Troubleshooting Phase Sequence If the screen of the Sol-Ark inverter shows the error shown below, ensure the phase sequence follows the “Phase Type” programmed under → Grid Setup → Grid Selection. The message “Grid Phase Wrong” is displayed when the inverter does not detect the correct phase sequence.
Page 39: Wi-Fi / Ethernet Connection
Insert the ethernet cable through the plastic enclosure and connect the cable to the RJ45 port. C. Reassemble the dongle housing and plug the dongle into the Sol-Ark, securing it with screws. You will see solid red and green lights after a couple of minutes.
Page 40 Manager permissions on “My Plants” → “…” → “Share” → “Add Account”. TIP: If you want to share a plant, a PowerView account with the new email must be created. Create PowerView / PV Pro account and login. Verification Code Login Create account Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 41 Scan QR code or type manually Plant information Configure network EA########## ############ STEP 2: Configure Wi-Fi network though PV Pro Configure Wi-Fi network. Connect dongle Accept conditions Scan and select dongle Network drop down menu Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 42 The Wi-Fi dongle does NOT provide internet access. It needs an external internet provider to connect to. (it is not possible to use 5 GHz) The dongle is compatible with Wi-Fi signal broadcasted at 2.4 GHz Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 43 Wait a moment (5 min) for the dongle to connect to the router and the server. If successful, you should see a red and green light on the dongle showing a solid connection. RED LED: Connected to Sol-Ark and has power. GREEN LED: Connected to router and server.
Page 44: Wiring Diagrams
The diagrams presented herein are not exhaustive and should not be relied upon solely for permitting or warranty verification. Installers are encouraged to exercise caution, seek professional advice when necessary, and undertake installations with due diligence and in accordance with established electrical standards and regulations. Copyright 2024 Sol-Ark LLC | SK140-0024-001 ©...
Page 52: Troubleshooting Guide
The system connects to grid and quickly disconnects Verify Neutral wire connection (0Vac referenced to GND) Check the programmed frequency, and verify the Sol-Ark measures 120V between L and N If the system is overloading: verify that proper phase sequence between “GRID” and “LOAD” terminals DC Overload Fault Check PV voltage.
Page 53 Perform a power cycle sequence in case the above suggestion does not work. See section 2.12 “Power Cycle Sequence” Grid Phase Wrong If the Sol-Ark screen shows a “Grid Phase Wrong” message, it means there is a phasing issue in the wiring. If left unchecked it may cause overload faults and DAMAGE. See section 5.3 “Troubleshooting Phase Sequence”...
Page 54: Sol-Ark Error Codes
DC_VoltLow_Fault current by 20%, or Lithium BMS has shut down. If battery settings are incorrect, this can also happen. Sol-Ark is programmed to BMS Lithium Battery Mode but cannot communicate with a BMS. BMS_Communication Fault BMS_Err_Stop is enabled, but cannot communicate with a battery BMS Gen_Volt_or_Fre_Fault Generator Voltage or Frequency went outside the allowable range.
Page 55: Warranty Verification Checklist
13. For Off-Grid systems: The mode “General Standard” is programmed and the V & f ranges are increased  14. When “�� Grid Sell” is enabled, the Sol-Ark sells power back to the grid (negative HM measurements for L1, L2, L3) ...
Page 56: Limited Warranty: Sol-Ark 30K-3P-208V
Any other event not foreseeable by Portable Solar, LLC Sol-Ark (Portable Solar LLC) liability for any defective Product, or any Product part, shall be limited to the repair or replacement of the Product, at Portable Solar LLC discretion. Sol-Ark does not warrant or guarantee workmanship performed by any person or firm installing its Products.
