8QT
TOUCHSCREEN AIR FRYER
Instruction Manual
SO-316523_90088_BELLA pro 8QT AF_IM R1.indd 1
2019-08-23 11:36 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bella PRO Series

Summary of Contents for Bella PRO Series

  • Page 1 TOUCHSCREEN AIR FRYER Instruction Manual SO-316523_90088_BELLA pro 8QT AF_IM R1.indd 1 2019-08-23 11:36 AM...
  • Page 2 Thank You for your purchase Register & sign up for special announcements and trendy recipes! Tell us what you think! Rate, review or ask us a question. @bellahousewares.com #getinspired BellaLife BellaLifestyle SO-316523_90088_BELLA pro 8QT AF_IM R1.indd 2 2019-08-23 11:36 AM...

  • Page 3: Table Of Contents

    Table of Contents Important Safeguards ......................2-3 Additional Important Safeguards .................. 4-5 Notes on the Plug ........................5 Notes on the Cord ........................6 Plasticizer Warning ......................6 Electric Power ........................6 Getting to Know Your 8QT Touchscreen Air fryer ............7 Touchscreen Control .....................8-10 Before Using for the First Time ..................11 Operating Instructions ....................

  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. READ ALL INSTRUCTIONS. 2. Do not touch hot surfaces. Use handles or knobs. Use oven mitts or potholders. 3. To protect against electric shock do not immerse cord, plugs, or appliance in water or other liquid.
  • Page 5 10. Do not let cord hang over edge of table or counter, or touch hot surfaces. 11. Do not place on or near a hot gas or electric burner, or in a heated oven. 12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

  • Page 6: Additional Important Safeguards

    ADDITIONAL IMPORTANT SAFEGUARDS CAUTION HOT SURFACES: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires, or other injury to persons or damage to property. CAUTION: This appliance is hot during operation and retains heat for some time after turning OFF.

  • Page 7: Notes On The Plug

    7. Place the Air Fryer on a flat, heat-resistant work area. 8. Do not obstruct the air outlet or air inlets on the back and sides of  the Air Fryer, with any objects. Avoid escaping steam from the  air outlet during air frying. 9.

  • Page 8: Notes On The Cord

    NOTES ON THE CORD A. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. B. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

  • Page 9: Getting To Know Your 8Qt Touchscreen Air Fryer

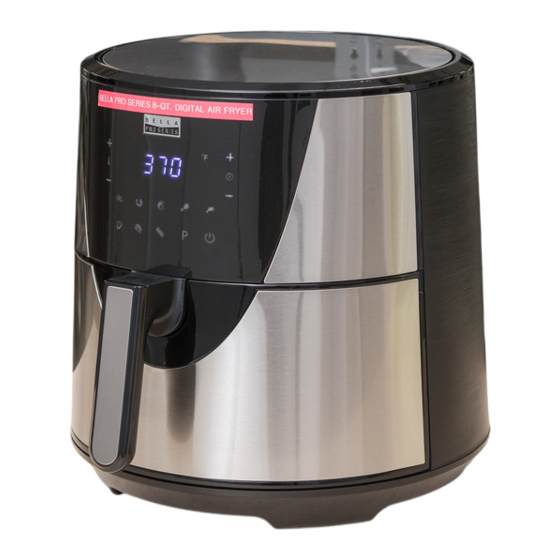

    Getting to Know Your 8 QT Touchscreen Air Fryer Product may vary slightly from illustration Air Inlets Air Outlet (not shown) Touchscreen Control Air Fryer Body Power Cord with Polarized Plug Frying Basket with (not shown) Cool Touch Handle Non-skid Feet Nonstick coated crisping tray Frying Basket with...

  • Page 10: Touchscreen Control

    Touchscreen Control Once the frying basket drawer and frying basket are properly locked into the Digital Air Fryer body, the red POWER ( ) button will illuminate. The default TEMP: 370ºF and TIME: 15:00 minutes will alternate on the digital display. Press the START ( ) button to begin air frying for 15 minutes at 370ºF.
  • Page 11 Timer Control Buttons Selecting the timer control (min), add or decrease cooking time using the + and – symbols. This enables you to add or decrease cooking time, one minute at a time. Keeping the button held down will rapidly change the time. Temperature Control Buttons Selecting the temperature control (°F), add or decrease temperature using the + and –...
  • Page 12 FUNCTIONS TIME (MIN) TEMP (°F) DEFAULT RANGE DEFAULT RANGE Default 1-60 180-400 Fries 1-60 180-401 Shrimp 1-60 180-402 Roast 1-60 180-403 Chicken 1-60 180-404 Fish 1-60 180-405 1-60 180-406 Steak Cheese 1-60 180-407 Bacon 1-60 180-408 Preheat 1-60 180-409 IMPORTANT! When using the PREHEAT (P) function, reduce final cooking TIME by 3 minutes. IMPORTANT! Depending on the thickness and/or density of foods, it may be necessary to use a meat thermometer to check cooking progress after preset TIME has expired.

  • Page 13: Before Using For The First Time

    Before Using for the First Time Remove all packing material and labels from the inside and outside of the air fryer. Check that there is no Figure 2 packaging underneath and around the frying basket. Your air fryer is shipped with the frying basket locked inside the air fryer body.

  • Page 14: Operating Instructions

    Operating Instructions IMPORTANT! The maximum food capacity recommended for this air frying basket is 4.4 lbs, 4 - 6 cups, depending. The air frying basket will accommodate up to a 9 inch round x 3 inch deep bake or pie pan. WARNING! This Air Convection Fryer should not be used to boil water.

  • Page 15: Manual Operation

    Manual Operation To adjust the default air frying TIME, select timer control button (MIN), press the (+) or (–) on the right side of the control panel to advance or decrease TIME in 1 minute increments, from 1 to 60 minutes. NOTE: Timer can also be adjusted when time reflects on the digital display To adjust the default air frying Temperature, select temperature control button (°F), press the (+) or (–) on the right side of the control panel to adjust the default (370°F) TEMP from...

  • Page 16: Preset Menu

    8 FOOD MENU PRESETS (French Fries | Shrimp | Roast | Chicken | Fish | Steak | Cheese Melt | Bacon | Preheat) To use food MENU options, simply press the desired food icon When the desired food menu option icon is illuminated, press the START ( ) button to turn the Air Convection Fryer ON.

  • Page 17: Air Frying Technique

    Air Frying Technique Please consult the Air Frying Chart and/or follow package directions for suggested TIME and TEMP. Always pat food dry before cooking to encourage browning and avoid excess smoke. To assure even cooking/browning, ALWAYS open the basket drawer halfway through the cook time and check, turn or shake foods in the frying basket.

  • Page 18: A Note On Air Frying Pre-Packaged Frozen Foods

    Arrange breaded food in frying basket so that food is not touching to allow air flow on all surfaces. Spray oils work best. Oil is distributed evenly and less oil is needed. Canola, olive, avocado, coconut, grapeseed, peanut, or vegetable oil work well. 10.
  • Page 19 AIR FRY FOOD TEMP ACTION TIME Root Vegetables, 3 - 4 cups fresh (roasted) 370°F 15-20 minutes toss with oil shake 3x Asparagus, 3 - 4 cups, fresh thin stems 370°F 7-9 minutes spray with oil, shake 2x Green Beans, Sugar Snap Peas, 3 - 4 cups fresh 370°F 7-9 minutes spray with oil, shake 1x Broccoli, 3 - 4 cups fresh (roasted)

  • Page 20: User Maintenance Instructions

    User Maintenance Instructions This appliance requires little maintenance. It contains no user-serviceable parts. Any servicing requiring disassembly other than cleaning must be performed by a qualified appliance repair technician. Care & Cleaning Instructions WARNING! Allow the Air fryer to cool fully before cleaning. Unplug the Air Fryer.

  • Page 21: Trouble Shooting

    Trouble Shooting Problem Possible Cause Solution The AIR FRYER • The Air Fryer is not • Plug cord into the wall outlet. does not work plugged in. • To begin, press the red POWER ( ) button. • The Air Fryer has turned •...

  • Page 22: Recipe Guide

    Recipes Lemon Za’atar Chicken with Eggplant & Zucchini Za’atar is popular Middle Eastern spice mixture dating back to ancient times. We have enveloped the chicken with this aromatic blend of thyme, sumac, wild oregano and toasted sesame seeds. Fresh lemon adds moist citrus notes. The Air Fryer is the perfect tool for preparing moist and luscious, roasted chicken, the frying basket allows drippings (liquid flavor) to permeate the vegetables and stream down into the easy-to-clean drawer.
  • Page 23 Recipes Continue air frying CHICKEN at 365ºF for 25 minutes, or until the juices run clear when you cut between a leg and thigh or when a meat thermometer inserted into the thickest part of the thigh reads 170ºF/77ºC - 180ºF/82ºC. Remove the chicken and vegetables to a platter and tent with aluminum foil for about minutes.
  • Page 24 Recipes 10. Sprinkle onion very generously with breadcrumb mixture. Press breadcrumbs between every petal. 11. Place the breaded onion blossom into the frying basket. 12. Cover and tent the top of the onion with aluminum foil. 13. Use food MENU preset for CHICKEN. When the CHICKEN icon ( ) illuminates, press the START ( ) button to begin air frying at 360ºF for 20 minutes.
  • Page 25 Recipes Spicy Air Fried Pizza Rolls Crispy, spicy bites of goodness, dipped in a flavorful tomato sauce, these Pizza Rolls will be the hit of any party or gathering. A great way to use leftovers, the possibilities are endless. • Olive oil spray •...
  • Page 26 Recipes Air Fried Zucchini Fries Serves 4 • 2 zucchini squash, trimmed into spears • 2 tablespoons olive oil • Salt • 1/2 cup panko breadcrumbs • Kosher salt, to taste • 2 tablespoons Parmesan herb seasoning Yogurt Pesto Dip •...
  • Page 27 Recipes 8 Minute Banana Chocolate Chip Cupcakes Fresh, moist banana goodness in every bite. Light and sweet, these cup cakes are so easy to make and they bake in 8 just minutes! These sweet bites go anywhere. Grab one with a cup of coffee, kids with a glass of milk.

  • Page 28: Warranty

    Limited Two-Year Warranty SENSIO Inc. hereby warrants that for The warranty is only valid for the a period of TWO YEARS from the date original retail purchaser from the date of purchase, this product will be free of initial retail purchase and is not from mechanical defects in material transferable.
  • Page 29 How To Obtain Warranty Service: You must contact Customer Service at Also, include a copy of the original sales our toll-free number: 1-866-832-4843. receipt. Carefully package the tagged A Customer Service Representative product with the sales receipt, and send will attempt to resolve warranty issues it (with shipping and insurance prepaid) over the phone.
  • Page 30 SO-316523_90088_BELLA pro 8QT AF_IM R1.indd 28 2019-08-23 11:36 AM...
  • Page 31 SO-316523_90088_BELLA pro 8QT AF_IM R1.indd 29 2019-08-23 11:36 AM...
  • Page 32 For customer service questions or comments 1-866-832-4843 bellahousewares.com BELLA Pro Series is a registered trademark of Sensio Inc., Montreal, Canada H3C 4S9. All rights reserved. SO-316523_90088_BELLA pro 8QT AF_IM R1.indd 30 2019-08-23 11:36 AM...
