Samsung AR18BXHQASINEU Service Manual

Samsung AR18BXHQASINEU Service Manual

Hide thumbs Also See for AR18BXHQASINEU:
Table of Contents

Advertisement

Quick Links

Download this manual
AR18BXHQASINEU
AR24BXHQASINEU
AR12TXHQBWKNEU
AR18BXHQASIXEU
AR24BXHQASIXEU
AR18BXHQASINEU
AR24BXHQASINEU
AR18BXHQASIXEU
AR24BXHQASIXEU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR18BXHQASINEU and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung AR18BXHQASINEU

Summary of Contents for Samsung AR18BXHQASINEU

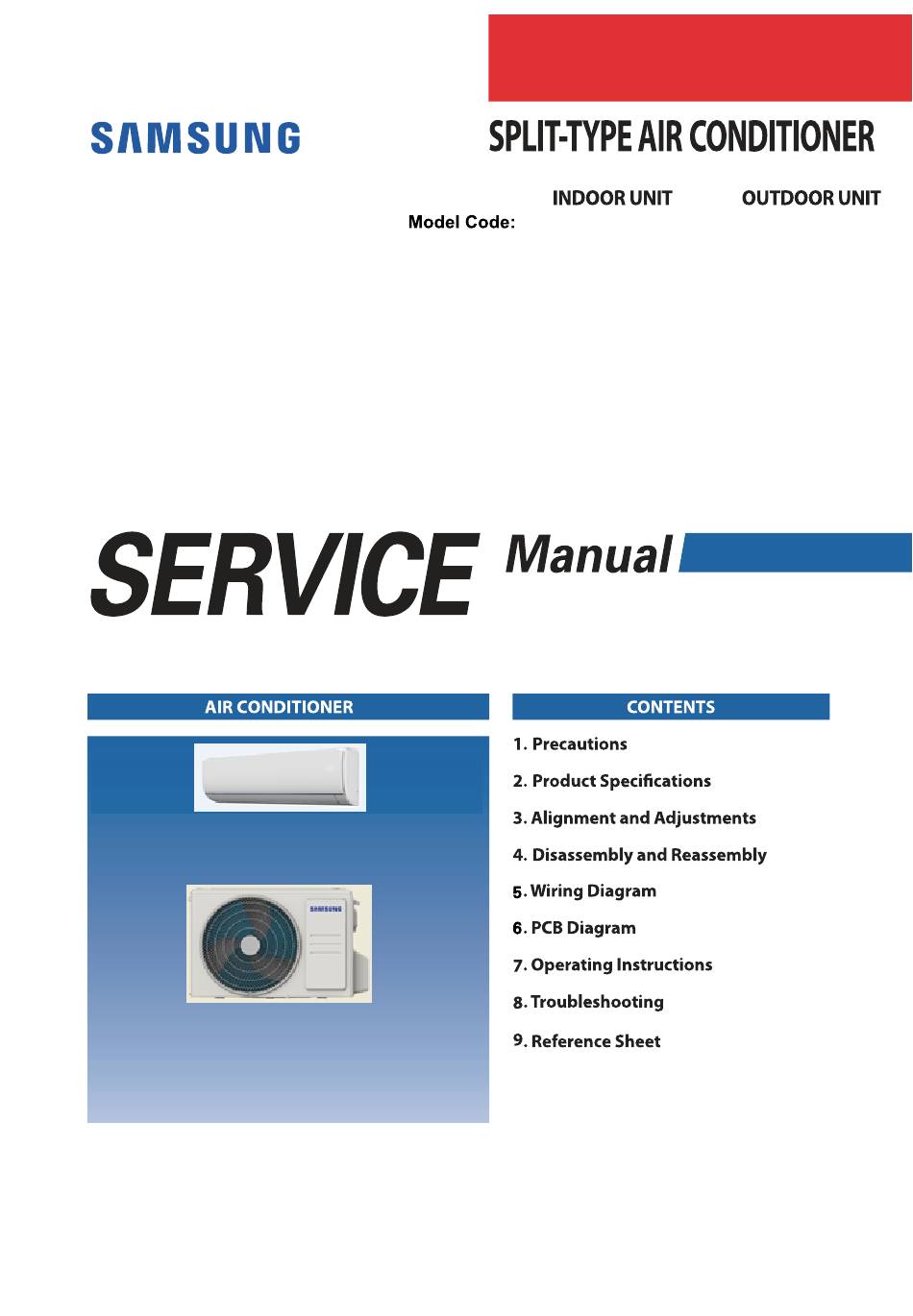

  • Page 1 AR18BXHQASINEU AR18BXHQASIXEU AR24BXHQASINEU AR24BXHQASIXEU AR18BXHQASINEU AR24BXHQASINEU AR12TXHQBWKNEU AR18BXHQASIXEU AR24BXHQASIXEU...
  • Page 3 In case of acidents or emergency Pre-installation and installation Operation and Maintence Information servicing(for flammable materials) Accessories 4-28...
  • Page 4 6-3 Outdoor Safety caution General troubleshooting Complain record form Information inquiry Error diagnosis and troubleshooting without error code Quick maintenance by error code 8-15 Troubleshooting by error code 8-16 Check procedures 8-39...

  • Page 5: In Case Of Accidents Or Emergency

    CAUTION To prevent personal injury, or property or unit damage, • • While unpacking be careful of sharp edges around adhere to all precautionary measures and instructions the unit as well as the edges of the fins on the con- denser and evaporator.
  • Page 6 Information servicing(For • Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable flammable materials) hazards or ignition risks. • NO SMOKING signs shall be displayed. Checks to the area Ventilated area •...
  • Page 7 • that capacitors are discharged: this shall be done in shall also take into account the effects of aging or a safe manner to avoid possibility of sparking; continual vibration from sources such as compressors or fans. • that there no live electrical components and wiring are exposed while charging, recovering or purging 4.13 Detection of flammable refrigerants the system;...

  • Page 8: Charging Procedures

    • The refrigerant charge shall be recovered into the • Before attempting the procedure ensure that: correct recovery cylinders. The system shall be flushed • mechanical handling equipment is available, if with OFN to render the unit safe. This process may required, for handling refrigerant cylinders;...
  • Page 9 • Empty recovery cylinders are evacuated and, if • The recovered refrigerant shall be returned to the possible, cooled before recovery occurs. refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not • The recovery equipment shall be in good working mix refrigerants in recovery units and especially not in order with a set of instructions concerning the cylinders.
  • Page 10  Safety Precautions   Safety Precautions ...

  • Page 11: Product Specifications

    SCOP(warmer) conditions) SCOP(average) Energy Efficiency Class (warmer) Energy Efficiency Class (average) annual energy consumption 1400 2240 (warmer) annual energy consumption 1470 1687 (average) ℃ Rated Power Input(indoor) Rated Current(indoor) Rated Power Input 2500 3500 Rated Current 13.0 15.5 Samsung Electronics...
  • Page 12 21x22 21x22 c.Fin spacing Outdoor coil d.Fin type Hydrophilic aluminum Hydrophilic aluminum Ф7,Inner groove tube Ф7,Inner groove tube e.Tube outside dia.and type f.Coil length x height x width 860*504*44 900*44*609 g.Number of circuits Samsung Electronics...
  • Page 13 Remote Control ℃ Operation temperature 17-30 17~30 ℃ 17～32/0～30 17～32/0～30 Indoor(cooling/ heating) Room temperature ℃ -15～50/-15～30 -15～50/-15～30 Outdoor(cooling/heating) Qty’per 20’ /40’ /40'HQ Outdoor unit 114/234/312 99/198/198 Qty’per 20’ /40’ /40'HQ 85/174//202 65/132/154 Connection wiring 5x1.5(Optional) 5x2.5(Optional) Power cable Samsung Electronics...
  • Page 14 2-3 Accessories The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must be purchased separately.
  • Page 15 Heating  Safety Precautions   Safety Precautions ...

  • Page 16: Display Error And Check Method

    2 Display Error and Check Method Error Display (Indoor Unit) When the indoor unit encounters a recognized error, the operation lamp will flash in a corresponding series, the timer lamp may turn on or begin flashing, and an error code will be displayed. These error codes are described in the following tables: Operation Timer...

  • Page 17: Troubleshooting

    For other errors: The display board may show a garbled code or a code undefined by the service manual. Ensure that this code is not a temperature reading. Troubleshooting: Test the unit using the remote control. If the unit does not respond to the remote, the indoor PCB requires replacement. If the unit responds, the display board requires replacement.

  • Page 18: Checking The Remote Controller

    3 Checking the remote controller • Point the remote controller towards the remote controller receiver of the indoor unit • When you properly press the button on the remote controller, you will hear beep sound from the indoor unit and a transmit. MODE ON/OFF Scrolls through operation modes...
  • Page 19 Remote Screen Indicators Information are displayed when the remote controller is power up. Fresh feature display(some units) (No displays when Fresh feature is activated) Sleep mode display Follow me feature display Wireless control feature display Transmission Indicator Low battery detection display(If flashes) Lights up when remote sends signal to indoor MODE display...

  • Page 20: Handling The Remote Controller

    Handling the Remote Controller Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL Your air conditioning unit may come with two The device could comply with the local national batteries(some units). Put the batteries in the regulations. remote control before use. In Canada, it should comply with •...
  • Page 21  Safety Precautions ...

  • Page 22: Indoor Unit

    4-1 Indoor Unit Front Panel Procedure Illustration 1) Hold the front panel by the tabs on Front Panel the both sides and lift it (see CJ_ AF_001). CJ_AF_001 2) Push up the bottom of an air filter, and then pull it out downwards (see CJ_AF_002).
  • Page 23 Procedure Illustration 3) Open the horizontal louver and push the hook towards left to open it (see CJ_AF_003). Horizontal Louver Hook CJ_AF_003 4) Bend the horizontal louver lightly by both hands to loosen the hooks, then remove the horizontal louver (see CJ_AF_004).
  • Page 24 Procedure Illustration 5) Remove 1 screw and then remove the electrical cover(see CJ_AF_005-1 and CJ_AF_005-2). CJ_AF_005-1 CJ_AF_005-2 6) Disconnect the connector for display board(see CJ_AF_005-3) . CJ_AF_005-3 7) Remove the display board(see CJ_ AF_005-4). CJ_AF_005-4 CJ_AF_005 Note: This section is for reference only. Actual unit appearance may vary. Indoor Unit Disassembly 5 ...
  • Page 25 Procedure Illustration 8) Open the screw caps(2) and the remove the screws(see CJ_AF_006). 9) Release the 4 hooks. CJ_AF_006 10) Release the seven hooks in the back (see CJ_AF_007). Hooks CJ_AF_007 Note: This section is for reference only. Actual unit appearance may vary. Safety Precautions ...
  • Page 26 Procedure Illustration 11) Pull out the panel frame while pushing the hook through a clearance between the panel frame and the heat exchanger (see CJ_AF_008). CJ_AF_008 Panel Frame Note: This section is for reference only. Actual unit appearance may vary. Indoor Unit Disassembly 7 ...
  • Page 27 Electrical parts Note: Remove the front panel (refer to 1. Front panel) before disassembling electrical parts. Procedure Illustration 1) Remove the fixing screw and then remove the cover of electronic box and the terminal cover (see CJ_AF_009). Electronic Cover Fixing Screw CJ_AF_009 2) Pull out the room temperature sensor (T1) and the coil temperature sensor...
  • Page 28 Procedure Illustration 4) Remove the fixing screw (see CJ_ AF_011-1). 5) Pull out the Electrical control box along the direction indicated in right image. to remove it (CJ_AF_011-2). Fixing Screw CJ_AF_011-1 Electronic Box CJ_AF_011-2 Swing Motor Applicable to AC Motor Only Indoor Fan Motor 6) Disconnect the wires.
  • Page 29 Procedure Illustration 7) Remove the fixing screw, then remove the capacitor of fan motor (see CJ_ AF_013). Capacitor of Fan Motor CJ_AF_013 Note: This section is for reference only. Actual unit appearance may vary. Safety Precautions   Indoor Unit Disassembly 10 ...
  • Page 30 Evaporator Note: Remove the front panel and electrical parts (refer to 1. Front panel and 2. Electrical parts) before disassembling evaporator. Procedure Illustration 1) Disassemble the pipe holder located at the rear of the unit (see CJ_AF_014). Pipe Holder CJ_AF_014 2) Remove the screws on the evaporator located at the fixed plate (see CJ_AF_015).
  • Page 31 Procedure Illustration 4) Pull out the evaporator (see CJ_AF_017). Evaporator CJ_AF_017 Note: This section is for reference only. Actual unit appearance may vary. 4-11 Safety Precautions   Indoor Unit Disassembly 12   4-11...
  • Page 32 Fan motor and fan Note: Remove the front panel, electrical parts and evaporator (refer to 1. Front panel, 2. Electrical parts, and 3. Evaporator). before disassembling fan motor and fan. Procedure Illustration 1) Remove the two screws and remove the fixing board of the fan motor (see CJ_ AF_018).

  • Page 33: Step Motor

    Step motor Note: Remove the front panel and electrical parts (refer to 1. Front panel, 2. Electrical parts) before disassembling step motor. Procedure Illustration 1) Remove the two screws, then remove the stepping motor (see CJ_AF_021). Stepping Motor CJ_AF_021 Note: This section is for reference only. Actual unit appearance may vary. 4-11 Safety Precautions ...

  • Page 34: Outdoor Unit

    4-2 Outdoor Unit Panel Plate 1.1. X330 (Model 18K) Procedure Illustration 1) Turn off the air conditioner and the power breaker. 2) Remove the screw of the big handle and then remove the big handle (1 screws) (see CJ_X230_001). Big Handle CJ_X230_001 Top Cover 3) Remove the screws of the top cover...
  • Page 35 Procedure Illustration 4) Remove the screws of water collecting cover and then remove the water collecting cover (2 screws) (see CJ_ X230_003). Water Collecting Cover CJ_X230_003 5) Remove the screws of the front panel and then remove the front panel (7 screws(onoff models) or 9 screws(inverter models) (see CJ_ X230_004).
  • Page 36 Procedure Illustration 6) Remove the screws of the right panel and then remove the right panel (5 screws) (see CJ_X230_005). Right Panel CJ_X230_005 Note: This section is for reference only. Actual unit appearance may vary. Indoor Unit Disassembly 13 4-16 ...
  • Page 37 1.2. X430 (Model 24K) Procedure Illustration 1) Turn off the air conditioner and the power breaker. 2) Remove the screw of the big handle and then remove the big handle (1 screw) (see CJ_X430_001). Big Handle CJ_X430_001 Top Cover 3) Remove the screws of the top cover and then remove the top cover (3 screws).
  • Page 38 Procedure Illustration 4) Remove the screws of water collecting cover and then remove the water collecting cover (2 screws) (see CJ_ X430_003). Water Collecting Cover CJ_X430_003 5) Remove the screws of the front panel and then remove the front panel (7 screws(onoff models) or 9 screws(inverter models) (see CJ_ X430_004).
  • Page 39 Procedure Illustration 6) Remove the screws of the right panel and then remove the right panel (6 screws) (see CJ_X430_005). Right Panel CJ_X430_005 Note: This section is for reference only. Actual unit appearance may vary. 4-11 Safety Precautions   Indoor Unit Disassembly 12 ...

  • Page 40: Electrical Parts

    Electrical parts Antistatic gloves must be worn when you disassemble the electronic box. WARNING: Note: Remove the air outlet grille(refer to 3.1 Panel Plate) before disassembling electrical parts. 2.1 PCB board (Model 18K ) Procedure Illustration 1) Disconnect the connector for compressor and release the ground CJ_ODU_ wire(1 screw).
  • Page 41 Procedure Illustration 4) Remove the fixing board (2 hooks) CJ_ODU_PCB_009-4 ). (see 5) Disconnect the connectors from the electronic control board (see CJ_ODU_PCB_009-4 CJ_ODU_PCB_009-3 ). 6) Then remove the electronic control board (4 hooks). CJ_ODU_PCB_009-5 CJ_ODU_PCB_009-6 Note: This section is for reference only. Actual unit appearance may vary. 4-11 Safety Precautions ...
  • Page 42 2.2 PCB board (Model 24k ) Procedure Illustration 1) Remove the screws and unfix the hooks, then open the electronic control box cover (5 screws and 2 CJ_ODU_PCB_006-1 ). hooks )(see CJ_ODU_PCB_006-1 2) Disconnect the connector for fan motor from the electronic control CJ_ODU_PCB_006-2 ).

  • Page 43: Fan Assembly

    Fan Assembly Note: Remove the panel plate (refer to 3.1 Panel Plate) before disassembling fan. Procedure Illustration 1) Remove the nut securing the fan with a spanner (see CJ_ODU_ FAN_001). 2) Remove the fan. D-cut CJ_ODU_FAN_001 Note: This section is for reference only. Actual unit appearance may vary. 4-11 Safety Precautions ...

  • Page 44: Fan Motor

    Fan Motor Note: Remove the panel plate and the connection of fan motor on PCB (refer to 3.1 Panel Plate and 3.2 Electrical parts) before disassembling fan motor. Procedure Illustration 3) Remove the fixing screws of the fan motor (4 screws) (see CJ_ODU_MOTOR_001). 4) Remove the fan motor.

  • Page 45: Sound Blanket

    Sound blanket Note: Remove the panel plate (refer to 3.1 Panel plate) before disassembling sound blanket. Procedure Illustration 1) Remove the sound blanket (side and top) (see CJ_ODU_BLANKET_001). Sound Blanket(top) (Applicable to models with blanket) Sound Blanket(side) (Applicable to models with blanket) CJ_ODU_BLANKET_001 Note: This section is for reference only.
  • Page 46 Four-way valve (for heat pump models) WARNING: Evacuate the system and confirm that there is no refrigerant left in the system before removing the four-way valve and the compressor. (For R32 & R290, you should evacuate the system with the vacuum pump; flush the system with nitrogen;...
  • Page 47 Compressor WARNING: Evacuate the system and confirm that there is no refrigerant left in the system before removing the four-way valve and the compressor. (For R32 & R290, you should evacuate the system with the vacuum pump; flush the system with nitrogen; then repeat the two steps before heating up the brazed parts. The operations above should be implemented by professionals.) Note: Remove the panel plate, connection of compressor on PCB (refer to 3.1 Panel plate and 3.2 Electrical parts) before disassembling sound blanket.
  • Page 48 Procedure Illustration 3) Remove the hex nuts and washers securing the compressor, located on the bottom plate (see CJ_ODU_COMP_003). CJ_ODU_COMP_003 Suction Pipe 4) Heat up the brazed parts and then remove the the discharge pipe and the suction pipe (see CJ_ODU_COMP_004). Discharge Pipe 5) Lift the compressor from the base pan assembly with pliers.
  • Page 49 Indoor unit abbreviations Abbreviation Paraphrase Yellow-Green Conductor Positive and Negative Ion Generator Capacitor PLASMA Electronic Dust Collector LIVE NEUTRAL Heater The Electric Heating Belt of Indoor Unit Indoor Room Temperature Coil Temperature of Indoor Heat Exchanger Outdoor unit abbreviations Abbreviation Paraphrase 4-WAY Gas Valve Assembly/4-WAY VALVE...
  • Page 50 Model 18K24K OPTIONAL OPTIONAL Applicable to INDOOR WIRING DIAGRAM AC motor only 16022000020169 5(3or2) HEATER SWITCH BOARD CN701 OPTIONAL HA HB E 12V/5V Applicable for MULTI and MONO unit without 1W standby control feature OPTIONAL Applicalbe for MONO unit with OPTIONAL 1W standby control feature To Randomly...
  • Page 51 Model 18K BLUE OR BLACK BROWN 1(L) 2(N) I N D O O R U N I T 4-WAY CRANKCASE HEATER HEATER CAPACITOR BLUE BLACK NOTE: As the standby control CN 7 needs, the cross section area of cable connected to W, 1(L), 2(N) must be selected to suit the maximum system current.The maximum system current is equal...
  • Page 52 Model 24K  Specifications 5   Outdoor Unit Disassembly 34 ...

  • Page 53: Indoor Main Pcb

    6-1. Indoor Main PCB CN27 CN26 CN22 CN19 CN29 18k/24k CN12 CN14 CN31 CN15 CN18 CN32 CN12-DC FAN CN26- PLASMA CN22-SWING MOTOR2 CN19- SWING MOTOR1 #1 : VS 140~380V 1#~4#: STEP MOTOR SIGNAL 1#: PLASMA CONTROL 1#~4#: STEP MOTOR SIGNAL #2: NOT USE 5#: +12V 2#: +12V...
  • Page 54 6-2 Display PCB CN1-Display #1: GND #2: +5V #3 TXD #4 RXD  Outdoor Unit Disassembly 34 ...
  • Page 55 6-3 Outdoor Main PCB Outdoor unit printed circuit board diagram: 17122000046453 Model 18K Safety Precautions  ...
  • Page 56 Name Meaning Earth: connect to Ground N_in: connect to N-line (208-230V AC input) CN1A L_in: connect to L-line (208-230V AC input) CN16 S: connect to indoor unit communication HEAT1 CN17 connect to compressor heater, 208-230V AC when is ON 4-WAY CN60 connect to 4 way valve, 208-230V AC when is ON.
  • Page 57 6-3 Outdoor Main PCB Model 24K Outdoor unit printed circuit board diagram: 17122000048121 Safety Precautions   Troubleshooting 4  ...
  • Page 58 Name Meaning Earth: connect to Ground N_in: connect to N-line (208-230V AC input) CN1A L_in: connect to L-line (208-230V AC input) CN16 S: connect to indoor unit communication HEAT1 CN17 connect to compressor heater, 208-230V AC when is ON 4-WAY CN60 connect to 4 way valve, 208-230V AC when is ON.

  • Page 59: Front Panel

    NOTE: Different models have different front panel and display window. Not all the indicators describing below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased. Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different.

  • Page 60: Safety Caution

    1. Safety Caution WARNING Be sure to turn off all power supplies or disconnect all wires to avoid electric shock. While checking indoor/outdoor PCB, please equip oneself with antistatic gloves or wrist strap to avoid damage to the board. WARNING Electricity remains in capacitors even when the power supply is off.

  • Page 61: General Troubleshooting

    2. General Troubleshooting Error Display (Indoor Unit) When the indoor unit encounters a recognized error on different models , 1. the running LED with flash in a corresponding series, the timer LED may turn on or begin flashing; 2. an error code will be displayed; 3.
  • Page 62 Indoor room temperature sensor T1 is in open circuit or has short 6 times TS05-IDU EH 60 circuited Evaporator coil middle temperature sensor T2 is in open circuit or 6 times TS05-IDU EH 61 has short circuited 12 times The outdoor fan speed is operating outside of the normal range TS04-ODU EC 07 9 times...

  • Page 63: Complain Record Form

    3. Complain Record Form Complain Record Form Request No.: Date: Installation Date: Service Date: Customer Information Name Telephone No. Home Address Email Product Information Indoor Unit Model Outdoor Unit Model Serial No. of indoor unit Serial No. of outdoor unit Working Mode □Cooling □Heating...
  • Page 64 Indoor coil temperature Outdoor coil temperature Ambient temperature Outlet temperature of indoor coil Discharge temperature Sunction temperature Targeted Frequency Actual Frequency Indoor fan speed Outdoor fan speed EXV opening steps Compressor continuous running time Causes of compressor stop. A0, A1, b0, b1, b2, b3, b4, b5, b6, dL, Ac, Uo, Td, dA, Reserved dS, dT...

  • Page 65: Information Inquiry

    4. Information Inquiry • To enter information inquiry status, complete the following procedure within ten seconds: • Press LED(or DO NOT DISTURB) 3 times. • Press SWING(or AIR DIRECTION) 3 times. • Finish 1 and 2 within 10 seconds, you will hear beeps for two seconds, which means the unit goes into parameter checking mode.
  • Page 66 Displayed Displayed code Explanation Meaning Additional Notes value Room temperature 1. All displayed temperatures use actual values. Indoor coil temperature 2. All temperatures are -1F,-1E,-1d,-1c,- -25,-24,-23,-22, displayed in °C regardless Outdoor coil 1b,-1A -21,-20 of remote used. temperature -19—99 -19—99 3.
  • Page 67 Displayed Displayed code Explanation Meaning Additional Notes value 0-FF 2-28 Reserved 5-20 5-25 Troubleshooting 10  ...

  • Page 68: Error Diagnosis And Troubleshooting Without Error Code

    5. Error Diagnosis and Troubleshooting Without Error Code WARNING Be sure to turn off unit before any maintenance to prevent damage or injury. Remote maintenance SUGGESTION: When troubles occur, please check the following points with customers before field maintenance. Problem Unit will not start The power switch is on but fans will not start The temperature on the display board cannot be set...

  • Page 69: Field Maintenance

    Field maintenance Problem Unit will not start Compressor will not start but fans run Compressor and condenser (outdoor) fan will not start Evaporator (indoor) fan will not start Condenser (Outdoor) fan will not start Unit runs, but shortly stops Compressor short-cycles due to overload High discharge pressure Low discharge pressure High suction pressure...
  • Page 70 1.Remote Maintenance Electrical Circuit Refrigerant Circuit Possible causes of trouble Unit will not start ☆ ☆ ☆ ☆ The power switch is on but fans will not start ☆ ☆ ☆ The temperature on the display board cannot be set ☆...
  • Page 71 1.Remote Maintenance Others Possible causes of trouble Unit will not start The power switch is on but fans will not start ☆ The temperature on the display board cannot be set Unit is on but the wind is not cold(hot) Unit runs, but shortly stops The unit starts up and stops frequently ☆...
  • Page 72 2.Field Maintenance Electrical Circuit Possible causes of trouble Unit will not start ☆ ☆ ☆ ☆ ☆ ☆ Compressor will not start but fans run ☆ ☆ ☆ ☆ ☆ Compressor and condenser (outdoor) fan will not start ☆ ☆ ☆...
  • Page 73 2.Field Maintenance Refrigerant Circuit Others Possible causes of trouble Unit will not start Compressor will not start but fans run ☆ Compressor and condenser (outdoor) fan will not start Evaporator (indoor) fan will not start Condenser (Outdoor) fan will not start Unit runs, but shortly stops ☆...

  • Page 74: Quick Maintenance By Error Code

    6. Quick Maintenance by Error Code If you do not have the time to test which specific parts are faulty, you can directly change the required parts according the error code. You can find the parts to replace by error code in the following table. Error Code Part requiring EH 00/...

  • Page 75: Troubleshooting By Error Code

    7. Troubleshooting by Error Code TS01-IDU: Indoor EEPROM parameter error diagnosis and solution Description: Indoor PCB main chip does not receive feedback from EEPROM chip. Recommended parts to prepare: • Indoor PCB Troubleshooting and repair: Shut off the power supply and turn it on 2 minutes later.
  • Page 76 TS01-ODU: Outdoor EEPROM parameter error or Compressor driven chip EEPROM parameter error diagnosis and solution Description: Outdoor PCB main chip does not receive feedback from EEPROM chip or compressor driven chip. Recommended parts to prepare: • Outdoor PCB Troubleshooting and repair: Shut off the power supply and turn it on 2 minutes later.
  • Page 77 TS02-S-INV: Indoor and outdoor unit communication error diagnosis and solution Description: Indoor unit can not communicate with outdoor unit Recommended parts to prepare: • Indoor PCB • Outdoor PCB • Short-circuited component Troubleshooting and repair: Power off, then restart the unit after 2 minutes.
  • Page 78 Remarks: • Use a multimeter to test the DC voltage between 2 port(or S or L2 port) and 3 port(or N or S port) of outdoor unit. The red pin of multimeter connects with 2 port(or S or L2 port) while the black pin is for 3 port(or N or S port) . •...
  • Page 79 TS03: Zero crossing detection error diagnosis and solution Description: When PCB does not receive zero crossing signal feedback for 4 minutes or the zero crossing signal time interval is abnormal. Recommended parts to prepare: • Connection wires • Indoor main PCB Troubleshooting and repair: Check the connections and power supply.
  • Page 80 TS04-S-IDU: The Indoor fan speed is operating outside of normal range diagnosis and solution) Description: When indoor fan speed keeps too low or too high for a certain time, the LED displays the failure code and the AC turns off. Recommended parts to prepare: •...
  • Page 81 Index: 1. DC Fan Motor(control chip is in fan motor) Power on and when the unit is in standby, measure the voltage of pin1-pin3, pin4-pin3 in fan motor connector. If the value of the voltage is not in the range showing in below table, the PCB must has problems and need to be replaced. •...
  • Page 82 TS04-ODU: The outdoor fan speed is operating outside of normal range diagnosis and solution) Description: When outdoor fan speed keeps too low or too high for a certain time, the LED displays the failure code and the AC turns off. Recommended parts to prepare: •...
  • Page 83 Index: 1. Outdoor DC Fan Motor (control chip is in outdoor PCB) Release the UVW connector. Measure the resistance of U-V, U-W, V-W. If the resistance is not equal to each other, the fan motor must has problems and need to be replaced. otherwise the PCB must has problems and need to be replaced. 8-24 Troubleshooting 26 ...
  • Page 84 TS05-IDU: Open circuit or short circuit of indoor temperature sensor(T1, T2) diagnosis and solution Description: If the sampling voltage is lower than 0.06V or higher than 4.94V, the LED displays the failure code. Recommended parts to prepare: • Connection wires •...
  • Page 85 TS05-ODU: Open circuit or short circuit of outdoor temperature sensor(T3, T4, TP, T2B,TH) diagnosis and solution Description: If the sampling voltage is lower than 0.06V or higher than 4.94V, the LED displays the failure code. Recommended parts to prepare: • Connection wires •...
  • Page 86 TS06-INV: Refrigerant Leakage Detection diagnosis and solution Description: Define the evaporator coil temperature T2 of the compressor just starts running as Tcool. In the beginning 5 minutes after the compressor starts up, if T2 < Tcool-1°C(1.8°F) does not keep continuous 4 seconds and compressor running frequency higher than 50Hz does not keep for 3 minutes, and this situation happens 3 times, the LED displays the failure code and the AC turns off.
  • Page 87 TS07: Indoor PCB / Display board communication error diagnosis and solution Description: Indoor PCB does not receive feedback from the display board. Recommended parts to prepare: • Communication wire • Indoor PCB • Display board Troubleshooting and repair: Power off, then restart the unit 2 minutes later Is it still displaying the error code? The unit functions normally...
  • Page 88 TS08-S: Current overload protection diagnosis and solution Description: An abnormal current rise is detected by checking the specified current detection circuit. Recommended parts to prepare: • Connection wires • Reactor • Outdoor fan • Outdoor PCB Troubleshooting and repair: Was the protection activated Was the protection activated in standby? in standby?
  • Page 89 TS09-S: IPM malfunction or IGBT over-strong current protection diagnosis and solution Description: When the voltage signal the IPM sends to the compressor drive chip is abnormal, the LED displays the failure code and the AC turns off. Recommended parts to prepare: •...
  • Page 90 TS10-S: Over voltage or too low voltage protection diagnosis and solution Description: Abnormal increases or decreases in voltage are detected by checking the specified voltage detection circuit. Recommended parts to prepare: • Power supply wires • IPM module board • PCB •...
  • Page 91 TS11-S-INV: Top temperature protection of compressor or High temperature protection of IPM module or High pressure protection diagnosis and solution Description: For some models with overload protection, If the sampling voltage is not 5V, the LED will display the failure. If the temperature of IPM module is higher than a certain value, the LED displays the failure code.
  • Page 92 Check the fastening screws on the PCB and IPM radiator. Replace the outdoor Are they fixed tightly? control PCB. Tighten the screws and apply silicon grease. Note: For certain models, outdoor PCB could not be removed separately. In this case, the outdoor electric control box should be replaced as a whole.
  • Page 93 High pressure protection High pressure protection Are the high pressure switch Are the high pressure switch Connect high pressure switch and Connect high pressure switch and and main control boar wired and main control boar wired mian control board mian control board correctly? correctly? Is the high pressure...
  • Page 94 TS12-S: Inverter compressor drive error diagnosis and solution Description: An abnormal inverter compressor drive is detected by a special detection circuit, including communication signal detection, voltage detection, compressor rotation speed signal detection and so on. Recommended parts to prepare: • Connection wires •...
  • Page 95 TS13-INV: Low pressure protection diagnosis and solution Description: Outdoor pressure switch cut off the system because low pressure is lower than 0.13 MPa, the LED displays the failure code. Recommended parts to prepare: • Connection wires • Outdoor PCB • Low pressure protector •...
  • Page 96 Low pressure protection Low pressure protection Are the low pressure protector Are the low pressure protector and main control board wired and main control board wired Reconnect the low pressure protector and main Reconnect the low pressure protector and main properly? properly? control board...
  • Page 97 TS33: Communication error between outdoor main chip and compressor driven chip diagnosis and solution Description: The main chip cannot detect the compressor driven chip Recommended parts to prepare: • Outdoor main PCB • Electric control box Troubleshooting and repair: Shut off the power supply and Shut off the power supply and turn it on 2 minutes later.
  • Page 98 i) Temperature Sensor Resistance Value Table for T1,T2,T3 and T4 (°C – K) °C °F K Ohm °C °F K Ohm °C °F K Ohm °C °F K Ohm 115.266 12.6431 2.35774 0.62973 108.146 12.0561 2.27249 0.61148 101.517 11.5 2.19073 0.59386 96.3423 10.9731...
  • Page 99 ii) Temperature Sensor Resistance Value Table for TP(for some units) (°C --K) °C °F K Ohm °C °F K Ohm °C °F K Ohm °C °F K Ohm °C °F K Ohm °C °F K Ohm °C °F K Ohm °C °F K Ohm...

  • Page 100: Check Procedures

    8. Check Procedures 8.1 Temperature Sensor Check WARNING Be sure to turn off all power supplies or disconnect all wires to avoid electric shock. Operate after compressor and coil have returned to normal temperature in case of injury. 1. Disconnect the temperature sensor from PCB (Refer to Chapter 5&6. Indoor&Outdoor Unit Disassembly). 2.
  • Page 101 Resistance Value KSK103D33UEZ3 KSN140D21UFZ KTM240D43UKT Blue-Red Blue-Black 1.03Ω 1.28Ω 1.03Ω Red-Black Note: The picture and the value are only for reference, actual condition and specific value may vary. 8-40  Troubleshooting 35 ...

  • Page 102: Ipm Continuity Check

    8.3 IPM Continuity Check WARNING Electricity remains in capacitors even when the power supply is off. Ensure the capacitors are fully discharged before troubleshooting. 1. Turn off outdoor unit and disconnect power supply. 2. Discharge electrolytic capacitors and ensure all energy-storage unit has been discharged. 3.
  • Page 103 Cooling chart(R32): ODU(DB) °F(°C) 0(-17) 5(-15) 95 (35) (-9.44) (7.22) (23.89) (29.44) (40.56) (46.11) (48.89) IDU(DB/WB) 70/59 (21.11/15) 10.3 10.8 75/63 (23.89/17.22) 10.9 11.4 80/67 (26.67/19.44) 11.4 12.1 90/73 (32.22/22.78) 10.7 10.5 10.2 10.8 12.6 13.3 70/59 (21.11/15) 75/63 (23.89/17.22) 80/67 (26.67/19.44) 90/73 (32.22/22.78) 70/59 (21.11/15)
  • Page 104 Heating chart(R32): ODU(DB/WB) 57/53 47/43 37/33 27/23 17/13 (-8.33/- 0/-2 -17/-18 °F(°C) (13.89/11.67) (8.33/6.11) (2.78/0.56) (-2.78/-5) 10.56) (-17/-19) (-27/-28) IDU(DB) 55(12.78) 30.9 29.1 25.8 23.3 21.2 18.9 16.8 65(18.33) 33.2 30.6 27.1 25.9 23.8 20.9 19.4 75(23.89) 34.5 32.1 28.4 26.8 25.4 21.9...
  • Page 110 MOZAMBIQUE MOZAMBIQUE...
