Module Dock Components

The following figure shows the features of the Module Dock. See
description of the LEDs.

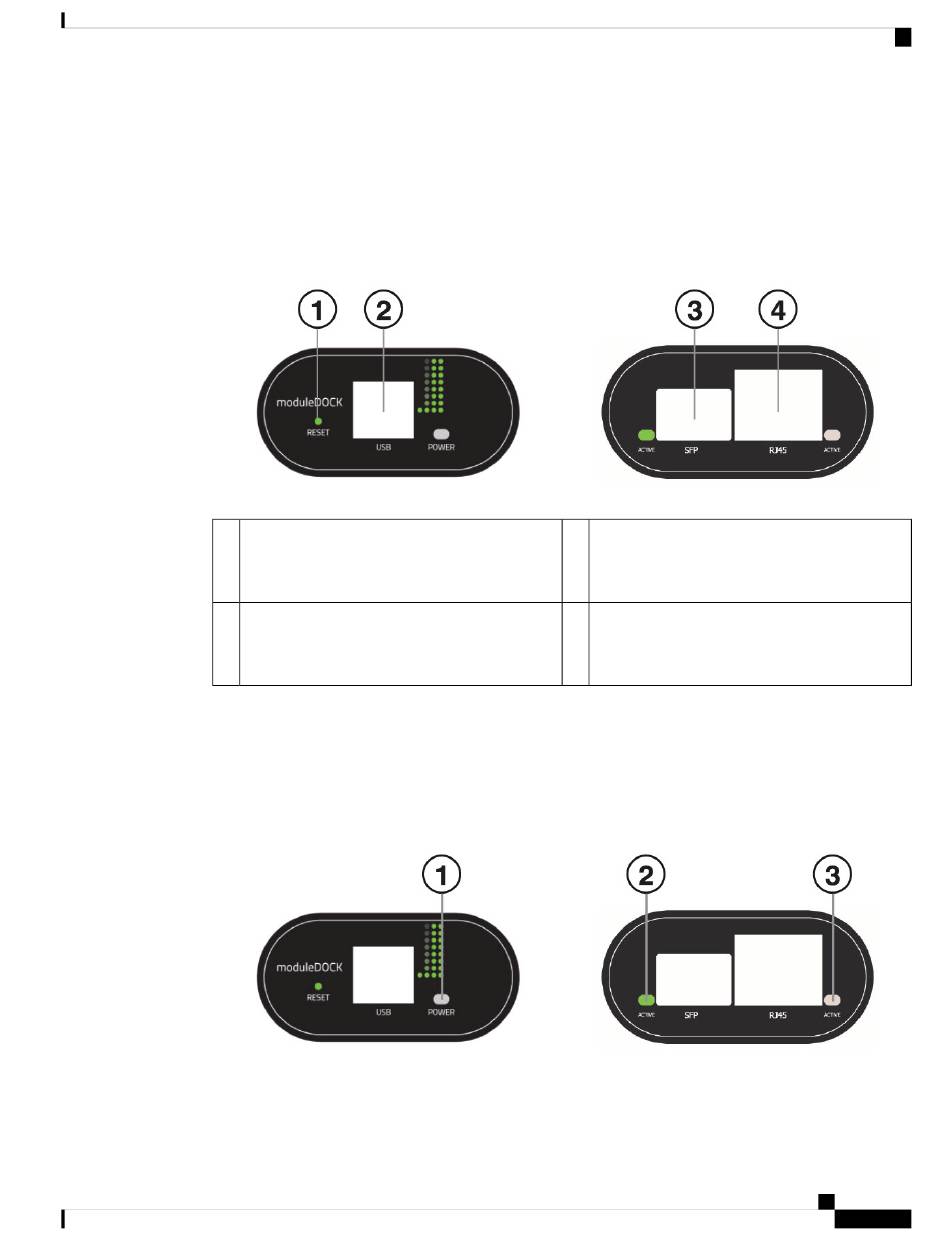

Figure 2: Module Dock Components
1
3

Module Dock LEDs

The following figure shows the LEDs and describes their states.
Figure 3: Module Dock LEDs and Their States
Reset button
Used to restart the Module Dock or revert to
factory default settings
SFP port
Insert the Sensor SFP directly into this port
Cisco Provider Connectivity Assurance Module Dock Hardware Installation Guide
Module Dock Components
Module Dock LEDs, on page 3
USB 2.0 port
2
Connect a USB cable between this port and a host
computer
4 RJ45 port
Connect this port to the Sensor Module using an
Ethernet cable
for a
3
