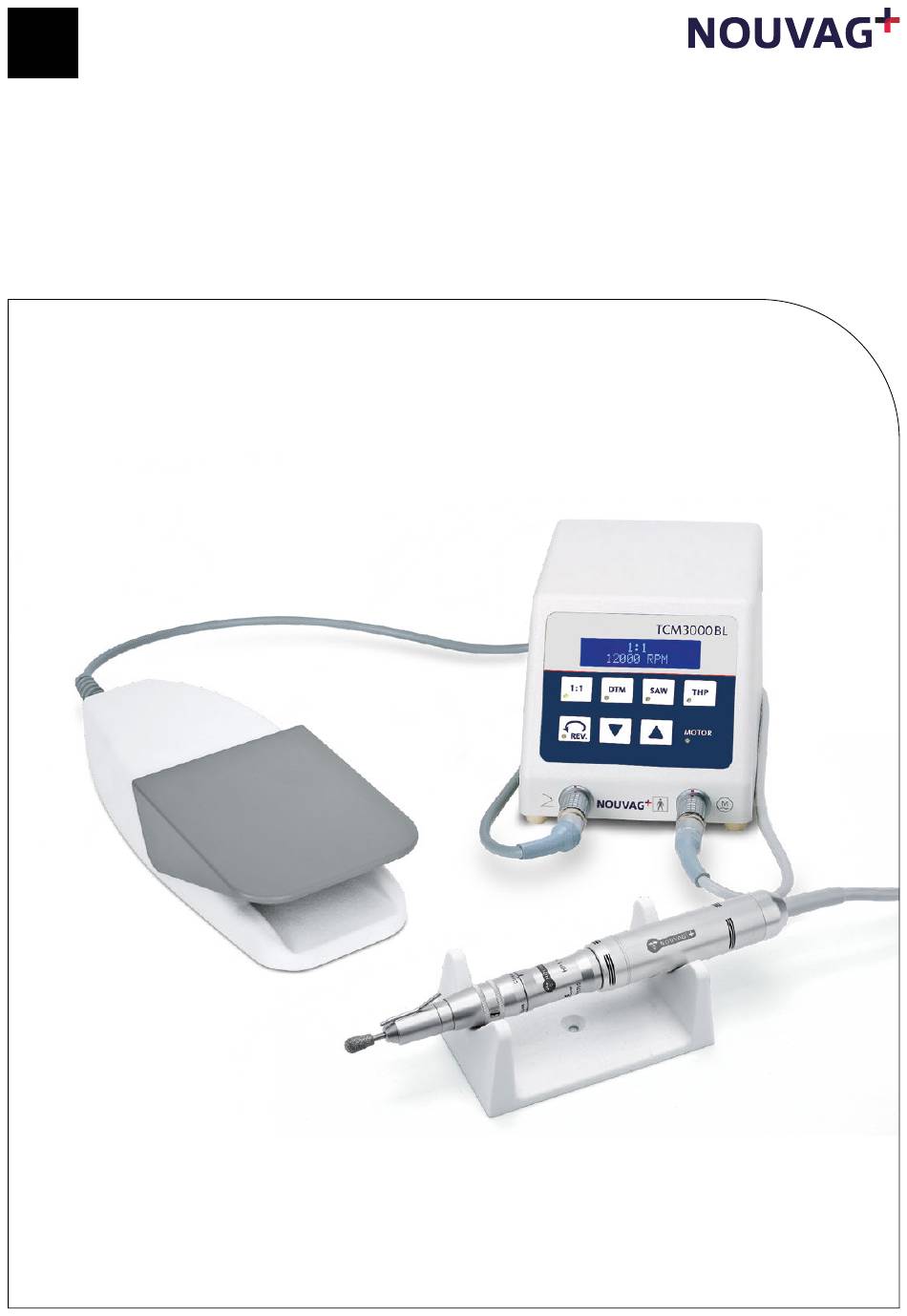

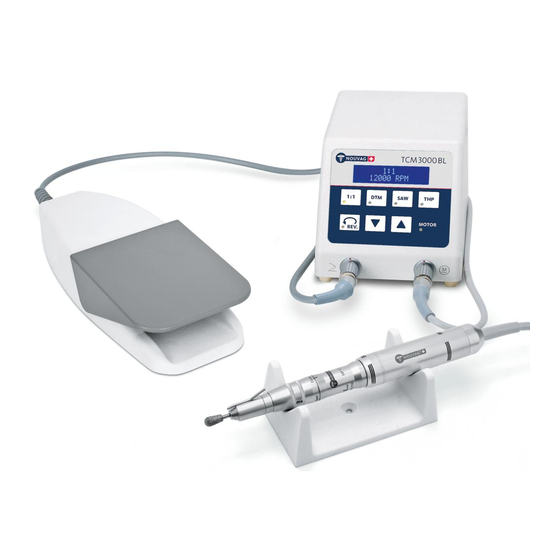

- Page 1 Instructions for use TCM 3000 BL...
- Page 2 Instructions for use TCM 3000 BL • 31739 • V20240815...
- Page 3 Foreword Congratulations on your purchase of a NOUVAG AG product. Thank you for the confidence shown in our products. Please consult the instruction manual for the use and maintenance of the device to ensure that it will function properly and efficiently for many years.
- Page 4 Instructions for use TCM 3000 BL • 31739 • V20240815...
-
Page 5: Table Of Contents
TCM 3000 BL Table of contents General information Intended use and operation Contraindication Users / Target Group Technical data, TCM 3000 BL Ambient conditions Warranty conditions Symbols Safety information EMC Manufacturer’s Declaration of Conformity Post market surveillance Modification and misuse Essential requirements During use Scope of delivery... -
Page 6: General Information
TCM 3000 BL General information Intended use and operation The TCM 3000 BL is a device for controlling an electronic motor combined with an appropriate handpiece according to the intended use. It’s applied in an operation theater for Dermabrasion and Reconstructive Surgery as well as for sawing, drilling, milling, and grinding at bones. -
Page 7: Symbols
In order to provide adequate information, please complete the complaint form: Nouvag.com > Contact > Complaint Form Operation instructions TCM 3000 BL, REF 31739, V24/22 Instructions for use TCM 3000 BL • 31739 • V20240815... -
Page 8: Modification And Misuse
Use lubricant spray for maintenance and care of the technicians, authorized by the manufac- motor and handpieces. turer of the device, Nouvag AG. During use The device is not sterile on delivery. All Do not remove handpieces while the motor is run- sterilizable parts must be sterilized before ning. -
Page 9: Scope Of Delivery
TCM 3000 BL Scope of delivery Description Quantity 3285 TCM 3000 BL set comprises the following products----------------------------------------------------------------- 1 3280 TCM 3000 BL control unit, device connecting cable 3 m, (country specific) -------------------------------------- 1 1507nou VARIO-Pedal, IPX8, connecting cable 3 m----------------------------------------------------------------------------------- 1 1170 Handpiece cradle, white -------------------------------------------------------------------------------------------------------- 1 2112nou... -
Page 10: Before Use
TCM 3000 BL Before use Device Setup ● Installation layout ● Place the TCM 3000 BL and all required accessories and instruments on an even, non-slip surface and make sure you have good access to all controls. ● The installation of the device near other devices is prohibited due to EMC – please see section 3.1 and the manufacturer’s EMC declaration in the appendix of this manual. -
Page 11: Connection To The Power Supply
TCM 3000 BL Connection to the power supply • Before plugging the power cable into the power socket for the first time, you must check the supply voltage setting next to the power switch. • To prevent the risk of electric shock, the device may only be connected to a power network with a PE protective earth conductor. -
Page 12: Connecting The Motor Cable
TCM 3000 BL 6.4.1 Connecting the motor cable Align the red dot on the device connection plug of the motor with the red dot on the motor connection of the control unit. Plug the motor device connection plug into the motor connection of the control unit. -
Page 13: Operation
TCM 3000 BL Operation Switching the TCM 3000 BL on or off The device is switched on (I) or off (O) with the main switch „I/O “, at the power supply module, at the rear of the device. The display on the TCM 3000 BL is then illuminated. After switching the device on the last used setting will be activated and displayed. -
Page 14: Program For Surgical Micro Saws
TCM 3000 BL 7.2.3 Program for surgical micro saws Press SAW-key according to the applied micro saw handpiece on the motor. The ideal rotational speed for the micro saws is 15.000 rpm and cannot be changed. 7.2.4 Program for the Tattoo handpiece Press THP-key according to the applied Tattoo handpiece on the motor. -
Page 15: Cleaning And Disinfection
TCM 3000 BL Cleaning and disinfection Risk of infection! The product should be prepared in accordance with the instructions given in this manual before using it for the first time and for each subsequent use. The inadequate and/or incomplete preparation of the product can cause an infection of the patient. -
Page 16: Maintenance And Repair
The service instructions, diagrams and descriptions are available on request from the manufacturer. NOUVAG AG offers a safety inspection service for its customers. Addresses can be found in the appendix of this operation manual under “Service centers”. For further information please contact our technical ser- vice department. -
Page 17: Malfunction And Troubleshooting
TCM 3000 BL Malfunction and troubleshooting Refer to the Malfunction Cause Solution operation instruction Device is not operational Control unit is not switched Set the power switch I/O 7.1 Switching the TCM 3000 BL on (Display is not active) to „ I “ or off Control unit is not connected Connect the control unit with... -
Page 18: Spare Parts And Accessories
TCM 3000 BL Spare parts and Accessories Spare parts Electronic motor 21, up to 40.000 rpm, motor cable 3 m, including operation manual -------------------------------- 2112nou VARIO pedal, IPX8, connection cable 3 m ---------------------------------------------------------------------------------------- 1507nou Accessories Dermatome 75 with ISO 3964 coupling, 75 mm cutting width, 1.00 mm max. cutting depth, 14.000 rpm ------- 1990nou Dermatome 100 with ISO 3964 coupling, 100 mm cutting width, 1.00 mm max. - Page 19 Appendix...
- Page 20 Electromagnetic compatibility (EMC) Remark: The Product subsequently referred to herein always denotes the TCM 3000 BL. Changes or modifications to this product not expressly approved by the manufacturer may result in increased emissions or decreased immunity performance of the product and could cause EMC issues with this or other equipment. This product is designed and tested to comply with applicable regulations regarding EMC and shall be installed and put into service according to the EMC information stated as follows.
- Page 21 variations on power If the user of the Product requires continued supply input lines 0 % U for 1 cycle 0 % U for 1 cycle operation during power mains interruptions, it is recommended that the Product be powered IEC 61000-4-11 70 % U ;...
- Page 22 Electromagnetic immunity against high-frequency wireless communication devices Test frequency Frequency Communication Modulation Maximum distance Test level band service Performance Pulse modulation 380 to 390 TETRA 400 18 Hz GMRS 460, 430 to 470 ± 5 kHz Hub FRS 460 1 kHz Sinus Pulse modulation 704 to 787 LTE Band 13, 17...
- Page 23 Nouvag GmbH • Schulthaissstrasse 15 • DE-78462 Konstanz Phone +49 7531 1290 - 0 info-de@nouvag.com • www.nouvag.com A complete list of NOUVAG certified service points are found on the NOUVAG website: Nouvag.com > Service > Global Service Centres Post market surveillance...
- Page 24 NOUVAG AG NOUVAG GmbH St. Gallerstrasse 25 Schulthaissstrasse 15 9403 Goldach 78462 Konstanz Switzerland Germany Phone +41 71 846 66 00 Phone +49 7531 1290 - 0 info@nouvag.com info-de@nouvag.com www.nouvag.com www.nouvag.com © NOUVAG AG • 31739 • V20240815 • All rights reserved...
