2. Specifications
Model Thermostat
NDFL1202F-3 Mechanical
NDFL1202F-4 Mechanical
NO. Description
1 Screw(ST4*14)
3 Instruction Manual
4. Operation
Warning: Only operate the heater in normal upright position with foot attached to
the bottom of the unit (foot on the bottom, controls on the top), any other position
could lead into a hazardous situation.
1. Set the power switch to off position and rotate the thermostat anticlockwise to
minimum position. Then insert the plug into a socket-outlet with well grounded.
2. Press power switch on. Then rotate the thermostat clockwise to the position of
MAX. When your room reaches the desired temperature, now slowly rotate the
thermostat knob anticlockwise until the pilot light goes out. The thermostat can now
be left at this setting. As soon as the room temperature has dropped below the set
temperature, the unit will switch itself on automatically until the set temperature
has been reached again. In this way the room temperature remains constant with
the most economical use of electricity.
3. If you want to change the room temperature setting, rotate the thermostat knob
clockwise to raise the temperature, or anticlockwise to lower it.
4. This heater includes an overheat protection system that shuts off the heater
when parts of the heater are getting excessively hot.
5. To completely shut the heater off, do turn all the controls to OFF by manual,
especially for OFF switch and remove plug from the socket-outlet.
Voltage
~230 V / 50 Hz 1500W
~230 V / 50 Hz 2000W

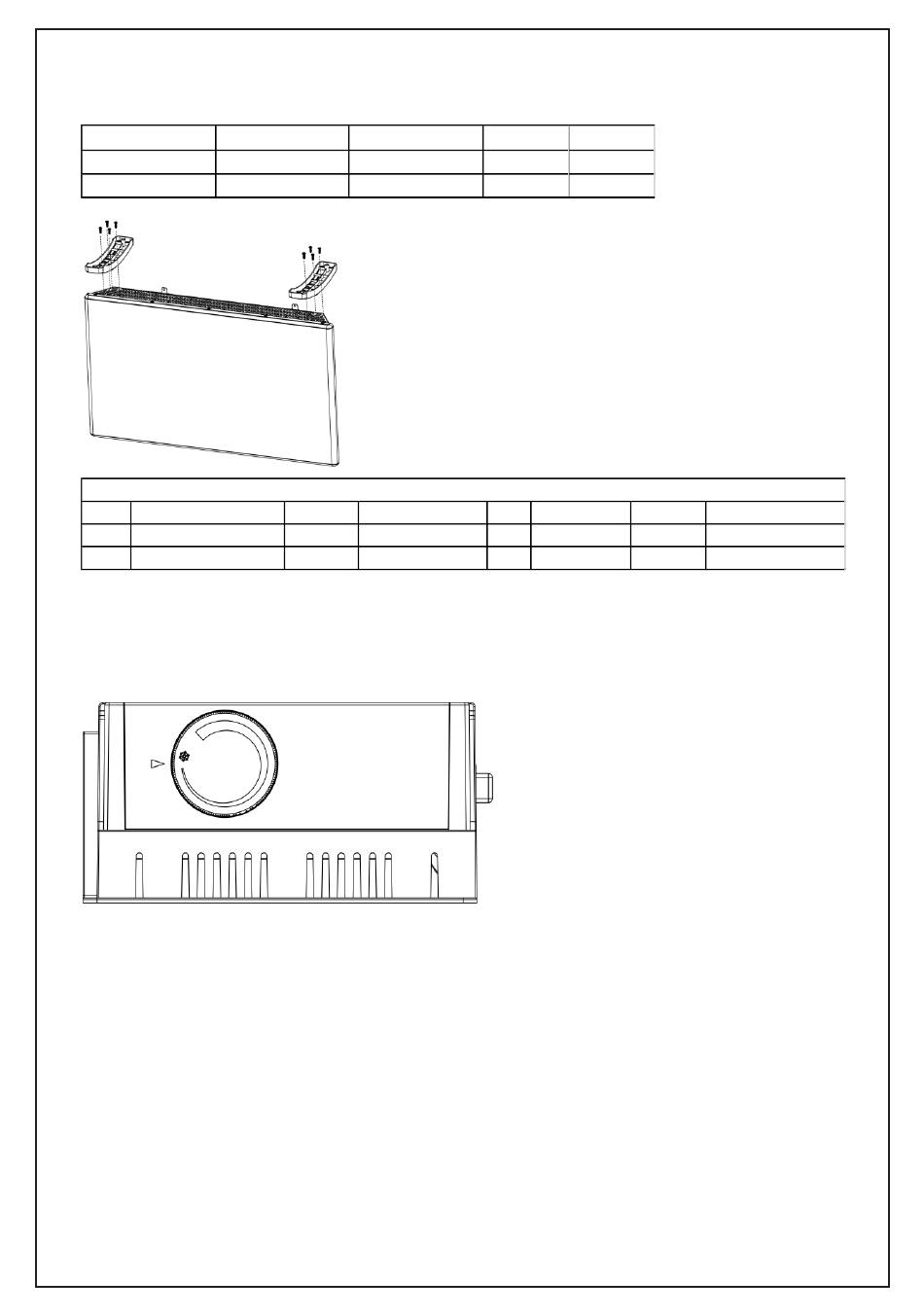

3. Assembly
For Stand
1-Fit the foot onto the bottom of the body.
2-Fasten 2pcs foots with 8 screws (ST4*14).
Parts list
Quantity Note
8 Used for Stand
1 /
Thermostat
2
Power IP rating
IPx4
IPx4
NO. Description Quantity
2 foot 2
4 / /
Note
Used for Stand
/
