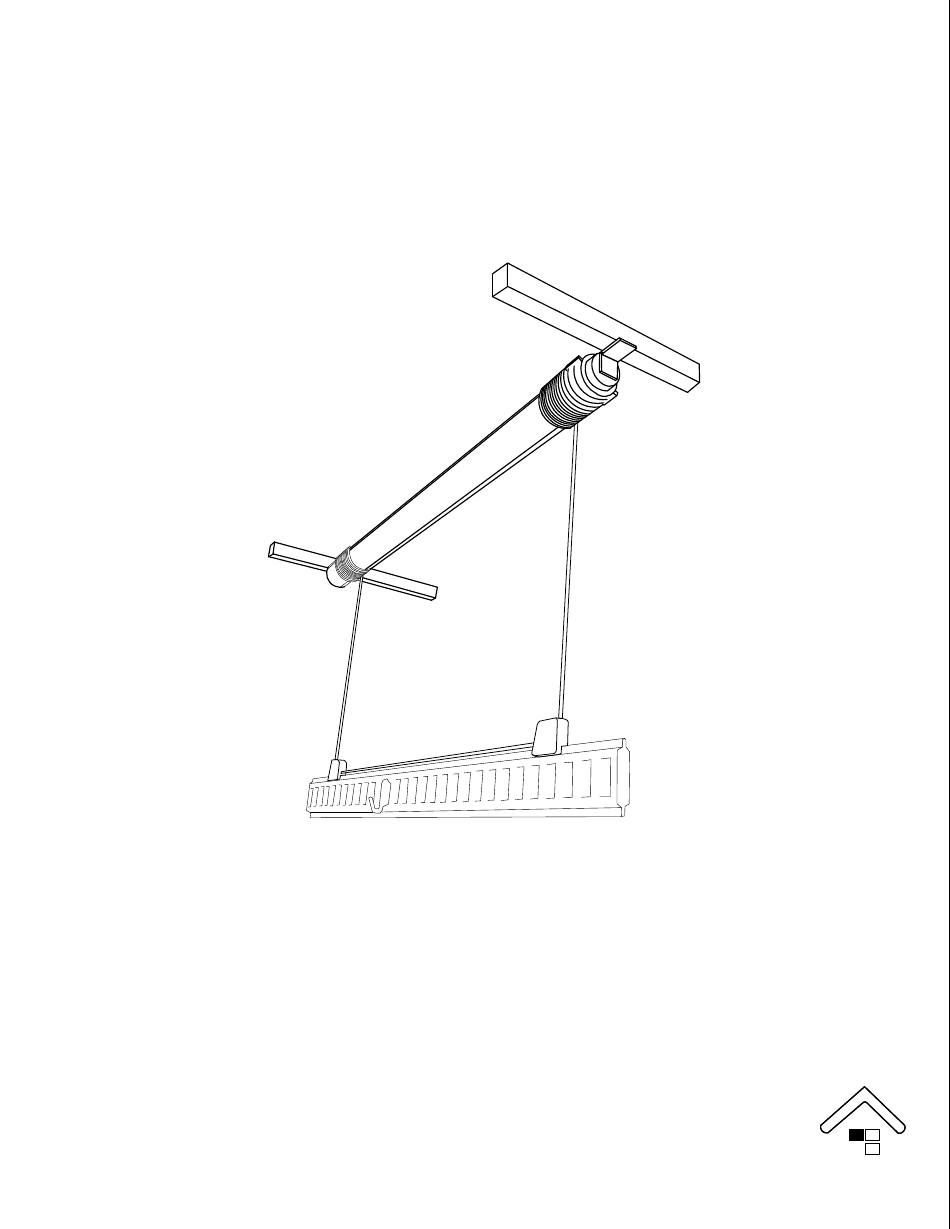

- Page 1 AUXXLIFT One All rights reserved Design and Quality US Patent AUXXLIFT of the USA Release 6/2023...
-
Page 2: Before You Start
Before YOU start advanced advanced tough tough 1. Have you read through the instructions? easy easy difficult difficult 2. Do you have all the recommended tools? 3. Do you have somebody assisting you? 4. Have you allocated enough time? For a professional it takes about 3 hours to install. What is most important is to follow the instructions and read everything carefully before you start. -
Page 3: Recommended Tools
RECOMMENDED TOOLS 7/16"-11mm 9/32" / 7mm 13/32"-10mm 3/16" / 5mm 23/32"-18mm 1/8" / 3mm 0.04"X0.1" 1X3mm 3/16" / 5mm 3/32" / 2.5mm... - Page 4 Version 1 0503A 0301A Version 2 Only Version 2 0509A 0803A 1 ⅛” x ⅛” 1102A 1 channel 1105A 2 channel 1106A 6 channel M5x3 0002A 0400A 0302A 1206A 0504A 0400A M5x12 1207A 0802A 0507A 0505A 0602A 2001A 0201C...
-
Page 5: Troubleshooting
Motors should be mounted such that the wires spooling off the motors are plumb and perpendicular to the floor. Information Troubleshooting... - Page 6 Strut Channels Controller Controller Strut Channel with side Joist holes 90º Strut Joist Channel without side holes Extra material for this configuration is not included. You will find the below materials at any big-box hardware store or order it from us (contact us). 2x Strut Channel 57.5"...
- Page 7 Warning! DO NOT use an Impact Driver Strut to tighten the Lag screws! Channels 7/16" 11mm 1/8" 3mm for pre-drill Tighten screw until the washer no longer rotates. Then tighten screw another 10ᵒ in same direction. 10ᵒ= (200 pound/ inch=20Nm) 59"/150cm 90ᵒ...
-
Page 8: Controller Mounting
CONTROLLER MOUNTING View in direction Ceiling Controller 3.3"/8.8cm 1 ⅛” x ⅛” Strut Strut Outlet PG Grommet End cap End cap Motor Grommet E.g. drywall Strut Controller 3/16"... - Page 9 Controller Outlet cable wiring disconnected WARNING S h o c k H a z a r d Disconnect power before working on wiring ↑=Up, Black Motor ↓=Down, Red wiring C= Com, White Controller E= Earth, Green Outlet PG N= Neutral, White Power ↑...
- Page 10 Minimum required Area With a 5' Rack 30" bei 72" 30" IMPORTANT MOTOR ARRANGEMENT If you change something the manual doesn’t fit anymore! Note the use of grommets and the wire path into the strut to avoid damage and shocks 90º...
- Page 11 green Rope unwind Motor The black cables that come out of the motors needs to come straight down towards floor. Cable in direction ceiling After cutting the middle cable tie, the wire rope must be unrolled from the tube until it stops due to the other remaining cable ties.
- Page 12 Beam adjustment Wire rope groove Tighten the screws Remove all 2 cable ties evenly by hand. carefully. Do not use an Impact driver. Set screws Do not tighten yet! 3/16" / 5mm Steel rope Vinyl 3/32" / 2.5mm 2-3 revolution M5x16...
- Page 13 Overview Controller Down Stop 0.5A Learn Deadman Up Down COM E N ↑=Up, Black Motor ↓=Down, Red wiring C= Com, White E= Earth, Green nc N= Neutral, White Power L= Line, Black input...
- Page 14 Motor Adjustment (leveling), Preparation Most important! All switches work the same way, even though their labeling is different. Before you start to turn the stop (motor limit) switches, please be sure that you are turning them in the right direction! Controller Keys Stop Stop...
- Page 15 Motor Adjustment (leveling), Preparation Technical information for 400 lbs lift *Movement Rack Max travel is 21.8 feet/ 6.40m 1 tube rotation 12 turns on the stop switches 1 tube rotation 11" / 28cm 1 turn on stop switch 1"/ 2.5cm Smallest movement 1/16"...
-
Page 16: Level Adjustment
Level Adjustment The Adjustment is possible only when the controller is active! After pushing the up or down button Motor The Controller run max 100s Stop Press Up 1, lift stops here by itself STOP DOWN Down Down Learn Stop Press Down 3, lift stops here by itself Push UP and let the Motor doesn’t... - Page 17 Strut cover Rail Cover with caps (Cable side) 5'/150cm Click Click Load evently! If you are done with the adjustment, please switch the DeadMan function back on Important! The Lift has to run to the ceiling end points (stopped automatically) in order to be leveled properly.
- Page 18 Inspection Inspect and tighten all screws, wire clips, grommets and cotter pins. Make an alignment mark on each part that might be able to shift over time (like the motor mounts) using a Sharpie pen. Inspect all items, especially movement on the alignment marks, once a year.
- Page 19 Check Check list (after installing, and than ones the year! 1. Lag screws tighten 4X ░ 2. Cotter Pins installed and curved up 2X ░ 3. 12mm Bracket screws tighten 2X ░ 4. All set screws tighten 12X ░ 5. All 6mm screws tighten 8X ░ 6.
- Page 20 Remotes are Pre-configured Controller Remote Control Stop Down Learn Controller Learn button Learning / memorizing Remote control Press the Learn button at the Erasing Remote Control controller. Press the Controller learn button LED turns into red and gets into for 8s until the LED turn green. learning state.
- Page 21 After the install, Please switch on the DEADMAN function Deadman De- active Active (Adjustment Mode) DEADMAN function is for your safety You push the button 1 / ↑ (UP) or 3 /↓ (DOWN) and hold it. The lift will stops immediately when you release the button at the remote or controller.
