User Manual
Model ID: ROGUER3XWASH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rogue R3X Wash and is the answer not in the manual?

Questions and answers

Related Manuals for Chauvet Rogue R3X Wash

Summary of Contents for Chauvet Rogue R3X Wash

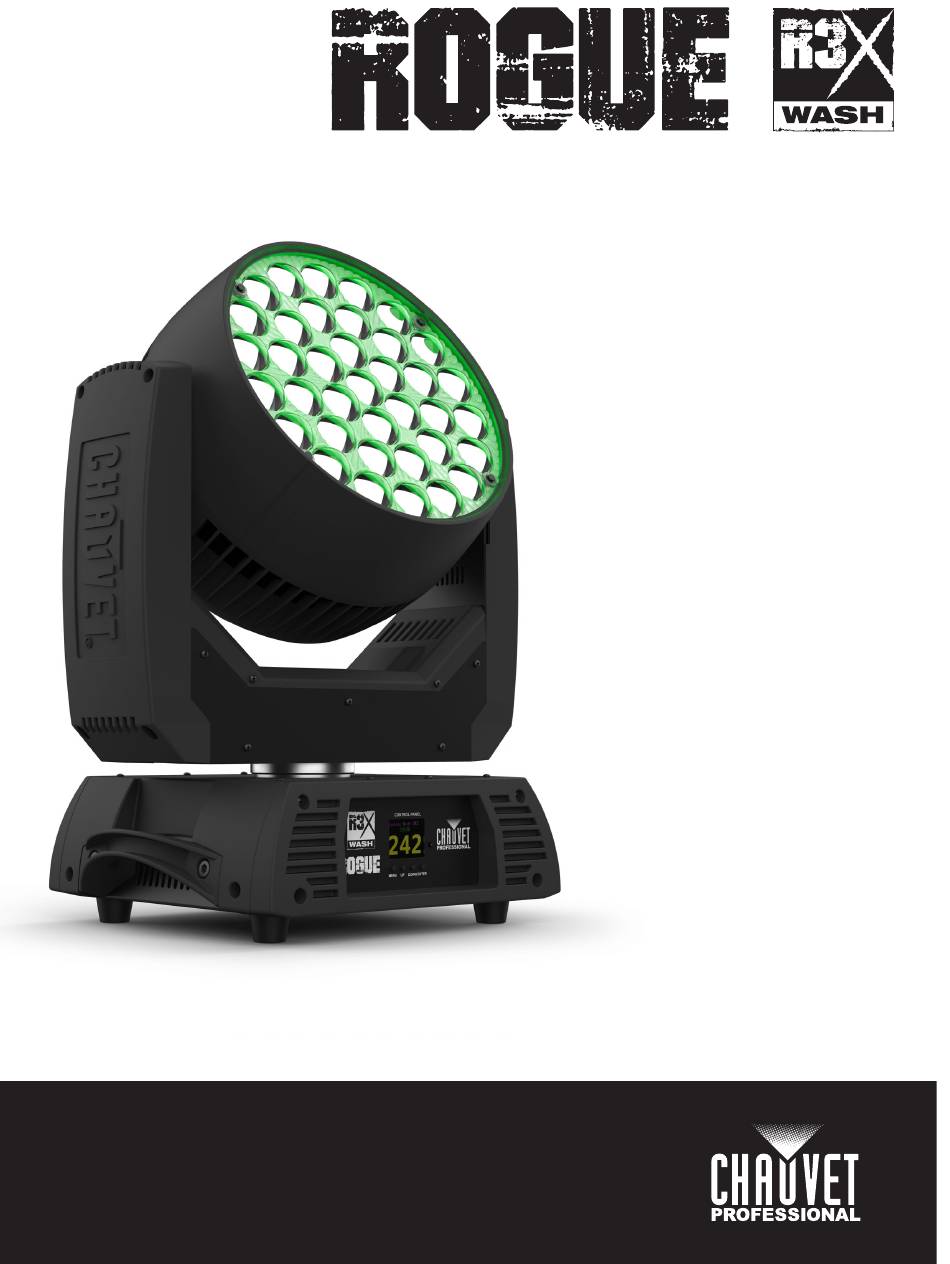

  • Page 1 User Manual Model ID: ROGUER3XWASH...
  • Page 2 Edition Notes The Rogue R3X Wash User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Rogue R3X Wash as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Rogue are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Starting Address ..................Control Channel Assignments and Values .......... Color Chart ....................Gobo Values .................... LED Built-ins .................... DMX Values..................... Configuration (Settings)............... Pan Reverse .................... Tilt Reverse....................Pan Angle ....................Tilt Angle....................Fan Mode....................Rogue R3X Wash User Manual Rev. 4...
  • Page 4 White Mode....................Reset Function..................Factory Reset ..................Test Mode.................... Auto Test ....................Manual Test ..................... System Information................Offset Mode (Zero Adjust) ..............5. Maintenance................Product Maintenance................6. Technical Specifications ............Returns.................... Contact Us ..................Rogue R3X Wash User Manual Rev. 4...

  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

  • Page 6: Safety Notes

    The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures. • In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Page 2 of 24 Rogue R3X Wash User Manual Rev. 4...

  • Page 7: Introduction

    2. Introduction Description The Rogue R3X Wash features 37 RGBW 25 W quad-LEDs, with a unique “bubble” lens design for high- quality color rendering and visual effects. The Rogue R3X Wash also features a 12° to 49° zoom angle, fast and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors.

  • Page 8: Product Dimensions

    Product Dimensions 15.51 in 11.73 in 394 mm 298 mm 11.85 in 301 mm 18.5 in 470 mm 4.53 in 115 mm 11.12 in 282 mm 10.39 in 264 mm Page 4 of 24 Rogue R3X Wash User Manual Rev. 4...

  • Page 9: Setup

    Power Linking It is possible to link up to 0 Rogue R3X Wash products at 100 V, 2 products at 120 V, 3 products at 208 V, 4 products at 230 V, or 4 products at 240 V. Never exceed this number. This product comes with a power input cord.

  • Page 10: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Rogue R3X Wash comes with a bracket to which you can attach a mounting clamp directly. Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product.

  • Page 11: Operation

    <ENTER> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the Rogue R3X Wash starting address in the 001–512 DMX range. Programming Refer to the Menu Map to understand the menu options. The menu map shows the main level and a variable number of programming levels for each option.
  • Page 12 Uses maximum output values Sets red LED maximum value White Mode GREEN Sets green LED maximum value Custom 000–255 BLUE Sets blue LED maximum value WHITE Sets white LED maximum value Page 8 of 24 Rogue R3X Wash User Manual Rev. 4...

  • Page 13: Configuration (Dmx)

    Each product will respond to a unique starting address from the controller. All products with the same starting address will respond in unison. To set the starting address: 1. Go to the Address main level. 2. Select the starting address (001–512). Page 9 of 24 Rogue R3X Wash User Manual Rev. 4...

  • Page 14: Control Channel Assignments And Values

    082  084 Gobo 26 166  168 Gobo 54 250  252 Gobo 82 085  087 Gobo 27 169  171 Gobo 55 253  255 Gobo 83 Page 10 of 24 Rogue R3X Wash User Manual Rev. 4...

  • Page 15: Led Built-Ins

    Built-in 70 082  083 Built-in 34 204  205 Built-in 71 084  085 Built-in 35 206  255 Built-in 72 (main) 086  135 Built-in 36 (main) Page 11 of 24 Rogue R3X Wash User Manual Rev. 4...

  • Page 16: Dmx Values

    Operation Rogue R3X Wash Zones for DMX Control DMX Values 107CH Function Value Percent/Setting 000  255 0–100% Fine Pan 000  255 Fine control (16-bit) Tilt 000  255 0–100% Fine Tilt 000  255 Fine control (16-bit) Pan/Tilt Speed 000 ...
  • Page 17 150  154 Square curve 155  159 I Squa curve 160  164 S-Curve 165  169 White mode on 170  174 White mode off 175  255 No function Page 13 of 24 Rogue R3X Wash User Manual Rev. 4...
  • Page 18 Cyan 6 000  255 0–100% / 100–0% Fine Red 6 Fine Cyan 6 000  255 Fine control (16-bit) Green 6 Magenta 6 000  255 0–100% / 100–0% Page 14 of 24 Rogue R3X Wash User Manual Rev. 4...
  • Page 19 Fine Blue 9 Fine Yellow 9 000  255 Fine control (16-bit) White 9 000  255 0–100% / 100–0% Fine White 9 000  255 Fine control (16-bit) Page 15 of 24 Rogue R3X Wash User Manual Rev. 4...
  • Page 20 000  255 0–100% – Background Green 000  255 0–100% – Background Blue 000  255 0–100% – Background White 000  255 0–100% Zoom 000  255 Narrow to wide Page 16 of 24 Rogue R3X Wash User Manual Rev. 4...
  • Page 21 000  255 0–100% / 100–0% – Blue 3 Yellow 3 000  255 0–100% / 100–0% – White 3 000  255 0–100% – – Dimmer 4 000  255 0–100% Page 17 of 24 Rogue R3X Wash User Manual Rev. 4...
  • Page 22 – Green 9 Magenta 9 000  255 0–100% / 100–0% – Blue 9 Yellow 9 000  255 0–100% / 100–0% – White 9 000  255 0–100% Page 18 of 24 Rogue R3X Wash User Manual Rev. 4...

  • Page 23: Configuration (Settings)

    3. Select from OFF (right-side up) or ON (upside-down). Color Mixing Mode The Rogue R3X Wash has a mode that emulates CMY (cyan, magenta, and yellow) color mixing. In this mode, the dimming is reversed (000=100%, 255=0%), and the red, green, and blue channels control cyan, magenta, and yellow, respectively.

  • Page 24: Pulse-Width Modulation Options

    2. Select the Factory Set option. Test Mode Auto Test To have the Rogue R3X Wash automatically test all functions one after the other: 1. Go to the Running Mode main level. 2. Select the Auto Test option. Manual Test To manually test an individual function of the Rogue R3X Wash: 1.

  • Page 25: Maintenance

    7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans with compressed air. Damage may result. Page 21 of 24 Rogue R3X Wash User Manual Rev. 4...

  • Page 26: Technical Specifications

    3 and 5-pin XLR 21, 62, 71, or 107 Ordering Product Name Item Name Item Code UPC Number Rogue R3X Wash ROGUER3XWASH 08011592 781462219406 UL 1573 CSA C22.2 No. 166 E113093 Page 22 of 24 Rogue R3X Wash User Manual Rev. 4...

  • Page 27: Returns

    Returns Returns Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return.

  • Page 28: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Page 24 of 24 Rogue R3X Wash User Manual Rev. 4...
