Installation and Operating Guide
ecoDRY 550 Hand Dryers

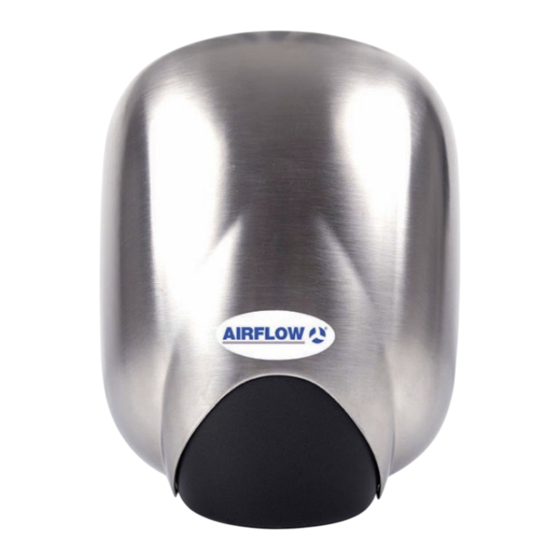

ecoDRY 550 ABS (Part No: 90000242)
ecoDRY 550 Satin (Part No: 90000243)
IMPORTANT! Read before commencing installation. Please leave these
instructions with the person responsible for the premises.
Introduction
The ecoDRY 550 hand dryers are an eco-hygienic drying system, factory fitted with an EPA grade
filter ensuring clean air distribution. The ecoDRY 550 hand dryers offer superior performance in
drying time at an average of 10 – 14 seconds utilising an energy saving 550W motor, consuming
as little as 2.3W per drying cycle. Offers a contemporary design with ergonomic features making it
a stylish addition to your washroom. The ecoDRY 550 hand dryers are available in two finishes -
White ABS Plastic, and Satin Die Cast Aluminium. Installation must be carried out by a qualified
and suitable competent person.
Supply Voltage
Frequency
Absorption (Power) Total
IP Rating
Electrical Insulation
Airflow Performance
Dimensions (mm) (H x W x D)
Weight
Technical Data
220-240V
50-60Hz
550 Watts
IP23
Class II
150 m³/hr / 42 l/sec
285 x 221 x 157
3Kg (ABS) 5Kg (Metal)
Page 1 of 7
80000122 Issue 4 – 08/24
Advertisement
Table of Contents
Related Manuals for Airflow ecoDRY 550 ABS
Summary of Contents for Airflow ecoDRY 550 ABS
- Page 1 80000122 Issue 4 – 08/24 Installation and Operating Guide ecoDRY 550 Hand Dryers ecoDRY 550 ABS (Part No: 90000242) ecoDRY 550 Satin (Part No: 90000243) IMPORTANT! Read before commencing installation. Please leave these instructions with the person responsible for the premises.
-
Page 2: Mechanical Installation
80000122 Issue 4 – 08/24 Safety Information and Guidance All electrical installation and repair work should be carried out by a qualified electrician accordance with current codes or regulations. Isolate the power before installation. RISK OF ELECTRIC SHOCK! If casing is removed or handled improperly the internal components of the unit may cause harm or become permanently damaged. - Page 3 80000122 Issue 4 – 08/24 Dimensions Front Cover Removal Before installation can commence you need to remove the front cover by unscrewing the two screws at the bottom of the cover (see Fig. 1). When the hand dryer is fixed to the wall, the cover should be replaced, and the two screws tightened accordingly.
-
Page 4: Operation
80000122 Issue 4 – 08/24 Wiring For hard wiring into a wall in a washroom: Operation The hand dryer automatically starts up when it senses the hands approaching the air outlet mechanism and stops when the hands move away. The unit has no heating element - air is heated by the power of the motor which allows considerable energy savings compared to traditional hand dryers. - Page 5 (brushes are not covered under the warranty of the hand dryer) and should be ordered from Airflow as a consumable part. It is a simple replacement procedure as the carbon brushes are supplied in twin cartridges which fit onto each side of the drive unit. Indication that the brushes are worn and need replacing will be the hand dryer starts to work intermittently or even fails to start.
-
Page 6: Troubleshooting
Adjust to suit the level of sensitivity required. Fig. 3 3. The dryer does not operate – check all connections, if this fails, please contact your installer. Please contact Airflow Developments Ltd at info@airflow.com or Tel +44 (0)1494 525 252 for further assistance. Spares Spares available to order at www.airflow.com. -
Page 7: Warranty
This warranty does not in any way affect any statutory or other consumer rights. AIRFLOW DEVELOPMENTS Limited reserves the right in the interest of continuous development to alter any or all specifications without Prior notice. All orders are accepted subject to our conditions of sale which are available on request.
