Installation and Operating Guide
ecoDRY mini Hand Dryers
ecoDRY mini ABS (Part No: 90000520)
ecoDRY mini Satin (Part No: 90000521)
IMPORTANT! Read before commencing installation. Please leave these
instructions with the person responsible for the premises.
Introduction
The ecoDRY mini hand dryers are an eco-hygienic drying system. The ecoDRY mini hand dryers offer
superior performance in drying time at an average of 20 seconds utilising an energy saving 400W
motor. Offers a contemporary design with ergonomic features making it a stylish addition to your

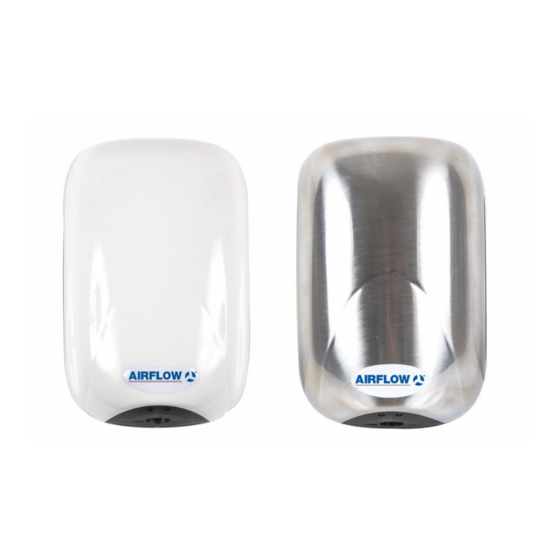

washroom. The ecoDRY mini hand dryers are available in two finishes - White ABS Plastic, and Satin
Die Cast Aluminium. Installation must be carried out by a qualified and suitable competent person.
Supply Voltage
Frequency
Absorption (Power)
IP Rating
Electrical Insulation
Airflow Performance
Dimensions (mm) (H x W x D)
Weight
Technical Data
220-240V
50-60Hz
400 Watts
IP23
Class II
110 m³/hr / 31 l/sec
238 x 156 x 99.5
1.2Kg
Page 1 of 5
80000414 Issue 3 - 07/23
Advertisement
Table of Contents
Related Manuals for Airflow ecoDRY mini ABS
Summary of Contents for Airflow ecoDRY mini ABS
- Page 1 80000414 Issue 3 - 07/23 Installation and Operating Guide ecoDRY mini Hand Dryers ecoDRY mini ABS (Part No: 90000520) ecoDRY mini Satin (Part No: 90000521) IMPORTANT! Read before commencing installation. Please leave these instructions with the person responsible for the premises.
- Page 2 80000414 Issue 3 - 07/23 Safety Information and Guidance All electrical installation and repair work should be carried out by a qualified electrician accordance with current codes or regulations. Isolate the power before installation. RISK OF ELECTRIC SHOCK! If casing is removed or handled improperly the internal components of the unit may cause harm or become permanently damaged.
- Page 3 80000414 Issue 3 - 07/23 Front Cover Removal Before installation can commence you need to remove the front cover by unscrewing the two screws at the bottom of the cover (see Fig. 1). When the hand dryer is fixed to the wall, the cover should be replaced, and the two screws tightened accordingly.
- Page 4 This product falls within the competence of the EC Directive 2002/96 (WEEE) on disposal of electrical and electronic equipment. Complies with RoHS legislation. Troubleshooting 1. If the dryer continuously blows cold air - please contact Airflow Developments Ltd at info@airflow.com or Tel +44 (0)1494 525 252 for further assistance.
- Page 5 EPA 11 filter (if included) or the carbon brushes both of which need to be replaced after 1,000 hours of operation. These can be ordered from Airflow as spare parts as and when required. In the event of any defective parts being found, Airflow Developments Ltd reserve the right to repair or at our discretion replace without charge provided that the unit: 1.
