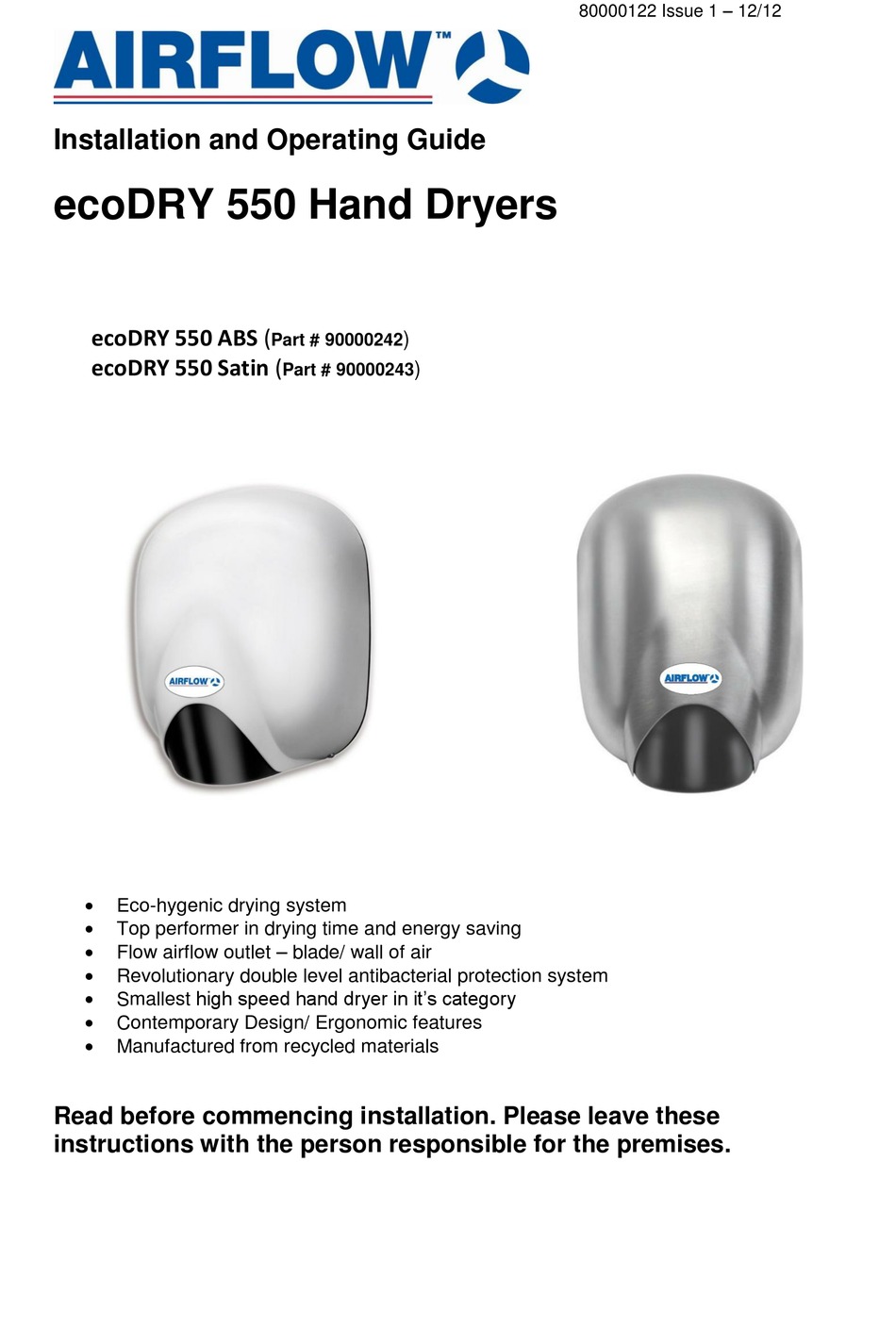

Installation and Operating Guide
ecoDRY 550 Hand Dryers
ecoDRY 550 ABS (
ecoDRY 550 Satin (
Eco-hygenic drying system
Top performer in drying time and energy saving
Flow airflow outlet – blade/ wall of air
Revolutionary double level antibacterial protection system
Smallest high speed hand dryer in it's category
Contemporary Design/ Ergonomic features
Manufactured from recycled materials
Read before commencing installation. Please leave these
instructions with the person responsible for the premises.
)
Part # 90000242
)
Part # 90000243
80000122 Issue 1 – 12/12
Advertisement
Table of Contents
Related Manuals for Airflow ecoDRY 550 Series
Summary of Contents for Airflow ecoDRY 550 Series
- Page 1 Part # 90000243 Eco-hygenic drying system Top performer in drying time and energy saving Flow airflow outlet – blade/ wall of air Revolutionary double level antibacterial protection system Smallest high speed hand dryer in it’s category ...
- Page 2 Absorption (power) total – 550 Watts Protection Level – IP23 Electrical Insulation – Class II Airflow Performance – 150m³/hr / 2,500l/min Dimensions – (H) 285mm x (W) 221mm x (D) 157mm Weight – 3Kg (ABS) 5Kg (Metal) 2. Mechanical Installation The ecoDRY hand dryer should be installed at a minimum height of 120cm (from the ground to the air outlet/ bottom of the dryer).
- Page 3 Mounting on the Wall Fix the hand dryer to the wall with the fixing kit provided using the enclosed template to mark out where the holes should be drilled. It is recommended that you use the raw plugs and screws provided in the fixing kit.
- Page 4 – these brushes are not covered by our warranty and should be ordered from Airflow as a consumable part. It is a simple replacement procedure as the carbon brushes are supplied in twin cartridges which fit onto each side of the drive unit. Indication that the brushes are worn and need replacing will be the hand dryer starts to work intermittently or even fails to start.
- Page 5 Adjust to suit the level of sensitivity required. Figure 5 3. The dryer does not operate – check all connections, if this fails please contact your installer. Please visit airflow.com/ FAQs for assistance Page 5 of 6...
- Page 6 Carbon Brushes (2 pack) - 90000244 AIRFLOW DEVELOPMENTS Limited reserves the right in the interest of continuous development to alter any or all specifications without Prior notice. All orders are accepted subject to our conditions of sale which are available on request.
