Installation and Operating Guide
ecoDRY 1100 Hand Dryers
ecoDRY 1100 ABS (Part No: 90000518)

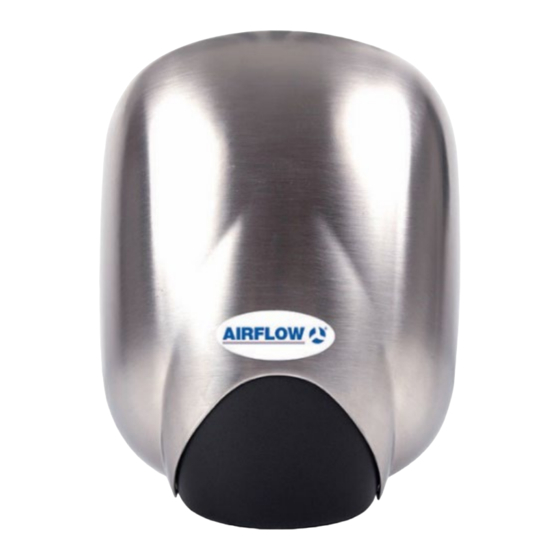

ecoDRY 1100 Satin (Part No: 90000519)
ecoDRY 1100 Black (Part No: 90002163)
IMPORTANT! Read before commencing installation. Please leave these
instructions with the person responsible for the premises.
Introduction
The ecoDRY 1100 hand dryers are an eco-hygienic drying system, factory fitted with an EPA grade
filter ensuring clean air distribution. The ecoDRY 1100 hand dryers offer superior performance in
drying time at an average of 15 seconds utilising an energy efficient 1100W motor. Offers a
contemporary design with ergonomic features making it a stylish addition to your washroom. The
ecoDRY 1100 hand dryers are available in three finishes - White ABS Plastic, Satin Die Cast
Aluminium, and Matte Black Steel. Installation must be carried out by a qualified and suitable
competent person.
Supply Voltage
Frequency
Absorption (Power) Total
IP Rating
Electrical Insulation
Airflow Performance
Dimensions (mm) (H x W x D)
Weight
Technical Data
220-240V
50-60Hz
1100 Watts
IP23
Class II
126 m³/hr / 35 l/sec
285 x 221 x 157
3Kg (ABS) 5Kg (Metal)
Page 1 of 6
80000122 Issue 4 – 04/24
Advertisement
Table of Contents
Related Manuals for Airflow ecoDRY 1100
Summary of Contents for Airflow ecoDRY 1100
- Page 1 Introduction The ecoDRY 1100 hand dryers are an eco-hygienic drying system, factory fitted with an EPA grade filter ensuring clean air distribution. The ecoDRY 1100 hand dryers offer superior performance in drying time at an average of 15 seconds utilising an energy efficient 1100W motor. Offers a contemporary design with ergonomic features making it a stylish addition to your washroom.
-
Page 2: Mechanical Installation
Wiring should conform to the latest edition of the IET wiring regulations (BS7671 – 17 Edition) or the appropriate standard in the country of installation. The ecoDRY 1100 requires a 220-240V 50/60Hz supply and an external 3A fuse. An isolator switch should also be installed in the MAINS input line to facilitate maintenance and cleaning of the dryer. -
Page 3: Operation
Wiring For hard wiring into a wall in a washroom: ecodry 1100 Operation The hand dryer automatically starts up when it senses the hands approaching the air outlet mechanism and stops when the hands move away. The unit has no heating element - air is heated by the power of the motor which allows considerable energy savings compared to traditional hand dryers. -
Page 4: Maintenance
The plastic parts inside the hand dryer are treated with Agion Silver Antimicrobial which reduces bacterial build on the dryer surfaces by 99.9%. The above measures give the ecoDRY 1100 hand dryers double antibacterial protection levels making it an ultra-hygienic drying system. -
Page 5: Troubleshooting
Fig. 3 3. The dryer does not operate – check all connections, if this fails, please contact your installer. Please contact Airflow Developments Ltd at info@airflow.com or Tel +44 (0)1494 525 252 for further assistance. Page 5 of 6... -
Page 6: Warranty
This warranty does not in any way affect any statutory or other consumer rights. AIRFLOW DEVELOPMENTS Limited reserves the right in the interest of continuous development to alter any or all specifications without Prior notice. All orders are accepted subject to our conditions of sale which are available on request.
