Table of Contents

HYDRAULIC
U.S. Patent No. 4,682,919
OPERATOR'S MANUAL
UPC 616H
UPC 636H
UPC 648H
REED MANUFACTURING COMPANY
1425 West Eighth St.
Erie, PA 16502 USA
Phone: 800-666-3691 or 814-452-3691
Fax: 800-456-1697 or 814-455-1697
www.reedmfgco.com
205-57516

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPC 616H and is the answer not in the manual?

Questions and answers

Related Manuals for REED UPC 616H

Summary of Contents for REED UPC 616H

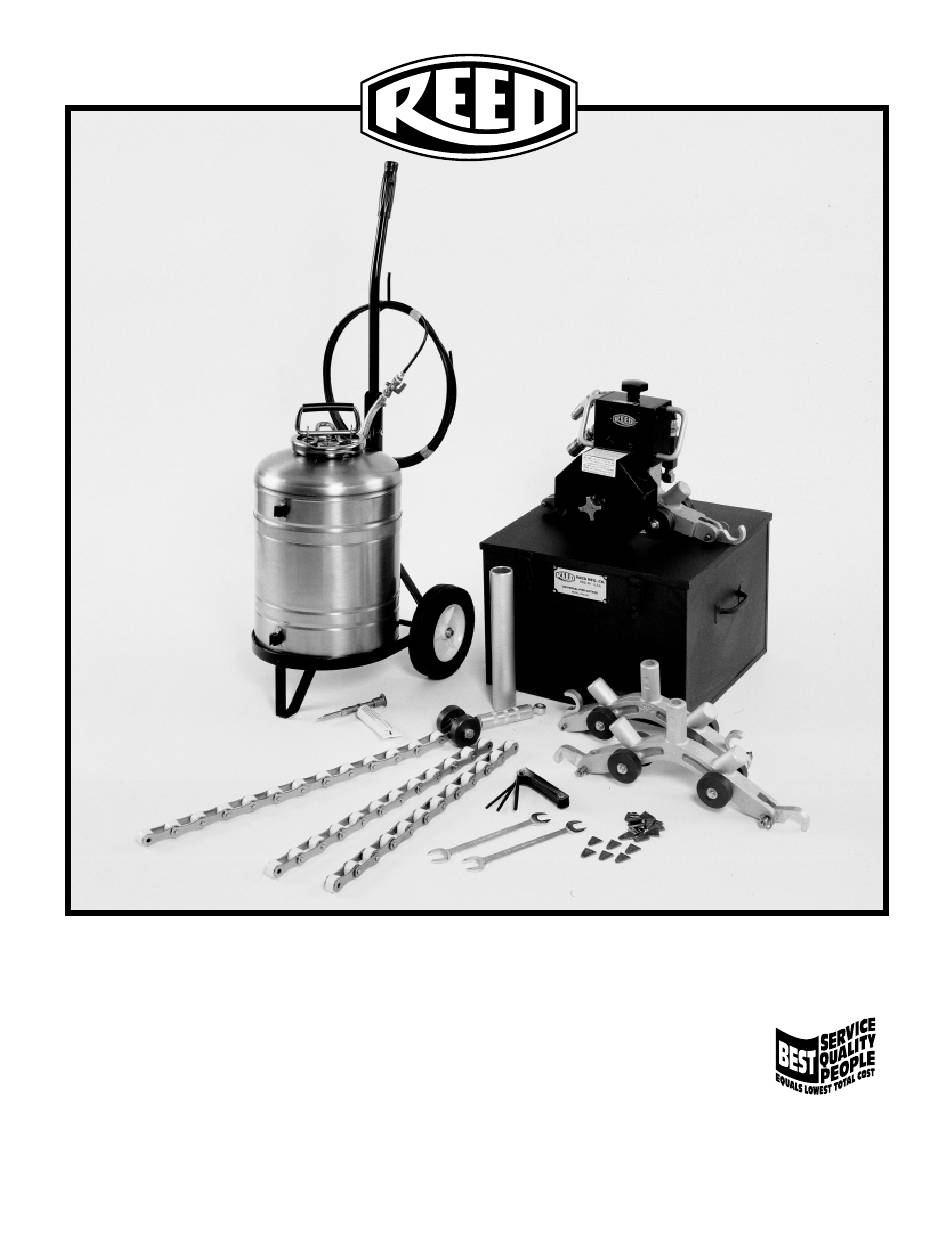

  • Page 1 HYDRAULIC U.S. Patent No. 4,682,919 OPERATOR'S MANUAL UPC 616H UPC 636H UPC 648H REED MANUFACTURING COMPANY 1425 West Eighth St. Erie, PA 16502 USA Phone: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697 www.reedmfgco.com 205-57516...

  • Page 2: Safety Instructions & Warning

    II. DESCRIPTION b. Unusual vibration is experienced (Refer to Section III to check if proper assembly was followed). A. Pipe Cutter Model: UPC 616H, 636H and 648H Check Speed Rating of Blade B. Motor Specifications: a. Must equal or exceed speed rating of hydraulic motor-Max 7000RPM.
  • Page 3 Set Screws Screws Call Reed for blade recommendation. FIG.1 *For better performance, Reed recommends 6" blade for pipe diameter 10" and over. III. ASSEMBLY B. Installing Bevel Cutters (Fig. 1) A. Blade Installation (Fig. 1) 1. Check motor tightness by tightening the motor mount- ing screws (2) on the front plate of the motor bracket.
  • Page 4 3. Remove blade guard by loosening 2 screws 5. Place the unit on the pipe being sure to firmly hold the at top of guard. motor unit while wrapping the chain around to connect to the hook on the motor frame (Photo #2). Tighten 4.

  • Page 5: Operation

    the motor is OFF (Fig. 4). The arrow pointing down F. Connect Hydraulic Power Supply indicates the flow of fluid is to the motor and the motor is The unit is supplied with a directional control valve ON (Fig. 5). Open the valve by pointing the arrow down. and quick-disconnect fittings.

  • Page 6: Maintenance

    Links, Main Frame Screw, Roller Pins, Do not disassemble the motor. This will Turnbuckle Assembly with a Water Displacing void the motor warranty. Send motor back Lubricant—(WD-40 ® or equivalent). to Reed Manufacturing for service. PARTS LIST 8,9,10,11 13,14,15,16 20,28 42,43 2,3,4,5...
  • Page 7 UPC616H UPC636H UPC648H DESCRIPTION CAT NO CAT NO CAT NO MOTOR FRAME ASSEMBLY* 97067 97067 97067 ROLLERS, MOTOR FRAME, SET 97541 97541 97541 ROLLER PIN 97542 97542 97542 LOCKNUTS, ROLLER PIN 97543 97543 97543 SET SCREWS, ROLLER PIN 97544 97544 97544 RELEASE PIN 94477...
  • Page 8 Reed factory. All warranty claims are limited to repair or replacement, at the option of the company, at no charge to the customer. REED IS NOT LIABLE FOR ANY DAMAGE OF ANY SORT, INCLUDING INCIDENTAL AND CON- SEQUENTIAL DAMAGES.
