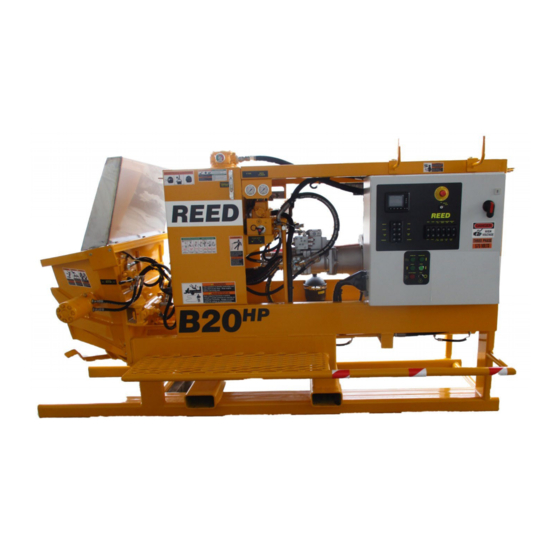

Page 1 Pumping Train Group Warranty Power Train Group Safety Main Hydraulic Pump Operation Tanks Main Controls Hydraulic Manifolds Priming Accumulator Introduction Pumping Electrical Group General Safety Clean-up PLC Controls Rules Maintenance Frame Installation Appendix Check-List Available Options Rev* REED LLC 2022...
Page 2: Table Of Contents
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 INTRODUCTION ......................2 WARRANTY ........................3 WARRANTY CLAIM FORM........................4 SAFETY .......................... 5 SAFETY ALERT SYMBOLS AND SIGNAL WORDS ................5 LOCKOUT / TAGOUT ..........................6 GENERAL SAFETY GUIDELINES ......................
Page 3: Introduction
All safety guidelines, product descriptions, illustrations, and specifications found throughout this manual were in effect at the time the manual was released for printing. It should be noted; REED RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR TO MAKE ADDITIONS TO OR IMPROVEMENTS IN THE PRODUCT WITHOUT IMPOSING ANY OBLIGATIONS UPON ITSELF TO INSTALL THEM ON PRODUCTS PREVIOUSLY MANUFACTURED.
Page 4: Warranty
(909) 287 - 2100 WARRANTY REED warrants each new A, B, and C Series Concrete Pump to be free of defects in material and workmanship under normal use and service for a period as follows: A Series Pumps • 1 year or 1200 pumping hours whichever occurs first B and C Series Pumps •...
Page 5: Warranty Claim Form
Failure Date: Repair Date: Do not send part(s) until requested by REED or until claim is approved. All parts requested to be returned must have a Return Authorization Number provided by REED and shipping freight prepaid. Parts must ship within 30 days from REED request.
Page 6: Safety
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 SAFETY Everyone involved with the operation, maintenance, inspection, and repair of the concrete pump MUST READ and UNDERSTANDS this manual and the accompanying Safety Manual. SAFETY ALERT SYMBOLS AND SIGNAL WORDS The following safety alert symbols, signals, and explanations are intended to warn the operator of hazardous and potentially hazardous situations.
Page 7: Lockout / Tagout
(909) 287 - 2100 LOCKOUT / TAGOUT The Lockout/Tagout procedure applies to all REED concrete placing equipment. Before performing any maintenance and/or repair on equipment; 1. Unit must be OFF and the ignition key must be removed from the control panel or dash.
Page 8: Safety Decals
Association (CPMA) for your protection. They are placed at appropriate areas on the concrete pump to be constant warnings of dangers. Know and adhere to the information they provide. Contact REED Customer Service for complimentary replacements of safety decals, shipping charges may apply.
Page 9 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 B20HPC-SKE-V25 8 of 75...
Page 10 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 B20HPC-SKE-V25 9 of 75...
Page 11 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 DECALS PLACED NEAR HOPPER GRATE AREA B20HPC-SKE-V25 10 of 75...
Page 12 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 B20HPC-SKE-V25 11 of 75...
Page 13 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 DECALS PLACED NEAR WATERBOX AREA DECALS PLACED NEAR OUTRIGGER CONTROL AREA B20HPC-SKE-V25 12 of 75...
Page 14 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 DECALS PLACED NEAR HOPPER OUTLET AREA B20HPC-SKE-V25 13 of 75...
Page 15 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 DECALS PLACED ON SIDE PANEL AREA B20HPC-SKE-V25 14 of 75...
Page 16 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 B20HPC-SKE-V25 15 of 75...
Page 17 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 B20HPC-SKE-V25 16 of 75...
Page 18: Operation
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 OPERATION OPERATOR QUALIFICATIONS Everyone involved with the operation, maintenance, inspection, and repair of the concrete pump MUST READ and UNDERSTANDS this operation manual and the accompanying Safety Manual. The following are a few general warnings for operator qualifications outlined in the Safety Manual.
Page 19: Product Description
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 PRODUCT DESCRIPTION The operation of the concrete pump encompasses the use of hydraulic and electrical systems. The concrete pump is designed to safely pump wet concrete through a delivery system of pipes and hoses within its published ratings and specifications.
Page 20: Hydraulic System Description
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 The power for operation of the concrete pump is provided by the engine, which drives the hydraulic pumps. All functions for operation of the concrete pump can be accomplished from the local controls mounted on the side of the unit.
Page 21 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 the other hydraulic drive cylinders. To energize the pump circuit, use the adjustable throttle control to set the engine speed at maximum RPM. Open the VOLUME control to any range from 0 to FULL. In so doing, the load sense is alerted to the demand and places the pump on stroke.
Page 22 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 MAIN PUMP CIRCUIT OPERATIONAL SEQUENCE It can be noted in the schematic and the diagram below that the main pressure and flow is only directed to one side of the hydraulic drive cylinder. In this instance, it is directed to the head side or piston side of the double acting drive cylinder.
Page 23 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 the head side of the extending cylinder. Since that cavity is full, pressure is built up in the rod side of the fully retracted cylinder, which unseats the head-side check valve and forces the excess oil out of the slave loop and back to the tank.
Page 24 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 • UNLOADER CARTRIDGE This pressure sensitive cartridge is used to protect the system from excessive pressure and to limit the amount of pressure being applied to the accumulator by hydraulically signaling the relief cartridge to open once the unloader setting has been reached.
Page 25 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 S-TUBE CIRCUIT OPERATIONAL SEQUENCE In the operational sequence of the shift circuit with the engine at full RPM, the tandem pump is producing its rated displacement. The flow is going through the system and is being dumped or directed back to the tank thru the solenoid cartridges of the s-tube circuit manifold.
Page 26 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 function of the auxiliary circuit. When the emergency stop circuit is reset, an electrical signal is generated to energize the solenoid, closing the cartridge and blocking flow directly back to tank, instead allowing the flow to the single spool directional control valve for operation.
Page 27: B20 Ske Electric Familiarization
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 B20 SKE ELECTRIC FAMILIARIZATION OPERATOR SIDE HYDRAULIC TANK MAIN CONTROLS PUMPING TRAIN AGGITATOR MOTOR FRAME CLEAN OUT FORKLIFT TUBE HYDRAULIC HYDRAULIC HOPPER MANIFOLD COOLER EXTENSION ELECTRIC MOTOR OUTLET NON-OPERATOR SIDE...
Page 28: Main Electric Control Box Familiarization
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 MAIN ELECTRIC CONTROL BOX FAMILIARIZATION ELECTRIC PART LAYOUT CONTACTOR-CONTROL, POWER SUPPLY MAIN CIRCUIT 3 POL N/O 120V 28 AMP 12VDC 35 AMP BREAKER FUSE CIRCUIT BREAKERS 12V OUTPUT/ GROUND 12V FUSE...
Page 29 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 MAIN ELECTRIC CONTROL BOX FAMILIARIZATION ELECTRIC DOOR LAYOUT E-STOP E-STOP KEY SWITCH MD3 DISPLAY BUTTON / CIRCUIT LIGHT PLUG MAIN POWER SWITCH ON/OFF SW 2 PLUG SW 1 PLUG 2X4 SWITCH 2X6 SWITCH...
Page 30: Controls
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 CONTROLS PLC MAIN CONTROLS POWER START FAULT STOP OUT OF PHAZE 1. MAIN ELECTRICAL PANEL CONTROL This is two (2) position switch used to control energizing the main electrical hi-voltage system.
Page 31 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 PLC MAIN CONTROLS B20HPC-SKE-V25 30 of 75...
Page 32 REMOTE OPTIONAL, CONTACT REED INFORMATION) PUMP ON/OFF SWITCH this is to turn the pump on and off. Press button PUMP ON to turn pump on, and press button PUMP OFF to turn pump off. It will be backlit when each function is engaged.
Page 33 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 PLC MAIN CONTROLS B20HPC-SKE-V25 32 of 75...
Page 34 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 RPM +/-, controls increase and decrease of engine RPM It will be backlit when each function is engaged. PUMP VOLUME (OPTION), this is to turn the pump volume up or down. Press button VOLUME UP to increase volume, and press button VOLUME DOWN to reduce volume.
Page 35 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 ELECTRIC VOLUME (OPTION) ELECTRIC VOLUME CONTROL VOLUME CONTROL can adjust volume output of the material. Electrically on the control panel or the cable remote To INCREASE/+ Volume And to DECREASE/- Volume B20HPC-SKE-V25 34 of 75...
Page 36: Screen Operation Instructions
OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 SCREEN OPERATION INSTRUCTIONS 1). Turnkey switch on/system on, you will see REED logo on GENERAL DESCRIPTION This is the standard operation instructions and review of the PLC screen functions. EMERGENCY AND ALTERNATE CONTROLS These instructions are to be used in an Emergency situation with computer or communication failure, for back-up operation ONLY.
Page 37 (909) 287 - 2100 2. Initializing routine complete – When the REED Logo is present initialization is complete and engine is ready to start. Control button lights have been updated for a more consistent look and intuitive operation. If E- Stop function has Push Button pulled out and Grate sensor show grate as closed the Horn Button will flash Green showing ready to operate.
Page 38 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 GRATE SENSOR DEF TANK LEVEL 3. Scrolling Screens – Providing a Straightforward convenience for the operator and easier access to pump status items using the up and down arrows to scroll through the primary operational and status displays.
Page 39 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 4. Main Menu Screen - After pressing the menu button a screen appears that provides the operator three options Adjust, Preferences, and Info Selecting INFO provides the operator with 2 more options, See the list of Modules and status (Above) and See the system logs of operation and/or errors that have occurred during operation.
Page 40 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 Selecting PREFERENCES provides the operator with 3 more options, Adjust the display (Above), Setting the date and time (Useful for log entries) and selecting the language the software should display.
Page 41 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 Selecting ADJUST provides the operator the ability to make setting to basic pump features (Above) B20HPC-SKE-V25 40 of 75...
Page 42 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 EMERGENCY AND ALTERNATE CONTROLS 1. Prox Sensor Fail / Engine Communication Loss Override - If at any time the pump detects both prox Sensors are active at the same time it will assume there has been a failure of one or more of the sensors.
Page 43 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 2. PROX OVERRIDE MODE - Select Override from the popup (above) Stroke button will be flashing to indication Override mode. (Below) Blow Horn, Press and hold Stroke button to begin stroking. OPERATOR MUST RELEASE BUTTON WHEN PUMP BEGINS TO DEADHEAD! After release press and hold stroke button and pump will change direction and stroke until it begins to deadhead again.
Page 44 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 3. ALTERNATE CONTROL MODE - Selecting REMOTE when there is an error will allow normal remote controls. Pressing the OK Button toggles REMOTE and LOCAL. Selecting yes to go into Alternate control displays 2 screens on the main display which are navigated with the arrow buttons.
Page 45: Remote Control Familiarizion
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 REMOTE CONTROL FAMILIARIZION A remote control pistol grip console is provided and is used to enable the operation of the concrete pump away from the immediate vicinity of the unit. The remote is equipped with an umbilical cord that plugs into the side of the main control box.
Page 46: Ominex Radio Remote
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 OMINEX RADIO REMOTE B20HPC-SKE-V25 45 of 75...
Page 47 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 AGITATOR CONTROL controls agitator ON/OFF and FORWARD REVERSE functions. AGITATOR CONTROL B20HPC-SKE-V25 46 of 75...
Page 48 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 C-SERIES (SHOWN) GAUGES PUMP or DRIVE CYLINDER GAUGE indicates the hydraulic pressure requirement of the pumping cylinders to push material. Gauge reading varies depending upon many circumstances such as: material slump, material line type, size and length, vertical, uphill, downhill or horizontal placement, pumping speed, etc.
Page 49: Priming
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 SET-UP Refer to the Safety Manual for set-up safety precautions not limited to the following guidelines: Ensure Machine Can Be Safely Operated In Set-Up Location Away From Hazards and Dangers Away From Slopes and Excavations Position Machine On As Solid and Level Ground As Possible PRIMING...
Page 50: Pumping
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 PUMPING Everyone involved with the operation, maintenance, inspection, and repair of the concrete pump MUST READ and UNDERSTANDS this manual and the Safety Manual. Refer to the Safety Manual for pumping and blockages safety precautions not limited to the following guidelines: Perform Required Inspection, Lubrication, and Maintenance Before, During, and After Pumping Operations...
Page 51 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 PUMPING Continued 1. Turn KEY operated SYSTEM POWER Switch to ON 2. Turn Key switch to start engine 3. Activate the HORN/RESET to prepare the concrete pump for operation 4.
Page 52: Cleaning
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 CLEANING Do Not Remove Hopper Grate Or Other Safety Components Do Not Insert Body Parts into Hopper, S-Tube, or Waterbox Or Other Moving Components 1. Set VOLUME CONTROL to LOW 2.
Page 53: Maintenance
Engine Manufacturer Maintenance Schedule Must Be Followed Read Engine Manufacturer Manual REED has provided only general guidelines regarding engine maintenance, and will not cover engine warranty claims. Accumulator Pressure Must Be ZERO Before And During Any Maintenance Procedures...
Page 54 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 Engine Must Be Turned OFF and Lockout / Tagout Procedures Must Be Followed Before and During Any Maintenance Procedures B20HPC-SKE-V25 53 of 75...
Page 55: General Maintenance Areas
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 GENERAL MAINTENANCE AREAS Perform scheduled inspections to identify and detect any potential problems. The list presented should be inspected and checked on a regular basis and is a recommended minimum.
Page 56 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 MAIN CONTROLS • Control box in good condition, sealed, not damaged • All toggles in good condition, stay in position or momentarily return to center • Control identification in good condition, legible •...
Page 57: Lubrication
(909) 287 - 2100 LUBRICATION The REED concrete pump is equipped with several components that require frequent lubrication. These areas involve the s-tube shifting mechanism, swing components, the shift and outlet bearings and agitator. to insure the economical service and the long life of these components, grease fittings are installed at each point.
Page 58 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 S-TUBE SHIFT LUBRICATION IF EQUIPPED WITH DUAL (2) HYDRAULIC SHIFT CYLINDERS, RELIEVE SHIFT CIRCUIT HYDRAULIC PRESSURE TO PROPERLY GREASE HYDRAULIC SHIFT CYLINDERS AND BELL CRANK LUBRICATION POINTS B20HPC-SKE-V25 57 of 75...
Page 59 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 S-TUBE OUTLET LUBRICATION S-TUBE OUTLET GREASE POINTS B20HPC-SKE-V25 58 of 75...
Page 60 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 AGITATOR LUBRICATION HYDRAULIC MOTOR SIDE GREASE POINT NON-HYDRAULIC MOTOR SIDE GREASE POINTS B20HPC-SKE-V25 59 of 75...
Page 61 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 HYDRAULIC SYSTEM Hydraulic pumps are used to supply the flow of oil necessary to operate actuators of the concrete pump. Contamination of the Oil Is the Leading Contributor to System Malfunctions Extreme care must be exercised to prevent contaminants from entering the system.
Page 62 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 HYDRAULIC SYSTEM MAINTENANCE ITEM DESCRIPTIONS FLUID Check fluid level and oil clarity daily with sight gauge provided. Maintain level at full mark. Add hydraulic oil through the return filter fill port when necessary. TANK BREATHER Clean every 50 hours of operation.
Page 63: Adding Hydraulic Fluid
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 ADDING HYDRAULIC FLUID There are a few common methods for filling the hydraulic tank as described below. Exercise extreme care when adding fluid to the hydraulic tank to avoid contamination. •...
Page 64 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 Do Not Use Cloth for Straining Fluid Lint Is a Contaminant Harmful To the Hydraulic System FILTER ELEMENT FILTER SERVICING GAUGE FILL PORT GASKET Hydraulic filters provide a means of continuous hydraulic fluid filtration in an effort to prevent recirculation of contamination which will cause rapid wear and component B20HPC-SKE-V25 63 of 75...
Page 65 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 SERVICING FLUSH BOX When servicing parts in flush box, drain old oil using plug underneath flush box. Clean debris, fill with clean hydraulic fluid 7” as shown below. HYDRAULIC CYLINDER MATIRIAL 7”...
Page 66 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 breakdown. The filter is equipped with a condition indicator gauge which should be checked daily and the element changed when indicated. To change the filter elements: 1.
Page 67 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 8. Replace sight gauge 9. Install the tank drain plug and access cover with gasket. 10. Change the hydraulic system filter element(s) and breather cap 11. Refill the hydraulic tank with new clean hydraulic fluid to MAX LEVEL mark 12.
Page 68: Component Replacement
This section is provided as a general guideline to assist in replacing major components that will wear. Please contact the REED Service Department or your local dealer for technical support. S-TUBE, WEAR RING, AND WEAR PLATE The sealing characteristics of the s-tube depend on the positive contact of the wear ring, located inside the s-tube, to the wear plate mounted inside of the hopper.
Page 69: Pump Maintenance Schedule And Checklists
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 PUMP MAINTENANCE SCHEDULE AND CHECKLISTS Providing a maintenance schedule defined specifically by run hours or yardage pumped serves only as a general guideline given the large number of variables a unit might be subject to, such as weather and ambient temperature conditions, jobsite conditions, material differences of concrete mix design, the load burden the unit is typically subject to, i.e.
Page 70 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 INITIAL 50 HOUR MAINTENANCE CHECKLIST Actual Hours Date # Maintenance Description Initials Change engine oil and filters (see engine manufacturer maintenance schedule for additional requirements) IF REQUIRED Additional Notes: Change hydraulic oil filters Inspect hydraulic hoses and fittings for any signs of external wear or damage...
Page 71 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 EVERY 100 HOUR MAINTENANCE CHECKLIST Actual Hours Date Maintenance Description Initials Clean hydraulic tank breather Inspect all structural components (check frame, hopper, and other structural members for any damage) Additional Notes: Additional Notes: Check coolers and radiators for dirt or debris.
Page 72 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 EVERY 250 HOUR MAINTENANCE CHECKLIST Actual Hours Date # Maintenance Description Initials Change hydraulic filters (or change more frequently as indicated by indicator gauge on filter) Additional Notes: Check that all electrical wires, cables, terminals, plugs are in good condition Additional Notes:...
Page 73 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 EVERY 250 HOUR MAINTENANCE CHECKLIST Actual Hours Date Maintenance Description Initials Control console in good condition Switch in good condition Additional Notes: B20HPC-SKE-V25 72 of 75...
Page 74 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 EVERY 500 HOUR MAINTENANCE CHECKLIST Actual Hours Date Maintenance Description Initials Inspect hydraulic hoses and fittings for any signs of external wear or damage Additional Notes: Inspect all wear parts and change as necessary (excessive wear may cause inefficient performance and/or shutdown of operation) Additional Notes:...
Page 75 13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 EVERY 500 HOUR MAINTENANCE CHECKLIST Actual Hours Date ADDITIONAL GENERAL NOTES: B20HPC-SKE-V25 74 of 75...
Page 76: Notes
13822 Oaks Avenue Chino, CA 91710 OPERATION and MAINTENANCE reedpumps.com (909) 287 - 2100 NOTES B20HPC-SKE-V25 75 of 75...
Page 77 HYDRAULIC / ELECTRICAL SCHEMATICS...
Page 85 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 PARTS ......................... 3 PUMPING TRAIN ASSEMBLY ................3 S-TUBE ASSEMBLY ....................... 5 4” OUTLET ASSEMBLY ..................5 4” OUTLET SEAL KIT INSTALLATION ..............5 WEAR PLATE ASSEMBLY .................. 6 4” PISTION CUP ASSEMBLY ..................8 DRIVE CYLINDER ASSEMBLY ..................
Page 86 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 FRAME ......................47 HOOD AND COVERS ..................48 OPTIONS ......................49 HYDRAULIC AGITATOR ....................49 HYDRAULIC AGITATOR CONT................. 52 PERIFLO CHEMICAL PUMP ..................53 DATE DESCRIPTION NAME B20HPC-SKE-V25 1/26/2022 INITIAL J.SLACK B20HPC-SKE-V-25...
Page 87: Parts
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 PARTS PUMPING TRAIN ASSEMBLY WATERBOX TOP VIEW WITH OUT AGITATOR ONLY DETAIL A DETAIL C DETAIL B ID # PART # PART DESCRIPTION QUANTITY 87894-8 DUAL SHIFT PUMPING TRAIN ASSEMBLY 87893 HOPPER WELD MOD-B20 STD DUAL 71349...
Page 88 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 PUMPING TRAIN ASSEMBLY CONTINUED DETAIL E (OPTION) DETAIL G DETAIL D 150 FT-LB DETAIL F ID # PART # PART DESCRIPTION QUANTITY 70315 TIE ROD, 1¼” -12 X 48½” 71232 CONCRETE CYLINDER, 4”...
Page 89: S-Tube Assembly
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 S-TUBE ASSEMBLY 4” OUTLET ASSEMBLY DETAIL A VIEW A ID # PART # PART DESCRIPTION QUANTITY 86321 OUTLET ASSEMBLY HHCS, 9/16-12 X 2 1/2 GR/8 LOCK NUT, 9/16 -12 GREASE FITTING, 1/8” NPT 90° 86335 OUTLET SEAL HOUSING- 4”...
Page 90: 4" Outlet Seal Kit Installation
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 4” OUTLET SEAL KIT INSTALLATION VIEW A GROOVE IN SEAL ID # PART # PART DESCRIPTION QUANTITY 86621 SEAL KIT 86369 O-RING-#158 BUNA 90 86370 O-RING-#163 BUNA 90 86614 SEAL-MODIFIED- 4 IN OUTLET 86371 GUIDE BAND - 4.75 OD X 1.00W 86372...
Page 91 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 CONCRETE CYLINDER S TUBE ID # PART # PART DESCRIPTION QUANTITY 71249 O-RING, #347 BUENA 70 HHCS, ¾ - 10X 2½” GR 8 LOCK WASHER, ¾” 72384 WEAR RING, 4” DOUBLE LIP, 26% CHROME 71251 WEAR PLATE-CAST 4”...
Page 92: 4" Pistion Cup Assembly
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 4” PISTION CUP ASSEMBLY DETAIL C 6, 7 ID # PART # PART DESCRIPTION QUANTITY 70077 PISTON COUPLING, 87940 PISTON ADAPTER 4" WITH GUIDE BAND 87994 WEAR RING (GUIDE BAND) 4" 76500 PISTON CUP, 4 IN 88011...
Page 93: Drive Cylinder Assembly
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 DRIVE CYLINDER ASSEMBLY ID # PART # PART DESCRIPTION QUANTITY 86304-2 HYD CYLINDER GROUP 78961 CHECK VALVE-5K PSI O-RING 86748 FITTING-MB-MJ90-6-6 ELBOW, MB-MB90-6-6 86223HT HYDRAULIC CYLINDER 3.50 X 2.00 X 35.75 86222A-SK SEAL KIT B20HPC-SKE-V-25...
Page 94: Dual Shift Bell Crank Assembly
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 DUAL SHIFT BELL CRANK ASSEMBLY DETAIL E ID # PART # PART DESCRIPTION QUANTITY 85604 BELL CRANK, 86502 LOCATOR RING- FLANGE BEARING 70124 FLANGED BEARING 70125 SPACER, S-TUBE NUT HHCS, 5/8”-18X5 ½”” GR 8 LOCK WASHER, 5/8”...
Page 95 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 DUAL SHIFT CYLINDER ASSEMBLY ID # PART # PART DESCRIPTION QUANTITY 74207 PIN - CLEVIS - .750 DIA 71011 BUSHING - SHIFT CYLINDER 86221-1HT SWING CYLINDER 2.50 X 1.00 X 5.00 86221A-SK SEAL KIT COTTER PIN, 3/32X1 ¾”...
Page 96 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 DUAL SHIFT ASSEMBLY DETAIL E SPACE AS REQUIRED FOR PROPER S-TUBE 4 or 5 ALIGNMENT SPACE AS REQUIRED FOR PROPER S-TUBE 4 or 5 ALIGNMENT ID # PART # PART DESCRIPTION QUANTITY 86220HT SWING RAM –...
Page 97: Safety Grate
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 SAFETY GRATE ID # PART # PART DESCRIPTION QUANTITY 87369 PROXIMITY SENSOR PNP HOPPER GRATE 801902-006 CLAMP,18MM TUBE CLAMP SET 87997 COVER WELD PROX SWITCH HOPPER B20HPC-SKE-V-25 13 of 56...
Page 98: Grate Assembly
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 GRATE ASSEMBLY 3/8-16-X 1 1/4” HEX BOLT 4EA. 3/8 FLAT WASHER 8EA. 3/8-16 LOCK NUT 4EA. 3/8-16-X 1 1/4” HEX BOLT 4EA. 3/8 FLAT WASHER 8EA. 3/8-16 LOCK NUT 4EA. ID # PART # PART DESCRIPTION...
Page 99: Clean Out Door Assembly
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 CLEAN OUT DOOR ASSEMBLY ID # PART # PART DESCRIPTION QUANTITY 86542 CLEAN OUT DOOR WELDMENT PARTS KIT 86988 DOOR WELDMENT, CLEAN OUT 86559 BLOCK, CLEAN OUT DOOR, LH 86560 BLOCK, CLEAN OUT DOOR, RH SHOULDER SCREW 1"...
Page 100: Power Train
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 POWER TRAIN ELECTRIC MOTOR AND PUMP ID # PART # PART DESCRIPTION QUANTITY 88027-7 POWER TRAIN ASSY B20 SKE MOTOR, 50HP, 575V,60HZ,3PH 90055 87153-001 PUMP, KAWASAKI, KV3L112,75HP 71360 ACCUMULATOR 73171 ACCUMULATOR BRK.W/CLOSING HARDWARE 801028 GROMMET, ACCUMULATOR...
Page 101: Electric Motor Coupling
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 ELECTRIC MOTOR COUPLING SET SCREW SHAFT ELECTRIC MOTOR SHAFT ID # PART # PART DESCRIPTION QUANTITY 88450 COUPLING HALF, SPLINE SAE C, 14 TH 12/24 86002 COUPLING SPIDER, L190-NBR (USE P/N 87041) 86000 COUPLING HALF, L190-2 1/2X1/2 (USE P/N 87039) 90055...
Page 102: Hydraulic Pump, Gear Box Detail
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 HYDRAULIC PUMP, GEAR BOX DETAIL ID # PART # PART DESCRIPTION QUANTITY 87948 PUMP ADAPTER- FRAME 324/405TC X SAE-D 79560-K PUMP, KAWASAKI, K3VL80, 62HP 85124-004 PUMP, KAWASAKI, KV3L112,75HP 85124-007 PUMP, PARKER, P2105 87153-001 PUMP-RH-DBLE GEAR, 11.3/8.2 CC BOSCH 88028...
Page 103: Hydraulic Tank Assembly
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 HYDRAULIC TANK ASSEMBLY MAGNETIC SEPARATOR INSIDE TANK ID # PART # PART DESCRIPTION QUANTITY 85361 HYD TANK ASSY B-SERIES 85102 HYDRAULIC TANK WELDMENT, B-SERIES 85529 ENDCOVER KIT, 12 IN W/DRAIN 85867 GASKET- END COVER 12”...
Page 104 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 HYDRAULIC ASSEMBLY CONTINUE ID # PART # PART DESCRIPTION QUANTITY 74509 GAUGE-SIGHT/TEMPERATURE 801025 DRAIN COCK, 1/4 NPT BG-12 ¾” SAE PLUG 70366 PRESSURE GAUGE, 3000 PSI/BAR 74562 PRESSURE GAUGE, 6000 PSI/BAR 78594 MINICHECK GAUGE ADAPTOR, 1/4 NPT HOFFMAN PLUG...
Page 105: Manifolds
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 MANIFOLDS DRIVE CYLINDER CIRCUIT MANIFOLD ASSEMBLY TORQUE ½ -13 X 2 ½” SHCS 80 FT-LBS 6 PLACES ½ -13 X 4” SHCS TORQUE 75 FT-LBS 4 PLACES TORQUE 35-40 FT-LBS TORQUE 350-375 FT-LBS TORQUE...
Page 106 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 DRIVE CYLINDER CIRCUIT MANIFOLD ASSEMBLY CONT. DRIVE CYLINDER VALVE DRIVE CYLINDER PILOT SOLENOID ASSEMBLY COMPLETE 85689 VALVE DRIVE CYLINDER MAIN VALVE DRIVE CYLINDER PILOT SOLENOID VALVE ASSEMBLY 85691 O-RING KIT 72313 PLUG 74597...
Page 107: S-Tube Circuit Manifold Assembly
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 S-TUBE CIRCUIT MANIFOLD ASSEMBLY SHCS ½”-13 X 2 ½” TORQUE 70 FT-LBS 6 PLACE TORQUE 30-35 FT-LBS TORQUE 45-50 FT-LBS SHCS ½ -13 X 4” TORQUE 75 FT-LBS O-RING 4 PLACES TORQUE 35 FT-LBS TORQUE 15-20 FT-LBS...
Page 108 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 S-TUBE CIRCUIT MANIFOLD ASSEMBLY CONT. S-TUBE PILOT SWING TUBE VALVE SOLENOID VALVE ASSEMBLY COMPLETE 85693 S-TUBE MAIN VALVE S-TUBE PILOT SOLENOID VALVE ASSEMBLY 85695 O-RING KIT 72313 PLUG 74597 COIL 85692 S-TUBE MAIN SOLENOID ASSEMBLY...
Page 109: Accumulator Assembly
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 ACCUMULATOR ASSEMBLY FRAME RAIL ID # PART # PART DESCRIPTION QUANTITY 71360 ACCUMULATOR 73171 ACCUMULATOR BKT.W/CLOSING HARDWARE 801028 GROMMET, ACCUMULATOR 86728-019 ELBOW, MB-MJ90-12-12 B20HPC-SKE-V-25 25 of 56...
Page 110: Electrical Group
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 ELECTRICAL GROUP PROXIMITY SWITCHES ID # PART # PART DESCRIPTION QUANTITY 77990 CABLE, PROXIMITY SWITCH 10522 STRAIN RELIEF 10528 NUT ½” BONDING TYPE LOCK 77998 PROXIMITY SENSOR NPN B20HPC-SKE-V-25 26 of 56...
Page 111: Temperture Sensor
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 TEMPERTURE SENSOR ID # PART # PART DESCRIPTION QUANTITY 89279 SENSOR TEMPERTURE FOR TIER4 CUMMINS 89633 ADAPTER TEMP SENSOR FOR 89279 B20HPC-SKE-V-25 27 of 56...
Page 112: Wiring Harness
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 WIRING HARNESS ENGINE HARNESS SIDE B20HPC-SKE-V-25 28 of 56...
Page 113 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 WIRING HARNESS ID # PART # PART DESCRIPTION QUANTITY 89498 WIRING HARNESS B SER PLC, ELECTRIC BW10147 CONTACT SOCKET SIZE 16 89116 DEUTSCH WEDGE FOR 89109 87457 PIN FOR 87456 PLUG 89109-B BOOT FOR 89109,89157 89157...
Page 114: Controls
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 CONTROLS MAIN CONTROL BOX PANEL ID # PART # PART DESCRIPTION QUANTITY CONTROL PANEL PLC. 50 HP 575V-/60HZ/3PH 89965 DECAL PLC CONTROL, ELECTRIC PUMPS 89123 DECAL, START-STOP, ELECTRIC MOTOR 89255 EMERGENCY STOPBUTTON HEAVY DUTY 89090 ILLUMINATED E-STOP RING...
Page 115: 12Vdc-35 Amp Power Supply
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 12VDC-35 AMP POWER SUPPLY ID # PART # PART DESCRIPTION QUANTITY POWER SUPPLY 12VDC 35 AMP (ACOPIAN) (PS1) 88059-2 B20HPC-SKE-V-25 31 of 56...
Page 116: Motor Circuit Breaker
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 MOTOR CIRCUIT BREAKER ID # PART # PART DESCRIPTION QUANTITY CIRCUIT BREAKER 100 AMP 3 POLE LS/IU (CB1) 88098-22 MECHANISM FOR CIRCUIT BREAKER 89576 SHAFT FOR 88047 HANDLE 88109 HANDLE CIRCUIT BREAKER 89577 B20HPC-SKE-V-25 32 of 56...
Page 117: Soft Start
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 SOFT START ID # PART # PART DESCRIPTION QUANTITY SOFT START (SS1) 88437-1 B20HPC-SKE-V-25 33 of 56...
Page 118: Xc10
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 XC10 ID # PART # PART DESCRIPTION QUANTITY 88919 XC10, PARKER EXPANTION MODULE 88945 AMP, 35 POS SEAL PLUG, BLACK (C1) 88946 AMP, 35 POS SEAL PLUG, WHITE (C2) 88945-S AMP, CONTACT PIN (C1, C2) B20HPC-SKE-V-25 34 of 56...
Page 119: Md3 Display Module
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 MD3 DISPLAY MODULE FRONT BACK ID # PART # PART DESCRIPTION QUANTITY 88918 MD3, PARKER DISPLAY 88653 PLUG DTM 12 WAY A KEY, GREY (C1) 88653-2 WEDGELOCK DTM 12 WAY PLUG (C1) 88959 CONTACT SOCKET SIZE 20 (7.5 AMP) (C1) 89136...
Page 120: Estop, Key Assembly, Plugs
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 ESTOP, KEY ASSEMBLY, PLUGS ESTOP ASSEMBLY KEY ASSEMBLY ID # PART # PART DESCRIPTION QUANTITY 89090 EMERGENCY STOP BUTTON HEAVY DUTY 89090-L ILLUMINATED E-STOP RING 89004 KEY SWITCH SEALED 89107 DEUSCH DT06, 1X6 89108 DEUTSCH WEDGE LOCK FOR 89107...
Page 121 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 13 14 11 12 ID # PART # PART DESCRIPTION QUANTITY 89937 TERMINAL BLOCK, 2 POSITIONS 89938 TERMINAL BLOCK, 2 POSITION, GND 89939 BRIDGE, 8MM, FOR 89937 89940 END COVER FOR 89937 89922 TERMINAL BLOCK, 6 POSITION GND BUSS 89921...
Page 122: Can Push Button Switches Plugs
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 CAN PUSH BUTTON SWITCHES PLUGS CAN SWITCH A ID # PART # PART DESCRIPTION QUANTITY KEYPAD 2X6 SWITCH, PROGRAMMABLE 88978 89102 DEUTSCH DT04 PLUG, 2X2 89132 DEUTSCH WEDGE LOCK FOR 89102 BW10147 CONTACT PIN 16 AWG (FEMALE) 89146...
Page 123 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 CAN PUSH BUTTON SWITCH PLUGS CAN SWITCH B ID # PART # PART DESCRIPTION QUANTITY KEYPAD 2X4 SWITCH, 88979 PROGRAMMABLE 89102 DEUTSCH DT04 PLUG, 2X2 DEUTSCH WEDGE LOCK 89132 FOR 89102 CONTACT PIN 16 AWG BW10147 (FEMALE)
Page 124 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 FUSES, CONTACTOR, PHASE MONITOR ID # PART # PART DESCRIPTION QUANTITY 88066 PHASE MONITOR 480 V (A1) 88055 CIRCUIT BREAKER 2AMP (CB3) 88176 CIRCUIT BREAKER 8AMP (CB4) 88058-1 CIRCUIT BREAKER 40 AMP (CB2) 88053 FUSE BLOCK 88054-1...
Page 125: Transformer 250Va
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 TRANSFORMER 250VA NOTE: MICRON TRANSFORMER FUSE KIT #FKTP-1001 COVER KIT #TPTC-2006 ID # PART # PART DESCRIPTION QUANTITY 89959 TRANSFORMER 250 KVA (460V/120V) (T1) 88053 FUSE BLOCK KIT 88054 FUSE 2 AMP 88177-C COVER KIT FOR TRANSFORMER 88053-COVER...
Page 126: Transformer 750Va
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 TRANSFORMER 750VA NOTE: MICRON TRANSFORMER FUSE KIT #FKTP-1001 COVER KIT #TPTC-2006 ID # PART # PART DESCRIPTION QUANTITY 88177 TRANSFORMER 750 KVA (230/460-120V) 88053 FUSE BLOCK KIT 88175 FUSE 6 AMP 88177-C COVER KIT FOR TRANSFORMER 88053-COVER...
Page 127 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 DEUTSCH 128 PLUG ASSEMBLY CONTROL HARNESS SIDE ENGINE HARNESS SIDE B20HPC-SKE-V-25 43 of 56...
Page 128: Deutsch 128 Plug Assembly Cont
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 DEUTSCH 128 PLUG ASSEMBLY CONT. PLUG ASSEMBLY ID # PART # PART DESCRIPTION QUANTITY 89109 DEUTSCH RECEPTACLE 128 CONTACT, PIN 89159 DEUTSCH WEDGE LOCK FOR 89157 88958 CONTACT PIN SIZE 16 AWG, (MALE) 87807 CONTACT PIN SIZE 12 AWG, (MALE) 89158...
Page 129: Conduit, Fitting
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 CONDUIT, FITTING ID # PART # PART DESCRIPTION QUANTITY CONDUIT – 2” IN LIQUID TITE 86518-1 CONNECTOR 2” ELBOW 90° 86519-1 INSULATED BUSHING 2” 86520-1 WIRE LUG – 1 AWG 3/8 HOLE 89150-2 CABLE, 2 AWG (GROUND) 89902...
Page 130: Hyd Temperture Sensor
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 HYD TEMPERTURE SENSOR ID # PART # PART DESCRIPTION QUANTITY W-105568 SENSOR TEMPERTURE, 55 DEG 89593 ADAPTER TEMP SENSOR B20HPC-SKE-V-25 46 of 56...
Page 131: Option 50Ft Cable Remote
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 OPTION 50FT CABLE REMOTE COLOR DECRIPTION POWER (9-30VDC) BLACK GROUND WHITE CAN-H GREEN CAN-L ID # PART # PART DESCRIPTION QUANTITY 89273 KAR TECH PLC REMOTE CONTROL, 25 FT 89922 DEUTSCH CONNECTOR, 6 PIN BW10147 PINS (FEMALE)
Page 132: Frame
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 FRAME HOOD AND COVERS FLUSH BOX ASSEMBLY TOP COVER FRONT ID # PART # PART DESCRIPTION QUANTITY 88644 SKID FRAME WELDMENT, B20 SER ELECTRIC FRONT SKID MESH SCREEN 87060 89539 TOP, B20 SER ELECTRIC SPLASH GUARD, WITH HOPPER SAFTY GRATE 85714-1...
Page 133: Options
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 OPTIONS HYDRAULIC AGITATOR CONICAL SEAL ID # PART # PART DESCRIPTION QUANTITY 89504-A2 AGITATOR ASSEMBLY 89455 HYD MOTOR, 45.6 CID, 1” SHAFT-PARKER 86866 FITTING-MB-MJ-10-6 85658-002 HOSE, 6M2T-6FJX-6FJX-17.00 74584 VALVE 1 SPOOL, MANUAL PAINTED 86748 FITTING-MB-MJ90-6-6 86747...
Page 134 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 OPTION HYDRAULIC AGITATOR (OPTION 1) DETAIL F DETAIL F PART # PART DESCRIPTION QUANTITY 88041-A1 AGITATOR ASSEMBLY HHCS, ½ -13X2 ¼” GR 8 LOCK NUT, ½” -13 ¼-28X3/4” LOCK WASHER, ¼” GREASE FITTING, 1/8”...
Page 135 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 OPTION HYDRAULIC AGITATOR (OPTION 2) DETAIL F 85761 AGITATOR ASSEMBLY HHCS, ½ -13X2 ¼” GR 8 LOCK NUT, ½” -13 ¼-28X3/4” LOCK WASHER, ¼” GREASE FITTING, 1/8” NPT 90° 85923 SHAFT, AGITATOR HHCS, ½...
Page 136: Hydraulic Agitator Cont
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 HYDRAULIC AGITATOR CONT. DETAIL G NOTE* Install Grove as shown DETAIL G ID # PART # PART DESCRIPTION QUANTITY GREASE FITTING, 1/8” NPT STRAIT 70219 REMIX SHAFT BUSHING 77877 SPACER, REMIX 86824 FLAT WASHER, ¾”...
Page 137: Periflo Chemical Pump
B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 OPTION PERIFLO CHEMICAL PUMP ID # PART # PART DESCRIPTION QUANTITY PERISTALTIC PUMP 4380V, WITH VARIABLE 88421 FREQUENCY DRIVE PERISTALTIC PUMP 460V, 115V INPUT TO X4, 88421-1 WITH VFD 88421-1H HOSE RUBBER 88421-1-H- HOSE, EPDM...
Page 138 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 AVALIBLE OPTIONS RADIO REMOTE AARCOMM 2-WAY RADIO W/STROKE COUNTER AND VOLUME INDICATOR (IF EQUIPPED) 50’ CABLE REMOTE, 100’CABLE REMOTE AVALAIBLE LIFTING KIT VIBRATOR KITS OLI KIT B20HPC-SKE-V-25 54 of 56...
Page 139 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 AUTO LUBE STEEL TUBING 12 PORT PLASTIC TUBING 12 PORT MANUAL LUBE BLOCK REINFORCED HOPPER WATER PUMP-WASH PUMP ASSY B20HPC-SKE-V-25 55 of 56...
Page 140 B20HPC-SKE-V25 13822 Oaks Avenue Chino, CA 91710 PARTS reedpumps.com 909-287-2100 CARBIDE WEAR PARTS WEAR RING/CARBIDE WEAR PLATE/CARBIDE ELECTRIC VOLUME/FLOW CONTROL E-STOP PLC KIT HOPPER EXTENSION B20HPC-SKE-V-25 56 of 56...
