Blue Robotics T200 Manual page 28

Be very careful when installing the T500 rotor onto the core. The T500 magnets are very
strong and the rotor will be pulled onto the stator very forcefully if not installed with caution.
3. Use a hex driver to tighten the shaft collar set screw onto the flat side of the
rotor shaft.

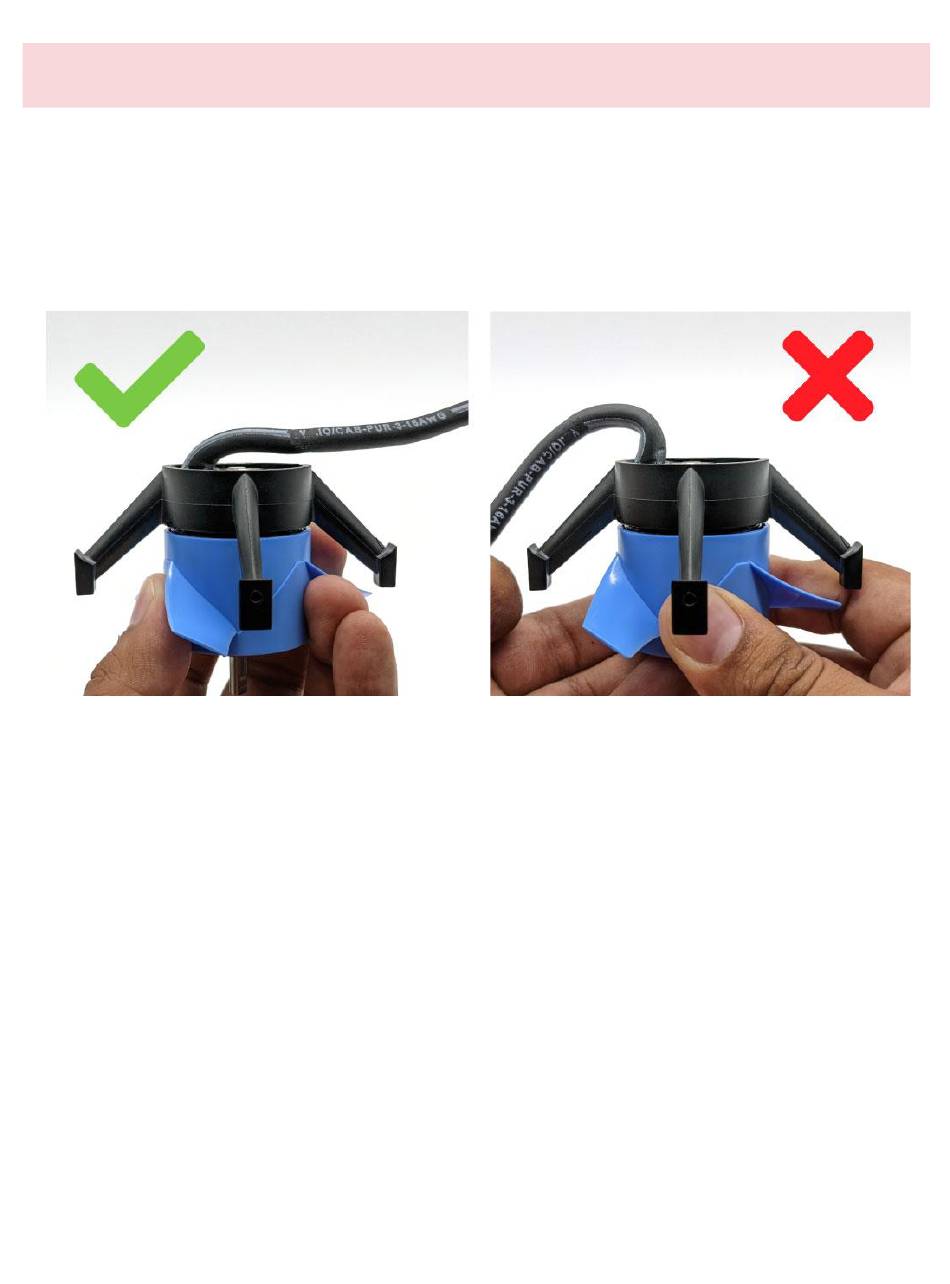

4. Install the nose cone onto the core making sure the cable exits the nose
cone on the opposite side. Do not bend the cable in the other direction.
5. Install the nozzle using the nozzle screws and a Phillips screwdriver.
