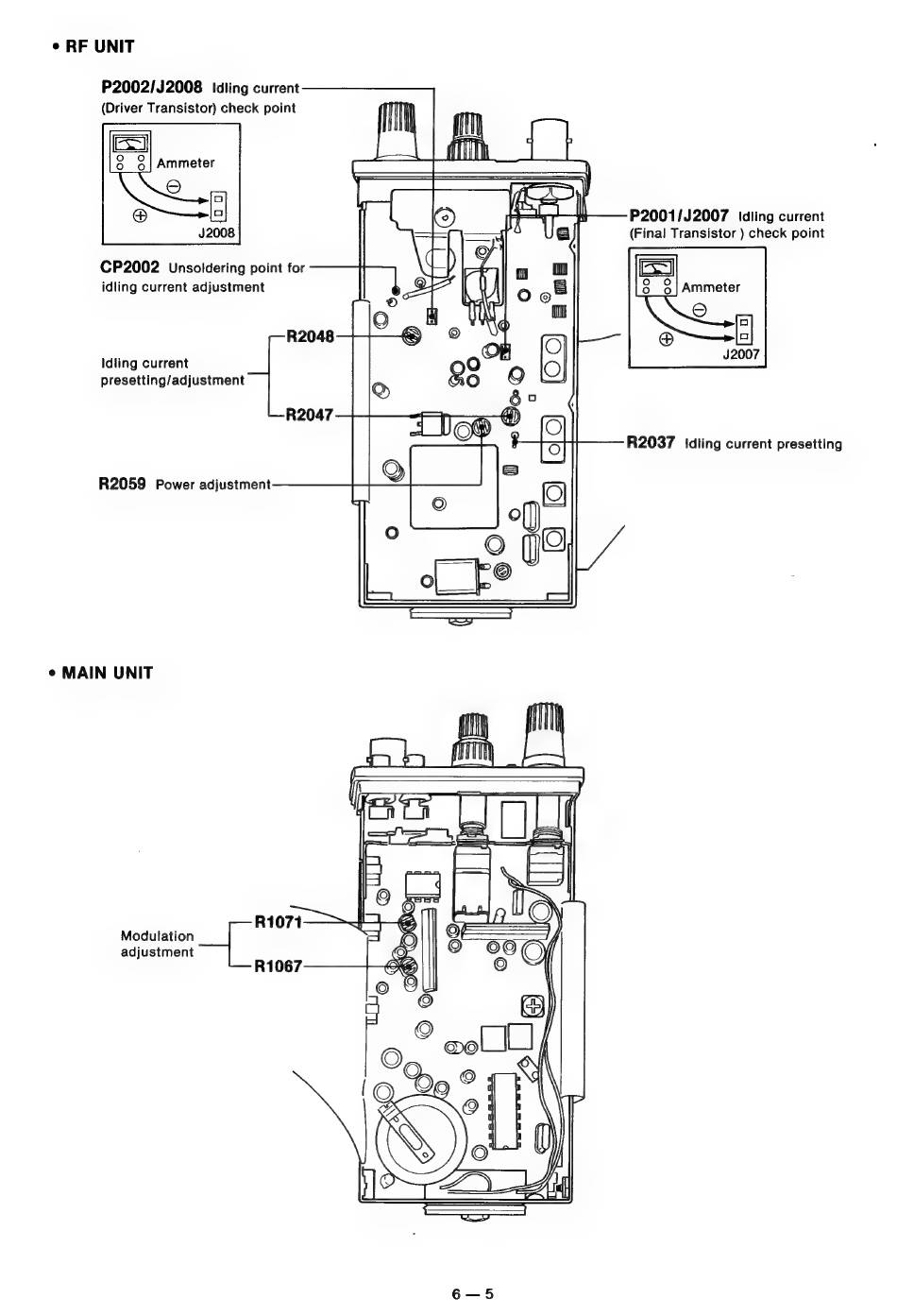

* RF UNIT
P2002/J2008
Idling current
(Driver Transistor) check point
|
P2001/J2007
Idling current
(Final Transistor ) check point
CP2002
Unsoldering point for
idling current adjustment
Idling current
presetting/adjustment
R2037
idling current presetting
R2059
Power adjustment
* MAIN UNIT
m
NS
R1071
Modulation
|
adjustment
R1067
