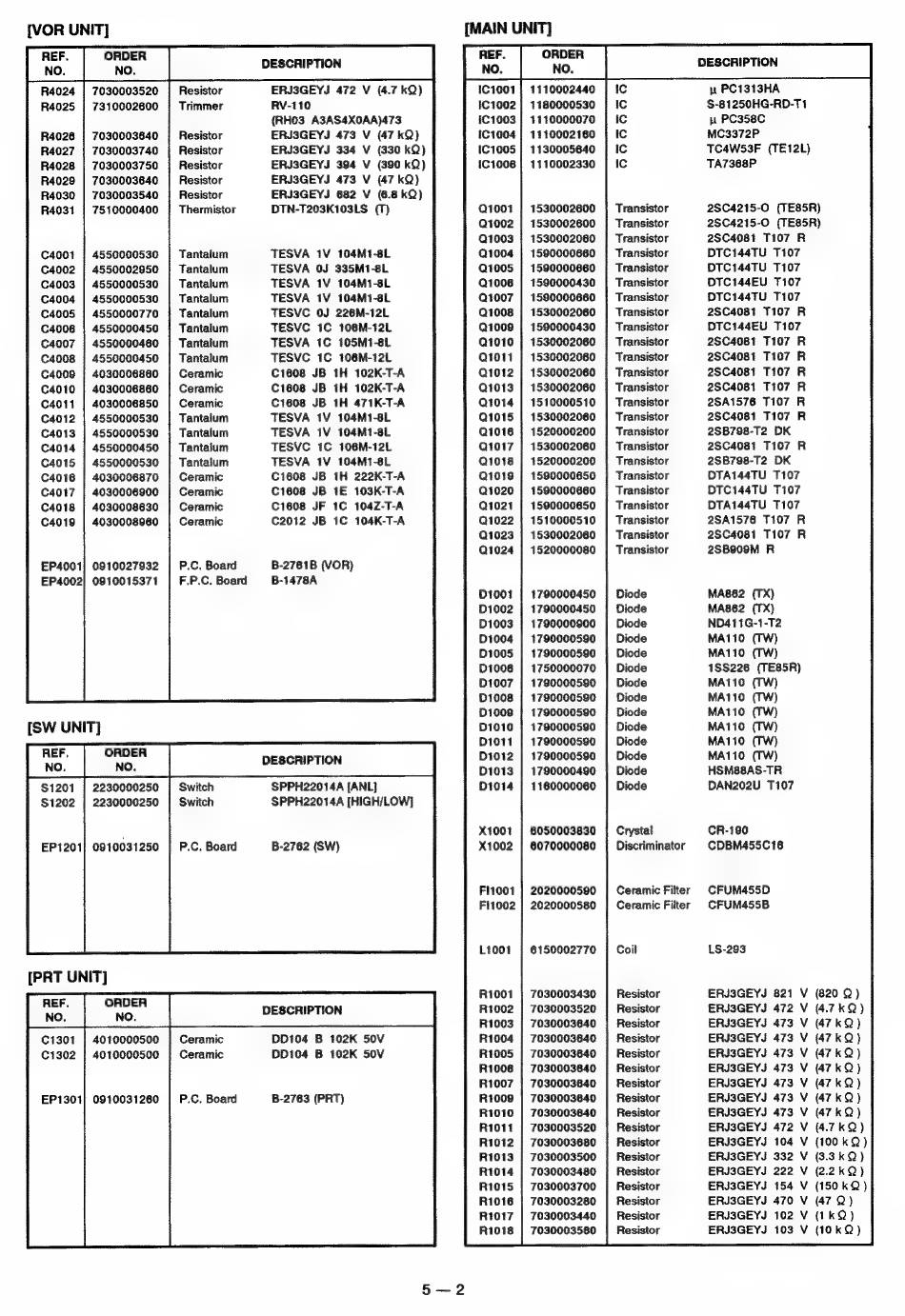

Icom IC-A20MK II Service Manual page 16

[VOR UNIT]
ORDER
7030003520 | Resistor ERJ3GEYJ 472 V (4.7 kQ)
7310002600 | Trimmer RV-110
(RHO3 A3AS4X0AA)473
7030003840 | Resistor ERJ3GEYJ 473 V (47 КО)
7030003740 Resistor ERJ3GEYJ 334 V (330 kQ)
7030003750 Resistor ERJSGEYJ 394 V (390 КО)
7030003640 | Resistor ERJ3GEYJ 473 V (47 kQ)
7030003540 Resistor ERJ3GEYJ 682 V (6.8 kQ)
7510000400 | Thermistor DTN-T203K103LS (T)
4550000530 | Tantalum TESVA 1V 104M1-8L
4550002950 | Tantalum TESVA OJ 335M1-8L
4550000530 | Tantalum TESVA 1V 104M1-8L
4550000530 | Tantalum TESVA 1V 104M1-8L
4550000770 Tantalum TESVC 0J 226M-12L
4550000450 | Tantalum TESVC 1C 108M-12L
4550000480 | Tantalum TESVA 1C 105M1-8L
4550000450 | Tantalum TESVC 1C 106M-12L
4030006860 Ceramic 01808 JB 1H 102K-T-A
4030006860 Ceramic 01808 JB 1H 102K-T-A
4030006850 | Ceramic C1608 JB 1H 471K-T-A
4550000530 Tantalum TESVA 1V 104M1-8L
4550000530 Tantalum TESVA 1V 104M1-8L
4550000450 | Tantalum TESVC 1C 106M-12L
4550000530 Tantalum TESVA 1V 104M1-8L
4030006870 | Ceramic C1608 JB 1H 222K-T-A
4030006900 Ceramic C1608 JB 1E 103K-T-A
4030008630 Ceramic C1608 JF 1C 104Z-T-A
4030008980 | Ceramic C2012 JB 1C 104K-T-A
P.C. Board
F.P.C. Board
EP4001| 0910027932
ЕР4002| 0910015371
B-2761B (VOR)
B-1478A
[SW UNIT]
ORDER
2230000250 | Switch SPPH22014A [ANL]
S1202 | 2230000250 | Switch SPPH22014A [HIGH/LOW]
EP1201| 0910031250 | P.C. Board
B-2762 (SW)
[PRT UNIT]
ORDER
4010000500 | Ceramic DD104 B 102K 50V
4010000500 | Ceramic DD104 B 102K 50V
EP1301| 0910031260 | P.C. Board
B-2763 (PRT)
[MAIN UNIT]
ORDER
101001 | 1110002440 u PC1313HA
101002 | 0 K S-81250HG-RD-T1
101003 | 1110000070 | IC u PC358C
101004 | 1110002160 | IC MC3372P
101005 | 1130005640 | IC TC4W53F (TE12L)
1С1006 | 1110002330 TA7368P
Q1001 | 1530002600 | Transistor 2SC4215-O (TE85R)
Q1002 | 1530002600 | Transistor 2504215-0 (TE85R)
Q1003 | 1530002080 | Transistor 28C4081 T107 R
Q1004 | 1590000660 | Transistor DTC144TU T107
Q1005 | 1590000660 | Transistor DTC144TU T107
Q1006 | 1590000430 | Transistor DTC144EU 7
Q1007 | 1590000660 | Transistor DTC144TU T107
Q1008 | 1530002080 | Transistor 2504081 T107 R
Q1009 | 1590000430 | Transistor DTC144EU T107
Q1010 | 1530002060 | Transistor 2SC4081 T107 R
Q1011 | 1530002080 | Transistor 2504081 T107 R
Q1012 | 1530002080 | Transistor 25С4081 T107 R
Q1013 | 1530002080 | Transistor 2504081 T107 R
Q1014 | 1510000510 | Transistor 2SA1576 T107 R
Q1015 | 1530002060 | Transistor 2SC4081 T107 R
Q1018 | 1520000200 | Transistor 2SB798-T2 DK
Q1017 | 1530002080 | Transistor 2904081 T107 R
Q1018 | 1520000200 | Transistor 2SB798-T2 DK
Q1019 | 1590000650 | Transistor DTA144TU T107
Q1020 | 1590000660 | Transistor DTC144TU T107
Q1021 | 1590000650 | Transistor DTA144TU T107
Q1022 | 1510000510 | Transistor 2$А1576 T107 В
01023 | 1530002060 Transistor 25С4081 T107 R
Q1024 | 1520000080 | Transistor 2SB909M R
D1001 | 1790000450 | Diode MA882 (TX)
D1002 | 1790000450 | Diode MA862 (TX)
D1003 | 1790000900 | Diode ND411G-1-T2
D1004 | 1790000590 | Diode MA110 (TW)
D1005 | 1790000590 | Diode MA110 (TW)
D10068 | 1750000070 | Diode 155228 (TE85R)
D1007 | 1790000590 | Diode MA110 (TW)
D1008 | 1790000590 | Diode MA110 (TW)
D1009 | 1790000590 | Diode MA110 (TW)
D1010 | 1790000590 | Diode MA110 (TW)
D1011 | 1790000590 | Diode MA110 (TW)
D1012 | 1790000590 | Diode MA110 (TW)
D1013 | 1790000490 | Diode HSM88AS-TR
D1014 | 1160000060 | Diode DAN202U T107
CR-190
СОВМ455С16
X1001
X1002
6050003830
6070000080
Crystal
Discriminator
CFUM455D
CFUM455B
Ceramic Filter
Ceramic Filter
Е11001
11002
2020000590
2020000580
6150002770 | Coil LS-293
7030003430 Resistor ERJ3GEYJ 821 V (820 Q )
7030003520 Resistor ERJ3GEYJ 472 V (47 KQ)
7030003640 | Resistor ERJ3GEYJ 473 V (47kQ)
7030003640 | Resistor ERJ3GEYJ 473 V (47kQ)
7030003840 | Resistor ERJ3GEYJ 473 V (47kQ)
7030003840 | Resistor ERJ3GEYJ 473 V (47kQ)
7030003840 | Resistor ERJ3GEYJ 473 V (47 КО)
7030003840 Resistor ERJ3GEYJ 473 У (47 КО)
7030003640 Resistor ERJ3GEYJ 473 V (47 КО)
7030003520 | Resistor ERJ3GEYJ 472 У (4.7kQ)
7030003680 Resistor ERJSGEYJ 104 V (100kQ)
7030003500 Resistor ERJ3GEYJ 332 V (3.3k Q)
7030003480 Resistor ERJ3GEYJ 222 V (22kQ)
7030003700 Resistor ERJ3GEYJ 154 V (150 КО )
7030003280 Resistor ERJ3GEYJ 470 V (47 Q)
7030003440 Resistor ERJ3GEYJ 102 V (1kQ)
7030003580 Resistor ERJ3GEYJ 103 V (10kQ)
