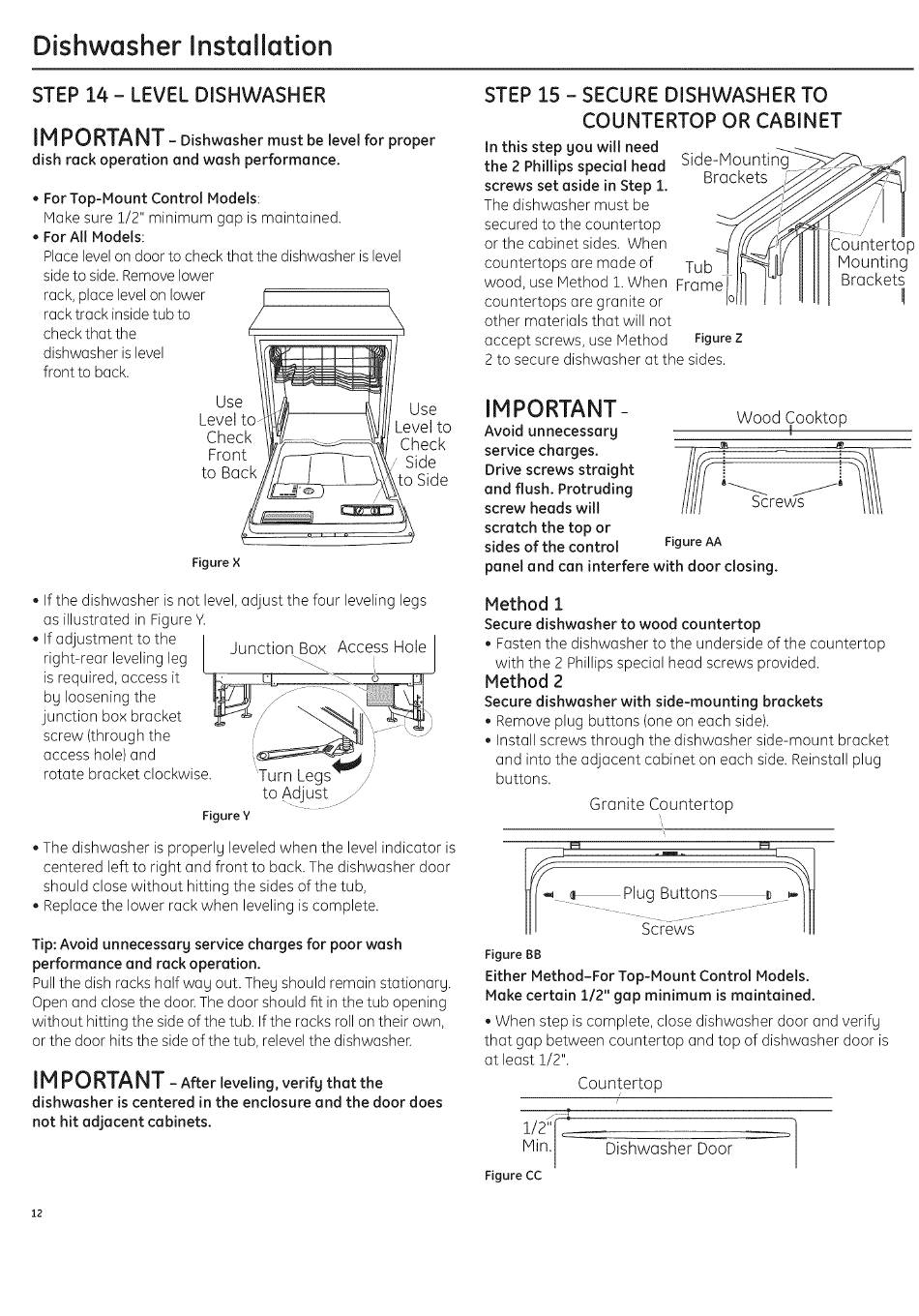

GE CDWT980RSS Installation Instructions Manual page 13

Dishwasher Installation
STEP 14 - LEVEL DISHWASHER
IM PORTANT-
Dishwasher must be level for proper
dish rack operation and wash performance.
• For Top-Mount Control Models:
Make sure 1/2" minimum gap is maintained.
• For All Models:
Place level on door to check that the dishwasher is level
side to side. Removelower
rock, p lace level on lower
rack track inside tub to / \
check that the q , ;
d,s wos er,s,e ,
use I_-#, _ttlf use
Level to--_t_/
\\\Ifli
Level to
Check t_ " " _f 'Check
Front _/1_\_, Side
Figure X
• If adjustment to the
right-rear leveling leg
is required, access it
bg loosening the
junction box bracket
screw (through the
access hole) and
rotate bracket clockwise.
• If the dishwasher is not level, adjust the four leveling legs
ms illustrated in Figure Y.
L gunctionBox
Acc s Ho,e /
to Adjust //
Figure Y
•The dishwasher is properlg leveled when the level indicator is
centered left to right and front to back. The dishwasher door
should close without hitting the sides of the tub,
• Replace the lower rack when leveling is complete.
Tip: Avoid unnecessarg service charges for poor wash
performance and rack operation.
Pull the dish racks half wag out. Theg should remain stationary.
Open and close the door. The door should fit in the tub opening
without hitting the side of the tub. If the racks roll on their own,
or the door hits the side of the tub, relevel the dishwasher.
IMPORTANT
- After leveling, verifg that the
dishwasher is centered in the enclosure and the door does
not hit adjacent cabinets.
STEP 15 - SECURE DISHWASHER TO
COUNTERTOP OR CABINET
In this step gou will need
the 2 Phillips special head
screws set aside in Step 1.
The dishwasher must be
secured to the countertop
or the cabinet sides. When
countertops are made of Tub
wood, use Method 1. When
countertops are granite or
other materials that will not
accept screws, use Method FigureZ
2 to secure dishwasher at the sides.
Brackets
Countertop
Mounting
Brackets
II
IMPORTANT-
Avoidunnecessarg
service charges.
Drive screws straight
and flush. Protruding
screw heads will
scratch the top or
sides of the control
Wood Cooktop
I
Screws
Figure AA
panel and can interfere with door closing.
Method
1
Securedishwashertowood countertop
• Fasten the dishwasher to the underside of the countertop
with the 2 Phillips special head screws provided.
Method 2
Secure dishwasher with side-mounting brackets
• Remove plug buttons (one on each side).
• Install screws through the dishwasher side-mount bracket
and into the adjacent cabinet on each side. Reinstall plug
buttons.
Granite C0unterto p
_1_ r l_i_
_Plug ................ .....
Figure BB
Either Method-ForTop-Mount Control Models.
Make certain 1/2"gap minimum ismaintained.
• When step is complete, close dishwasher door and verifg
that gap between countertop and top of dishwasher door is
at least 1/2".
Countertop
i
1/2'<¢__
Hin.| Dishwasher Door
/
Figure CC
12
