GE Cafe CDWT280VSS Dimension Manual

Stainless interior built-in dishwasher with hidden controls
Hide thumbs

Advertisement

CDWT280V
GE Cafe

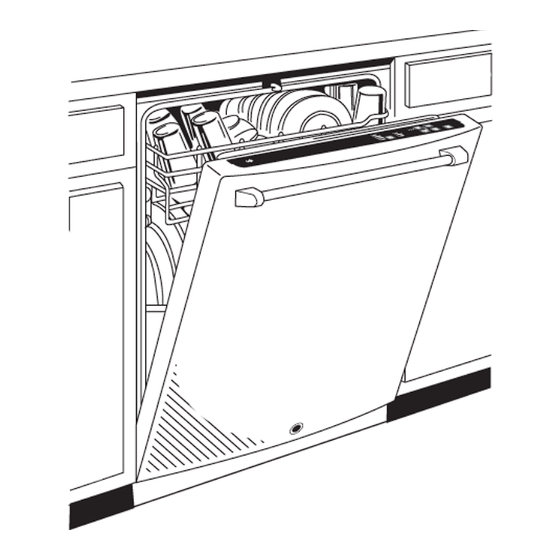

Stainless Interior Built-In Dishwasher with Hidden Controls
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.....................................................................
Total connected load amperage............. 9.9
Calrod
heater watts max........................ 875
®
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
24-3/4*
60
22-1/2
33-13/16" MIN.
adj. to 35"
21-1/4
*Allow an additional 2.525" for the handle on
CDW9380 Series models.
or
®
24
27-1/2
4" (Adjustable)
90°
3-1/2
Hot
water
34" to 34-3/4"
line on
Underside
left
of countertop
to floor
This wall area
must be free of
pipes or wires
24"
4
4
MIN.
4
5
5
6
Plumbing and electrical
2
service must enter
inside shaded area
19" MIN. from wall
24" From wall
24" MIN.
Listed by
Underwriters
Laboratories
Specification Created 5/11
Countertop
90°
Electrical
wiring is
3" from
cabinet
Electrical
wiring on
6
right
As an EnErgy StAr
®
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
250236
