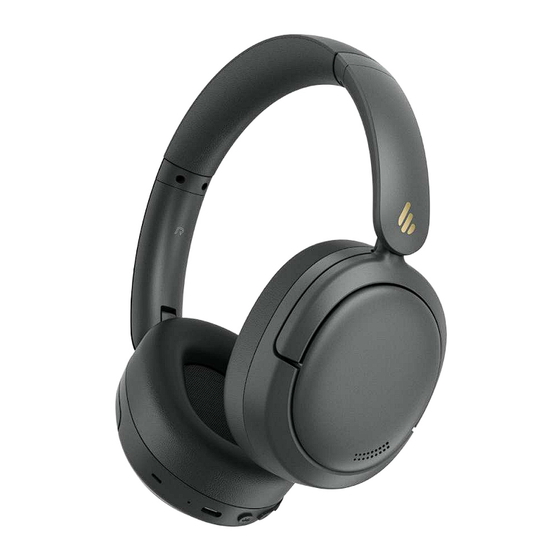

EDIFIER W800BT Pro Manual

Wireless Over-Ear Headphones with Active Noise Cancellation
EN 1. Power ON/OFF
Press and hold the power button to power on/off.
2. First pairing
1. Once powered on, the headphones will automatically enter
Bluetooth pairing mode.
2. Select "EDIFIER W800BT Pro" in your device setting to connect.
3. Pairing for new device
1. In ON state, press and hold the "
enter Bluetooth pairing mode.
2. Select "EDIFIER W800BT Pro" in your device setting to connect.
Note: For subsequent use, the headphones will automatically connect to the device used last time.
4. Dual-device connection
①
②
③
Bluetooth
EDIFIER W800BT Pro
1. Pair device A with the headphones successfully.
2. Press and hold the "
pairing mode, and then select "EDIFIER W800BT Pro" in device B
setting to connect.
3. Select "EDIFIER W800BT Pro" again in device A setting to connect, and
the dual-device connection is done.
Note: For subsequent use, the headphones will automatically reconnect to the two devices used
last time.
5. Charging
Connect the headphones to a power source via the USB-C cable for
charging.
Note: 1. Make sure the USB-C port is completely dry before charging.
2. When charging with a USB-C cable, the product is used as wired headphones and
Bluetooth functions are unavailable.
6. Controls
● Call
● Music
● Mode
Note:
1. "x 1" Press , "x 2" Double press , "—" Press and hold.
2. Default sound control: High Noise Cancellation / Ambient Sound / Noise Cancellation Off.
3. Download EDIFIER ConneX App for more customizable control settings.
7. Reset
1. In ON state, press the "
2. The headphones will automatically enter Bluetooth pairing mode if
successful.
8. Wired listening
Connect to the headphones via the USB-C cable. Wired listening will
automatically disable Bluetooth mode.
W800BT Pro
Model: EDF200149
Manual
3s
A
" button for 3 seconds to re-enter Bluetooth
x1
x1
x2
x3
x1
x1
x1
x2
x1
" button 5 times to finish reset.
ON -
OFF -
EDIFIER W800BT Pro
EDIFIER W800BT Pro
3s
" button for about 3 seconds to
x5
x6
1s
1s
Bluetooth
Bluetooth
Bluetooth
EDIFIER W800BT Pro
A
B
Input: 5V 1A
