Summary of Contents for Epson ELPCS01
- Page 1 User’s Guide...
-
Page 2: Table Of Contents
Contents Indication of the manufacturer and the Product Overview importer in accordance with requirements of About this Product ....3 EU directive ......23 Indication of the manufacturer and the importer in accordance with requirements of Safety Instructions... -
Page 3: Product Overview

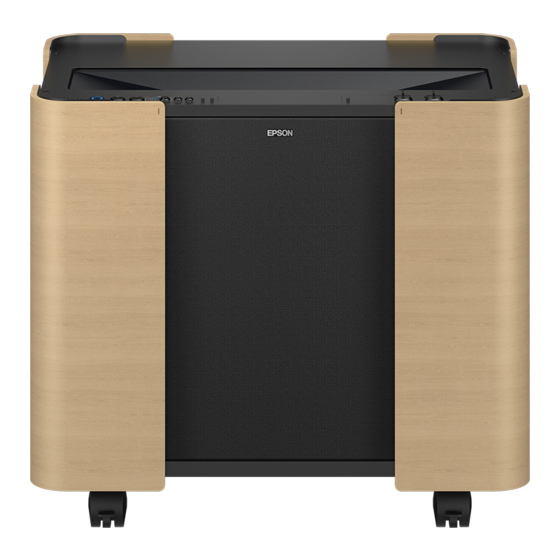

The Epson ELPCS01 is a mobile display solution designed to allow users to display bright, beautiful images whenever and wherever needed. With its ability to display image sizes from 80 to 160", the ELPCS01 features an intuitive and easy to use illuminated control panel that allows simple image sizing, A/V Mute, source selection of HDMI1/HDMI2, as well as wireless network connection. -
Page 4: Safety Instructions
You can also download various User's Guides for the projectors from here. Caution: This projector cabinet is intended for use with EPSON projectors EB-810E/EB-815E only. Using it with other products may cause the cabinet to become unstable and injury to occur. Explanation of symbols To prevent personal injury or damage to property, the following symbols are used to show dangerous operation or handling. -
Page 5: Symbols Indicating An Action That Must Not Be Done
Disconnect the plug from the outlet Warning Warning Unplug the cabinet from the outlet and contact your dealer or the Epson service call center under the following conditions : Disconnect • If smoke, strange odors or strange noises come from the cabinet. - Page 6 Safety Instructions Warning Take care when handling the power plug or power strip. Failure to comply with these precautions could result in fire or electric shock. Take the following Instructions precautions when handling. • Do not modify the power plug. •...
- Page 7 Safety Instructions Warning Do not use the cabinet in places where flammable gases or explosive gases may be present in the atmosphere. Do not spray The inside of the cabinet becomes hot. Flammable material contained in air dusters, insecticides, or deodorants may be sucked into the projector and ignite, causing fire and burns. If flammable sprays are used around the projector or cabinet, ensure that the area is adequately ventilated before use.
-
Page 8: Caution
Safety Instructions Warning Do not use flammable gas sprays to remove dirt or dust from the projector’s projection window, air filter, or the cabinet’s intake or exhaust vents. Do not spray The high heat generated by the cabinet may cause a fire. Use a vacuum cleaner or hand-operated air blower to remove dirt or dust that has adhered to parts. -
Page 9: Notes On Handling And Storage
Safety Instructions Caution When in use, make sure the power cord and cables are routed to avoid tripping hazards. Failure to do so may cause people to fall and be injured. Instructions Be sure to check that the power is turned off, the plug is disconnected from the outlet and all cables are disconnected before moving the cabinet. - Page 10 Safety Instructions Caution: Do not use volatile substances such as wax, benzine, or thinner to clean the cabinet’s surface. The quality of the cabinet’s case may change or become discolored. Do not use canned air as the gases may leave a flammable residue.
-
Page 11: Product Information
Product Information Product Information Specifications Item Specifications Dimensions W 816 mm x H 706 mm x D 538 mm (31.8 x 27.6 x 21.1 in.) (dimensions may vary depending on installation conditions) Weight 41.9 kg (92.4 lb.) Power supply 100 to 120 V AC 50/60 Hz 10 A (U.S., Canada, Japan, Taiwan) 220 to 240 V AC 50/60 Hz 10 A (EU, U.K) Power consumption Less than 0.5 W... -
Page 12: Product Parts And Functions
Product Information Product Parts and Functions Side Cabinet Front Back Name Functions and so on Control Panel Operates the projector. Top cover An installed control panel for projector operations and video source input ports. Projector The built-in projector. (Sold separately) Exterior IO Connects video source devices. - Page 13 Product Information Name Functions and so on Front Panel Open the front corner door before you open this panel. Open this when you require internal access, such as during filter maintenance for the projector. You can adjust the installation position using the hinge. You can lock it with a padlock and so on.
-
Page 14: Control Panel
Product Information Control panel Name Function Power button Turns the power on or off. A/V Mute button Turns the A/V Mute function on or off. Source button Switches the source between HDMI1, HDMI2, and LAN. Use the remote control to switch to another image source. -
Page 15: Accessories
Product Information Name Function HDMI connector Connects to HDMI2 on the projector. Used for connecting to image sources. Internal Power Strip The shape of the outlets varies depending on the country of sale. (This illustration is for North America.) Name Function AC IN For external power input. -
Page 16: Using The Cabinet
Using the Cabinet How To 4 4 4 If part of the screen is distorted due to the condition of the wall, use the projector's adjustment features. See the projector's User's Guide for more details on making adjustments. Maintenance Be sure to clean or replace the projector’s filters regularly. Open the front panel of the cabinet to access the filters. -
Page 17: Solving Problems
Using the Cabinet Solving Problems Problem Solutions Check if the A/V Mute function is activated. No image displayed Restart the projector. Check the cable connections. Check if the A/V Mute function is activated. No audio Restart the projector. Check the cable connections. Check the resolution of the input source. -
Page 18: Installing A Projector
Installing a Projector Installing a Projector Contact your local dealer or service representative for support on projector installation. Supported projectors: EB-810E/815E Remove the projector’s front and side covers. Detach the side cover from the fall prevention wire. Attach the positioning pins to the bottom of the projector. - Page 19 Installing a Projector Remove the cabinet's top cover and rear panel. Place the projector on the cabinet and secure it with the projector fixing screws.
- Page 20 Installing a Projector Replace the top cover. Connect necessary cables.
- Page 21 Installing a Projector Number Connection Details Connect the cable from the AC adapter for the power supply to the connector on the control panel. The adapter is connected to the internal power strip at the time of shipment. Connect the USB hub to the USB connector on the exterior IO with a USB cable. Connect the HDMI connector on the exterior IO to HDMI1 on the projector with an HDMI cable.
-
Page 22: Appendix
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Other product names used herein are also for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks. FCC Compliance Statement Supplier's DECLARATION of CONFORMITY According to 47CFR, Part 2 and 15 Class A digital devices, peripherals &... -
Page 23: For Canadian Users
For Canadian Users CAN ICES (A) / NMB (A) Indication of the manufacturer and the importer in accordance with requirements of EU directive Manufacturer: SEIKO EPSON CORPORATION Address: 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392-8502 Japan Telephone: 81-266-52-3131 http://www.epson.com/ Importer: SEIKO EUROPE B.V. -
Page 24: Contact List
A more up-to-date contact address can be obtained from the corresponding website listed here. If you do not find what you need on any of these pages, please visit the main Epson home page at www.epson.com. EUROPE, MIDDLE EAST & AFRICA... -
Page 25: North, Central America & Caribbean Islands
Appendix DENMARK : ITALY : ROMANIA : Epson Denmark Epson Italia s.p.a. Epson Europe B.V. Branch Office Ro- mania https://www.epson.dk https://www.epson.it https://www.epson.ro RUSSIA : KAZAKHSTAN : TURKEY : Epson CIS Epson Kazakhstan Rep. Office Tecpro Bilgi Teknolojileri Tic. ve San. -
Page 26: Asia & Oceania
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance... -
Page 27: Copyrights
Appendix Illustrations in this guide and the actual cabinet may differ. Copyrights This information is subject to change without notice. © 2024 Seiko Epson Corporation 2024.7 414508401EN...
