01823 661037
+

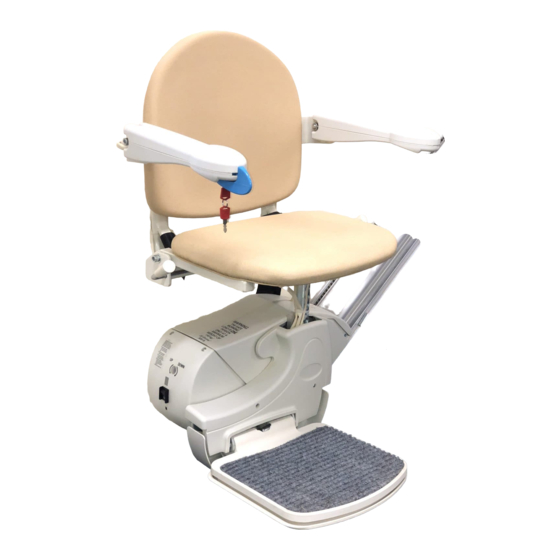

Handicare 950/950
User Manual
Simplicity seat
L
Simplicity
seat
Smart seat

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 950 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Handicare 950

  • Page 1 01823 661037 Handicare 950/950 User Manual Simplicity seat Simplicity seat Smart seat...
  • Page 2: Table Of Contents

    FOREWORD CONTENT USER MANUAL Thank you for choosing a Handicare stairlift. This manual is for the HANDICARE 950 lift OPTIONS type, and includes instructions for the standard features and optional upgrades. IMPORTANT INFORMATION FAULT FINDING ATTACHMENTS A. Reminders B. Emergency operation C.
  • Page 3: Options

    SIMPLICITY / SIMPLICITY SEAT OPTIONS Powered Footrest Folding hinge (manual) Slide track [1]Diagnostic Display The illustration above shows the features used to operate [2]Joystick the SIMPLICITY seat. The SIMPLICITY seat can be upgraded [3]Emergency stop with the Powered Footrest, the Folding hinge (manual) and [4]Seat belt the Slide track, options to create even more seat comfort and user-friendliness.
  • Page 4 SMART SEAT OPTIONS Automatic Swivel Powered Footrest Folding hinge (manual) Slide track [1]Diagnostic Display The illustration above shows the features used to operate [2]Joystick the SMART seat. The SMART seat can be upgraded with the [3]Emergency stop Automatic Swivel seat, the Powered Footrest, the Folding [4]Seat belt hinge (manual) and the Slide track, options to create even more seat comfort and user-friendliness.
  • Page 5 FOLD DOWN Ensure that the on/off switch is set in the 'ON' position. The diagnosic display will be illuminated when switched on. Manually fold down the footplate, the armrests and seat. page 10 > OPTIONAL POWERED FOOTREST PLACE FEET Place your feet on the footplate. Ensure that both feet are completely on the plate.
  • Page 6 SAFETY FIRST CLICK! Fasten the seat belt securely, ensuring that it clicks into the holder. Put the key in the switch and turn it ninety degrees clockwise. Check that the chair is in the locked position. RIDE Move and hold the joystick in the desired direction of travel. The display shows a “8/9”, the lift will beep 3 times and start slowly after 1 second.
  • Page 7 EMERGENCY STOP In an emergency, press the emergency stop once. The lift stops straight away. The emergency stop can be released by turning the emergency button. SWIVEL CLICK! The lift stops automatically at the end of the rail. You should now swivel the seat manually, making it easier to get on and off.
  • Page 8 LOOSEN BELT Unfasten the seat belt. STAND UP Stand up from the seat. USER MANUAL...
  • Page 9 FOLD UP CLICK! Fold up the armrests, footplate and seat {A}. Push the handle, located to the left or right under the seat, downwards {B}. Swivel the seat until you hear a 'click'. The seat is now in the locked position. PARK Press and hold the up and down button on the remote control until the lift reaches a stop point.
  • Page 10 OPTIONS AUTOSWIVEL page 9 POWERED FOOTREST page 10 HINGED RAIL manual) page 10 SLIDE TRACK page 11 AUTOSWIVEL CLICK! The AUTOMATIC SWIVEL SEAT option let you swivel the seat automatically to face the direction you are going to walk. To do this, push and hold the joystick in the direction of travel.
  • Page 11 OPTION POWERED FOOTREST To operate a POWERED FOOTREST press the switch under the armrest[1] or fold up the seat[2].The stairlift should beep whilst folding the footrest. Always ensure the footplate is in the down position during travel. HINGED RAIL manual) Before raising the manual hinged track{B} park the stairlift on the charge points, above the hinge, or at the top of the stairs{A}.
  • Page 12 SLIDE TRACK Max. 40 cm If the lift has a sliding track, both the chair and slide track will move (half speed) at the same time. Once the slide track has reached the end of its travel the lift will gradually increase to its normal running speed and continue its travel. Keep the toggle pressed in the same direction.
  • Page 13 USER MANUAL...
  • Page 14 (max 140 kg/22.7 stone/308 lbs) sitting on the seat (hinged rail/ slide rail type: max 120 kg/18.1 stone/264 lbs). Before using your Handicare 950 stairlift please read this manual thoroughly to familiarise yourself with how to operate your stairlift.
  • Page 15 Neither Handicare nor its authorised dealers may be held responsible for the suitability of the structures which surround and support the installation.
  • Page 16 Installation and servicing should only be carried out by dealers or installers/service engineers authorised by the manufacturer in accordance with local regulations. The wall mounted remote controls operate on a infra-red frequency; Handicare is unable to accept responsibility for system inoperability in the unlikely event of interference from signals external to this stairlift.
  • Page 17: Faultfinding

    FAULTFINDING DIAGNOSTIC DISPLAY page 16 CHAIR POSITION page 17 EMERGENCY STOP page 17 ARMREST page 18 page 18 BATTERIES RC page 19 POWER page 19 OBSTACLE page 20 SWITCH page 20 HINGED RAIL page 21 DIAGNOSTIC DISPLAY The stairlift is fitted with a diagnostic display that displays a code to help diagnose faults.
  • Page 18 CHAIRPOSITION CLICK! C A U S E S O L U T I O N Problem: the lift does not travel in either direction and the display shows a “0”. Cause: the seat is not locked and is in a swivelled position. Solution: swivel the seat using the handle located to the left or right under the seat, until it “clicks”...
  • Page 19 ARMREST C A U S E S O L U T I O N Problem: the lift does not travel in either direction and the display shows a “-”. Cause: an armrest has not been folded down. Solution: fold down the armrest fully. C A U S E S O L U T I O N Problem: the lift does not travel in either direction and the display shows a “0”.
  • Page 20 FAULTFINDING BATTERIES RC RED light C A U S E S O L U T I O N Problem: the lift does not travel in either direction and the Light on the remote control shines red when the remote control is operated. Cause: the batteries in the remote control are flat.
  • Page 21 OBSTACLE C A U S E S O L U T I O N Problem: the lift travels in one direction only and the display shows a “4/6”. Cause: there is an obstacle between the lift and the stairs. Solution: move the lift in the opposite direction {A} and remove the obstacle {B}. SWITCH C A U S E S O L U T I O N...
  • Page 22 HINGED RAIL CLICK! C A U S E S O L U T I O N Problem: the lift does not travel in either direction and the display shows a “A”. Cause: the hinged rail has not been folded down. Solution: fold down the hinged rail fully.
  • Page 23: Attachments

    ATTACHMENTS REMINDERS page 22 EMERGENCY OPERATIONS page 23 DIAGNOSTIC CODES page 26 REMINDERS POWERED FOOTREST 30 min. [A]Remove the key from the switch whenever you leave the lift. [B]Never remove the lift plug from the wall socket. [D]It is recommended that the keys be stored close to the stairlift by hanging a key on the handset wall bracket.
  • Page 24 EMERGENCY OPERATION >TRACK STOP [B.1]When the stairlift stops unexpectedly and no longer moves any further, the hand winder can be used to move the lift to a charging point. [B.2]Turn off the lift. [B.3]Remove the cap from the unit with a screwdriver. [B.4]Turn the hand winder as indicated on the winder.
  • Page 25 EMERGENCY OPERATION > SEAT B.1 C.1 CLICK! [C.1]If the power swivel is not functioning it can be swivelled manually. Do this only in an emergency. [C.2]Insert a coin in the button on the side of the seat. [C.3]Swivel the seat manually. [C.4]The seat must be returned to the start position.
  • Page 26 EMERGENCY OPERATION >SLIDE TRACK STOP [D.1]Your Slide Track is fitted with a manual override that allows the track to be moved in case of an emergency. This is positioned towards the bottom of the track{A}. [D.2]Turn off the lift. [D.3]To move the Slide Track manually you must first loosen the locking bolt.
  • Page 27 DIAGNOSTIC If the mentioned action does not help, call Handicare. CODES Display Action Display Action Write down the diagnostic code when you call Handicare for help. No display Charging, but the lift does not drive. Possibly the armrest is folded.
  • Page 28 Display Action Display Action Display Action 30 min. Low battery voltage Joystick activated Joystick activated F A U L T Display Action Display Action Display Action IR address fail The main power relay not The main power not closed open F A U L T F A U L T F A U L T...
  • Page 29 Display Action Display Action Display Action Power supply fault during Power supply fault during Power supply fault when charging charging battery on float F A U L T F A U L T F A U L T Display Action Display Action Display...
