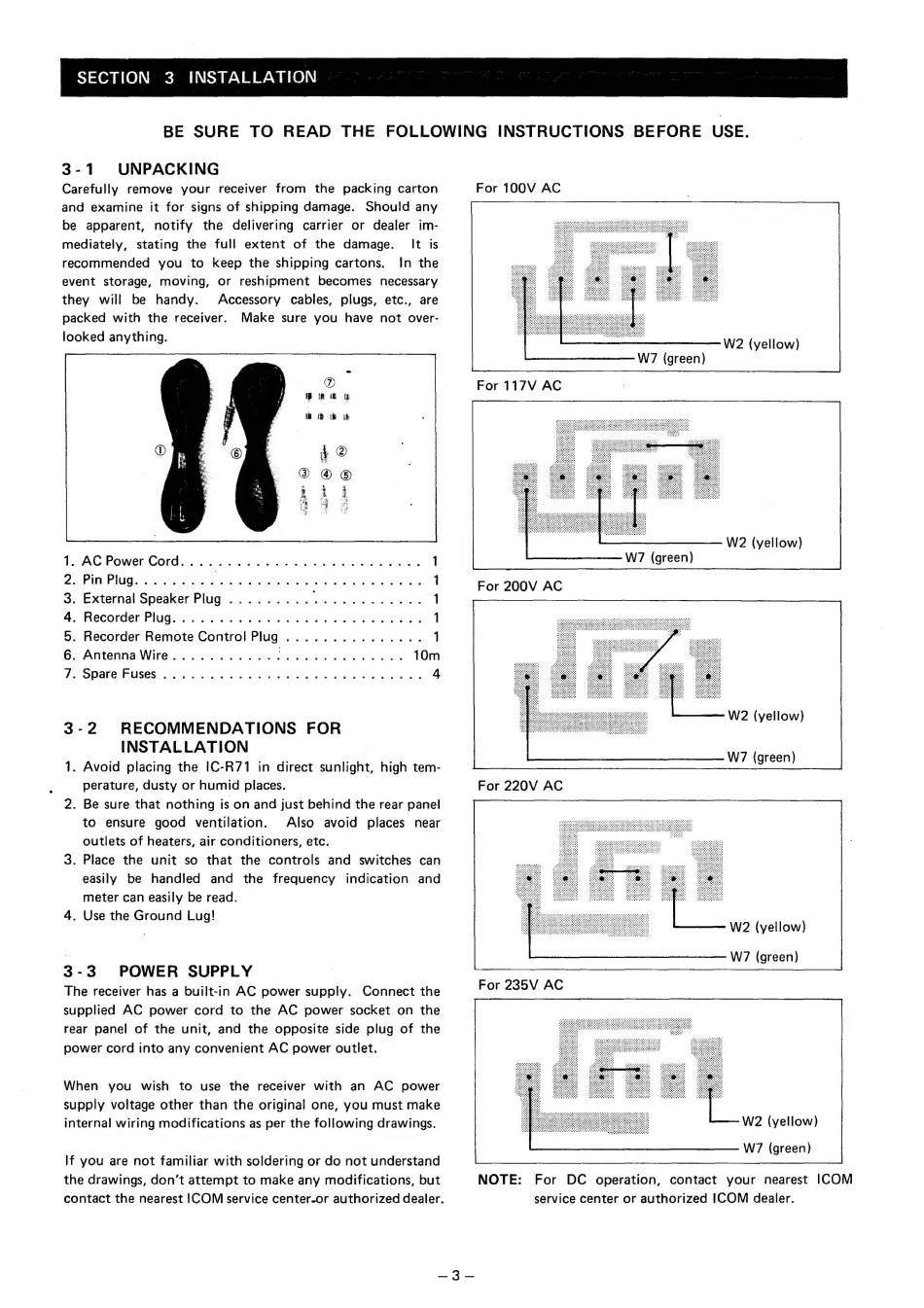

SECTION 3 INSTALLATION |
BE SURE TO READ THE FOLLOWING INSTRUCTIONS BEFORE USE.
3-1 UNPACKING
Carefully remove your receiver from the packing carton
and examine it for signs of shipping damage. Should any
be apparent, notify the delivering carrier or dealer im-
mediately, stating the full extent of the damage. It is
recommended you to keep the shipping cartons. In the
event storage, moving, or reshipment becomes necessary
they will be handy. Accessory cables, plugs, etc., are
packed with the receiver. Make sure you have not over-
looked anything.
)
if me x
hm wo
12, AG-POWer- CO 6 oo ais oo S e Ow Alerd a eed 1
2. Pin Plug......... T s d e e e t e Bd Soctalch oe ete de bins bts 1
3. External Speaker Plug ......... 2 inte eaters 1
AL RGCOPOEN FIG 6. ap ii cae Seok ara GAR, oe eo aie ed 1
5. Recorder Remote Control Plug ............... 1
6. AntennaWire........... 000. c eee eee eee 10m
P2SVANCE PUSS oc 645s 2 Sik agri tee ACE By ena ate Bcd 4
3-2 RECOMMENDATIONS FOR
INSTALLATION
1. Avoid placing the IC-R71 in direct sunlight, high tem-
perature, dusty or humid places.
2. Be sure that nothing is on and just behind the rear panel
to ensure good ventilation. Also avoid places near
outlets of heaters, air conditioners, etc.
3. Place the unit so that the controls and switches can
easily be handled and the frequency indication and
meter can easily be read.
4. Use the Ground Lug!
3-3 POWER SUPPLY
The receiver has a built-in AC power supply. Connect the
supplied AC power cord to the AC power socket on the
rear panel of the unit, and the opposite side plug of the
power cord into any convenient AC power outlet.
When you wish to use the receiver with an AC power
supply voltage other than the original one, you must make
internal wiring modifications as per the following drawings.
If you are not familiar with soldering or do not understand
the drawings, don't attempt to make any modifications, but
contact the nearest |COM service center-or authorized dealer.
For 100V AC
W2 (yellow)
For 117V AC
W2 (yellow)
W7 (green)
For 200V AC
W2 (yellow)
W7 (green)
For 220V AC
W2 (yellow)
W7 (green)
For 235V AC
W2 (yellow)
W7 (green)
NOTE: For DC operation, contact your nearest ICOM
service center or authorized 1COM dealer.
