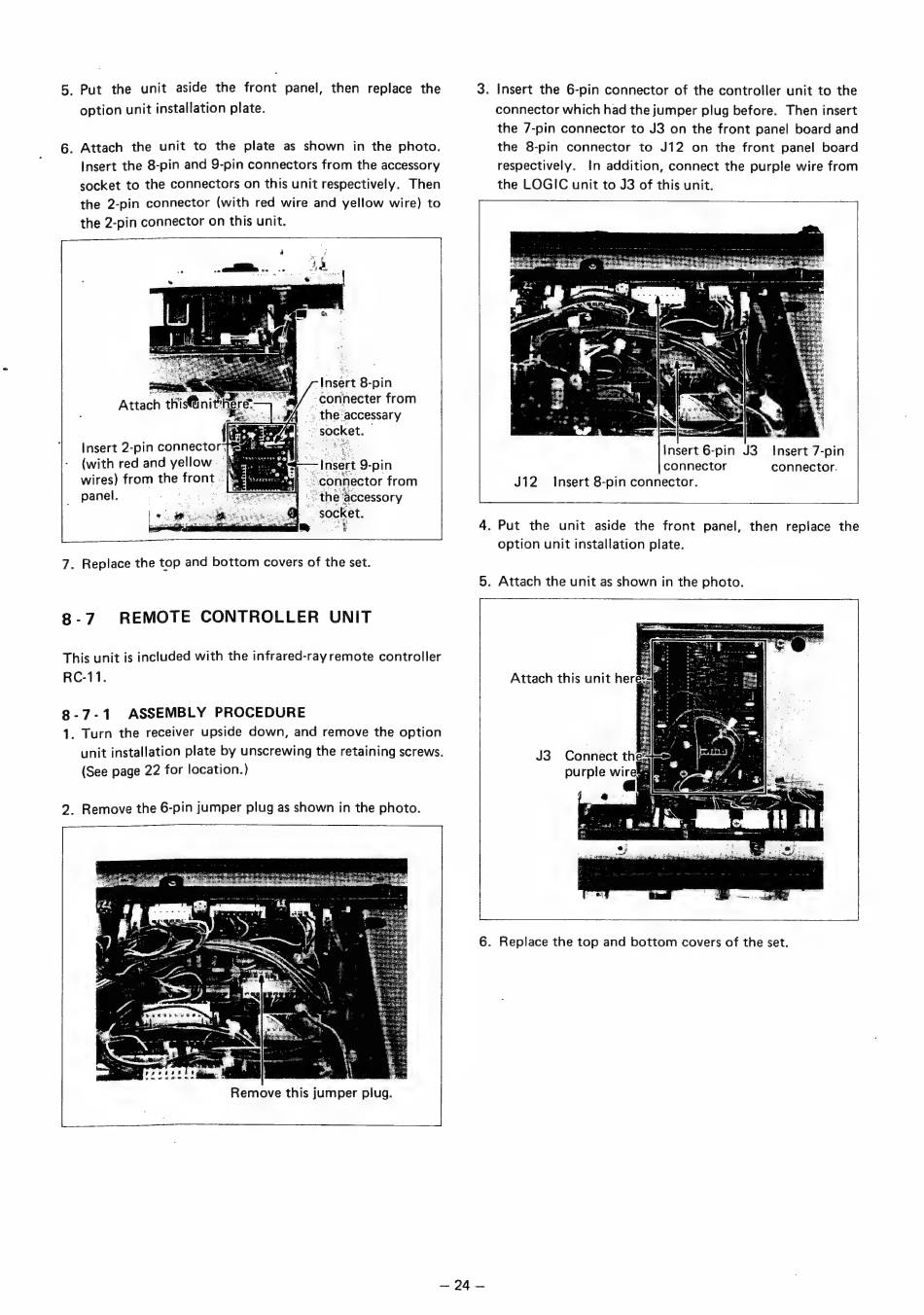

5. Put the unit aside the front panel, then replace the
option unit installation plate.
6. Attach the unit to the plate as shown in the photo.
Insert the 8-pin and 9-pin connectors from the accessory
socket to the connectors on this unit respectively. Then
the 2-pin connector (with red wire and yellow wire) to
the 2-pin connector on this unit.
-Insert 8-pin
~. the accessary
#| ~~ socket.
Insert 2-pin connector7f < Bees
(with red and yellow \@aiaNRX<t — Insert 9-pin
wires) from the front - connector from
panel. 4 ~ the accessory
- socket.
7. Replace the top and bottom covers of the set.
8-7 REMOTE CONTROLLER UNIT
This unit is included with the infrared-ray remote controller
RC-11.
1. Turn the receiver upside down, and remove the option
unit installation plate by unscrewing the retaining screws.
(See page 22 for location.)
2. Remove the 6-pin jumper plug as shown in the photo.
3. Insert the 6-pin connector of the controller unit to the
connector which had the jumper plug before. Then insert
the 7-pin connector to J3 on the front panel board and
the 8-pin connector to J12 on the front panel board
respectively. In addition, connect the purple wire from
the LOGIC unit to J3 of this unit.
re
Insert 6-pin J3_ Insert 7-pin
' | connector connector.
J12 Insert 8-pin connector.
4. Put the unit aside the front panel, then replace the
option unit installation plate.
5. Attach the unit as shown in the photo.
Attach this unit here:
6. Replace the top and bottom covers of the set.
