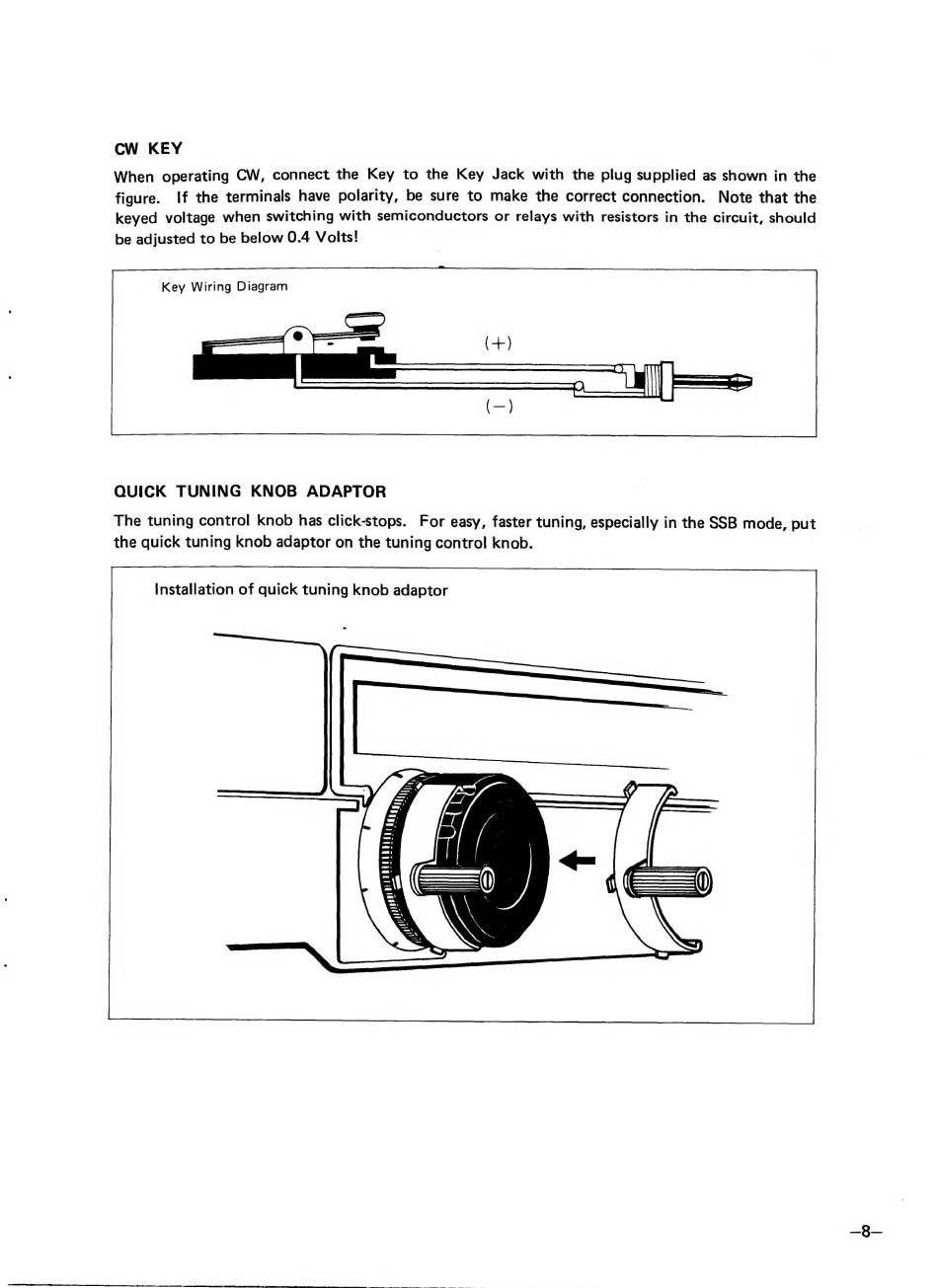

CW KEY
When operating CW, connect the Key to the Key Jack with the plug supplied as shown in the
figure.
If the terminals have polarity, be sure to make the correct connection.
Note that the
keyed voltage when switching with semiconductors or relays with resistors in the circuit, should
be adjusted to be below 0.4 Volts!
Key Wiring Diagram
QUICK
TUNING
KNOB
ADAPTOR
The tuning control knob has click-stops.
For easy, faster tuning, especially in the SSB mode, put
the quick tuning knob adaptor on the tuning control knob.
Installation of quick tuning knob adaptor
