Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may have come loose inside the carton during shipment.
Merci d'avoir acheté ce produit de qualité. Assurez-vous de vérifier soigneusement tout le
matériel d'emballage pour les petites pièces qui pourraient s'être détachées à l'intérieur du carton
pendant le transport.
PARTS LIST / LISTE DES PIECES
NO./ N °
Description
Table Top / Dessus De Table
A
B
Table Leaf / Rallonge
C
Table base / Base de Table
D
Mounting plate / plaque de montage
E
Table base center / centre de base de table
Step 1 / É tape 1:
C
Step 2 / É tape 2:
PAGE 1 OF 2
ASSEMBLY INSTRUCTION / INSTRUCTION D'ASSEMBLAGE

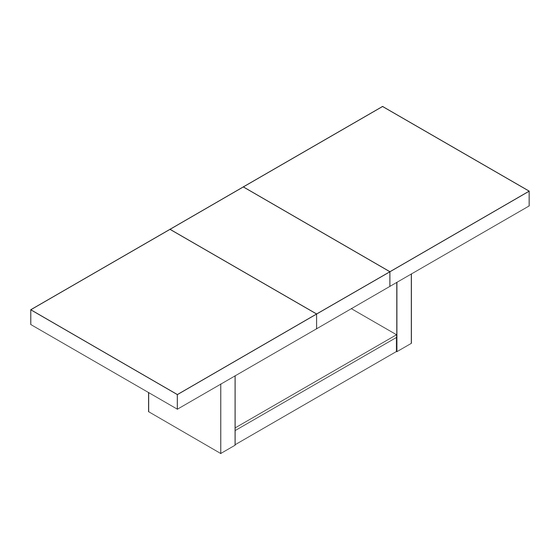

ITEM NO: 5764-96 Dining Table Top - Dessus de Table
5764-96B Dining Table Base - Base de Table
Sketch / esquisser
E
3
5
4
1
D
HARDWARE LIST / LISTE DE QUINCAILLERIE
Q'ty / Qté
NO./ N °
Description
Long Bolt / Boulon Longue
1
1PC
Hex Nut/ écrou hexagonal
2
1PC
Lock Washer / Rondelle D'arrêt
3
Flat Washer / Rondelle Plate
2PCS
4
5
Allen Key / Clè Allen
2PCS
Wrench / Clé
6
1PC
D
A
MADE IN VIETNAM / FABRIQUÉ AU VIETNAM
Sketch / esquisser
D
6
2
3
4
C
E
5
1
3
4
Size / Dimension
Q'ty / Qté
Ø5/16" x 45mm
12PCS
Ø5/16" x 12mm
4PCS
Ø5/16"x13D x 2mm
16PCS
Ø5/16"x19D x 2mm
16PCS
1PC
4mm
12mm
1PC
