Homelegance 5760-90 Assembly Instruction

5760-90 PARTS LIST/LISTE DE PIECES
SKETCH /
NO.
ESQUISSER
A
B
C
5760-90B PARTS LIST/LISTE DE PIECES
SKETCH /
NO.
ESQUISSER
D
Step 1/
É t ape 1
3
4
2
1
(C)
(D)
(A)
DO NOT TIGHTEN BOLTS UNTIL COMPLETELY ASSEMBLED.
NE PAS SERRER LES BOULONS JUSQU'À CE QUE LE MONTAGE SOIT
COMPLETMENT TERMINE
MADE IN VIETNAM / FABRIQUÉ AU VIETNAM

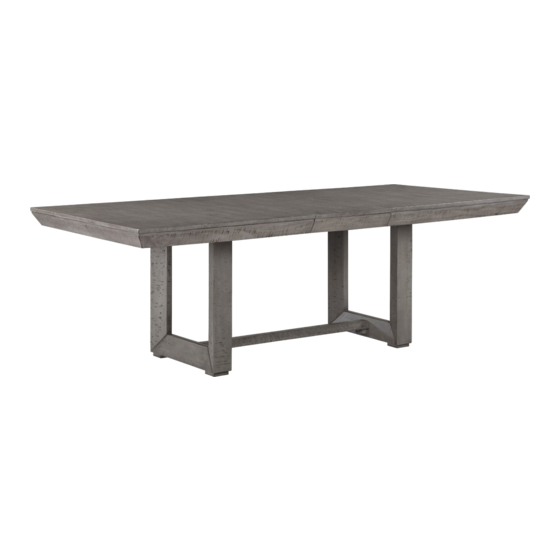

ITEM NO:5760-90 / 90B DINING TABLE / TABLE DE SALLE À MANGER
Thank you for purchasing this product. Please take time to read and follow
instructions below. Check that you have all parts and hardware before assembly. Parts
apparently missing are often found in packing matterials. If you do not have all parts
listed, call us and they be sent to you immediately
It is recommended to install protective pads under all legs and supports to avoid
damage or scratches when placing furniture on a wood floor or other hard surface,
and to limit indentation and prevent discoloration if placing on carpet.
quand les meubles reposent sur la moquette.
DESCRIPTION/
LA DESCRIPTION
TABLE TOP / DESSUS DE TABLE
TABLE LEAF / RALONGGE
CROSSBAR / BARRE TRANSVERSALE
DESCRIPTION/
LA DESCRIPTION
LEG FRAME / PIED
X2
(D)
ASSEMBLY INSTRUCTION
INSTRUCTION D' ASSEMBLAGE
5760-90 DINING TABLE TOP / DESSUS DE TABLE
5760-90B DINING TABLE BASE / BASE DE TABLE
HARDWARE LIST/LISTE DE QUINCAILLERIE
Q'TY/
DESCRIPTION /
NO.
LA DESCRIPTION
1
BOLT / BOULON
1PC
LOCK WASHER
2
/ RONDELLE D'ARR T
1PC
FLAT WASHER
3
/ RONDELLE PLATE
1PC
4
ALLEN KEY / CL
**ABOVE HARDWARE ARE PACKED IN #5760-90 FOR ASSEMBLY.
Q'TY/
2PCS
4 Step 2/
1
É t ape 2
2
3
X4
à
SIZE / SKETCH /
TAILLE ESQUISSER
1/6'' x 2-1/4''
ALLEN
UNLOCK
(B)
Q'TY/
10PCS
10PCS
10PCS
1PC
Page 1 of 2/ Pade 1 sur 2
