- Page 1 60cm Wide Fridge Freezer Instruction Manual Model number(s): RH186FFFF60 (B) (SS) (W) (DS) (-WD) For Customer Services & Spare Parts please call 0345 208 8750 or visit us at mda.russellhobbs.com IMPORTANT: RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Contents Safety Instructions ………………………………………. 3 – 5 Electrical Safety ………………………………………. Transportation & Handling ………………………………………. Installing & Switch on your Appliance ………………………………………. 6 - 7 Before Switching On ………………………………………. Product Overview ………………………………………. Positioning & Levelling ………………………………………. Usage ………………………………………. 11 - 12 Adjusting the shelves ………………………………………. -
Page 3: Safety Instructions
Safety Instructions Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged. - Page 4 • D o not plug in damaged plugs. • D o not pull, twist or damage the power cable. • D o not plug-in or un-plug the appliance with wet hands to prevent electrical shock. • T his appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards...
- Page 5 • T o avoid contamination of food, please respect the following instructions • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
-
Page 6: Electrical Safety
Electrical Safety THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET • B efore switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 220 –... - Page 7 • Before plugging in the power supply, ensure that the voltage on the rating label corresponds to the working voltage of your electrical system in your home. • Insert the plug into an efficient Ground (Earth) connection. If the socket has no Ground (Earth) contact or the plug does not match, we suggest you call an authorised electrician for assistance.
-
Page 8: Before Switching On
Before Switching On • Before using your appliance, add a teaspoon of bicarbonate of soda to warm water and with a damp cloth wipe down all parts of the new appliance, then repeat the process with a clean damp cloth and dry. (ensure the appliance is not connected to the power when performing this task). -
Page 9: Product Overview

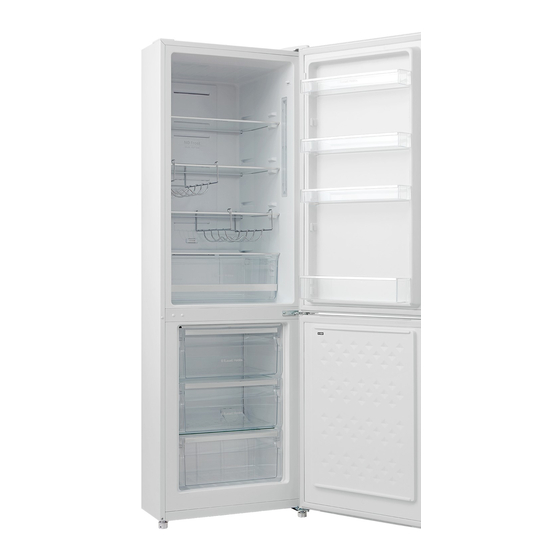

Product Overview Thermostat & light Freezer Shelves Adjustable shelves Door racks Non-adjustable shelf Adjustable Feet Crisper 1 x egg tray & 1 x ice cube tray Freezer drawers - 9 -... -
Page 10: Positioning & Levelling
Positioning & Installation Ensure there is a minimum of 50mm gap around the sides and back of the appliance to provide adequate airflow. 600mm 600mm 1858mm Min. 50mm Min. 50mm Min. 50mm 1025mm 1200mm 135° Levelling the Appliance The two feet at the bottom of the appliance can be adjusted to level it the appliance. -
Page 11: Usage
Usage Allow to stand for a minimum of 3 hours before plugging in to the mains The temperature in the appliance is controlled by the temperature control dial located inside the fridge. Rotate the control dial up or down to regulate the temperature inside the fridge. - Page 12 Usage Allow to stand for a minimum of 3 hours before plugging in to the mains Note: The standard operating temperature for the fridge compartment should be between 0ºC and 4ºC and the standard operating temperature for the freezer compartment should be between -18°C and -25°C. The freezer compartment temperature is controlled by the slider in the rear of the refrigerator compartment.
-
Page 13: Adjusting The Shelves
Adjusting the Shelves The glass shelves can be adjusted to & positioned as desired. When the door is open, and the contents of the fridge have been removed, carefully lift the shelves from the side rails, and reposition on empty rails. -
Page 14: Water Dispenser
Water Dispenser (-WD Models Only) Below is only applicable to those appliances supplied with a water dispenser. It is designed for only water, do not use any other liquids. If your appliance has been supplied with a water dispenser you are required to clean prior to first use. -
Page 15: Door Reversal
Door Reversal You will need to tilt the appliance backward to access the lower hinge which holds screws. Do not tilt more than 45 degrees and do not lay the appliance flat on its side. For your own safety, a minimum of 2 people should lift or tilt this product. Tools Required: Cross headed screwdriver and flat headed screwdriver Left Left... - Page 16 Door Reversal 3. Take off the middle hinge by removing the screws, support the door and remove the hinge and then the door. Place the door on a cushioned . Remove the screw cap covers that are on the left of the unit and fix them on to the opposite side 4.
- Page 17 Door Reversal 5. Tilt the appliance carefully, no more 45 degrees and remove the adjustable foot. Take off the bottom hinge by removing the screws. Remove the hinge pin and install it on the opposite side of the hinge. Then reattach the hinge to the left side of the appliance, reinstall the adjustable feet and place the freezer door back on.
- Page 18 Door Reversal 7. Remove the hinge stopper from the bottom of the fridge door and fix it to the opposite side of the fridge door, ensuring it is fixed securely. Remove the door seal, and rotate 180°, and refit to the door. 8.
-
Page 19: Replacing The Light
Replacing the Bulb The light is an energy efficient, long-life LED, therefore should not need replacing throughout the life of the product however if it does it has to be replaced by a qualified engineer. Please call the service team on 0345 208 8750. The following symbol indicates that the light source in this appliance should only be replaced by a qualified engineer: - 19 -... -
Page 20: Food Storage Guidelines
Food Storage Guidelines Refrigerator compartments Type of food Door or balconies of fridge Foods with natural preservatives, such as jams, juices, compartment drinks, condiments. Do not store perishable foods. Crisper drawer (salad drawer) Fruits, herbs and vegetables should be placed separately in the crisper bin. -
Page 21: Energy Saving Advice
Energy Saving Advice • Do not install the appliance close to sources of heat, such as a cooker, dishwasher or radiator. • Locate the appliance in a cool well-ventilated room and make sure that the air vents are clear. • Try to avoid keeping the doors open for a long time, as warm air will enter the cabinet and may cause a build-up of ice as well as affecting the energy consumption. -
Page 22: Maintenance & Cleaning
Maintenance & Cleaning Disconnect the appliance from the power supply before cleaning. Internal Cleaning • Do not pour water over the appliance. • The cavity should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water (5ml to 0.5 litre of water) •... - Page 23 Maintenance & Cleaning Defrosting Note: Care must be taken when performing the following procedure. • The appliance is frost free, so there shouldn’t be any requirement to defrost the freezer. However, in the unlikely event the appliance does need defrosting please follow the below steps: •...
-
Page 24: Trouble Shooting
Trouble shooting Problem Solution Check that the appliance is switched on. Check that there has not been a power cut. Check that the plug is not faulty. Check that the fuse has not blown. The fridge/freezer doesn't work Check that the voltage is correct for the appliance. Are there any faults with the socket? For this purpose, try the plug of your appliance by connecting it to a socket which you are sure is working. - Page 25 Trouble shooting Problem Solution The outer surfaces of the Caused by condensation - dry the outer of the appliance appliance are wet carefully. Check all the food and drink that is in the fridge is in date and correctly packaged. If it isn’t then it should be removed immediately or repackaged.
-
Page 26: Connection To The Mains Supply
Connection to the Mains Supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC220V - 240V; 50HZ. Check that the voltage marked on the product corresponds with your supply voltage. For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which... -
Page 27: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship you must contact Customer Service with the original proof of purchase so a replacement or refund can be arranged. Refund or replacement is at the discretion of Customer Service. -
Page 28: Technical Specification
Technical Specification Model number RH186FFFF60 (B) (SS) (W) Rated Voltage 220V – 240V ~ 50Hz Capacity 293L* (210L & 83L) External Dimensions(HxWxD) 1860mm x 600mm x 600mm *Fridge and freezer volume can be rounded up, but the total volume must be rounded down. -
Page 29: Product Fiche
Product Fiche Model RH186FFFF60 (B) (SS) (W) Fresh Food Storage Compartment Volume (L) 210L Frozen Food Storage Volume (L) Storage Temperature ( ° C) 0 to 8 / -12 to -26 Energy Consumption (kWh/per year) 233kWh/per year Energy Consumption (kWh/per year), based on standard test results for 24 hours... - Page 30 Product Fiche Model RH186FFFF60 (B) (SS) (W) (-WD) Fresh Food Storage Compartment Volume (L) 208L Frozen Food Storage Volume (L) Storage Temperature ( ° C) 0 to 8 / -12 to -26 Energy Consumption (kWh/per year) 233kWh/per year Energy Consumption (kWh/per year), based on standard test results for 24 hours...
-
Page 31: Notes
Notes - 31 -... - Page 32 Made by Product Care Trading Limited under license from Spectrum Brands (UK) Limited. Product Care Trading Limited, Wigan, WN2 4AY/ PCT (NI) Ltd, Belfast, BT5 5AD. Russell Hobbs is the registered trademark of Spectrum Brands (UK) Ltd. Russell Hobbs Support: call 0345 208 8750 or visit: mda.russellhobbs.com The ‘wheelie bin’...
