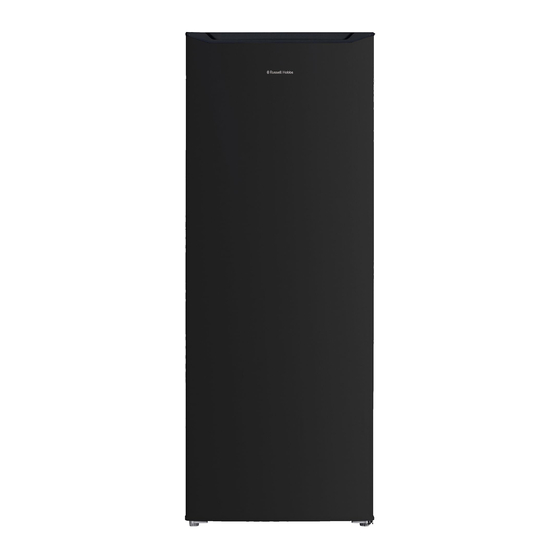

- Page 1 Upright 55cm Wide Freezer Instruction Manual Model number(s): RH143FZ552E1 [W/B/SS] For Customer Services & Spare Parts please call 0345 208 8750 or visit us at mda.russellhobbs.com IMPORTANT: RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Contents Safety Instructions ………………………………………. Electrical Safety ………………………………………. Transportation & Handling ………………………………………. Installing & Switching on your Appliance ………………………………………. Before Switching On ………………………………………. Product Overview ………………………………………. Unit & Spare Parts ………………………………………. Usage ………………………………………. Seasonal Temperature Adjustments ………………………………………. Door Reversal ………………………………………. 11-13 Energy Saving Advice ………………………………………. -
Page 3: Safety Instructions
Safety Instructions Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged. - Page 4 • D o not plug in damaged plugs. • D o not pull, twist or damage the power cable. • D o not plug-in or un-plug the appliance with wet hands to prevent electrical shock. • T his appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards...
-
Page 5: Electrical Safety
• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food. • If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance. -
Page 6: Installing & Switching On Your Appliance
Installing and Switching on Your Appliance • Operating voltage for your appliance is 220-240V at 50Hz. • Before plugging in the power supply, ensure that the voltage on the rating label corresponds to the working voltage of your electrical system in your home. •... -
Page 7: Before Switching On
WARNING! During use, service and disposal of the appliance, please pay attention to symbol similar to the one shown, which is located on rear of the appliance (rear panel or compressor) and with a yellow or orange colour. It’s risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor. -
Page 8: Product Overview
Product Overview Thermostat Top freezer flap (4 star rating) Freezer drawers (4 star rating) Adjustable Feet Unit Parts & Spare Parts Before installation, check that all parts detailed in the product overview are present. If any parts are missing, please contact the Customer Service team on 0345 208 8750 or visit us at mda.russellhobbs.com... -
Page 9: Usage
Usage Allow to stand for a minimum of 3 hours before plugging in to the mains The temperature in the appliance is controlled by the temperature control dial located on the door frame above the freezer drawers. Rotate the control dial left or right to regulate the temperature inside the freezer. -
Page 10: Seasonal Temperature Adjustments
Seasonal Temperature Settings Allow to stand for a minimum of 3 hours before plugging in to the mains We recommend that the temperature of the appliance is adjusted during exceptionally hot or cold periods. Normal Operation Summer/Hot Weather Impact on Food Storage - We recommend food is stored in the freezer for no more than 3 months. -
Page 11: Door Reversal
Door Reversal Please note that the product is supplied as standard with the hinge on the right hand side (left opening). Should you wish to change the door opening to the right hand side then please follow the below instructions: You will need to tilt the freezer backward to access the lower hinge which holds screws. - Page 12 Door Reversal 3. Remove the plug from the left top of the door to the right hole where the door hinge was in place. 4. Unscrew the feet from the appliance, and place them to one side. 5. Using a screwdriver, remove the screws from the lower hinge.
- Page 13 Door Reversal 9. Place the door back on the lower hinge so the freezer is closed, ensuring a tight seal around all the edges. 10. Align the top hinge and screw into the bracket using a screwdriver. If necessary, a spanner can be used to tighten the screws.
-
Page 14: Energy Saving Advice
Energy Saving Advice • Do not install the appliance close to sources of heat, such as a cooker, dishwasher or radiator. • Locate the appliance in a cool well-ventilated room and make sure that the air vents are clear. • Try to avoid keeping the doors open for a long time, warm air will enter the cabinet and may cause a build-up of ice as well as affecting the energy consumption. -
Page 15: Freezer Storage Advice
Freezer Storage Advice • Store fresh food in airtight boxes or wrap in bags or foil which are suitable for freezing. • Do not allow frozen food into direct contact with food to be frozen. • Pre-frozen food must be placed in the freezer as quickly as possible after purchasing. -
Page 16: Maintenance & Cleaning
Maintenance & Cleaning Disconnect the appliance from the power supply before cleaning. Internal Cleaning • Do not pour water over the appliance. • The cavity should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water (5ml to 0.5 litre of water) •... -
Page 17: Defrosting
Maintenance & Cleaning Defrosting Note: Care must be taken when performing the following procedure. Defrost twice a year or when a frost layer of approximately 7 mm (1/4”) has formed. • 6 hours before the defrosting process, set the thermostat knob at the “MAX” position to make sure the food is at the lowest temperature before removing the frozen foods. -
Page 18: Trouble Shooting
Trouble shooting Problem Solution Check that the appliance is switched on. Check that there has not been a power cut. Check that the plug is not faulty. Check that the fuse has not blown. The freezer doesn't work Check that the voltage is correct for the appliance. Are there any faults with the socket? For this purpose, try the plug of your appliance by connecting it to a socket which you are sure is working. - Page 19 Trouble shooting Problem Solution Check all the food and drink that is in the freezer is correctly packaged. If it isn’t then it should be removed immediately or repackaged. Smell/odour Check for spillages on each shelf, flap and drawer. You may need to remove the drawers to check that no spillages have settled underneath them.
-
Page 20: Connection To The Mains Supply
Connection to the Mains Supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC220V - 240V; 50HZ. Check that the voltage marked on the product corresponds with your supply voltage. For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which... -
Page 21: Guarantee
Guarantee This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship you must contact Product Care with the original proof of purchase so a replacement or refund can be arranged. Refund or replacement is at the discretion of Product Care. -
Page 22: Technical Specification
Technical Specification Model number RH143FZ552E1 W/B/SS Rated Voltage 220V – 240V ~ 50Hz Capacity (4 star) 168L External Dimensions(HxWxD) 142.6cm x 54.4cm x 57.1cm Ambient temperature Class Symbol Information range ( ° C) Extended temperate: 'this refrigerating appliance is Extended... -
Page 23: Product Fiche
Product Fiche Supplier's name or Trade Mark: Russell Hobbs Supplier's Address: Unit 1, Green Bank Business Park, Wigan, WN2 4AY / PCT (NI) Ltd, Belfast, BT5 5AD. Model Identifier: RH143FZ552E1 W/B/S Product Type Freezer Value Value Height 142.6 Dimensions (cm) Width 54.4... - Page 24 Russell Hobbs is a registered trademark used under license from Spectrum Brands (UK) Ltd. Made under license by Product Care Trading Limited, Wigan, WN2 4AY/ PCT (NI) Ltd, Belfast, BT5 5AD Russell Hobbs Support: call 0345 208 8750 or visit: mda.russellhobbs.com The ‘wheelie bin’...
