New cut-off machine STIHL TS 440 - Series 4238
Contents
1. Product description
2. Additional documents
1.
Product description

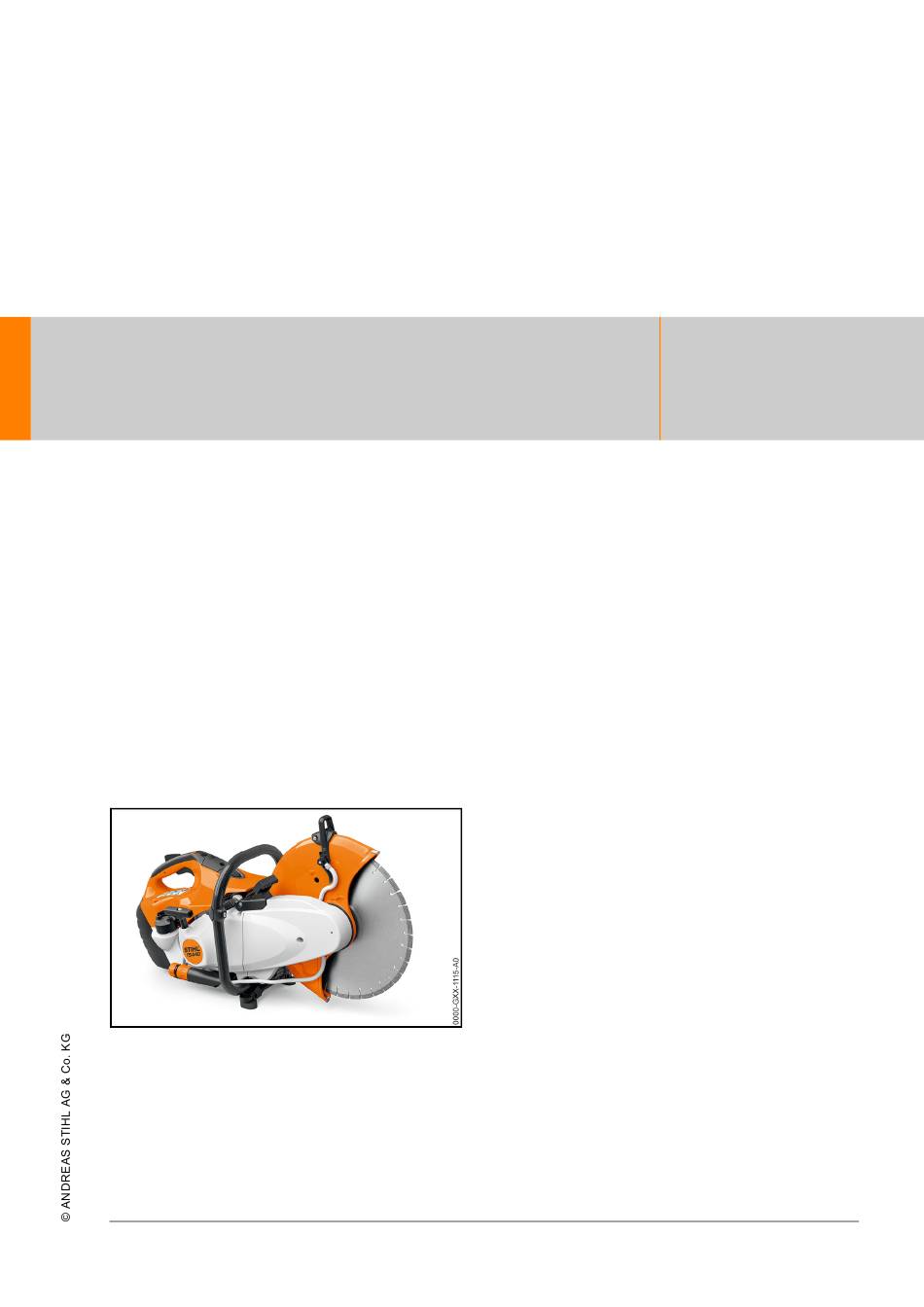

The new cut-off machine STIHL TS 440 is the
world's first cut-off machine with a wheel brake - the
STIHL Quickstop
TM
TI_048_2017_02_01_A1.fm
wheel brake
TM
.
Features
-
STIHL Quickstop
wheel brake
TM
-
Extended guard adjustment
-
High cutting torque
-
Well balanced and compact
-
Electronic water control
2.
Additional documents
Please refer to the following documents if
S
needed:
-
Instruction Manual STIHL TS 440
-
Service Manual STIHL TS 440
-
Service Manual STIHL TS 410, 420
-
Spare parts list STIHL TS 440
|
48.2017
englisch / English
