VG249Q3R Series
LCD Monitor
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VG249Q3R Series and is the answer not in the manual?

Questions and answers

Related Manuals for Asus VG249Q3R Series

Summary of Contents for Asus VG249Q3R Series

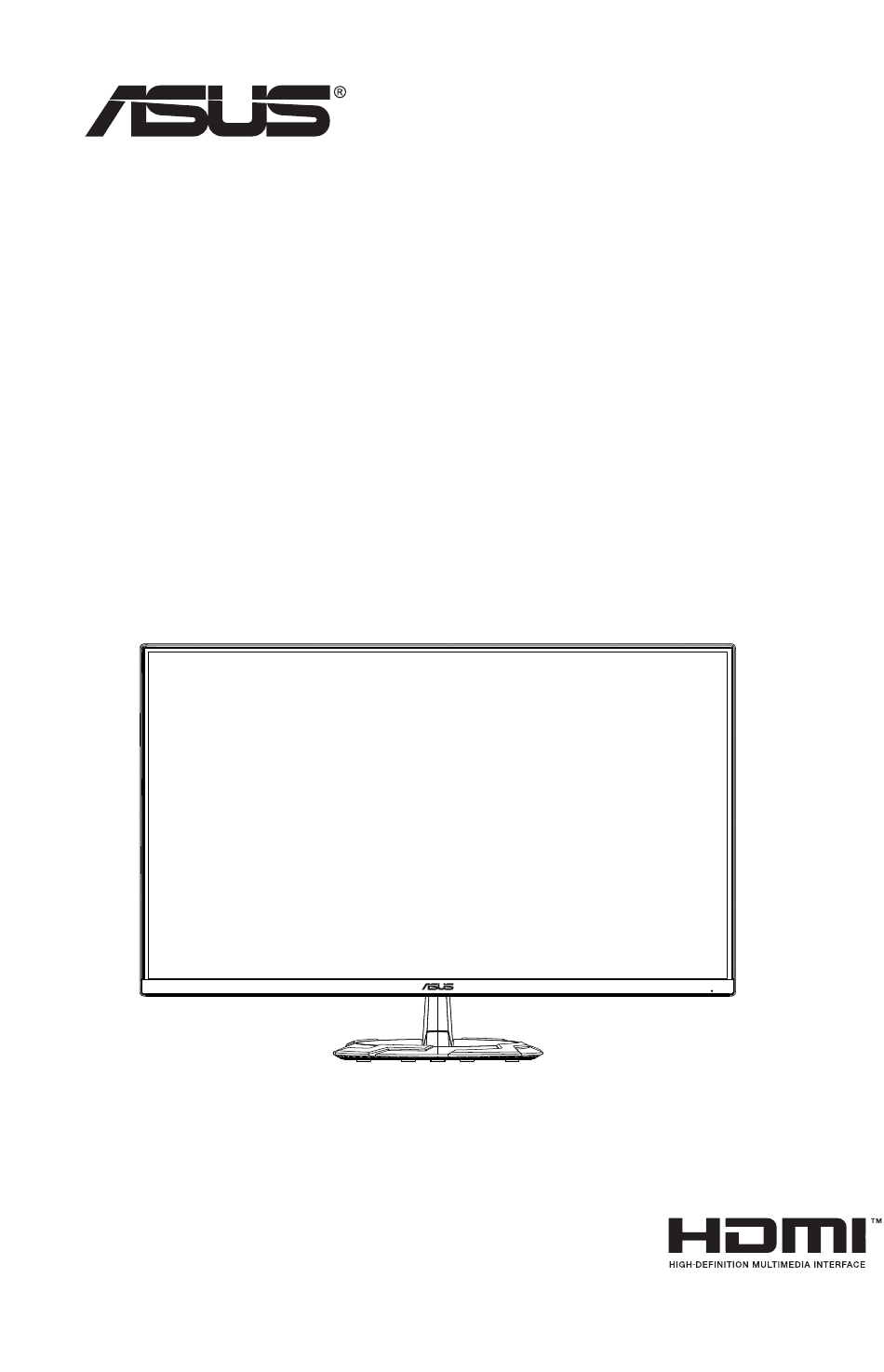

  • Page 1 VG249Q3R Series LCD Monitor User Guide...

  • Page 2: Table Of Contents

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.
  • Page 4 Declaration of Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment, these harmonized standards published under Directives of Official Journal of the European Union.

  • Page 5: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • Page 6 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures. Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V, 20A (maximum). If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter.
  • Page 7 0.01% by weight in homogenous materials for cadmium, except of exemptions listed in Schedule 2 of the Rule. ASUS CONTACT INFORMATION ASUSTeK Computer Inc. ASUS Computer International (America) ASUS Computer GmbH (Germany and Austria) Address 1F., No. 15, Address 48720 Kato Rd, Fremont, Address Harkortstr.

  • Page 8: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. •...
  • Page 9 Refer to https://www.asus.com/Microsite/display/eye_care_technology/ Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.

  • Page 10: Welcome

    ® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 11: Assembling The Monitor

    Assembling the monitor To assemble the monitor Have the front of the monitor face down on a table. Remove the stand cover. Attach the arm to the arm adapter. And turn the screw clockwise to secure the arm. Then install the stand cover . Attach the base to the arm.

  • Page 12: Connect Cables

    Connect cables 1.4.1 Rear of the LCD monitor HDMI-1 Port HDMI-2 Port DisplayPort Port Audio - out Port DC-IN Port ASUS LCD Monitor VG249Q3R Series...

  • Page 13: Monitor Introduction

    Monitor introduction 1.5.1 Using the Controls button Use the control button on the back of the monitor to adjust the image settings. Power Indicator: • The color definition of the power indicator is as the below table. Status Description White Amber Standby mode Central button:...
  • Page 14 • function needed. Press to go off, and exit. GamePlus main menu GamePlus-FPS FPS Counter GamePlus FPS Counter Crosshair Number Timer Stopwatch Bar Graph Display Alignment GamePlus-Crosshair GamePlus-Timer Crosshair Timer 30:00 40:00 50:00 60:00 90:00 ASUS LCD Monitor VG249Q3R Series...

  • Page 15: Adjusting The Monitor

    • Hold the stand to prevent the monitor from falling when you change its angle. • You can adjust the monitor’s angle from +22˚ to -5˚. - - 5 ~ 22 ASUS LCD Monitor VG249Q3R Series...

  • Page 16: Detaching The Arm/Stand (For Vesa Wall Mount)

    Detaching the arm/stand (for VESA wall mount) The detachable stand of this monitor is specially designed for VESA wall mount. To detach the arm/stand Disconnect power and signal cables. Carefully put the front of the monitor face down on a clean table. Use a screwdriver to remove the two screws on the arm (Figure 1), and then detach the arm/stand from the monitor (Figure 2).

  • Page 17: Outline Dimension

    Outline dimension Unit: mm ASUS LCD Monitor VG249Q3R Series...

  • Page 18: Osd (On-Screen Display) Menu

    Press the Center key to enter the slide bar and then use the  or  buttons, according to the indicators on the menu, to make your changes. Press the ◄/► to move left / right menu. ASUS LCD Monitor VG249Q3R Series...

  • Page 19: Osd Function Introduction

    3.1.2 OSD Function Introduction Gaming This function contains six sub-functions that you can select for your preference. 1920 x 1080 Input Select GameVisual Brightness ASUS TUF GAMING Racing Mode 60Hz HDMI-1 VG249Q3R Variable OD Gaming Variable Refresh Rate ELMB Setup...
  • Page 20 Brightness: The adjusting range is from 0 to 100. • Contrast: The adjusting range is from 0 to 100. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100. •...
  • Page 21 Degeneration). Blue light Filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome). Color Select the image color you like from this function. 1920 x 1080 Input Select GameVisual Brightness ASUS TUF GAMING 60Hz Racing Mode HDMI-1 VG249Q3R Color Temp. Gaming Saturation...
  • Page 22 OD”, “Brightness”, “Mute”, “Shadow Boost”, “Contrast”, “Input Select”, “Blue Light Filter”, “Color Temp.”, “Volume”, “Customized Setting-1”, “Customized Setting-2” and set as shortcut key. • Customized Setting : You can do your setting according to your favorite. ASUS LCD Monitor VG249Q3R Series...
  • Page 23 System Setup Adjusts the system configuration. 1920 x 1080 Input Select GameVisual Brightness ASUS TUF GAMING Racing Mode 60Hz HDMI-1 VG249Q3R Language System Setup Sound Power Indicator Power Key Lock Key Lock Power Setting OSD Setup Information Back Enter 1920 x 1080 Input Select...

  • Page 24: Specifications

    Gross Weight (Esti.) 4.6kg Voltage Rating AC: 100-240V DC: 19V, 2.37A (AC adapter) Temperature(operation) 0℃~40℃ *Specifications are subject to change without notice. **Measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection. ASUS LCD Monitor VG249Q3R Series...

  • Page 25: Troubleshooting (Faq)

    Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. •...

  • Page 26: Supported Timing List

    Detail timing 1920x1080-180Hz Video timing 640x480P-60Hz Video timing 720x480P-60Hz Video timing 720x576P-50Hz Video timing 720(1440)x480I-60Hz Video timing 720(1440)x576I-50Hz Video timing 1280x720P-50Hz Video timing 1280x720P-60Hz Video timing 1440x480P-60Hz Video timing 1440x576P-50Hz Video timing 1920x1080I-50Hz Video timing 1920x1080I-60Hz ASUS LCD Monitor VG249Q3R Series...
  • Page 27 Video timing 1920x1080P-50Hz Video timing 1920x1080P-60Hz Video timing 1920x1080P-100Hz Video timing 1920x1080P-120Hz 4:3 Timing Timing Resolution HDMI PC Timing 1920x1080-75Hz Detail timing 1024x768-165Hz Detail timing 1152x864-165Hz Detail timing 1280x960-165Hz Detail timing 1280x1024-165Hz 3-10 Chapter 3: General Instruction...
