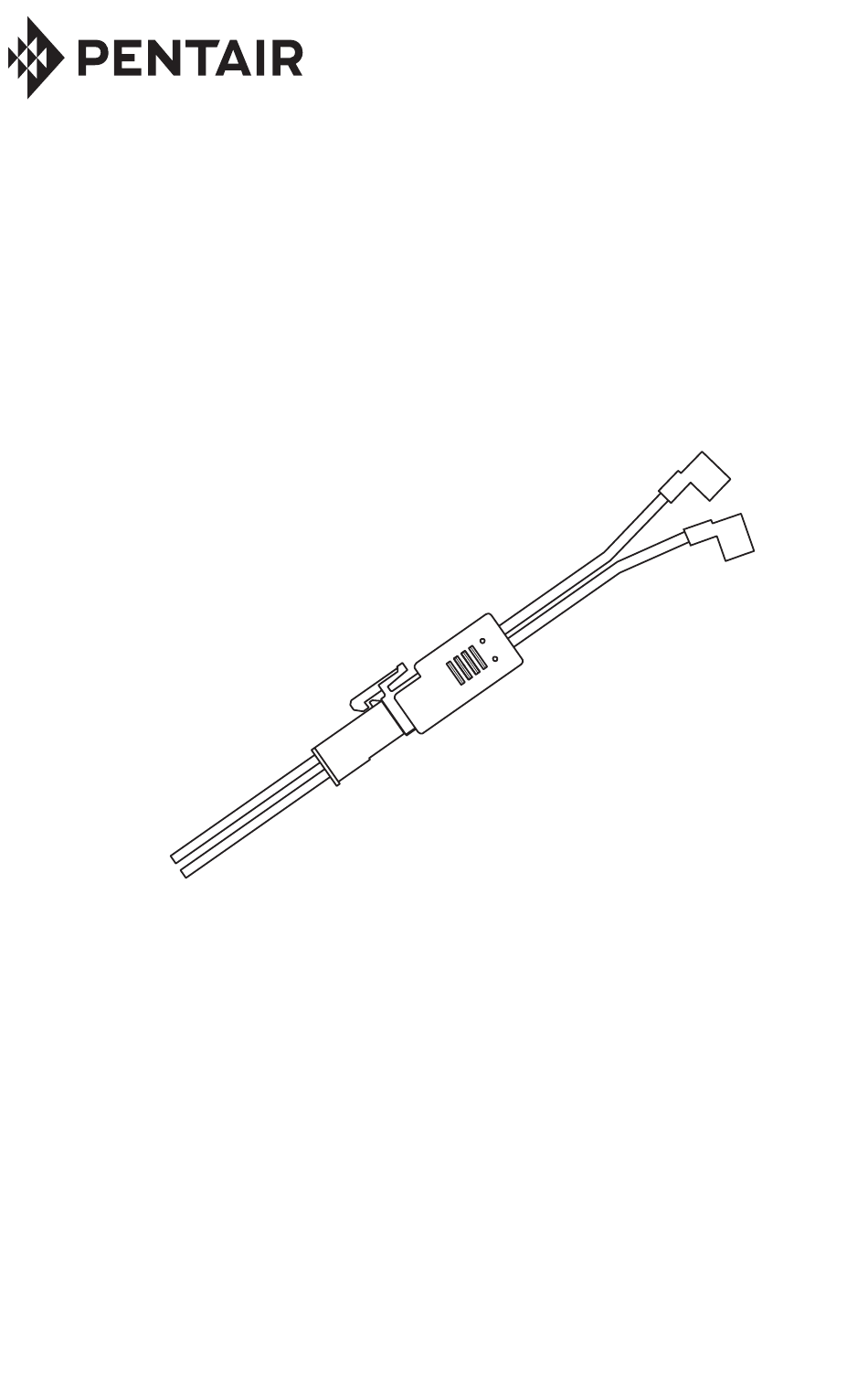

- Page 1 FUSE HARNESS ASSEMBLY KIT FOR INTELLIBRITE 5G 12 V POOL LIGHT ® INSTALLATION GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS INTELLIBRITE FUSE HARNESS KIT Installation Guide ®...
-
Page 2: Table Of Contents
Technical Support: Phone: (800) 831-7133 - Fax: (800) 284-4151 www.pentairpool.com and www.staritepool.com: Web sites: Contents IMPORTANT WARNING AND SAFETY INSTRUCTIONS........i Replacing the intellibrite 5g pool and spa light and fuse assemblies ® (in an existing pool or spa) ................iii IntelliBrite 5g Pool Light (12V) Fuse Harness Replacement Overview .... -
Page 3: Important Warning And Safety Instructions
Light Installation • All Niche and Light installations must conform with all codes. If local codes mandate a cord seal, use Pentair Aquatic Systems plastic niches (P/N 79206600 and P/N 79206700) and Cord Seal Kit (P/N 670044). • Under no circumstances replace lights by splicing wire under water or behind niche. - Page 4 Pentair does not represent or otherwise guarantee that the proper use of an electronic chlorine generator will prevent corrosion or other deterioration of pool equipment and any surfaces used in and around your pool.
-
Page 5: Replacing The Intellibrite
Replacing the IntelliBrite 5g Pool and Spa ® Light and Fuse Assemblies (in an existing pool) Risk of Electrical Shock or Electrocution! This underwater light must be installed by a licensed or certified electrician or a qualified pool professional in accordance with the National Electrical Code and all applicable local codes and ordinances. -
Page 6: Intellibrite 5G Pool Light (12V) Fuse Harness Replacement Overview
IntelliBrite 5g Pool Light (12V) Fuse Harness Replacement Overview ® This manual describes how to replace the light fuse assembly and the light main circuit board for the IntelliBrite 5G pool light. IMPORTANT! Before replacing the fuse assembly note the following: Troubleshooting Problem Cause/Action... -
Page 7: Replacing The Intellibrite Pool Light Assembly (In An Existing Pool)
REPLACING THE INTELLIBRITE 5G POOL LIGHT FUSE ASSEMBLY ® (IN AN EXISTING POOL) When replacing or reassembling the IntelliBrite 5G Pool light, the Gasket (P/N 620400Z) or Gasket and Lens (619864Z) MUST ALSO BE REPLACED - SEE PAGE 9 FOR PART NUMBERS Removal and Installation of IntelliBrite 5G Pool Light Circuit Board D A N G E R ! RISK OF ELECTRICAL SHOCK OR ELECTROCUTION... - Page 8 REPLACING THE INTELLIBRITE WHITE POOL LIGHT FUSE HARNESS ® ASSEMBLY (IN AN EXISTING POOL) (Continued) Place a cloth on the ground Light to protect the lens. Turn housing the light over so the lens is resting on the cloth. Using a ¼”...
- Page 9 REPLACING THE INTELLIBRITE WHITE POOL LIGHT FUSE HARNESS ® ASSEMBLY (IN AN EXISTING POOL) (Continued) Carefully remove connector plug from circuit board terminals Fuse harness assembly Circuit board terminals Light housing Fuse harness with circuit (press down board to release) Fuse harness assembly Using your fingers, carefully disconnect each fuse connector plug from the circuit board terminals.
-
Page 10: Installing The Intellibrite 5G Pool Light And Fuse Harness Assembly With New Gasket
INSTALLING THE INTELLIBRITE 5G POOL LIGHT AND FUSE HARNESS ® ASSEMBLY WITH NEW GASKET (see illustration on next page) Be sure to install ALL of the four (4) retaining nuts. These nuts ensure proper electrical ground. Failure to install all of the retaining nuts could create an electrical hazard which could result in death or serious injury to pool users, installers or others due to electrical shock. - Page 11 INSTALLING THE INTELLIBRITE POOL LIGHT ASSEMBLY WITH NEW ® GASKET AND UNI-TENSION WIRE CLAMP (Continued) 2. ALIGN LENS/GASKET ONTO LIGHT HOUSING: LIGHT HOUSING a) With the light housing resting on its base, place the BLACK O-RING lens/gasket on top of the light GASKET housing.
- Page 12 PILOT SCREW (12 O’clock) “W” ON LENS BRASS NUT Align letter “W” (“WIDE” angle) on lens/gasket with pilot screw hole on face ring and brass nut For “NARROW” angle light beam, rotate “N” to 12 O’clock position INSTALL UNI-TENSION CLAMP: With the hook ends of the circular uni-tension clamp pointing down, spread the clamp and place it in the “U”...
- Page 13 Coil at least four (4) feet of cord around the light fixture (see Figure 1 on page 7). This allows the light to be serviced after the pool is filled with water. 8. Connect the three light wires (or two wires) to the corresponding light circuit wires in the Junction Box.
-
Page 14: Wide And Narrow Angle Lens Adjustment
Wide and Narrow Angle Lens Adjustment Wide and Narrow Angle Lens Feature The IntelliBrite light lens geometry provides a choice of “wide” or “narrow” angle light ® beam to suit various size pools. For lights located on either side of the pool, rotate the lens to the ‘wide’... - Page 15 12 VAC model IntelliBrite pool white light. See page 1 for more information. IntelliBrite 5G Pool Light Assembly (UL/CAS listing) Product Voltage Cord Length Model (feet) 601105 30’ 601106 50’ 601107 100’ 601108 150’ 601205 30’...
- Page 16 1620 HAWKINS AVE., SANFORD, NC 27330 • (919) 566-8000 10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • (805) 553-5000 All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
