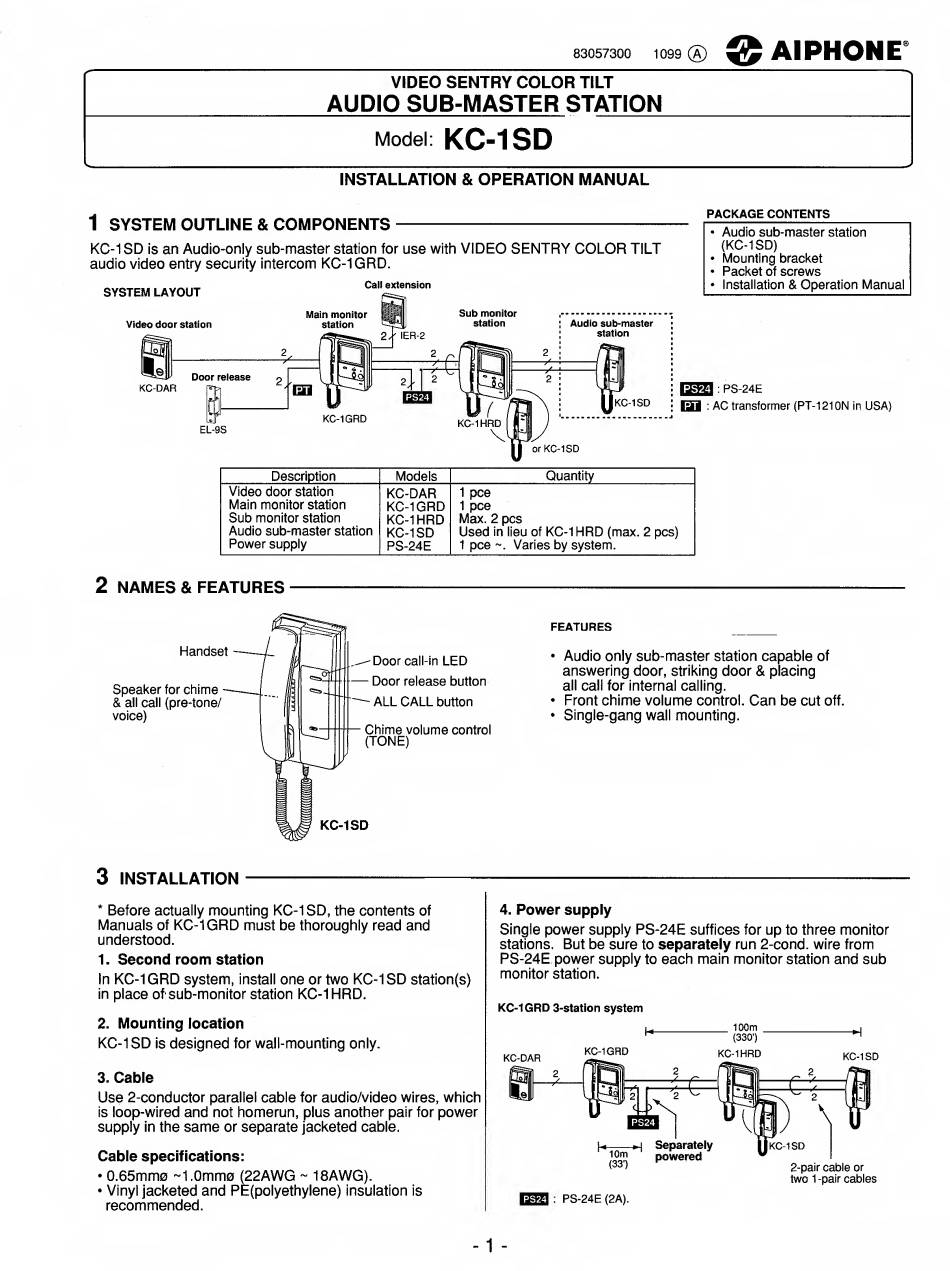

Aiphone KC-1SD Installation & Operation Manual

83057300 1099 (A)
® AlPHONE*
VIDEO SENTRY COLOR TILT
AUDIO SUB-MASTER STATION_
Model:
KC-1SD
INSTALLATION & OPERATION MANUAL
1
SYSTEM OUTLINE & COMPONENTS-
KC-1SD is an Audio-only sub-master station for use with VIDEO SENTRY COLOR TILT
audio video entry security intercom KC-1GRD.
PACKAGE CONTENTS_
• Audio sub-master station
{KC-1SD)
• Mounting bracket
• Packet of screws
• Installation & Operation Manual
IJcVll: PS-24E
I3i : AC transformer (PT-1210N in USA)
Description Models
Quantity
Video door station
Main monitor station
Sub monitor station
Audio sub-master station
Power supply
KC-DAR
KC-1GRD
KC-1HRD
KC-1SD
PS-24E
1 pee
1 pee
Max. 2 pcs
Used in lieu of KC-1HRD (max. 2 pcs)
1 pee Varies by system.
2
NAMES & FEATURES
FEATURES
• Audio only sub-master station capable of
answering door, striking door & placing
all call for internal calling.
• Front chime volume control. Can be cut off.
• Single-gang wall mounting.
3
INSTALLATION-
• Before actually mounting KC-1SD, the contents of
Manuals of KC-1GRD must be thoroughly read and
understood.
1. Second room station
In KC-1GRD system, install one or two KC-1SD station(s)
in place of sub-monitor station KC-1HRD.
2. Mounting location
KC-1SD is designed for wall-mounting only.
3. Cable
Use 2-conductor parallel cable for audlo/video wires, which
is loop-wired and not homerun, plus another pair for power
supply in the same or separate jacketed cable.
Cable specifications:
• O.65mm0 -I.Ommo (22AWG ~ 18AWG).
• Vinyl jacketed and PE(polyethylene) insulation is
recommended.
4. Power supply
Single power supply PS-24E suffices for up to three monitor
stations. But be sure to separately run 2-cond. wire from
PS-24E power supply to each main monitor station and sub
monitor station.
KC-1GRD 3-station system
-
1
-
