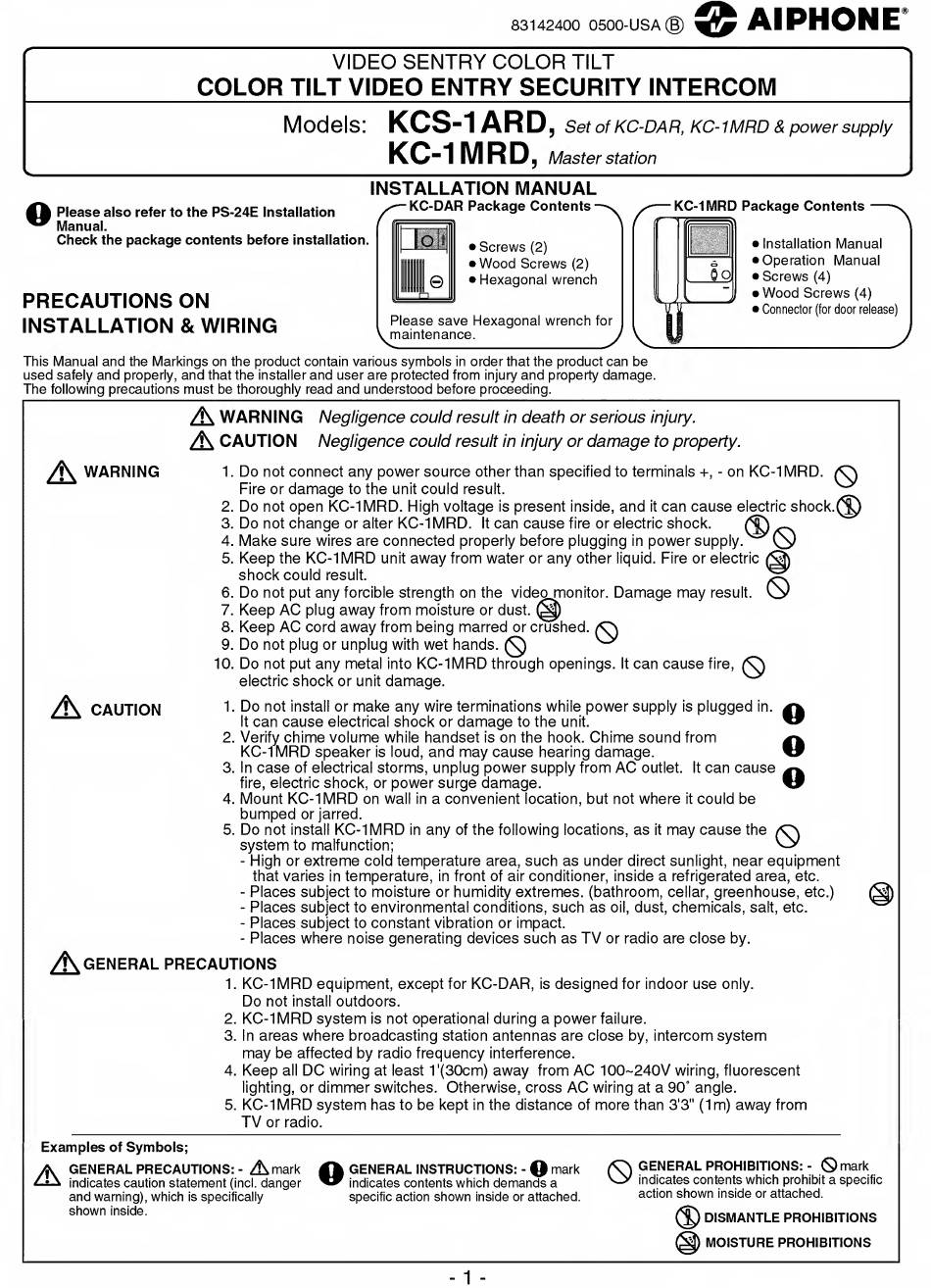

Aiphone KCS-1ARD Installation Manual

83142400 0500-USA(
0 AIPHONE^
VIDEO SENTRY COLOR TILT
COLOR TILT VIDEO ENTRY SECURITY INTERCOM
Models:
KCS-1ARD,
Set of KC-DAR, KC-1MRD & power supply
KC-1MRD,
Master station
Please also refer to the PS<24E Installation
Manual.
Check the package contents before installation.
PRECAUTIONS ON
INSTALLATION & WIRING
INSTALLATION MANUAL
KC-DAR Package Contents -
*
Screws (2)
► Wood Screws (2)
► Hexagonal wrench
Please save Hexagonal wrench for
maintenance. >
■KC-1MRD Package Contents
• Installation Manual
• Operation Manual
• Screws (4)
• Wood Screws (4)
• Connector (for door release)
This Manual and the Markings on the product contain various symbols in order that the product can be
used safely and properly, and that the installer and user are protected from injury and property damage.
The following precautions must be thoroughly read and understood before proceeding.
A WARNING Negligence could result in death or serious injury.
A CAUTION Negligence could result in injury or damage to property.
WARNING 1. Do not connect any power source other than specified to terminals +, - on KC-1MRD.
^
Fire or damage to the unit could result. ^
2. Do not open KC-1 MRD. High voltage is present Inside, and it can cause electric shock.^
3. Do not change or alter KC-1 MRD. It can cause fire or electric shock. ^
4. Make sure wires are connected properly before plugging in power supply.^ ^
5
Keep the KC-1 MRD unit away from water or any other liquid. Fire or electric
shock could result. ^
6. Do not put any forcible strength on the videomonitor. Damage may result. Qy
7. Keep AC plug away from moisture or dust.
8. Keep AC cord away from being marred or crushed. /O
9. Do not plug or unplug with wet hands. ^
10. Do not put any metal into KC-1 MRD through openings. It can cause fire, ^
electric shock or unit damage. ^
CAUTION
^ ■ Do i^ot install or make any wire terminations while power supply Is plugged in. a
It can cause electrical shock or damage to the unit. "
2. Verify chime volume while handset is on the hook. Chime sound from ^
KC-1 MRD speaker is loud, and may cause hearing damage. "
3. In case of electrical storms, unplug power supply from AC outlet. It can cause ^
fire, electric shock, or power surge damage. W
4. Mount KC-1 MRD on wall in a convenient location, but not where it could be
bumped or jarred.
5. Do not install KC-1 MRD in any of the following locations, as it may cause the
system to malfunction;
- High or extreme cold temperature area, such as under direct sunlight, near equipment
that varies In temperature. In front of air conditioner, inside a refrigerated area, etc.
- Places subject to moisture or humidity extremes, (bathroom, cellar, greenhouse, etc.)
- Places subject to environmental conditions, such as oil, dust, chemicals, salt, etc.
- Places subject to constant vibration or impact.
- Places where noise generating devices such as TV or radio are close by.
^GENERAL PRECAUTIONS
1. KC-1 MRD equipment, except for KC-DAR, Is designed for indoor use only.
Do not install outdoors.
2. KC-1 MRD system Is not operational during a power failure.
3. In areas where broadcasting station antennas are close by, intercom system
may be affected by radio frequency interference.
4. Keep all DC wiring at least T(30cm) away from AC 100-240V wiring, fluorescent
lighting, or dimmer switches. Otherwise, cross AC wiring at a 90" angle.
5. KC-1 MRD system has to be kept in the distance of more than 3'3" (1 m) away from
TV or radio.
Examples of Symbols;
A
GENERAL PRECAUTIONS: -
A
mark
A
GENERAL INSTRUCTIONS: -
Q
mark
indicates caution statement (inci. danger indicates contents which demands a
and warning), which is specifically specific action shown inside or attached,
shown inside.
GENERAL PROHIBITIONS: - (Smark
indicates contents which prohibit a specific
action shown inside or attached.
(T) DISMANTLE PROHIBITIONS
^ MOISTURE PROHIBITIONS
-
1
-
