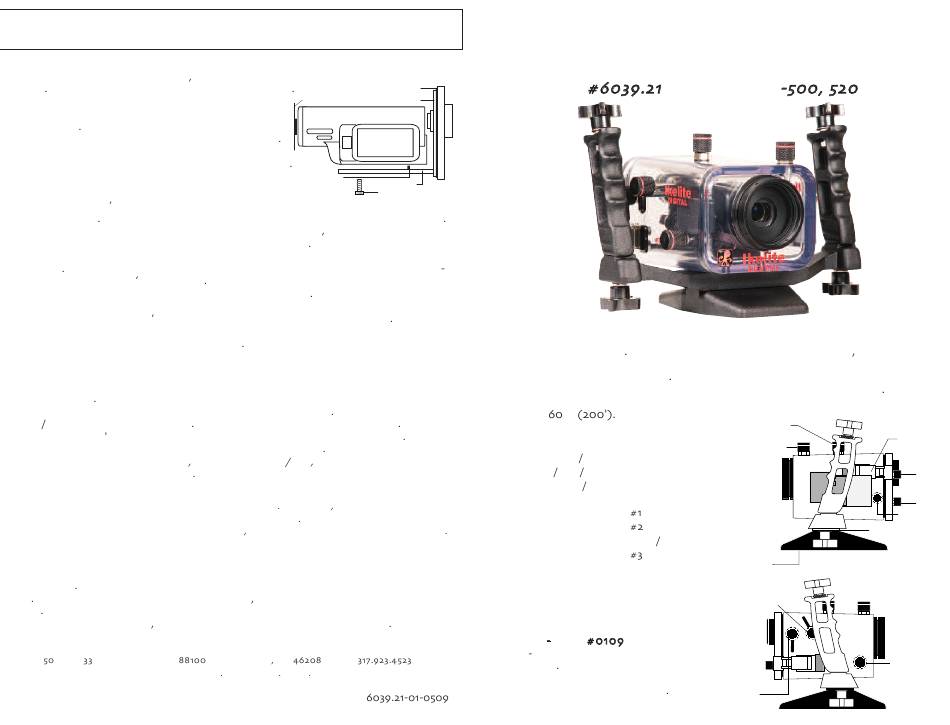

Ikelite 6039.21 Supplemental Instructions

I I N N S S T T A A L L L L A A T T I I O O N N
C C A A M M E E R R A A T T R R A A Y Y
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
The camera mounts to the tray which extends from the back plate of the
housing D D O O N N O O T T remove the tray from the back plate
Position the camera against the two stabilizing
pins on the tray and secure with the camera
mounting bolt The camera should fit easily on the
tray and should be parallel with the sides of the tray
The lens shade must be threaded completely into
the camera lens to avoid clearance or sealing problems
I I N N S S E E R R T T I I N N G G T T H H E E C C A A M M E E R R A A
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Check that the o ring is clean and properly positioned on the lip of the clear
housing back plate Check that the lens shade is completely threaded into the camera
Once the camera is mounted to the tray as shown above pull the housing
controls out to provide clearance for installing the camera Partially slide the camera
into the housing so you can connect the reversing circuit cable to the AV Out port on
the camera When sliding the camera into the housing align the housings zoom con
trol to accept the camera s zoom lever Make sure the lens shade on the front of the
camera fits into the port recess in the front of the housing
D D O O N N O O T T force this installation; the camera and tray should slide easily into place
so the housings back plate o ring is resting against the main housing body In this
position the lid snaps can be positioned over the lid hooks on the housing back plate
and snapped into position to seal the housing
H H O O U U S S I I N N G G C C O O N N T T R R O O L L S S
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Slide the housing controls back in place making sure they properly align with the
camera functions
Operate each control to see how it works with the camera Some controls such
as start stop will be used frequently Other controls may seldom be utilized Refer to
your camera owner s manual for the proper function of each camera control Look
thru the back to be sure that you can see into the viewfinder
When using the housing controls especially the start stop do NOT use excessive force
because you could damage the camera
Remove the lens cap and cord from the camera Otherwise the cord may
interfere with the housing seal
If the housing controls are not properly positioned they could interfere with the housing seal
M M A A N N U U A A L L F F O O C C U U S S O O P P E E R R A A T T I I O O N N
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Manual focus may be preferred in low light levels or when the subject possesses
little contrast Set the focus pad on the LCD screen to Manual to cancel the auto
focus If you want to manually adjust the focus rotate the manual focus control as
desired
To reactivate the auto focus set the focus pad on the LCD screen to Auto
I I K K E E L L I I T T E E U U N N D D E E R R W W A A T T E E R R S S Y Y S S T T E E M M S S
