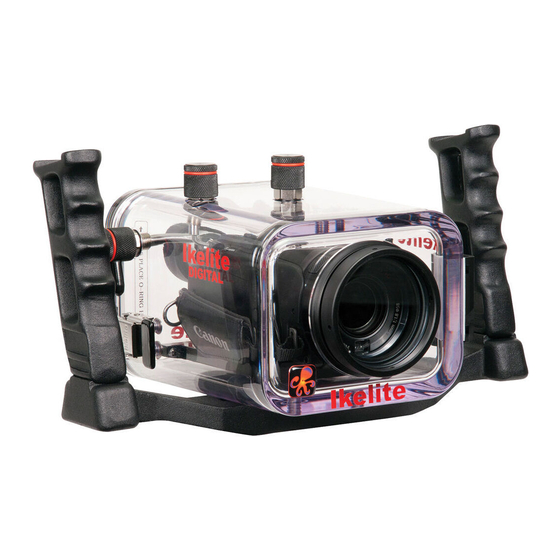

IKELITE VIDEO CASE
SUPPLEMENTAL INSTRUCTIONS FOR
#6085 Canon HF G10
This supplemental set of instructions describes additional features specific to your
housing model. Prior to testing the system in the water, please read this supplement
along with the general instruction manual to become familiar with its features and
functions.
Ikelite Video Cases are slightly negative in salt water for stability. This housing has
been water pressure tested at the factory and has a working depth of 60m (200').

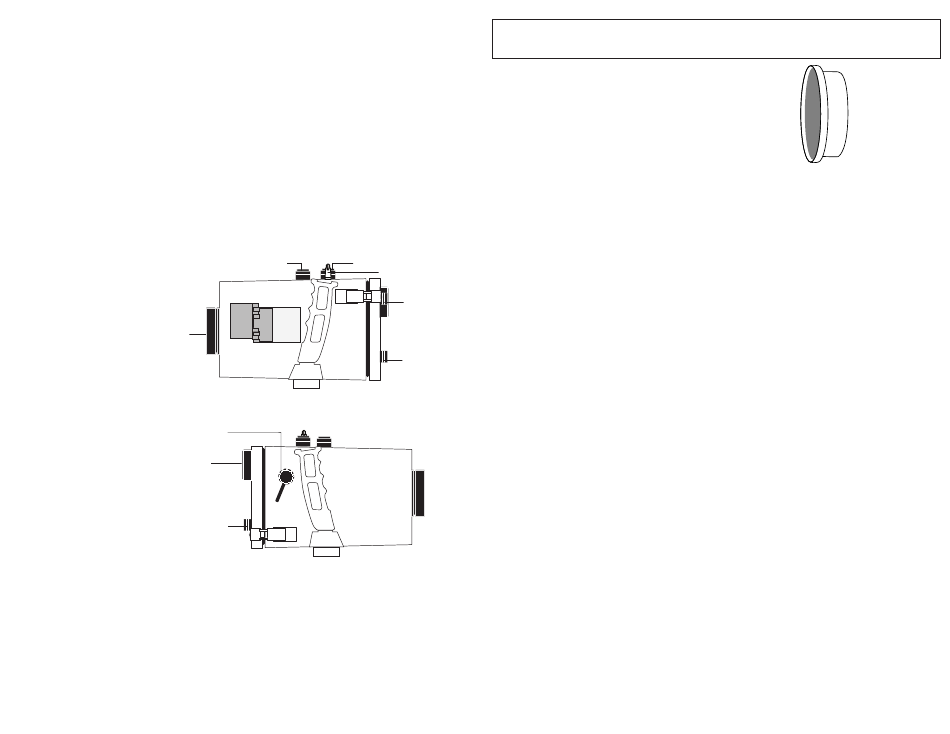

HOUSING CONTROLS
_____________________________________________________
• Power On/Off
• Start/Stop
• Snap Shot (menu)
• Zoom
• Top LCD
• Bottom LCD/Photo
Port
• Auto/Manual Switch
• White Balance (menu)
• Auto/Manual Focus (menu)
Eyeport
Bottom LCD
MAIN O-RING #0109________________________________________________
O-rings last several years if properly maintained. Control seals should not need
to be replaced as long as the control shafts are kept clean and lightly lubricated.
Auto/Manual
Zoom
Mirror
Start/Stop
P R E P A R A T I O N
PACKAGED WITH HOUSING
• External UR/Pro Color Filter
• Silicone Lubricant
COLOR FILTER
The installation and usage of the external UR/Pro color filter is described in the
general instruction manual.
INTERNAL WIDE-ANGLE LENS OPTION
Special ports are available for use with the Raynox DCR-730, 731 Pro high defini-
tion wide-angle lens. A 58-52mm step-down ring is required for the attachment of
the HDR-730 lens. Optional ports sold separately as dome port #9306 or flat lens
Power
port #9306.1. Will need to order 6441.46 or 6144.86 color filer for optional ports.
Raynox DCR-730 Pro lens not included. Lens and step-down ring not available for
Top
purchase through Ikelite.
LCD
SUPER-EYE VIEWFINDER
See exactly what the camera sees underwater using the camera's electronic
viewfinder in conjunction with the Ikelite Super-Eye, which is permanently mounted
Bottom
in the eyeport on the clear back plate. The Super-Eye extends the viewfinder image
LCD
to provide enhanced viewing underwater. The HFS-21 camera viewfinder will power
on while the LCD is being used.
BATTERY
Install a fully charged Canon battery on the camera:
BP-809
BP-819
Other brand batteries may not fit inside the housing. If the battery selected overhangs
the camera tray, then the battery is too large and will cause the housing to leak.
