I I K K E E L L I I T T E E V V I I D D E E O O C C A A S S E E
S S U U P P P P L L E E M M E E N N T T A A L L I I N N S S T T R R U U C C T T I I O O N N S S F F O O R R
# # 6 6 0 0 3 3 8 8 . . 8 8 2 2 S S O O N N Y Y D D C C R R - - S S R R 3 3 2 2 , , 4 4 2 2 , , 5 5 2 2 , , 6 6 2 2 , , 7 7 2 2 , , 8 8 2 2
#6038.32 Sony DCR-SR32, 42, 52, 62, 72, 82
This supplemental set of instructions describes additional features specific
to your housing model. Prior to testing the system in the water, please read
this supplement along with the general instruction
manual to become familiar with its features
and functions.
Ikelite Video Cases are slightly negative
in salt water for stability. This housing has
been water pressure tested at the factory
and has a working depth of 60m (200').

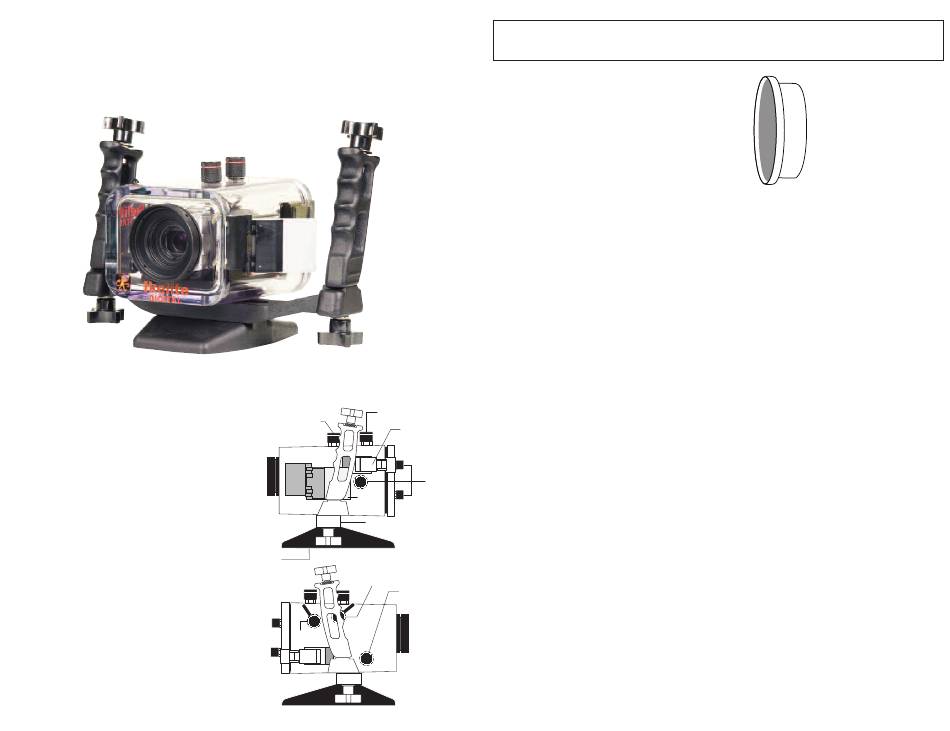

H H O O U U S S I I N N G G C C O O N N T T R R O O L L S S
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
• Power On/Off / Mode
• Start/Stop
• Power Zoom
• Photo
• LCD Screen Control #1
• LCD Screen Control #2
• LCD Screen Control #3
• LCD Reversing Circuit On/Off
M M A A I I N N O O - - R R I I N N G G # # 0 0 1 1 0 0 9 9 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
O-rings last several years if properly
maintained. Control seals should not need
to be replaced as long as the control shafts
are kept clean and lightly lubricated.
Power
Power Zoom
Lid Snap
Port
Touch
Pad
Mirror
Bottom Bar
Base
Snap Shot
On/Off
for Reverse
Circuit
Start/
Stop
P P R R E E P P A A R R A A T T I I O O N N
P P A A C C K K A A G G E E D D W W I I T T H H H H O O U U S S I I N N G G
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
• External UR/Pro Color Filter
The installation and usage
of the external UR/Pro color
filter is described in the
general instruction manual.
• Silicone Lubricant
L L C C D D M M O O N N I I T T O O R R / / E E X X T T E E R R N N A A L L M M I I R R R R O O R R
The camera's LCD monitor can be viewed from the rear of the housing, using
the external mirror featured on the side of the housing.
Open the LCD monitor on the camera, rotate 1 80°, and then press it back against
the side of the camera. The external mirror is hinged so that it can be opened to reflect
the image from the camera's LCD monitor for viewing from the rear of the housing.
During transportation, please remember to close the mirror by pressing it against
the rubber on the lid snap.
B B A A T T T T E E R R Y Y A A N N D D T T A A P P E E
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Install a fully charged Sony battery on the camera:
Sony NP-FH50, NP-FH60, NP-FH70
Other brand batteries may not fit inside the housing.
Make sure you have loaded an appropriate digital cassette tape in the camera.
O O P P T T I I O O N N A A L L W W I I D D E E A A N N G G L L E E L L E E N N S S _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
The housing's port accepts optional 67mm threaded waterproof Wide-Angle lenses
such as the Ikelite #6420 W-20, Epoque DCL-20 and Inon UWL-1 00 Type 2 and Sea&Sea
(58070). These waterproof lenses secure to the outside of the lens port.
Should you elect to use the optional Ikelite #6420 W-20, Epoque, Inon or Sea&Sea
lens, carefully thread the waterproof lens on the front of the lens port. The lens threads
are very fine; D D O O N N O O T T cross thread. It should screw on very easily. If it is difficult to
turn, you are cross threading.
I I M M A A G G E E R R E E V V E E R R S S I I N N G G C C I I R R C C U U I I T T
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
The image reversing circuit is mounted inside the housing. The circuit reverses
(flips) the image and words on the LCD screen so that when the image is reflected
in the external mirror, it appears correct left-to-right.
On certain Sony camera models, (DCR-SR-32/42), there will not be a remote
plug in for the reversing circuitry. On these models, the image in the mirror will be
reversed. Right will be left and left will be right.
External
Color Filter
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
