Belkin F1DN-KVM-EXTC6 Quick Installation Manual

Quick Installation Guide
Video/USB Extenders

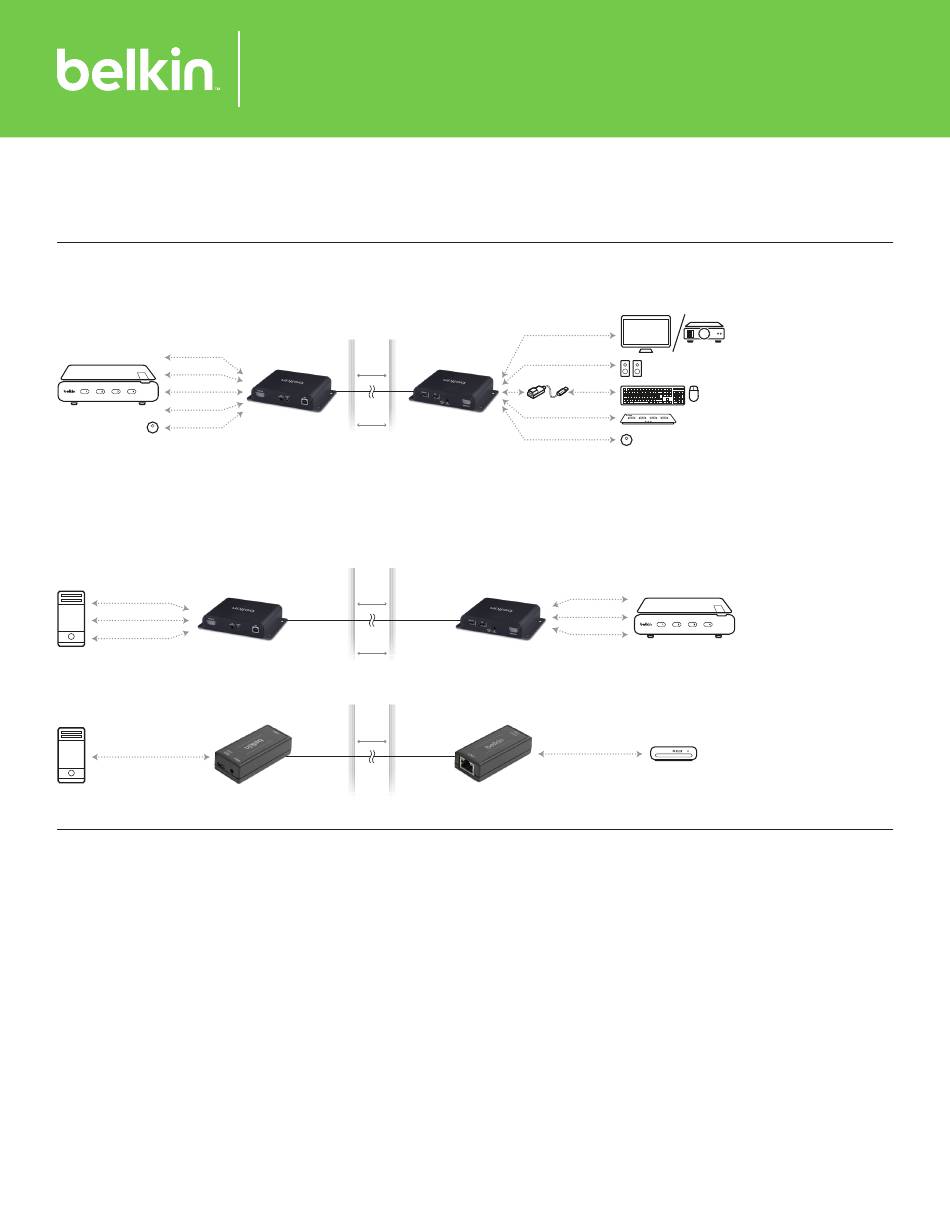

Belkin Extenders Family
Belkin Extenders extend video, audio, and keyboard/mouse signals up to hundreds of meters.
Extend Console side
RC/RCU
Video
Audio
USB KB & Mouse
IR
*Transmitter must be connected to SKVM Keyboard Console port.
**The included HID Filter should be used when extending standard keyboard and mouse. If using the Belkin Remote Control with Integrated Keyboard
(F1DN008KBD), the keyboard should be connected to the Receiver's Keyboard port, while the HID Filter should be connected to the Receiver's Mouse port, with the
USB mouse connected to the HID Filter. When using Belkin keyboard, Transmitter and Receiver MUST be powered on for at least ~20 seconds before powering up
SKVM. Otherwise, video EDID will not be captured.
Extend Host side
Computer
Transmitter
Video
Audio
USB KB & Mouse
Transmitter
Computer
USB Cable
 Connect the Belkin Extender's Receiver and the Transmitter
parts
The device's Receiver and Transmitter may be located in different rooms
or even different buildings.
Connect the two parts with a suitable cable through the connection port:
– Models F1DN-KVM-EXTC6, F1DN-KVM-EXRC6, F1DN-KVM-EXTC6X,
F1DN-KVM-EXRC6X and F1DN-USB-XTRC with a Copper Cable.
– Models F1DN-KVM-EXTFI and F1DN-KVM-EXRFI with Optical Fiber Cable.
 Connecting the Belkin Extender Transmitter to the KVM
or PC
1. Video connection: For all models, connect the KVM or PC to the
Extender's Video IN port, using the HDMI or DP video cable.
2. PC keyboard and mouse connection: For F1DN-KVM-EXTC6, F1DN-
KVM-EXTC6X, F1DN-KVM-EXTFI models, connect the KVM or PC to
the Extender using a USB A to USB B cable. Connect the USB A end to
the KVM or PC and the USB B end to the Extender's KM port.

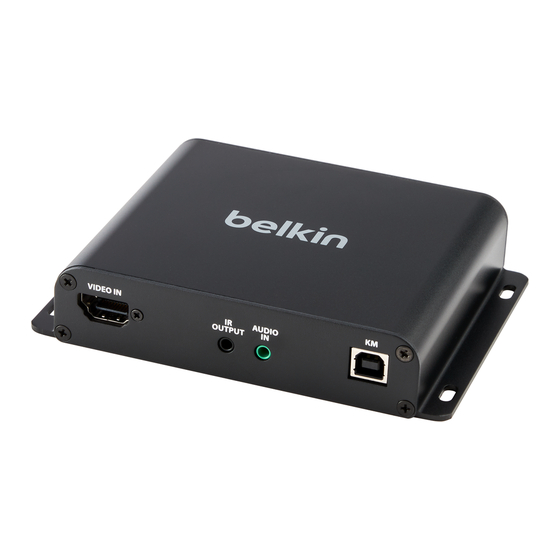

F1DN-KVM-EXTC6: Belkin KVM CAT6 Transmitter Extender-Universal Video
F1DN-KVM-EXRC6: Belkin KVM CAT6 Receiver Extender-Universal Video
F1DN-KVM-EXTFI: Belkin Extender KVM Transmitter SFP-Universal Video
F1DN-KVM-EXRFI: Belkin Extender KVM Receiver SFP-Universal Video
F1DN-KVM-EXTC6X: Belkin KVM CAT6 Transmitter Extender 4K60 Video
F1DN-KVM-EXRC6X: Belkin KVM CAT6 Receiver Extender 4K60 Video
F1DN-USB-XTRC: Belkin USB Copper Extender
Transmitter*
Up to 10 km
(FIBER)
VIDEO IN
Up to 100 m
(COPPER)
Up to 10 km
(FIBER)
VIDEO IN
Up to 100 m
(COPPER)
Up to 100 m
(COPPER)
Video
Receiver**
Audio
HID Filter
USB KB &
Mouse
RCU
IR
Receiver
Video
Audio
USB KB & Mouse
Receiver
USB Cable
3. For USB Extender model, connect the PC to the Host Transmitter using
supplied USB-A to micro-USB cable. Connect the USB-A end to the PC
and the micro-USB end to the Host Transmitter's USB port.
 Connecting the KVM or peripherals to the Belkin Extender
Receiver
1. Video connection: For all models, connect the monitor/projector cable
to the Extender's Video OUT port.
2. PC keyboard and mouse connection: For KVM, connect KVM to the
Extender using USB A to USB B cable. Connect USB A end to the
Extender Mouse or KB port and the USB B end to the KVM Host K/M
port. For PC, connect a USB Mouse and Keyboard to the Extender
Receiver's corresponding Mouse and KB ports.
3. For USB Extender model, connect the USB device (e.g., CAC reader) to
the USB Extender Receiver. Connect the USB Device USB-A end to the
USB In port on the USB Extender Receiver.
Display or Projector
CAC Reader
