OmniView
™
ENTERPRISE Series 8-Port EXPANDER
Quick Installation Guide

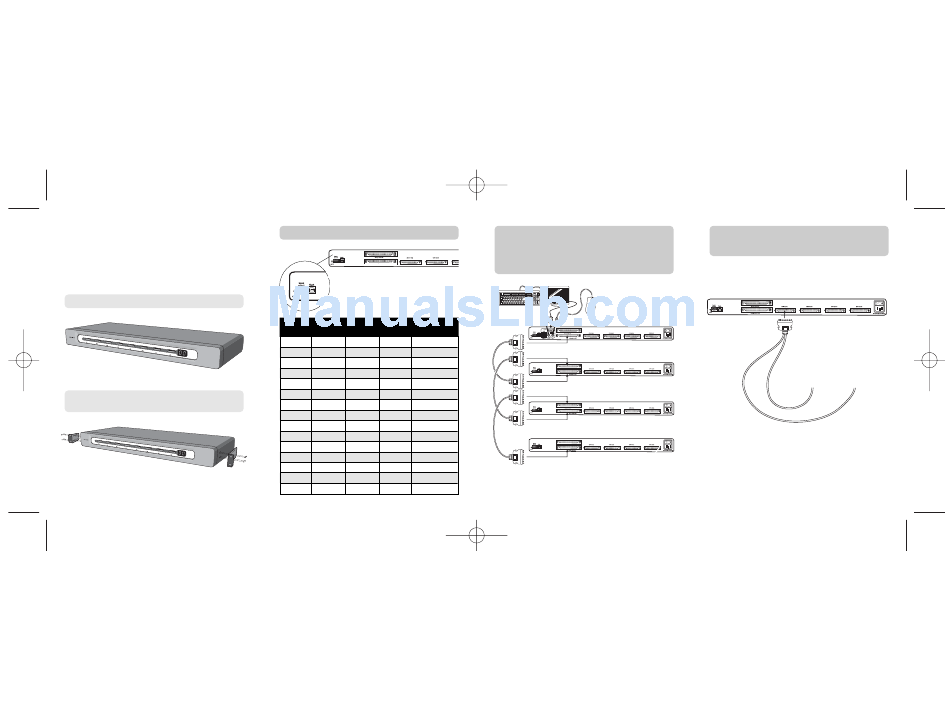

STEP 1: Remove the contents from the box.
fig. 1
STEP 2: Install the rack-mount brackets and place
the unit on a rack.
fig. 2
7/15/02 11:36 AM Page 1
STEP 3: Set the BANK address for the Expander.
daisy chain OUT
fig. 3
DIP SWITCH #
1 2 3 4
UP DOWN DOWN DOWN
DOWN UP DOWN DOWN
UP UP DOWN DOWN
DOWN DOWN UP DOWN
UP DOWN UP DOWN
DOWN UP UP DOWN
UP UP UP DOWN
DOWN DOWN DOWN UP
UP DOWN DOWN UP
DOWN UP DOWN UP
UP UP DOWN UP
DOWN DOWN UP UP
UP DOWN UP UP
DOWN UP UP UP
UP UP UP UP
STEP 4: Attach the Daisy-Chain Cable (Belkin part number
F1D9402-XX) to an available daisy-chain port of the
previous KVM Switch or Expander, making sure that the
daisy-chain cables are only connected in an "in-to-out"
or "out-to-in" configuration.
BANK ADDRESS
BANK 01
BANK 02
BANK 03
BANK 04
BANK 05
BANK 06
BANK 07
BANK 08
BANK 09
BANK 10
BANK 11
BANK 12
BANK 13
fig. 4
BANK 14
BANK 15
STEP 5: Attach the Enterprise Series Dual-Port KVM Cables
to the Expander (Belkin part number F1D9400-XX
or F1D9401-XX).
fig. 5
