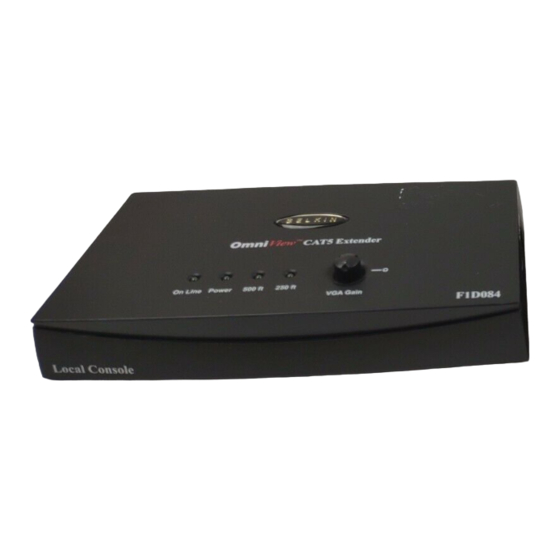

Cat5 kvm extender
Hide thumbs Also See for F1D084:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
CAT5 Extender
User Manual
F1D084
P73228

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1D084 and is the answer not in the manual?

Questions and answers

Related Manuals for Belkin F1D084

Summary of Contents for Belkin F1D084

  • Page 1 CAT5 Extender User Manual F1D084 P73228...
  • Page 2 Introduction Thank you for purchasing the Belkin Components CAT5 KVM Extender! The CAT5 KVM Extender allows users to control their computer or KVM switch from up to 500 feet away. It is perfect for isolated server rooms, large server farms, secure systems, or test benches where the computer may be inaccessible to the user.

  • Page 3: Package Contents

    Package Contents • CAT5 KVM Extender • 9VAC, 500mA Power Supply, 2 pcs. • PS/2 KVM cable, 3-foot • User Manual • Registration card...

  • Page 4: Product Detail

    Local Module Front View Online Status LED Power LED 500 ft. 250 ft. distance distance Remote Module Front View Online Status LED Power LED Green Calibration LEDs Product detail Local Module Rear View Power Jack Local Reset Console Button Connectors VGA Gain Adjustment Remote Module Rear View...

  • Page 5: Installation

    1. Power off your computers and/or KVM switch. 2. Using the included KVM cable, connect the male VGA end to the VGA port on your computer or KVM switch. 3. Connect the PS/2 ends to the keyboard and mouse port, paying particular attention to which cable connects to which port.
  • Page 6 Installation CONSOLE RJ-45 Keyboard CONSOLE RJ-45 Keyboard CONSOLE RJ-45 (continued) Mouse Mouse CONSOLE RJ-45 Keyboard Mouse...
  • Page 7 Installation CONSOLE RJ-45 Keyboard CONSOLE RJ-45 Keyboard CONSOLE RJ-45 (continued) Mouse Mouse CONSOLE RJ-45 Keyboard Mouse...
  • Page 8 Installation CONSOLE RJ-45 Keyboard CONSOLE RJ-45 Keyboard CONSOLE RJ-45 (continued) Mouse Mouse CONSOLE RJ-45 Keyboard Mouse...
  • Page 9 Installation 4. Connect the female end of the VGA cable to the male VGA input port on the back of the Local CAT5 Extender module. Rear of Local Module CONSOLE RJ-45 5. Connect the PS/2 cables to their appropriate input ports at the back of the Local CAT5 Extender module.
  • Page 10 Installation 7. Connect your keyboards and mice to the console ports at the back of the Remote CAT5 Extender Module. If you have a Local console, do the same with the Local CAT5 Extender Module. Rear of Remote CONSOLE RJ-45 8.
  • Page 11 Installation 9. Plug in the power adapters into the power jack of the Local and Remote CAT5 Extender modules and plug the adapters into AC receptacles. 10. That’s it! You’re done! You may power up your PCs and KVM switch now. •...

  • Page 12: Fcc Statement

    Belkin Components warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product.
  • Page 13 Fax: +44 (0) 1604678330 Belkin Components B.V. Diamantlaan 8 • 2132 WV Hoofddorp • The Netherlands Tel: +31 (0) 235698765 Fax: +31 (0) 235612694 © 2000 Belkin Components. All rights reserved. All trade names are registered trademarks of respective manufacturers listed.
