Summary of Contents for Fagor FBC-50

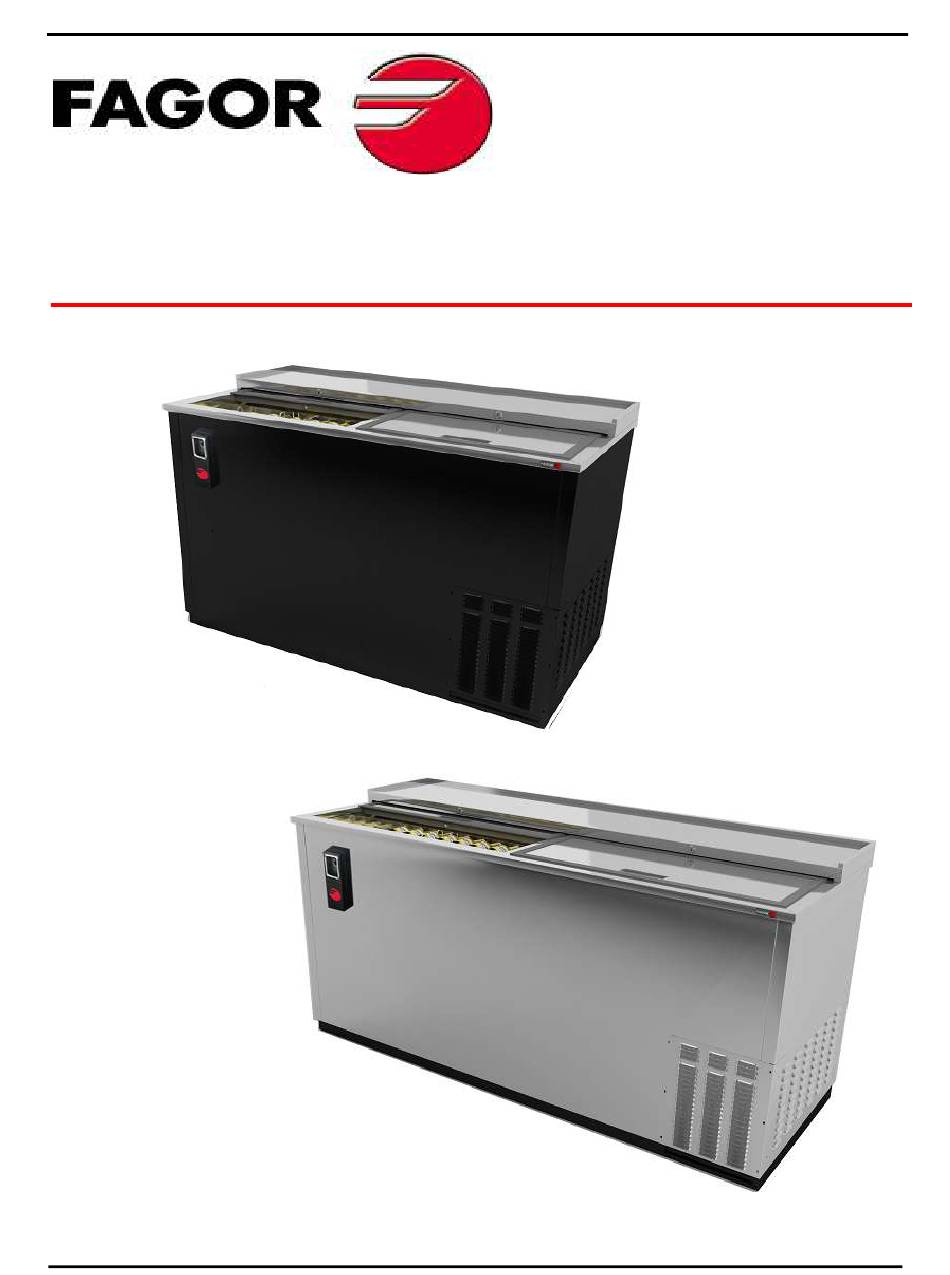

  • Page 1 FAGOR BOTTLE COOLER EQUIPMENT Manual for installation, use and maintenance...
  • Page 2: Table Of Contents

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 CONTENTS RECEIVING AND INSPECTING THE EQUIPMENT ____________________________ 3 SPECIFICATIONS ________________________________________________________ 4 INSTALLATION __________________________________________________________ 5 3.1 UNCRATING _________________________________________________________ 5 3.2 CLEANING OF CABINET ______________________________________________ 5 3.3 LOCATION __________________________________________________________ 6 3.4 DATA PLATE ________________________________________________________ 6 3.5 ELECTRICAL CONNECTIONS __________________________________________ 7...
  • Page 3: Receiving And Inspecting The Equipment

    A NOTE FROM OUR QUALITY CONTROL MANAGER CONGRATULATIONS ON YOUR NEW PURCHASE. WE WOULD LIKE TO WELCOME YOU TO THE FAGOR TEAM. THE UNIT IN FRONT OF YOU IS A GREAT PIECE OF EQUIPMENT THAT WILL BECOME ONE OF YOUR MOST RELAIBLE TOOLS IN YOUR...
  • Page 4: Specifications

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 2 SPECIFICATIONS Crated Refrigerant 12oz. 12 oz. MODEL Lids AMPS Weight Length Width Height Charge Cans Bottles (LBS.) R-134 a 1800 FBC-50 50.5" 26.5" 33" 15.8 oz FBC-65 69.5"...
  • Page 5: Installation

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 3 INSTALLATION UNCRATING Cut and remove the outer packaging. Cut the four (4) clamps that hold the refrigerator to the skid. Lift the unit off the skid. If machine was laid down during this operation leave the cabinet upright for 24 hours before plugging into power source.
  • Page 6: Location

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 LOCATION Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the unit and contents. For the most efficient operation, be sure to provide good air circulation inside and outside of the unit.
  • Page 7: Electrical Connections

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 ELECTRICAL CONNECTIONS Refer to the amperage data in this manual or on data plate and your local code or the National Electrical Code to be sure unit is connected to the proper power source. Verify correct incoming voltage according to the Data Plate information.
  • Page 8: Electronic Control

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 Note: Keep in mind, if you move the knob to a different position that is recommend from factory, these temperature will change, as well. The knob position near the number one, gives you the warmest temperature and the knob position near the number seven, gives you the coldest temperature.
  • Page 9 FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 The unit comes with a factory default set point ( 32°F Refrigerators). These set values will make the unit perform at its maximum capacity. Therefore, it is not recommended to change the set point. If set point needs to be changed, follow the next steps.
  • Page 10: Other Functions

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 Changing the reading temperature from °F to °C or vice versa To change the reading of the temperature from °F to °C or vice versa, you need access to the programming mode in the controller.
  • Page 11: Maintenance

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 The unit must run for at least 24 hours before any product is placed inside. Failure to do so may ice up the evaporator coil. Consequently, the unit will never reach the desired set point. This failure will not be covered under warranty.
  • Page 12: Gasket

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 coils. The condenser coil may require a spray with the de-greasing agent and then blown through with compressed air. Be sure all electrical and mechanical parts are dry before turning on the power.
  • Page 13: Wiring Diagrams

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 6 WIRING DIAGRAMS www.Fagorcommercial.com Page 13...
  • Page 14: Trouble Shooting

    FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 7 TROUBLE SHOOTING Follow the next steps before requesting warranty service. Failure to do so, may result in service charges for you and may void your warranty: Refrigerator doesn’t work: Check that the machine is still connected.
  • Page 15: Warranty

    User manual supplied with each Fagor unit. The obligation of this warranty is covered by Fagor for a period of three (3) years from the date of installation (Warranty commencement date), but in no event to exceed thirty-nine (39) months from the date of shipment from Fagor. Warranty is Not Transferable.
  • Page 16 Notwithstanding the foregoing , any claim with reference to the Equipment or any parts therefore for any cause shall be deemed waived unless submitted by the User to Fagor within (30) days after the date the User discovered, or should have discovered, the claim. In connection with all claims under this Warranty, Fagor will have the right, at its own expense, to have its representatives inspect the Equipment at the User’s premises and to request all of the User’s records pertaining to the Equipment to determine whether...
  • Page 17 Taxes: This price list does not include any Federal, State, City or Local taxes, which may apply and are subject thereto. Shipment: Requested carrier will be used upon request. Fagor has the right to ship via any responsible carrier if requested carrier is unavailable. Shipping charges are payable by consignee and any claims arising as such charges shall be resolved between the carrier and the consignee.
  • Page 18 FAGOR – BOTTLE COOLER EQUIPMENT: Operations and Service Manual/Rev. JUN. 2015 Fagor Commercial, Inc. 13105NW 47thAve Miami, Fl. 33054 Tel:(305) 7790170 Fax:(305)7790173 1-866-GO-FAGOR www.fagorcommercial.com www.Fagorcommercial.com Page 18...
