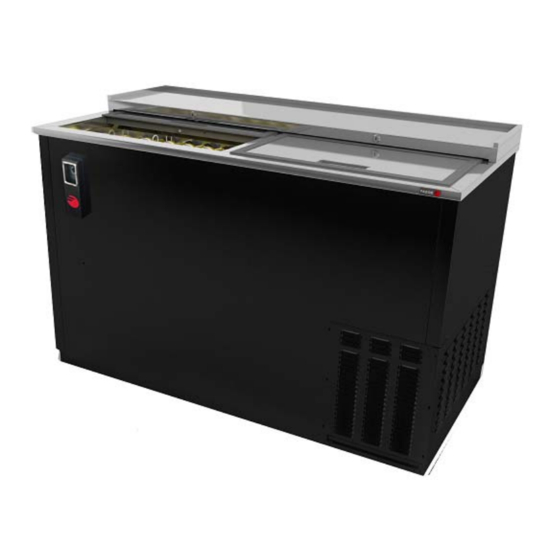

- Page 1 FAGOR BOTTLE COOLER EQUIPMENT Manual for installation, use and maintenance. ...
-
Page 2: Table Of Contents
DIVIDER INSTALLATION ________________________________________________ 7 OPERATION _ ______________________________________________________________ 7 DEFROST ___________________________________________________________ 7 TROUBLESHOOTING __________________________________________________ 7 MAINTENANCE ____________________________________________________________ 8 6 WIRING DIAGRAMS 10 ____________________________________________________________ WARRANTY ____________________________________________________________ 1 1 TECHNICAL INFORMATION __________________________________________________ 1 3 Page 2 For Customer Service: Call 1‐866‐GO FAGOR ... -
Page 3: Receiving And Inspecting The Equipment
A NOTE FROM OUR QUALITY CONTROL MANAGER CONGRATULATIONS ON YOUR NEW PURCHASE. WE WOULD LIKE TO WELCOME YOU TO THE FAGOR TEAM. THE UNIT IN FRONT OF YOU IS A GREAT PIECE OF EQUIPMENT THAT WILL BECOME ONE OF YOUR... -
Page 4: Specifications
6.2 508 95.5" 26.5" 33" AMBIENT TEMPERATURE: The above equipment mentioned are tested in the ambient temperature between 60°F to 90°F. If the equipment is installed in an ambient higher than 90°F it will reduce the equipment efficiency and consume more energy. Page 4 For Customer Service: Call 1‐866‐GO FAGOR ... -
Page 5: Installation
3.2 SEALING WHEN SANITATION CODES REQUIRE SEALING TO FLOOR THIS METHOD MAY BE USED 1. Tip cabinet and apply a bead of silicone seal on bottom edge of the base. 2. Return cabinet to upright position and using proper equipment, lift cabinet into location. Heavy appliances should not be used on the same circuit with the cooler. CAUTION: If an extension cord is necessary, use only a three wire grounding type of wire, size 16 AWG or heavier; do not exceed 20 feet in length. The use of ungrounded cords or overloaded circuit voids compressor warranty. CLEANING OF CABINET The exterior of the cabinet is painted and should be cleaned only with lukewarm water, taking care not to scratch the paint. Mild detergents are also recommended. The interior can be cleaned in a similar manner. THE CONDENSER MUST BE CLEANED AT REGULAR INTERVALS. FAILURE TO DO SO CAN CAUSE COMPRESSOR MALFUNCTION AND WILL VOID WARRANTY. Clean approximately every six months, depending upon usage, dust, etc. Pull cabinet away from wall and thoroughly vacuum the condenser and surrounding surfaces. This cooler is designed to maintain your beer temperature within the most desirable range. You can expect this temperature with the proper temperature control setting and in a normal environment. It is important to understand that when the beer is purchased, it must be placed inside the cooler as soon as possible to avoid excessive warm‐up. If this happens, it may take many hours for the temperature to be reduced to the desirable range. No provision is made for rapid cooling of beer which has become too warm. LOCATION Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the unit and contents. For the most efficient operation, be sure to provide good air circulation inside and outside of the unit. Page 5 For Customer Service: Call 1‐866‐GO FAGOR ... -
Page 6: Data Plate
DANGER: Power must be turned off and disconnected from the power source whenever performing maintenance, repair or cleaning the condensing unit. If machine still running when power is off, disconnect power at the circuit breaker before unplugging the machine. Page 6 For Customer Service: Call 1‐866‐GO FAGOR ... -
Page 7: Divider Installation
Do not use a pick, knife, etc., to pry ice from evaporator as this could puncture evaporator or damage the finish. 4.2 TROUBLESHOOTING Sometimes, working failures are due to simple causes which can be solved by the user. Before asking for the help of a qualified technician, you have to do some verification. These failures are not covered by the warranty: 1. Refrigeration doesn´t work. a. Check the unit is still connected to power supply. 2. Refrigerator doesn’t reach temperature. a. Check the thermostat is not in OFF position. b. Check the thermostat is at position 5 or higher. c. Check the unit is not on defrost cycle. d. Check gasket is in good condition and door is sealed. e. Check fan is moving. Open the door press and hold door switch for verification. f. Don’t put any food inside until unit is at temperature. g. Be sure castors or legs were installed. 3. There is water under the refrigerator. a. Check the drain pipe is over the pan. b. Check cabinet is level. Page 7 For Customer Service: Call 1‐866‐GO FAGOR ... -
Page 8: Maintenance
Routine cleaning of stainless steel can be done with soap and water. Extreme stains or grease should be cleaned with a non‐abrasive cleaner and plastic scrub pad. There are also stainless steel cleaners available which can restore and preserve the finish of the steels protective layer. Never use and acid based cleaning solution! Many food products have an acidic content which can deteriorate the finish. Be sure to clean the ALL food products from any stainless steel surface. Common items include peppers, tomatoes and other vegetables. Cleaning the Condenser Coil DANGER: Power must be turned off and disconnected from the power source whenever performing maintenance, repair or cleaning the condensing unit. Disconnect machine. Remove front bottom panel and carefully slide out the condensing unit. The condenser coil requires regular cleaning; recommended every 30‐60 days, depending of the accumulation of dust and grease. If the buildup on the coil consists of only light dust and debris the condenser coil can be cleaned with a simple brush. Heavier dust build up may require a vacuum or even compressed air to blow though the condenser coil. If heavy grease is present there are de‐greasing agents available for refrigeration use and specifically for the condenser coils. The condenser coil may require a spray with the de‐greasing agent and then blown through with compressed air. Be sure all electrical and mechanical parts are dry before turning on the power. Never use a high pressure water wash for this cleaning procedure as water can damage the electrical components located near or at the condenser coil. Do not place filter material in front of condenser coil. This material blocks air‐flow to the coil similar to having a dirty coil! If you keep the Condenser clean you will minimize your service expense and lower your electrical costs. Failure to maintain a clean condenser coil can initially cause high temperatures and excessive run times. Continuous operation with dirty or clogged condenser coils can result in compressor failures. Page 8 For Customer Service: Call 1‐866‐GO FAGOR ... - Page 9 Gaskets can easily be replaced and do not require the use of tools or authorized service persons. The gaskets can be pulled out of the grove in the door and new gaskets can be “pressed” back into place. Drain Maintenance Each unit has a drain located inside the unit which removes the condensation from the evaporator coil and evaporates it at an external condensate evaporator pan. Each drain can become loose or disconnected from moving or bumping the drain. IF YOU NOTICE EXCESSIVE WATER ACCUMULATION ON THE INSIDE OF THE UNIT be sure the drain tube is connected from the evaporator housing to the condensate evaporator drain pan. IF WATER IS COLLECTED UNDERNEATH THE UNIT you may want to check the condensate evaporator drain tube to be sure it is still located inside the drain pan. The leveling of the unit is important as the units are designed to drain properly when on a level surface, if your floor is not level this can also cause drain problems. Be sure all drain lines are free of obstructions; typically food product is found blocking drain lines causing water to back up and overflow the drain pans. Page 9 For Customer Service: Call 1‐866‐GO FAGOR ...
-
Page 10: Wiring Diagrams
FAGOR – BAR EQUIPMENT: Operations and Service Manual / Rev. April 2013 WIRING DIAGRAMS Page 10 For Customer Service: Call 1‐866‐GO FAGOR ... -
Page 11: Warranty
Additional Three Year Compressor Part Warranty: In addition to the warranty set above, Fagor warrants the sealed compressor (part only) for an additional four (4) years based on the installation date. This warranty is for defects, both in workmanship and material, under the normal and proper use and maintenance service. The four (4) year extended warranty only applies to sealed parts of the compressor and does not apply to any other part or component, including, but not limited to cabinet, temperature control, refrigerant, motor starting equipment, fan assembly, or any other electrical or mechanical component. Exclusions from and Conditions to Warranty Coverage: This Warranty does not cover parts or accessories, which (a) carry the warranty of a supplier or (b) are abused. Application of this Warranty is further conditioned upon the following: Installation: The Equipment must be properly installed in accordance with Fagor’s installation procedures and by a professional technician. No Alteration: The Equipment must not have been modified or altered from its condition at the date of original installation. Use: FAGOR EQUIPMENT IS NOT DESIGNED FOR PERSONAL, FAMILY, OR HOUSEHOLD PURPOSES, AND ITS SALE FOR SUCH PURPOSES IS NOT INTENDED. IN THE EVENT THE EQUIPMENT IS SO USED, THIS WARRANTY SHALL BE NULL AND VOID, AND THE EQUIPMENT SHALL BE DEEMED TO HAVE BEEN SOLD “AS IS‐WHERE IS” WITHOUT ANY WARRANTY OF ANY KIND, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF TITLE, NON‐INFRINGEMENT, MERCHANT‐ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Proper Maintenance and Operation: The Equipment must be properly maintained and operated in accordance with Fagor’s maintenance and operating procedures. All service, labor and parts must be acquired from Fagor or its authorized service representative for the User’s area. This warranty is void if failure is a direct result of handling and/or transportation, fire, water, accident, misuse, acts of god(s), attempted repair by unauthorized persons, improper installation, if serial number has been removed or altered, or if unit is used for purpose other than it was originally intended. Failure to comply with any of these conditions will void this Warranty. In addition, this Warranty does not cover defects due to apparent abuse , misuse or accident. Page 11 For Customer Service: Call 1‐866‐GO FAGOR ... - Page 12 WHETHER EXPRESS OR IMPLIED BY OPERATION OF LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY REPRESENTATION OF PERFORMANCE AND ANY IMPLED WARRANTIES OF TITLE, NON‐INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICLULAR PURPOSE. NO OTHER WARRANTIES ARE AUTHORIZED ON BEHALF OF FAGOR UNLESS SPECIFICALLY ISSUED BY FAGOR. Fagor shall have no liability for incidental or consequential losses, damages including without limitation or expenses, loss of sales, spoiled food, profits or goodwill, claims whether or not on account of refrigeration failure or punitive or exemplary damages directly or indirectly arising from the sale, handling or use of the Equipment or from any other cause relating thereto, whether arising in contract, tort, warranty, strict liability or otherwise. Fagor’s liability hereunder in any case is expressly limited, at Fagor’s election, to repair or replacement of Equipment or parts therefore or to the repayment of, or crediting the user with, an amount equal to the purchase price of such goods. Prices & Specifications: Fagor reserves the right to change the prices and specifications of the equipment and/or material without notice. Prices are FOB Fagor warehouses. All orders are subject to acceptance by Fagor Commercial, Inc. Terms: All orders are subject to credit approval. All Invoices not paid within the specified terms will be subject to a 1.5% per month delinquency charge. Buyer agrees to pay all costs of collection including such attorney’s fees as may be allowed by law. Taxes: This price list does not include any Federal, State, City or Local taxes, which may apply and are subject thereto. Shipment: Requested carrier will be used upon request. Fagor has the right to ship via any responsible carrier if requested carrier is unavailable. Shipping charges are payable by consignee and any claims arising as such charges shall be resolved between the carrier and the consignee. Shipping dates are approximates. Fagor is not responsible for any delays in deliveries that are beyond our control. Damaged Merchandise: Inspect shipment for any damage, before accepting it. If damaged, open and inspect the contents with the carrier. Any damage should be noted and reported on the delivering carrier’s receipts. Fagor assumes nor responsibility for damages while in transit. Concealed Damage: If there is concealed damage to the equipment, notify the carrier immediately. Notification should be made verbally as well as in written form. Request an inspection by the shipping company of the damaged equipment. Retain all crating material until inspection has been made. Cancellations & Returns: Cancelled orders and returned merchandise are subject to a 25% restocking and handling charge. Written authorization is required for a return of any equipment. All equipment returned must be in its original factory crate; freight prepaid and must be in the same condition as originally shipped by Fagor. Returns will only be authorized within 30 days of invoice date. Warranty: Register your product with Fagor Commercial to validate you warranty. Service calls must be made directly through Fagor service department. 1‐(866)‐463‐2467 or e‐mail servicerequest@Fagorcommercial.com. *You may register your product online at http//:www.Fagorcommercial.com Page 12 For Customer Service: Call 1‐866‐GO FAGOR ...
- Page 13 FAGOR – BAR EQUIPMENT: Operations and Service Manual / Rev. April 2013 5.2 TECHINICAL INFORMATION If further technical information is needed, please contact the Service Department directly. Toll Free: (866) 463 2467 Phone: (305) 7790170 FAGOR 13105 NW 47th Ave Miami, Fl. 33054 Phone: (305) 779 0170 www.fagorcommercial.com Page 13 For Customer Service: Call 1‐866‐GO FAGOR ...
