A B B M E A S U R E M E N T & A N A LY T I C S | O p E R AT I N g I N S T R U C T I O N

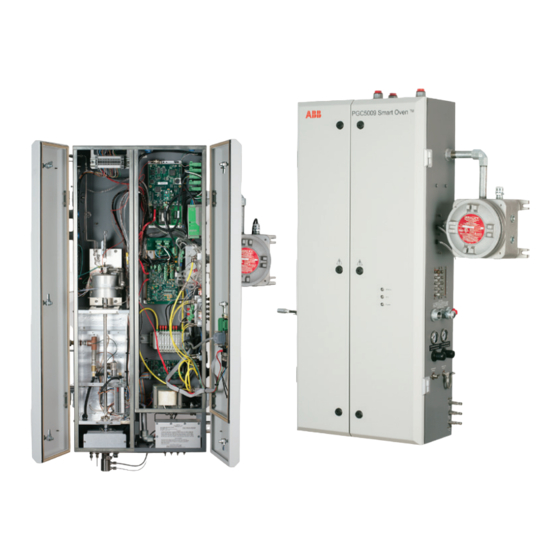

PGC5009
Fast gas chromatograph
Measurement made easy
Further information
Additional documentation on the pgC5009 fast
gas chromatograph is available for download at
www.abb.com/analytical.
Alternatively simply scan this code.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PGC5009 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABB PGC5009

Summary of Contents for ABB PGC5009

  • Page 1 A B B M E A S U R E M E N T & A N A LY T I C S | O p E R AT I N g I N S T R U C T I O N PGC5009 Fast gas chromatograph Measurement made easy Further information Additional documentation on the pgC5009 fast gas chromatograph is available for download at www.abb.com/analytical. Alternatively simply scan this code.
  • Page 2 ABB Inc. and its affiliates are not liable for damages and/or losses related to such security breaches, any unauthorized access, interference, intrusion, leakage and/or theft of data or information.

  • Page 3: Table Of Contents

    PGC5009 PGC5009 Fast GC Oven Appendix Contents Contents Technical description ......... 18 Safety and symbols ..........4 General description ..........18 Introduction ............5 Functional description ........... 18 General description ..........5 Column housing ............. 19 4.3.1 Liquid sample valve ........19 Oven assembly ............

  • Page 4: Safety And Symbols

    PGC5000 Generation 2 PGC5009 Fast GC Oven Appendix 1 Safety and symbols 1 Safety and symbols The following symbols are used in this manual to alert the user to possible hazards and to provide additional information. Indicates that referenced items are...

  • Page 5: Introduction

    2 Introduction 2.1 General description The Process Gas Chromatograph, Fast Simulated Distillation PGC5009 (Fast GC), analyzes samples with wide variations in component boiling points or molecular weights, much faster than standard process gas chromatographs. It automatically samples and analyzes process streams, using the analyzer’s Master Controller to control analytical functions. It maintains the same look and feel as the standard PGC5000 Process Gas Chromatograph.

  • Page 6: Installation

    PGC5000. 2.4 Start-up and operation The PGC5009 utilizes a standard PGC5000 Master Controller. While the oven is unique to the PGC5009, the start-up and operation remains the same as for the PGC5000. OI/PGC5009-EN Rev. A...

  • Page 7: Software & Setup

    PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup 3 Software & Setup 3.1 Introduction This is an operational guide in the implementation and maintenance of various data, tables, and requests necessary for Simulated Distillation operation. It is assumed that the operator possesses the fundamental skills required for normal operation of the controller using the Front Panel &...

  • Page 8: Summary

    PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup closely match the lab D-86 data. The results are much more repeatable and precise, agreeing from one instrument to another, than any D-86 results, whether obtained manually or automatically. 3.2.2 Summary Simulated Distillation Analyzers are NOT intended to be used to obtain final specification data for gasoline (D-439) or any other petroleum product.

  • Page 9: Blank Run

    PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup Carbon Number Calibration uses standard peak analysis to measure the Retention Time and Response Factor for the defined set of Carbon Number Components used to generate the time vs. boiling point relationship. For example, the standard 19 components of an ASTM-D3710 Carbon Number Calibration are shown in Figure 3.1.

  • Page 10: Sample Run

    PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup 3.3.3 Sample run During a Sample Run (Analysis Run), the process sample to undergo Simulated Distillation is injected. Gating for data collection is turned on right after the time of the first Cal peak and it is turned off right before the time of the last Cal peak. It is essential that the sample fully elutes between the times of the first and last Calibration peaks.

  • Page 11: Streams

    PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup Typical components that may appear in an ASTM-D3710 Simulated Distillation Application are shown in Figure 3.4. Fig. 3.4. Typical Components, ASTM-D3710 Components defined for Carbon Number Calibration with ASTM-D3710 method must have a valid value in the Calibration Concentration field of the component configuration in order to correctly calculate a Response Factor for each carbon number peak.

  • Page 12: Editing The Time/Temperature Table

    PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup When the Run Type of “Carbon Calibration” is selected, also included in the configuration page is the Time/Temperature table. (See Figure 3.6.) Fig. 3.6. Carbon Calibration Example 3.4.3 Editing the time/temperature table Time and Temperature values must be in increasing order in the table.

  • Page 13: Analysis

    PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup Add Component Icon – When the Add Component icon is selected, a list of all defined components appears (see Figure 3.8). Click a component in the list to choose it. The new component is added after the selected (or first selected) line. If none are selected, the component is added to the end of the list.
  • Page 14 PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup The Simulated Dist. TCF sets up the context for the entire Simulated Distillation Sample Run. At least one (but only one) Simulated Dist. TCF must be included in the Sample Run Analysis. It includes (see Figure 3.10).
  • Page 15 PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup A “Component SD” TCF is required for reported output of the Sample Run analysis DESCRIPTION - Any descriptive word or phrase that you choose to reference the operation. Appears in the TCF list in •...

  • Page 16: Schedule

    PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup Most data entry for this TCF is by drop down pick menus. It is important that all Components are defined prior to creating an analysis with this TCF. 3.4.5 Schedule As with other applications of the PGC5000, Streams and Analyses are coupled in the Schedule.

  • Page 17: Reports

    PGC5009 PGC5009 Fast GC Oven Appendix 3 Software & Setup 3.4.6 Reports Example reports are shown for a Carbon Number Calibration Run (see Figure 3.16) and a Sample Run (see Figure 3.17). Fig. 3.16. Calibration Run Report Fig. 3.17. Sample Run Report...

  • Page 18: Technical Description

    4 Technical description 4.1 General description The PGC5009 Oven Assembly consists of a Column Housing and an Electronics Housing (see Figure 4.1). The Column Housing contains the detector, column, and liquid sample valve. The Electronics Housing contains the Detector Amplifier PCB, Power Supply, DTC Control PCB, EPC Control PCB, EPC Controller Assembly, and pneumatic operated solenoid drivers.

  • Page 19: Column Housing

    4.3.3 Detector The standard detector for the PGC5009 is the flame ionization detector (FID). The detector, mounted on top of the column, is explosion proof by design. This detector has a heater block surrounding it; otherwise it is the same as that used in the standard PGC5000.

  • Page 20: Maintenance And Repair

    PGC5009 PGC5009 Fast GC Oven Appendix 5 Maintenance and repair 5 Maintenance and repair 5.1 Maintenance procedures See the PGC5000 Service Manual (SI/PGC5000/GEN2) for all maintenance procedures. 5.2 FID repair This repair should only be attempted by people who are properly trained and possess the expertise for this repair.

  • Page 21: Replacing Fid Components

    PGC5009 PGC5009 Fast GC Oven Appendix 5 Maintenance and repair Open the Column Housing. Remove the three screws securing the detector assembly, using a 9/64-inch hex key wrench or ball driver. Rotate the detector cover latch counterclockwise until it is freed from the detector body.

  • Page 22: Removing The Column

    PGC5009 PGC5009 Fast GC Oven Appendix 5 Maintenance and repair 5.3.1 Removing the column If the analyzer is running and the column is to be replaced, stop the analyzer at the end of an analysis. Remove power from the analyzer.

  • Page 23: Installing The Column

    PGC5009 PGC5009 Fast GC Oven Appendix 5 Maintenance and repair 20. Remove the two screws holding the bottom isolation plate and retain these screws for later use (see Figure 5.4). Bottom Isolation Plate Fig. 5.4. Details at the Bottom of the Column 21.

  • Page 24: Liquid Sample Valve Repair

    PGC5009 PGC5009 Fast GC Oven Appendix 5 Maintenance and repair The column connection to the LSV must not be at ground (0 ohms). If it is grounded, remove the column and verify the connection. Place a nut and ferrule on the top end of the column.

  • Page 25: Repairing The Lsv

    PGC5009 PGC5009 Fast GC Oven Appendix 5 Maintenance and repair 5.4.2 Repairing the LSV See the PGC5000 Service Manual (SI/PGC5000/GEN2) for repair procedures. 5.4.3 Installing the LSV Open the Column Housing. Route the LSV cable through the hole on the left side of the bottom isolation bracket.

  • Page 26: Replacement Parts

    The replacement parts listed in this section supplement those contained in the SI/PGC5000/GEN2. For detailed information on ordering replacement parts, see SI/PGC5000/GEN2, or contact ABB Support Since the particular application defines the component parts specific to any given system, please refer to the “Recommended Spare Parts Lists”...
  • Page 27 PGC5009 PGC5009 Fast GC Oven Appendix Notes NOTES OI/PGC5009-EN Rev. A...
  • Page 28 We reserve the right to make technical changes or modify the contents of this document without prior notice. With regard to purchase orders, the agreed particulars shall prevail. ABB does not accept any responsibility whatsoever for potential errors or possible lack of information in this document.
