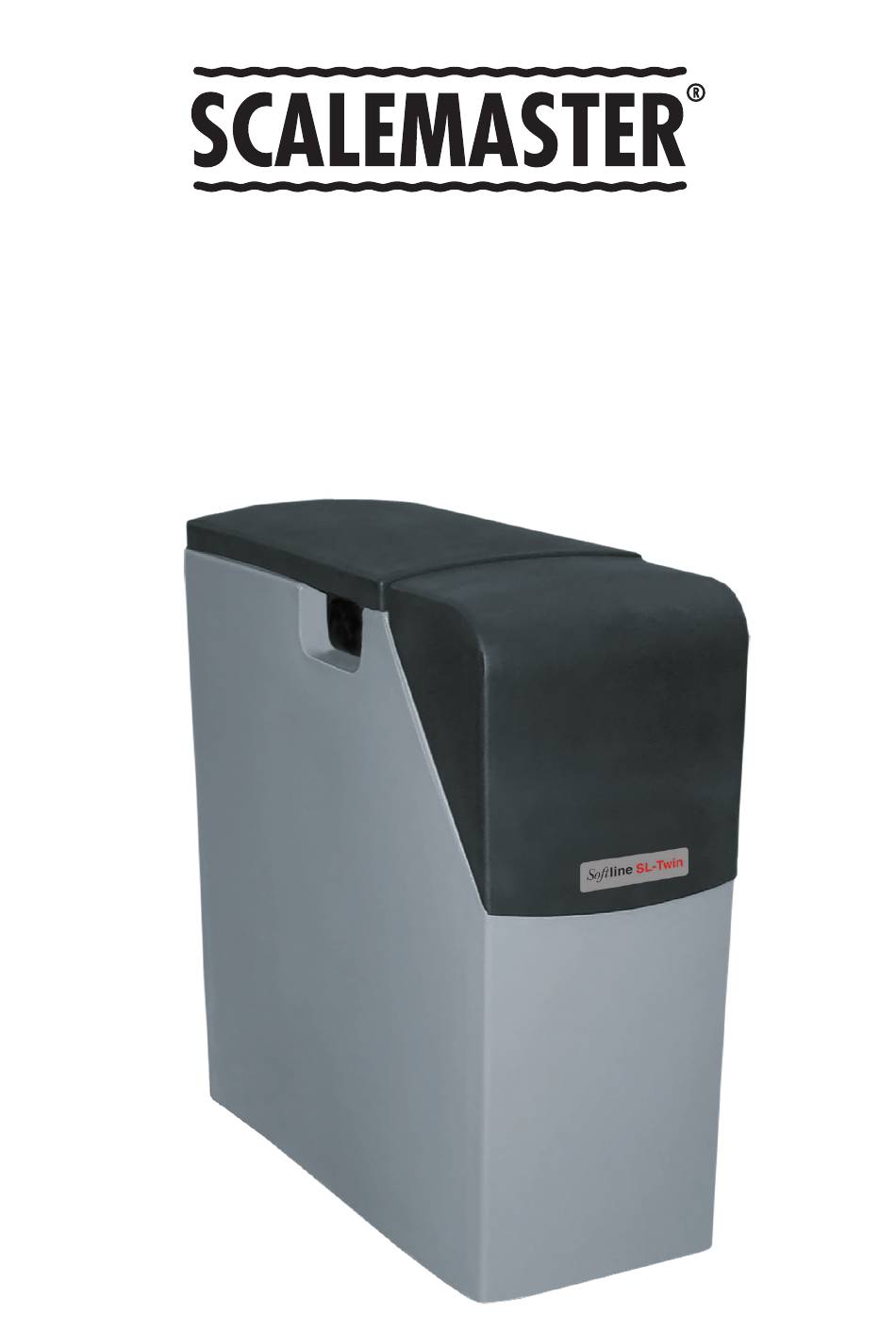

- Page 1 SCALEMASTER-TWIN WATER SOFTENER INSTALLATION INSTRUCTIONS...
- Page 2 Hello Thank you for choosing a Scalemaster-Twin Water Softener to improve the quality of your water. Scalemaster-Twin Water Softener Installation Instructions...
-
Page 3: Table Of Contents
CONTENTS Safety information Installation instructions Setting the brine valve Installation review Startup instructions Using your Scalemaster-Twin Maintaining your water softener Maintenance tips & FAQs Specifications Notes Scalemaster-Twin Water Softener Installation Instructions... -
Page 4: Safety Information
(ie. through the outside wall). Make sure the outlet is not higher than the barbed fitting. • When installing a plastic component on a copper pipe in line, Scalemaster recommends placing earth continuity straps ACROSS the component being fitted to ensure that the earth continuity is never broken. - Page 5 Figure 1: By-pass assembly with non-return valve/check valve on inlet Isolation Outlet To drinking water filter Inlet Air Gap Overflow through to outside Cold water supply To drain Scalemaster-Twin Water Softener Installation Instructions...
-
Page 6: Installation Instructions
Verify installation complies with local plumbing codes before continuing. Flush: After all the plumbing has been completed, but before connecting the water softener, flush both inlet and outlet lines allowing water to rinse out any debris in the lines. Scalemaster-Twin Water Softener Installation Instructions... - Page 7 2. This allows the inlet/outlet connections to be fitted on the preferred side of the cabinet for easier installation. Figure 2: In/out Drain retaining connector bracket Drain Overflow connector Overflow In/out retaining bracket Salt block bay Salt block bay Scalemaster-Twin Water Softener Installation Instructions...
- Page 8 Remove brine valve and adjust setting for the water hardness and meter disc being used (see page 16). Replace the brine valve and make sure the 1/4” brine line is secure and that the valve is sat firmly on the base of the unit. Scalemaster-Twin Water Softener Installation Instructions...
-
Page 9: Setting The Brine Valve
SETTING THE BRINE VALVE The standard salt dosage for the Scalemaster-Twin is 0.3 kg salt. The brine valve is prepared in the factory to take account of this. However, it is possible that the float may have moved during shipping and it is advisable to check the setting on each unit prior to installation. -
Page 10: Installation Review
Allow the brine drum to fill with water until the brine valve shuts off. The water level should be approximately one inch over the grid plate. TIP: If the cabinet does not fill with water, manually fill with 4 litres of mains water. Scalemaster-Twin Water Softener Installation Instructions... -
Page 11: Startup Instructions
NOTE: After the unit is pressurized, open the outlet valve, ensure isolation valve is closed. Open a tap in the house to release trapped air from the lines. Figure 4: Indicator Dot Actuator Scalemaster-Twin Water Softener Installation Instructions... -
Page 12: Maintaining Your Water Softener
01785 811636. Adding salt: The Scalemaster-Twin is designed to accommodate two 4kg blocks of salt in the front compartment although a good quality tablet salt can be used if desired. The water level will normally sit around 5cm above the salt grid and in contact with the salt. It is normal for one block to dissolve quicker than the other. - Page 13 Cold weather protection: dealer for more information. If your Scalemaster-Twin is installed outside or in an area that is not heated, you may Note: Kinetico’s warranty does not cover damage caused to your system due to want to take precautionary measures to prevent damage to your unit from freezing.
-
Page 14: Maintenance Tips & Faqs
If at any time you feel your Scalemaster-Twin requires a service, put the system in by-pass and call your local stockist. -
Page 15: Specifications
1.8 l/m Resin Type Fine mesh Pipe connections - in/out 3/4” Min./Max. Operating Pressure 12/120 PSI (0.83 BAR/8.3 BAR) Min./Max. Operating 1.7°C - 35°C Temperature Minimum Operating Flow 1.1 l/m Water used per cycle 23 litres Scalemaster-Twin Water Softener Installation Instructions... - Page 16 Technical and Customer Support 0808 134 2347 Scalemaster Limited Emerald Way, Stone Business Park, Stone, Staffordshire ST15 0SR 01785 811636 | scalemaster.co.uk...
