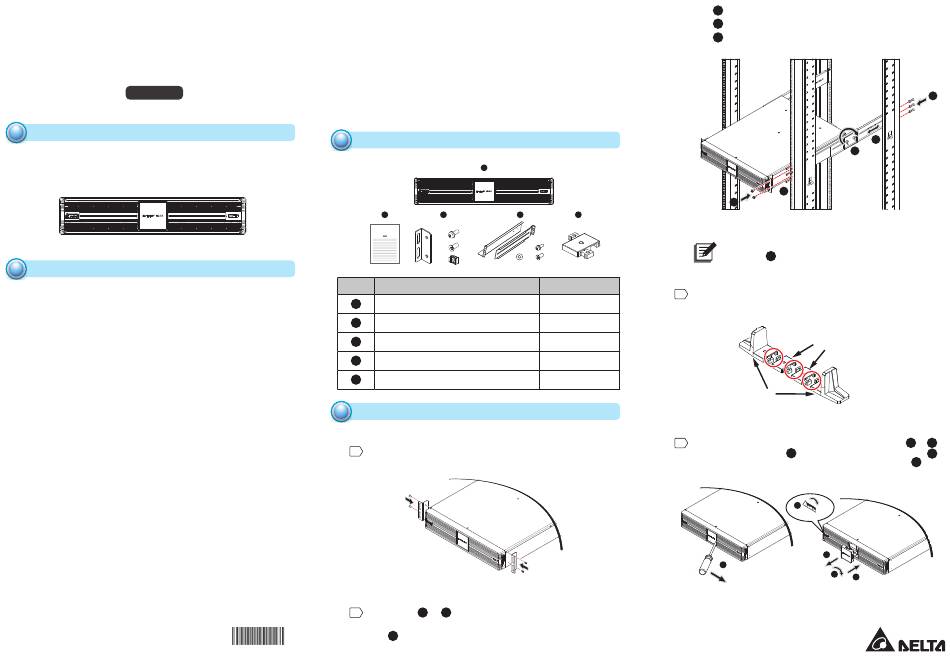

Delta RT PRO-1KB Installation & Operation Quick Manual

Delta UPS Accessory
External Battery Pack for
RT Pro 1/ 2/ 3 kVA
Installation & Operation Quick Guide
ENGLISH
1
Product Introduction
The Delta External Battery Pack is applicable to the Delta Amplon RT 1/ 2/
3kVA UPS. When the UPS is operating during a power outage, the battery
pack provides DC power, which maintains inverter operation to supply power
to the critical loads connected to the UPS.
(Figure 1: Delta External Battery Pack Front View)
2
Important Safety Instructions

Servicing of batteries and battery packs must be performed or supervised
by qualified service personnel knowledgeable in batteries, battery packs
and the required precautions. Keep unauthorized personnel away from
batteries and battery packs.

A battery can present a risk of electric shock and high short-circuit
current.

To reduce the risk of fire or electric shock, install the battery pack in a
tempera-ture and humidity controlled indoor area free of conductive
contaminants.

Forbid opening or removing the cover of the battery pack to avoid high
voltage electric shock.

The risk of dangerous high voltage is possible when the batteries are still
connected to the UPS even though the UPS is disconnected from the
mains. Do not forget to disconnect the battery cable to completely cut off
the battery source.

Turn off the UPS and cut off the AC source before performing battery/
battery pack replacement.

Only use the same type of batteries from the same supplier. Never use
old, new and different Ah batteries at the same time.

The number of batteries must meet UPS requirements.

Do not reverse or short circuit the polarity + and – when connecting the
batte-ries because this will destroy the device and constitute a risk of
electric shock or fire.

Use a voltage meter to measure whether the total voltage, after battery
pack connection, is around 12.5Vdc × the total number of batteries.

The external slits and openings in the battery pack are provided for
ventilation. To ensure reliable operation of the battery pack and to protect
the battery pack from overheating, these slits and openings must not be
blocked or covered. Do not insert any object into the slits and openings
that may hinder ventilation.

Do not allow liquid or any foreign object to enter the battery pack.

Do not place beverages or any other liquid-containing vessels on or near
the battery pack.
www.deltapowersolutions.com

Do not dispose of the battery or batteries in a fire. The batteries may
explode.

Do not open or mutilate the battery or batteries. The released electrolyte
is harmful to the skin and eyes and may be toxic.

Observe the following before replacing batteries:
1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on the top of batteries.
5. Disconnect charging source prior to connecting or disconnecting
batteries' terminals.
3
Package List
2
Delta UPS - Amplon Family
Delta External Battery Pack for
Amplon RT 1/ 2/ 3kVA UPS
Installation & Operation Quick Guide
ENGLISH
No.
1
Delta External Battery Pack
2
Installation & Operation Quick Guide
3
Bracket Ear
4
Rail Kit
5
Tower Stand Extender
4
Installation Procedures

Rack Mounting:
Attach the included bracket ears to the lateral mounting holes of the
1
Delta external battery pack. See Figure 2 .
2 Follow steps
the provided rail kit and your rack. See Figure 3 .
1
Step : Adjust the length of the rails according to your rack.
5013314200
1
3 4 5
× 4
× 2 × 4 × 4
× 8 × 8
× 4
Item Q'ty
1 PC
1 PC
1 SET
1 SET
4 PCS
(Figure 2: Mount the Bracket Ears)
1 4
to to install the Delta external battery pack into
Step 2 : Tighten the rails' nuts.
3
Step : Fix the rails on your rack.
4
Step : Insert the Delta external battery pack into your rack and
tighten the provided screws.
3
4
(Figure 3: Insert the Delta External Battery Pack into Your Rack)
NOTE: If you want to use a non-Delta rail kit, please only
follow step 4 .

Tower Mounting:
1 Connect the provided stand extenders with the tower standards
provided in the UPS's carton (please take the UPS and the Delta
external battery pack's size into consideration). See Figure 4 .
Tower Stand Extender
Tower Stands
(Figure 4: Assemble the Tower Stands)
2 Pull out the Delta external battery pack's control panel (
rotate it 90° clockwise ( 3 ) and re-insert the control panel (
After that, rotate the Delta logo nameplate 90° clockwise (
Figure 5 .
5
Rotate 90°
2
1
3
(Figure 5: Rotate the Delta External Battery Pack's
Control Panel & Delta Logo Nameplate)
Continue to the Next Page 
3
1
2
1 2
& ),
4 ).
5 ). See
