Summary of Contents for Delta Associate Digital Projection M-Vision Laser 21K Series

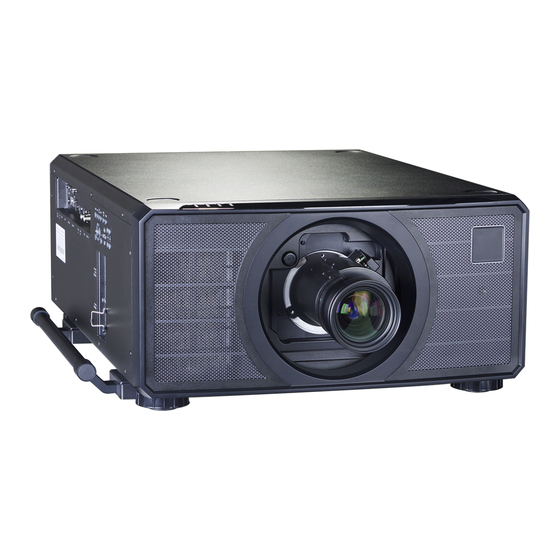

- Page 1 M-Vision Laser 21K Series High Brightness Digital Video Projector INSTALLATION & QUICK START GUIDE CONNECTION GUIDE OPERATING GUIDE REFERENCE GUIDE Rev B December 2019 119-680...
-
Page 2: About This Document
Digital Projection Ltd. M-Vision Laser 21K Series About this document About this document Notes Follow the instructions in this manual carefully to ensure safe and long-lasting use of the projector. Symbols used in this document Many pages in this document have a dedicated area for notes. The information in that area is accompanied by the following symbols: WARNING: this symbol indicates that there is a danger of physical injury to yourself and/or damage to the equipment unless the instructions are closely followed. -
Page 3: Laser Information
Laser information Digital Projection Ltd. M-Vision Laser 21K Series Laser information Notes LASER RADIATION 激光辐射 AVOID DIRECT EYE EXPOSURE 避免眼睛受到直接照射 CLASS 3R LASER PRODUCT 3R类激光产品 波长 : 450-460 nm (蓝) Emitted Wavelength : 450-460 nm (Blue) 最大脉冲能量: 0.45 mJ (蓝), max pulse energy : 0.45 mJ (Blue) Pulse duration : 0.87 ms (Blue) 脉冲时间: 0.87 ms (蓝) -
Page 4: Light Hazard Warning
Digital Projection Ltd. M-Vision Laser 21K Series Light Hazard Warning Light Hazard Warning Notes The hazard distance is the distance measured from the projection lens at which the intensity or energy per unit of No direct exposure to the beam surface is lower than the applicable exposure limit on the is permitted, RG3 IEC 62471- 5:2015. -
Page 5: Introduction
Introduction Digital Projection Ltd. M-Vision Laser 21K Series Introduction Notes Congratulations on your purchase of this Digital Projection product. Your projector has the following key features: WUXGA projector. WUXGA native resolution delivering 21,000 ISO lumens. Support for Frame Sequential and Dual Pipe 3D formats. HDBaseT®... -
Page 6: Table Of Contents
Digital Projection Ltd. M-Vision Laser 21K Series Contents Contents Notes About this document Switching the projector off Symbols used in this document Selecting an input signal Product revision Selecting a test pattern Legal notice Adjusting the lens Laser information Lens menu Optical radiation Remote control Light Hazard Warning... - Page 7 Contents Digital Projection Ltd. M-Vision Laser 21K Series Notes Inside a menu Blanking Accessing sub menus Keystone Executing commands Keystone example Editing projector settings Keystone settings Using a slider to set a value 4 Corners Editing numeric values Top right corner example Using the projector Rotation Main Menu...
- Page 8 Digital Projection Ltd. M-Vision Laser 21K Series Contents Notes Measured data/ target data WUXGA images displayed full height Power on/off ManagementPower on/off Diagonal screen sizes Clock Adjust Positioning the image OSD Settings Aspect ratios explained Memory Aspect ratios examples EDID Mode Source: 4:3 Network Source: 16:9...
- Page 9 M-Vision Laser 21K Series High Brightness Digital Video Projector INSTALLATION & QUICK START GUIDE Rev B December 2019 119-680...
-
Page 10: What's In The Box
Digital Projection Ltd. M-Vision Laser 21K Series What's in the box? What's in the box? Notes Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Only one remote is supplied with the projector. Save and store the original box and packing materials, in case you ever need to ship your projector. -
Page 11: Connecting The Power Supply
Connecting the power supply Digital Projection Ltd. M-Vision Laser 21K Series Connecting the power supply Notes 1. Lift the cable lock up Use only the power cable 2. Firmly push the mains connector into the socket provided. 3. Push the lock down to secure the cable Ensure that the power outlet includes a ground connection as this equipment MUST be... -
Page 12: Projector Overview
Digital Projection Ltd. M-Vision Laser 21K Series Projector overview Projector overview Notes 1. Connections panel 2. Control panel 3. Indicators 4. Lens mount 5. Front infrared window 6. Lifting handles 7. Mains socket and switch 8. Air inlet Front View Installation &... -
Page 13: Control Panel
Control panel Digital Projection Ltd. M-Vision Laser 21K Series Control panel Notes 1. POWER Switches the projector on and off (STANDBY). 2. INPUT Switches to the next input source. 3. AUTO SYNC AUTO CENTER Re-synchronises with the current input signal. POWER INPUT ASPECT... -
Page 14: Remote Control
Digital Projection Ltd. M-Vision Laser 21K Series Remote control Remote control Notes 1. Power ON / OFF Turns power on and off. 2. Pic Mute OPEN / CLOSE The PIC Mute setting is defined in Shows and hides the projected image. the setup menu. - Page 15 Remote control Digital Projection Ltd. M-Vision Laser 21K Series 11. LENS adjustment Notes FOCUS IN / OUT: adjust focus. SHIFT: press and hold this button, then use the Navigation arrow buttons to move the lens. ZOOM IN / OUT: adjust zoom. Pic Mute 12.
- Page 16 Digital Projection Ltd. M-Vision Laser 21K Series Remote control 17. DISPLAYPORT 1 / R / numeric input 4 Notes Select DisplayPort 1 input. 18. HD-T / G / numeric input 5 Select the HDBaseT input. 19. VGA / 3D / numeric input 7 Pic Mute There is no VGA input on this projector.
-
Page 17: Infrared Reception
Remote control Digital Projection Ltd. M-Vision Laser 21K Series Infrared reception Notes The projector has infrared sensors at the front and back. 40˚ The angle of acceptance is 40°. Make sure that the remote control is within the angle of acceptance when trying to control the projector. -
Page 18: Positioning The Screen And Projector
Digital Projection Ltd. M-Vision Laser 21K Series Positioning the screen and projector Positioning the screen and projector Notes 1. Install the screen, ensuring that it is in the best position for viewing by your audience. 2. Mount the projector, ensuring that it is at a suitable distance from the screen for the image Always allow the projector to cool for 5 minutes before to fill the screen. -
Page 19: Roll And Pitch
Positioning the screen and projector Digital Projection Ltd. M-Vision Laser 21K Series Roll and pitch Notes The projector can be operated in numerous positions. Positioning the projector with the lens facing down or the inputs facing up may reduce motor life. 360˚... -
Page 20: Stacking And Rigging
Digital Projection Ltd. M-Vision Laser 21K Series Positioning the screen and projector Stacking and rigging Notes Pin and cup stacking The projectors must be in a 1. Remove the six screws on vertical position when they are the top side of the stacked. - Page 21 Positioning the screen and projector Digital Projection Ltd. M-Vision Laser 21K Series 3. Remove the adjustable feet from the projector that will be stacked on the top. Notes 4. Mount the projector on top of the other projector. Ensure that all four cups are placed over the pins on the bottom projector.
-
Page 22: Changing The Lens
Digital Projection Ltd. M-Vision Laser 21K Series Changing the lens Changing the lens Notes Inserting a new lens Before changing the lens, 1. Remove the front and rear lens caps always make sure the projector is switched off and fully 2. -
Page 23: Removing The Lens
Changing the lens Digital Projection Ltd. M-Vision Laser 21K Series 3. Rotate the lens clockwise until it clicks into place. Notes Removing the lens 1. Push the lens release button all the way in 2. Turn the lens anti-clockwise until it disengages 3. -
Page 24: Fitting A Lens Hood
Digital Projection Ltd. M-Vision Laser 21K Series Changing the lens Fitting a lens hood Notes 1. Push-fit the lens hood onto the lens. FDA regulations requires that a lens hood is permanently fitted when using the 4.00 - 7.00 : 1 zoom lens with the M-Vision Laser range of projectors in the United States of America. -
Page 25: Operating The Projector
Operating the projector Digital Projection Ltd. M-Vision Laser 21K Series Operating the projector Notes Switching the projector on See Connecting the power supply 1. Ensure a lens is fitted. Connect the power cable between the mains supply and the projector. (See Connecting the power supply above.) Switch on at the on page 11. -
Page 26: Adjusting The Lens
Digital Projection Ltd. M-Vision Laser 21K Series Operating the projector Adjusting the lens Notes The lens can be adjusted using the Lens menu, or using the lens buttons on the remote control. Lens menu The Lens menu provides access to the Lens Control setting and the Lens Center command. Lens Control allows Zoom, Focus and Shift adjustments using the arrow buttons. - Page 27 M-Vision Laser 21K Series High Brightness Digital Video Projector CONNECTION GUIDE Rev B December 2019 119-680...
-
Page 28: Signal Inputs
Digital Projection Ltd. M-Vision Laser 21K Series Signal inputs Signal inputs Notes Digital inputs and outputs 1. HDBaseT Receives digital signal from HDBaseT-compliant For simultaneous HDBaseT and 3D SYNC - devices. Connect an HDBaseT cable. LAN connectivity, a third-party TRIGGER RS-232 distribution product can be utilised 2. -
Page 29: Edid On The Displayport, Hdmi, And Hdbaset Inputs
Signal inputs Digital Projection Ltd. M-Vision Laser 21K Series EDID on the DisplayPort, HDMI, and HDbaseT inputs Notes If you are using a computer graphics card or another source that obeys the EDID protocol, the source will automatically configure itself to suit the capability of the projector. -
Page 30: 3D Connections
Digital Projection Ltd. M-Vision Laser 21K Series 3D connections 3D connections Notes 1. HDMI 1 / Dual Pipe Left HDMI 1.4b input supporting Frame Sequential and 3D SYNC - Dual Pipe 3D with HDCP 1.4. Also supports the domestic Blu-Ray formats. See supported signal TRIGGER RS-232 input modes on page 103. -
Page 31: 3D Sync
3D connections Digital Projection Ltd. M-Vision Laser 21K Series 3D Sync Notes 1. 3D Input 2. 3D Sync In 3. 3D Sync Out 4. IR emitter or Zscreen Connection Guide Rev B December 2019 page 31... -
Page 32: Control Connections
Digital Projection Ltd. M-Vision Laser 21K Series Control connections Control connections Notes 1. Trigger 1 & Trigger 2 The Trigger outputs are defined in the Setup menu. For a list of all commands used to control the projector via LAN, see Each ouput can be triggered by one of the following the Protocol Guide (available conditions:... -
Page 33: Lan Connection Examples
Control connections Digital Projection Ltd. M-Vision Laser 21K Series LAN connection examples Notes The projector’s features can be controlled via a LAN connection, using Digital Projection’s Projector Controller application or a terminal emulation program. With a LAN connection the projector can serve a web page offering basic projector controls. -
Page 34: Rs232 Connection Example
Digital Projection Ltd. M-Vision Laser 21K Series Control connections RS232 connection example Notes All of the projector’s features can be controlled via a serial connection, using commands described in the Protocol Guide. The Protocol Guide is available separately Straight through cable Computer to Projector Connection Guide Rev B December 2019... - Page 35 M-Vision Laser 21K Series High Brightness Digital Video Projector OPERATING GUIDE Rev B December 2019 119-680...
-
Page 36: Using The Menus
Digital Projection Ltd. M-Vision Laser 21K Series Using the menus Using the menus Notes Opening the Menu Access the various menus using AUTO CENTER POWER INPUT ASPECT PIC MUTE either the projector control panel SYNC LENS or the remote control. On either device: 1. -
Page 37: Exiting Menus And Closing The Osd
Using the menus Digital Projection Ltd. M-Vision Laser 21K Series Exiting menus and closing the OSD Notes To go back to the previous page: Main Menu Main Menu 1. Press EXIT. Input HDMI 1 ▲ To close the OSD: Test Pattern ►... -
Page 38: Accessing Sub Menus
Digital Projection Ltd. M-Vision Laser 21K Series Using the menus Accessing sub menus Notes Use the UP and DOWN arrow buttons to highlight the sub-menu, then press ENTER/OK. Executing commands If the item contains a command, highlighting it reveals an Menu Name Command Name OK button. -
Page 39: Editing Projector Settings
Using the menus Digital Projection Ltd. M-Vision Laser 21K Series Editing projector settings Notes If the highlighted menu item contains a list of values to choose from, you can change the value by doing the Menu Name following: Some menu items may be unavailable due to settings in other Highlighted Item Current Value... -
Page 40: Editing Numeric Values
Digital Projection Ltd. M-Vision Laser 21K Series Using the menus Editing numeric values Notes Some parameters take numeric values without using sliders - for example, color matching values or IP Data addresses. x: 0.658 y: 0.339 1. Use the UP and DOWN arrow buttons to highlight the row containing the numeric field you wish to edit. Highlighted Row x: 0.315 y: 0.662 2. -
Page 41: Using The Projector
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Notes Main Menu Input Main Menu Main Menu Press ENTER/OK to open the list of available See Signal inputs on page 28 for inputs. Use the UP and DOWN arrow buttons to Input HDMI 1 information about the available... -
Page 42: Lens Menu
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Lens menu Notes Lens Lock Lens When this feature is On, all other Lens menu items are disabled. Lens Lock Lens Control Opens a sub-menu, see below. Lens Control ► Center Lens Center Lens Centers the lens. -
Page 43: Lens Memory
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Lens memory Notes This menu allows you to load, save and delete up to ten lens presets, containing horizontal and vertical shift Lens Memory adjustment information. The lenses for the M-Vision series can only store horizontal and Load Memory ►... -
Page 44: Image
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Image Notes Picture Mode Image Choose from High Bright, Presentation and Video. Use a different setting depending the type of input source. Picture Mode High Bright Press ENTER/SELECT to open the list. Light Off Timer –... -
Page 45: Color
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Color Notes Color Color Space Auto Color Mode ColorMax ColorMax Peak Manual Color Matching ► Color Temperature Native Gains and Lifts ► 3 Color Matching ► 7 Color Matching ► Color Space In most cases, the Auto setting determines the correct colorspace to use. -
Page 46: Color Mode
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Color Mode Notes The projector can work in the following color modes: Color Only one color mode can be ColorMax selected at a time. Settings used Color Space Auto by the other color modes are Manual Color Matching Color Mode ColorMax... -
Page 47: Manual Color Matching
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Manual Color Matching Notes 1. Set Color Mode to Manual Color Matching. Manual Color Matching 2. Open the Manual Color Matching submenu. Auto Test Pattern Here you can do the following: ►... -
Page 48: Color Matching Parameters Explained
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Color matching parameters explained Notes The levels of hue, saturation and gain in the Manual Color Matching menu change the color values in the following ways: 1. Hue Specifies the position of each color (red, yellow, green, cyan, blue and magenta) relative to its neighboring colors. -
Page 49: Color Temperature
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Color Temperature Notes 1. Set Color Mode to Color Temperature. Color 2. Navigate to the Color Temperature setting. Choose a value from 3200K (warmer) to 9300K (cooler) or Color Space Auto Native (no correction). -
Page 50: Color Matching
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector 3 Color Matching Notes 1. Set Color Mode to 3 Color Matching. 3 Color Matching 2. Open the 3 Color Matching submenu. Auto Test Pattern Here you can do the following: ►... -
Page 51: Color Matching
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series 7 Color Matching Notes 1. Set Color Mode to 7 Color Matching. 7 Color Matching 2. Open the 7 Color Matching submenu. Auto Test Pattern Here you can do the following: ►... -
Page 52: Geometry
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Geometry Notes This menu allows you to compensate for image distortions caused by an unusual projection angle or irregular Geometry screen surface. Select the Warping Mode you want to use before opening its Aspect Ratio Source submenu. -
Page 53: Theaterscope Setting
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Theaterscope setting Notes The TheaterScope setting is used in combination with an anamorphic lens to restore 2.35: images packed into a 16:9 frame. Such images are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios. TheaterScope is used with an anamorphic lens. -
Page 54: Digital Zoom
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Digital Zoom Notes Digital zooming enlarges a section of the image, while the area outside the enlarged section is cropped out to Digital Zoom preserve the overall image size. Digital Zoom is a temporary setting and not retained after an input Digital Zoom Digital Zoom defines the level of zoom that needs to be applied. -
Page 55: Overscan
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Overscan Notes Use this setting to compensate for noisy or badly defined image edges. Geometry Crop removes unwanted artifacts from the edges of your image by cropping the edges. Aspect Ratio Source Zoom increases the size of the image to force the edges off-screen Digital Zoom... -
Page 56: Blanking
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Blanking Notes Use this feature to: Blanking fit an odd-sized screen; cut off timecode dots in the top line of a picture; Bottom cut off subtitles, etc. Left Select the edge you wish to blank and use the LEFT and RIGHT arrow buttons to determine the amount of Right correction. -
Page 57: Keystone
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Keystone Notes Use this setting to compensate for any distortion caused by the projector being in a different horizontal or Keystone vertical plane to the screen. Max rotation in Keystone is reduced from normal rotation H Keystone V Keystone... -
Page 58: Keystone Example
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Keystone example Notes The projector is positioned at an angle The resulting image is distorted The image is corrected when Keystone is applied Operating Guide Rev B December 2019 page 58... -
Page 59: Keystone Settings
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Keystone settings Notes 1. Projector to the left The projector is positioned to the left of the screen. To correct, apply a positive Horizontal Keystone value using the RIGHT arrow button. -
Page 60: Corners
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector 4 Corners Notes For each corner, apply horizontal and / or vertical correction as necessary to restore the rectangular shape of 4 Corners the image. Corner corrections provide a simple setup for awkward installations and Top Left Corner ►... -
Page 61: Top Right Corner Example
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Top right corner example Notes In this illustration, the top right corner requires both horizontal and vertical correction. Top Right Corner Adjustment Top Right Corner x Top Right Corner y Operating Guide Rev B December 2019 page 61... -
Page 62: Rotation
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Rotation Notes Use this feature for example to correct a mounting error causing the image not to be level with the screen. Rotation Rotation Reset Operating Guide Rev B December 2019 page 62... -
Page 63: Rotation Example
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Rotation example Notes 1. DMD™ area The DMD™ is not rotated. It still covers the area that would be occupied by the image without correction. 2. Rotated image The image is smaller than the surrounding DMD™ area. It is scaled in order to remain within the DMD™... -
Page 64: Pincushion / Barrel
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Pincushion / Barrel Notes Pincushion or barrel distortions are the result of poor or incorrect tensioning of the screen or using a surface Pincushion / Barrel that is not flat. H Pin/Barrel Use the Pincushion / Barrel control to compensate electronically for such distortions. -
Page 65: Arc
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Notes This feature is similar to Pincushion / Barrel but allows you to apply curvature to each edge of the image independently so you can have any combination of corrections. Please note that a positive Arc value on any edge will reduce the image size as the projector needs... -
Page 66: Custom Warp
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Custom Warp Notes This feature permits selection of predefined User warp maps. Use the Projector Controller PC application to Custom Warp create the custom warp maps. Custom warp maps provide non-linear curvature correction for curved or spherical screens and other irregular User 1 shaped surfaces such as building mapping. -
Page 67: Warping Grids
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Warping Grids Notes Switch warping grids on to overlay a grid onto the warped image. Custom Masking This feature permits selection of predefined masks. Use the Projector Controller PC application to create the custom masks. Use this feature to apply a custom mask to an area of the image. -
Page 68: Edge Blend
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Edge Blend Notes Use this menu to blend together images from an array of two or more projectors. The feature feathers the light Edge Blend output of the projector within the edges that overlap with other projectors in the array: as a result, the When Edge Blend is set to Off, all overlapping edges are evenly lit and easily blend in with the rest of the image. -
Page 69: Blend Start
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Blend Start Notes Use the blend start options to deactivate pixels at the edge of the image and set the start point for the blended Blend Start region. Use the LEFT and RIGHT arrow buttons to set the start point of the blended regions: 1. -
Page 70: Blend Width
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Blend Width Notes Use the LEFT and RIGHT arrow buttons to set the width of the blended regions: Blend Width 1. Top 2. Bottom Bottom 3. Left Left 4. Right Right Operating Guide Rev B December 2019... -
Page 71: Black Level Uplift
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Black Level Uplift Notes Black in the blended regions appears less dark than in the rest of the image. To compensate for this, use this Black Level Uplift menu to raise the black levels of the rest of the image: Enable Align Pattern from the Edge Blend menu to see the black Select Area... - Page 72 Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Notes Use this menu to enable, disable and set up 3D input, as follows: If 3D Format is set to Off, all other 3D Format 3D settings will be unavailable. 3D Format Auto Off, Auto, Side-by-side, Top and Bottom, Dual Pipe and Frame Sequential.
-
Page 73: Types
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series 3D types Notes To display a 3D image if is first necessary to select the 3D format. This can either be Frame Sequential or Dual Pipe. These formats are described below: Dual Pipe (LEFT and RIGHT) The left and right eye images are delivered on two separate HDMI links, which the projector will interleave for 3D display. -
Page 74: Some 3D Settings Explained
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Some 3D settings explained Notes Dark Time In order to achieve maximum light Banding can be caused if the image is displayed before output and a smooth grayscale, Fully On each eye of the 3D switching glasses or ZScreen is not fully whilst eliminating ghosting, the following procedure is... -
Page 75: Sync Offset
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Sync Offset Notes The sync signal from the 3D server will be in phase with the Incoming video frames generated by its graphics card. However, to compensate for switching delays in the glasses or ZScreen, Sync Offset is used to adjust the sync output signal sent to the ZScreen or 3D glasses to minimise overlapping (ghosting in the image when viewed through the 3D glasses. -
Page 76: Laser
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Laser Notes Power Mode Laser Eco will automatically set the laser power to 80%. Power Mode Normal Normal will set the power to 100%. Power Level – – – – Set to Custom if you wish to adjust the power manually. -
Page 77: Setup
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Setup Notes Orientation Setup Choose from Front Tabletop, Front Ceiling, Rear Tabletop, Rear Ceiling and Auto-front. Auto-front automatically detects the projector’s position and sets Orientation Auto-front High Altitude Table or Ceiling orientation Choose from On, Auto and Quiet. - Page 78 Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Trigger-1 and Trigger-2 Setup Notes Choose from Screen, 5:4, 4:3, 16:10, 16:9, 1.88, 2.35, TheaterScope, Source, Unscaled or RS232 to ▲ determine what will cause each trigger output to activate. Infrared Remote Trigger-1 The Projector Controller...
-
Page 79: Colormax
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series ColorMax Notes ColorMax permits seven point color matching of red, green, blue, yellow, cyan, magenta and white. ColorMax The Projector Controller You can enter your own gamut values here, or edit values you have imported using the Projector Controller software is available for download Measured Data ►... -
Page 80: Power On/Off Managementpower On/Off
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Power on/off ManagementPower on/off Notes Auto Power Off Power on/off Management Set this to On if you want the projector to go into STANDBY mode when no input source is detected for 20 minutes. -
Page 81: Clock Adjust
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Clock Adjust Notes Use this menu to set date (in dd:MM:yyyy format), time (in HH:mm format) and time zone. Clock Adjust The date and time set here will affect any schedule created within the Power On/Off menu. Date (dd:MM:yyyy) 30:11:2017 Time (HH:mm) -
Page 82: Memory
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Memory Notes The current image settings can be saved as a preset, which you can recall later. The default settings can be Memory recalled at any time as well. Presets from one input cannot be applied to another input. -
Page 83: Network
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Network Notes Network Mode Network Choose between Projector Control and Service. Network Mode Projector Control DHCP, IP, Subnet Mask, Gateway, DNS Set DHCP to On if the IP address is to be assigned by a DHCP server, or Off if it is to be set here. DHCP If DHCP is On, it will not be possible to edit IP Address, Subnet Mask, Gateway or DNS. -
Page 84: Pip
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector Notes Turn PIP on and off. Source Select an input source for the PIP image. Any combinations are possible between main and PIP input Source HDMI1 source, as long as one of the inputs is either DisplayPort or 3G-SDI. Position Top-Left Position... -
Page 85: Information
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Information Notes This menu gives information about software and hardware configuration, input source and laser operating Information times It also allows you to restore the factory default settings. Model Name M-VisionLaser 21K Serial Number X000XXXXX0000... -
Page 86: System Status
Digital Projection Ltd. M-Vision Laser 21K Series Using the projector System Status Notes System Status Atmospheric Pressure 98988 Pa (116m) AC Voltage 160V - 264V Ceiling Mode Tilt Angle 4 deg Portrait Angle 0 deg Altitude Mode Auto Laser Power 100% License Key License Pass,... -
Page 87: Factory Reset
Using the projector Digital Projection Ltd. M-Vision Laser 21K Series Factory Reset Notes To restore the factory default settings: Information Factory reset does not reset the 1. Navigate to Factory Reset and press ENTER/OK. Network settings, or High Altitude Model Name M-Vision Laser 21K mode 2. -
Page 88: Served Web Pages
Digital Projection Ltd. M-Vision Laser 21K Series Served web pages Served web pages Notes The served web pages allow you to control the projector remotely via LAN. The default IP address is 192.168.0.100. Operating Guide Rev B December 2019 page 88... - Page 89 M-Vision Laser 21K Series High Brightness Digital Video Projector REFERENCE GUIDE Rev B December 2019 119-680...
-
Page 90: Choosing A Lens
Digital Projection Ltd. M-Vision Laser 21K Series Choosing a lens Choosing a lens Notes A number of lenses are available. Which lens you choose depends on the screen size, image aspect ratio, throw distance and light output. Throw distance calculations are The following table shows all available lenses in order of their throw ratios: based on the distance from the outer end of the lens, which varies... -
Page 91: Basic Calculation
Choosing a lens Digital Projection Ltd. M-Vision Laser 21K Series Basic calculation Notes Identify the required lens by calculating the throw ratio. The basic calculation on this page A throw ratio is the ratio of the throw distance to the screen width does not take into consideration DMD™... -
Page 92: Basic Calculation Example
Digital Projection Ltd. M-Vision Laser 21K Series Choosing a lens Basic calculation example Notes 1. Calculate the throw ratio using the formula. Your screen is 4.5m wide and you wish to place the projector approximately 11m from the The basic calculation on this page INFORMATION YOU NEED FOR THIS CALCULATION screen. -
Page 93: Full Lens Calculation
Choosing a lens Digital Projection Ltd. M-Vision Laser 21K Series Full lens calculation Notes Introducing TRC The choice of lens will affect the image size and will address discrepancies between the DMD™ resolution and the source. TRC can only be applied if greater than 1. -
Page 94: Calculating Trc
Digital Projection Ltd. M-Vision Laser 21K Series Choosing a lens Calculating TRC Notes To calculate TRC, use the following formula: TRC can only be applied if greater than 1. If TRC is 1 or less, disregard it and calculate the throw ratio using the basic formula. -
Page 95: Full Lens Calculation Example
Choosing a lens Digital Projection Ltd. M-Vision Laser 21K Series Full lens calculation example Notes Your screen is 4.5m wide; you wish to place the projector approximately 11m from the screen. The source is 4:3. INFORMATION YOU NEED FOR THESE CALCULATIONS 1. -
Page 96: Screen Requirements
Digital Projection Ltd. M-Vision Laser 21K Series Screen requirements Screen requirements Notes Fitting the image to the display If the source image supplied to the projector is smaller than the WUXGA resolution, the image will not fill the display. The following examples show how a number of common formats may be displayed, depending on your DMD™... -
Page 97: Wuxga Images Displayed Full Height
Screen requirements Digital Projection Ltd. M-Vision Laser 21K Series WUXGA images displayed full height Notes 4:3 = 1.33:1 = 1596 pixels WUXGA = 16:10 = 1.6:1 = 1920 pixels Diagonal screen sizes Screen sizes are sometimes specified by their diagonal size (D). When dealing with large screens W = width and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H). -
Page 98: Positioning The Image
Digital Projection Ltd. M-Vision Laser 21K Series Positioning the image Positioning the image Notes The normal position for the projector is at the centre of the screen. However, you can set the projector above or below See Lens control on page 42 for the centre, or to one side, and adjust the image using the more information on shifting the lens. - Page 99 Positioning the image Digital Projection Ltd. M-Vision Laser 21K Series Any single adjustment outside the Notes ranges specified on the following page may result in an unacceptable level of distortion, See Lens control on page 42 for more information on shifting the particularly at the corners of the lens.
-
Page 100: Aspect Ratios Explained
Digital Projection Ltd. M-Vision Laser 21K Series Aspect ratios explained Aspect ratios explained Notes The appearance of a projected image on the screen depends on a combination of the following: The display resolution is WUXGA with a 1920 x 1200 resolution, corresponding to an aspect ratio of 16:10 The aspect ratio of the input signal: usually 4:3, 16:9 or 16:10 The value of the Aspect Ratio setting of the projector: 16:9, 4:3, 16:10 and 5:4 stretch the image to the selected aspect ratio. -
Page 101: Source: 16:9
Aspect ratios explained Digital Projection Ltd. M-Vision Laser 21K Series Source: 16:9 Notes Aspect Ratio 16:10 Aspect Ratio: Source / 16:9 Source: 16:10 (native) Aspect Ratio: Source / 16:10 Reference Guide Rev B December 2019 page 101... -
Page 102: Aspect Ratio Example: Theatrescope
Digital Projection Ltd. M-Vision Laser 21K Series Aspect ratios explained Aspect ratio example: TheatreScope Notes The TheaterScope setting is used in combination with an anamorphic lens to restore 2.35:1 images packed into a 16:9 frame. Such images are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios. -
Page 103: Appendix A: Supported Signal Input Modes
Appendix A: supported signal input modes Digital Projection Ltd. M-Vision Laser 21K Series Appendix A: supported signal input modes Notes 2D formats HDMI / HD-BaseT Signal Format Resolution H Freq. (kHz) Frame Rate (Hz) PCLK (MHz) Display Port HD/SDI/3G Remarks RGB YUV 8-bit YUV 10-bit YUV 12-bit 640x480 31.469... - Page 104 Digital Projection Ltd. M-Vision Laser 21K Series Appendix A: supported signal input modes HDMI / HD-BaseT Notes Signal Format Resolution H Freq. (kHz) Frame Rate (Hz) PCLK (MHz) Display Port HD/SDI/3G Remarks RGB YUV 8-bit YUV 10-bit YUV 12-bit 1920x1080 53.225 47.95 135.403...
-
Page 105: Formats
Appendix A: supported signal input modes Digital Projection Ltd. M-Vision Laser 21K Series 3D formats Notes HDMI Display HB Dual-pipe V-Freq H Freq. Output Frame Remarks: DisplayPort Standard Resolution Remarks *1: Based on IT6802 chip (Hz) Total (kHz) 1/2 (*1) Port (*2) HDMI (*3) Rate (Hz) - Page 106 Digital Projection Ltd. M-Vision Laser 21K Series Appendix A: supported signal input modes Notes HDMI Display HB Dual-pipe V-Freq H Freq. Output Frame DisplayPort Standard Resolution Remarks (Hz) Total (kHz) 1/2 (*1) Port (*2) HDMI (*3) Rate (Hz) (*3) Frame 1080p50 1920x1080 50.00 1125 56.25...
-
Page 107: Appendix B: Wiring Details
Appendix B: wiring details Digital Projection Ltd. M-Vision Laser 21K Series Appendix B: wiring details Notes Signal inputs and outputs HDMI 1 and 2 19 way type A connector 1. TMDS Data 2+ 2. TMDS Data 2 Shield HDMI: pin view of panel connector 3. -
Page 108: Displayport
Digital Projection Ltd. M-Vision Laser 21K Series Appendix B: wiring details DisplayPort Notes DisplayPort 1.2 Pin 1 ML_Lane 0 (p) Lane 0 (positive) Pin 2 Ground Pin 3 ML_Lane 0 (n) Lane 0 (negative) Pin 4 ML_Lane 1 (p) Lane 1 (positive) DisplayPort: pin view of panel connector Pin 5 Ground... -
Page 109: 3G-Sdi In, 3G-Sdi Out
Appendix B: wiring details Digital Projection Ltd. M-Vision Laser 21K Series 3G-SDI in, 3G-SDI out Notes 75 ohm BNC 3G-SDI connector HDBaseT input RJ45 socket. HDBaseT / LAN Reference Guide Rev B December 2019 page 109... -
Page 110: Control Connections
Digital Projection Ltd. M-Vision Laser 21K Series Appendix B: wiring details Control connections Notes Only one remote connection RJ45 socket (Shared with HDBaseT) (RS232 or LAN) should be used at any one time. HDBaseT / LAN RS232 9 way D-type connector 1. -
Page 111: Appendix C: Glossary Of Terms
Appendix C: glossary of terms Digital Projection Ltd. M-Vision Laser 21K Series Appendix C: glossary of terms Notes 1080p An HDTV resolution which corresponds to 1920 x 1080 pixels (a widescreen aspect ratio of 16:9). 3D active glasses Wireless battery-powered glasses with LCD shutters. Synchronization information is communicated to the glasses by means of an infrared (IR) or radio frequency (RF) emitter which is connected to the Sync Out terminal on the projector. - Page 112 Digital Projection Ltd. M-Vision Laser 21K Series Appendix C: glossary of terms Notes Blanking (projection) The ability to intentionally turn off, that is, set to black, areas around the edges of the projected image. It is sometimes referred to as “curtains” since it can be used to blank an area of image that literally falls on the curtains at the side of the screen in a movie theater.
- Page 113 Appendix C: glossary of terms Digital Projection Ltd. M-Vision Laser 21K Series Contrast (electronic control) Notes The adjustment of the white point of the image without affecting the black point. This increases the intensity range of the displayed image. Contrast (optical) The intensity difference between the darkest and lightest areas of the screen.
- Page 114 Digital Projection Ltd. M-Vision Laser 21K Series Appendix C: glossary of terms Edge tear Notes An artifact observed in interlaced video where the screen appears to be split horizontally. Edge tears appear when the video feed is out of sync with the refresh rate of the display device.
- Page 115 Appendix C: glossary of terms Digital Projection Ltd. M-Vision Laser 21K Series Notes HDCP (High-bandwidth Digital Content Protection) An encryption scheme used to protect video content. HDTV (High Definition Television) A television system with a higher resolution than SDTV and EDTV. It can be transmitted in various formats, notably 1080p and 720p. Hertz (Hz) Cycles per second.
- Page 116 Digital Projection Ltd. M-Vision Laser 21K Series Appendix C: glossary of terms Lumen Notes A photometric unit of radiant power. For projectors, it is normally used to specify the total amount of emitted visible light. Luminance Also known as ‘Y’, this is the part of a Component Video signal which affects the brightness, i.e. the black and white part. Noise Electrical interference displayed on the screen.
- Page 117 Appendix C: glossary of terms Digital Projection Ltd. M-Vision Laser 21K Series Pr, Pb Notes Color difference signals used with ‘Y’ for analog Component Video inputs. They provide information about the signal color. Not to be confused with Cr, Primary colors Three colors any two of which cannot be mixed to produce the third.
- Page 118 Digital Projection Ltd. M-Vision Laser 21K Series Appendix C: glossary of terms Synchronization Notes A timing signal used to coordinate an action. Test pattern A still image specially prepared for testing a projection system. It may contain various combinations of colors, lines and geometric shapes. TheaterScope An aspect ratio used in conjunction with a special anamorphic lens to display 2.35:1 images packed into a 16:9 frame.
- Page 119 Appendix C: glossary of terms Digital Projection Ltd. M-Vision Laser 21K Series Notes WUXGA A display resolution of 1920 x 1200 pixels with a 16:10 screen aspect ratio. (Stands for Widescreen Ultra Extended Graphics Array.) This is the luminance input (brightness) from a Component Video signal. Color difference signals used with ‘Y’...
- Page 120 Contact Information: Digital Projection Japan Digital Projection Asia Digital Projection China Digital Projection Inc. Digital Projection Limited 〒 105-0012 東 京 都 港 区 芝 大 門 16 New Industrial Road, #02-10 中 国 北 京 市 朝 阳 区 芍 药 居 北 55 Chastain Road, Suite 115, Greenside Way, Middleton, 2-1-14...
